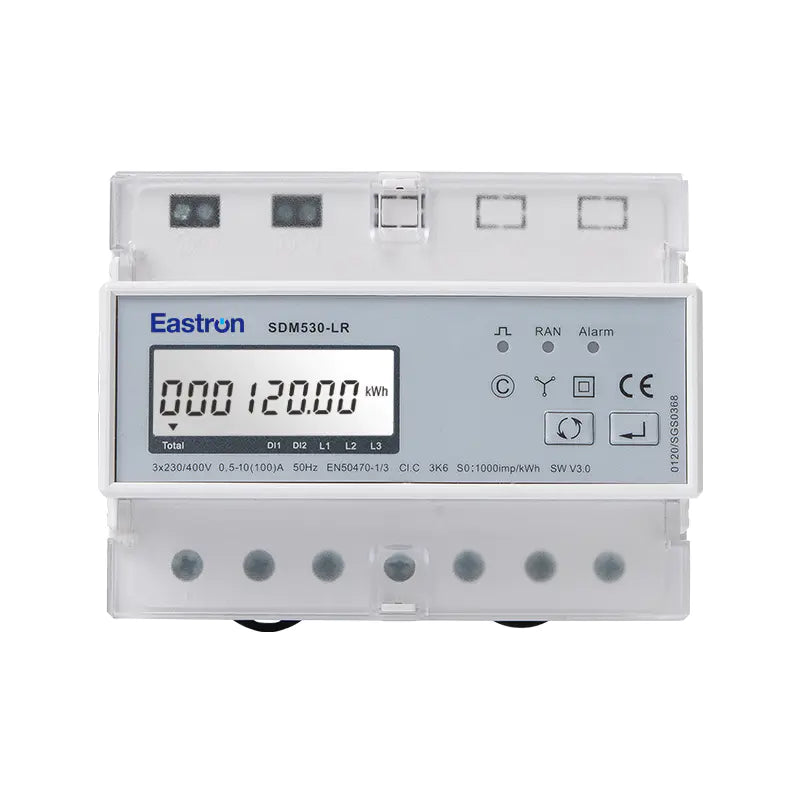

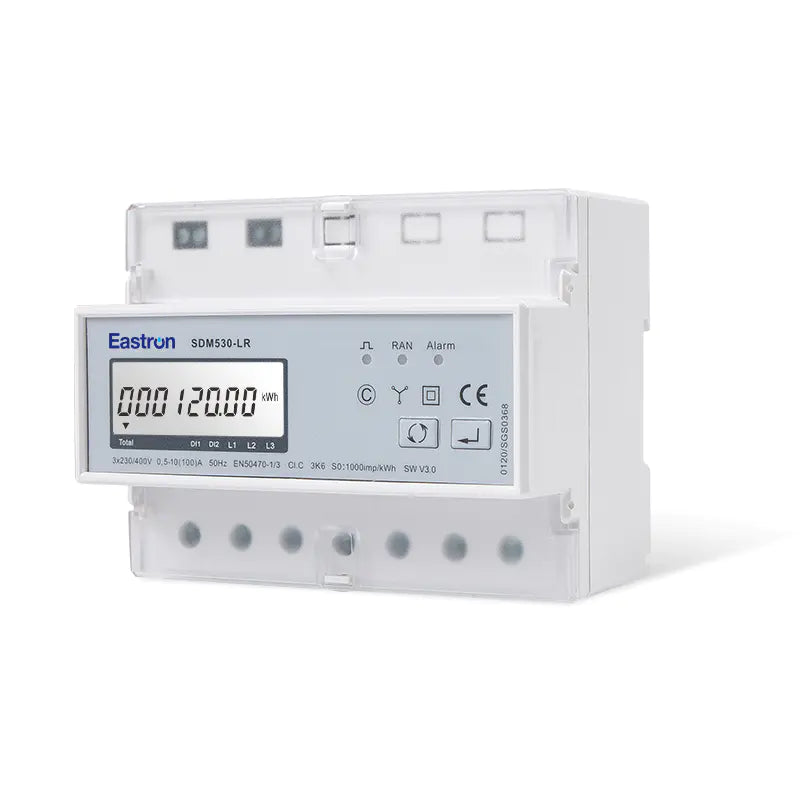

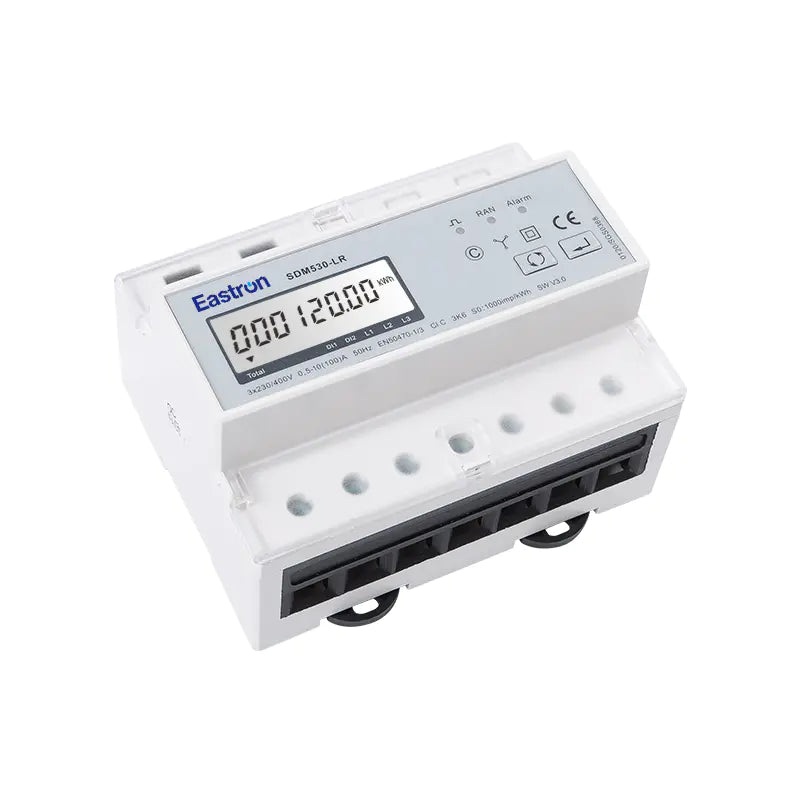

The EASTRON SDM530-LR is a LoRaWAN enabled three-phase multifunction energy meter with built-in relay for remote power control and energy monitoring applications.
The meter measures multiple electrical parameters including voltage, current, active power, reactive power, apparent power, frequency, power factor and imported/exported energy. Communication is performed via LoRaWAN wireless network, allowing remote energy monitoring, smart grid applications and industrial energy management systems.
The device includes a built-in relay that allows remote switching of electrical loads via LoRaWAN communication. The relay can be controlled remotely or automatically triggered when alarm conditions such as over-current, over-voltage or power faults occur.
The SDM530-LR is MID and RED certified and is suitable for industrial installations, commercial buildings, energy monitoring systems, smart buildings and remote power control applications.
This meter is ideal for smart energy monitoring, remote power control, smart buildings, industrial automation and IoT energy management systems.
📡 LoRaWAN Communication & Remote Control
The SDM530-LR supports:
- LoRaWAN wireless communication
- Remote energy monitoring
- Remote power control via built-in relay
- Alarm triggered relay control
- Multi-parameter energy monitoring
- Integration with IoT platforms and smart grid systems
- Energy pulse output
- MID / RED certified energy measurement
⚙️ Energy Meter Features
The EASTRON SDM530-LR offers:
- Three phase multifunction energy meter
- Built-in LoRaWAN communication
- Built-in relay for remote power control
- MID certified energy meter
- Multi-parameter measurement
- High accuracy Class 0.5s
- Pulse output
- Alarm monitoring and protection
- Suitable for industrial and commercial installations
- Suitable for smart grid and IoT energy monitoring
🔌 Typical Applications
- Remote energy monitoring
- Smart buildings
- Industrial automation
- Power distribution monitoring
- Smart grid applications
- Remote power control systems
- Energy management systems
- IoT energy monitoring
- Commercial energy monitoring
📦 Package Includes
- EASTRON SDM530-LR LoRaWAN Energy Meter
- Installation manual
- LoRaWAN communication documentation
Product Downloads
| Model | Eastron SDM530-LR |
| Type | Three Phase Multifunction Energy Meter with LoRaWAN |
| Mounting | DIN Rail (35mm) |
| Connection Type | Direct connection |
| Rated Voltage | 3 x 230/400V AC |
| Rated Current | 10A |
| Max Current | 100A |
| Starting Current | 40mA |
| Frequency | 50/60 Hz |
| Accuracy Class | Class 0.5s |
| Energy Measurement | kWh, kVArh, kVAh |
| Measured Parameters | Voltage, Current, Power, Frequency, Power Factor, Energy |
| Communication | LoRaWAN |
| Relay Output | Built-in remote control relay |
| Pulse Output | Yes |
| Operating Temperature | -25°C to +55°C |
| Protection | IP51 (Indoor) |
