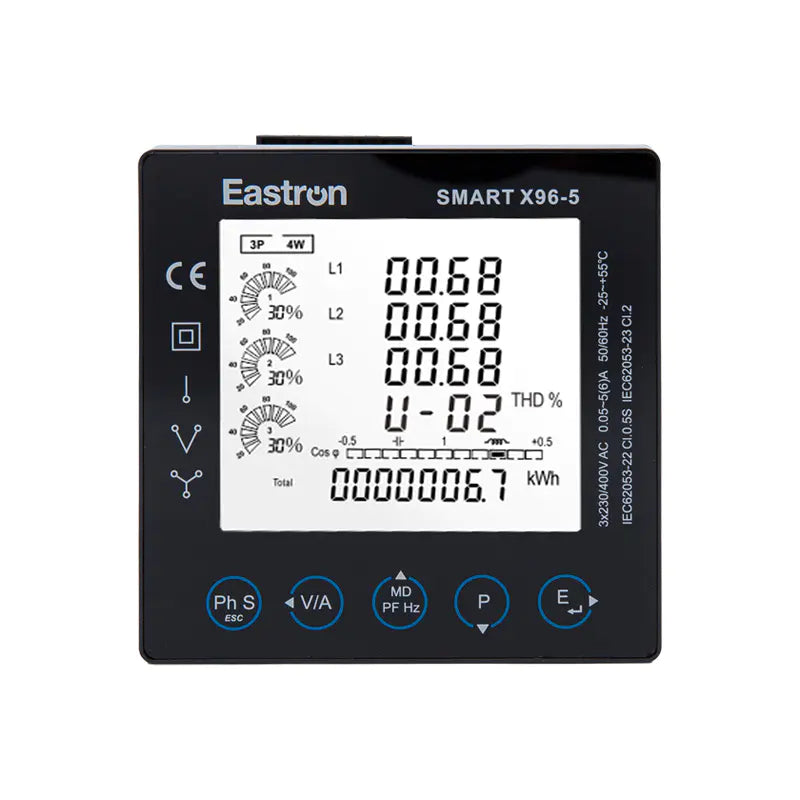

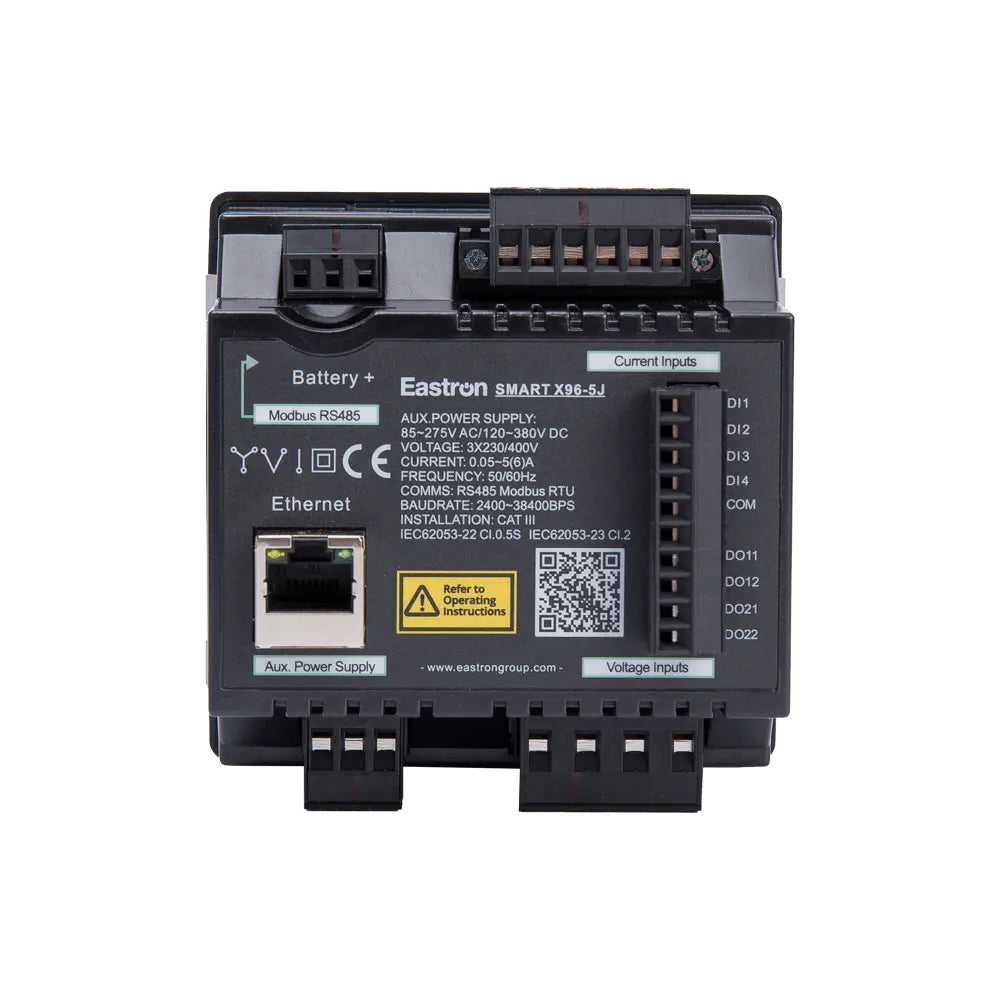

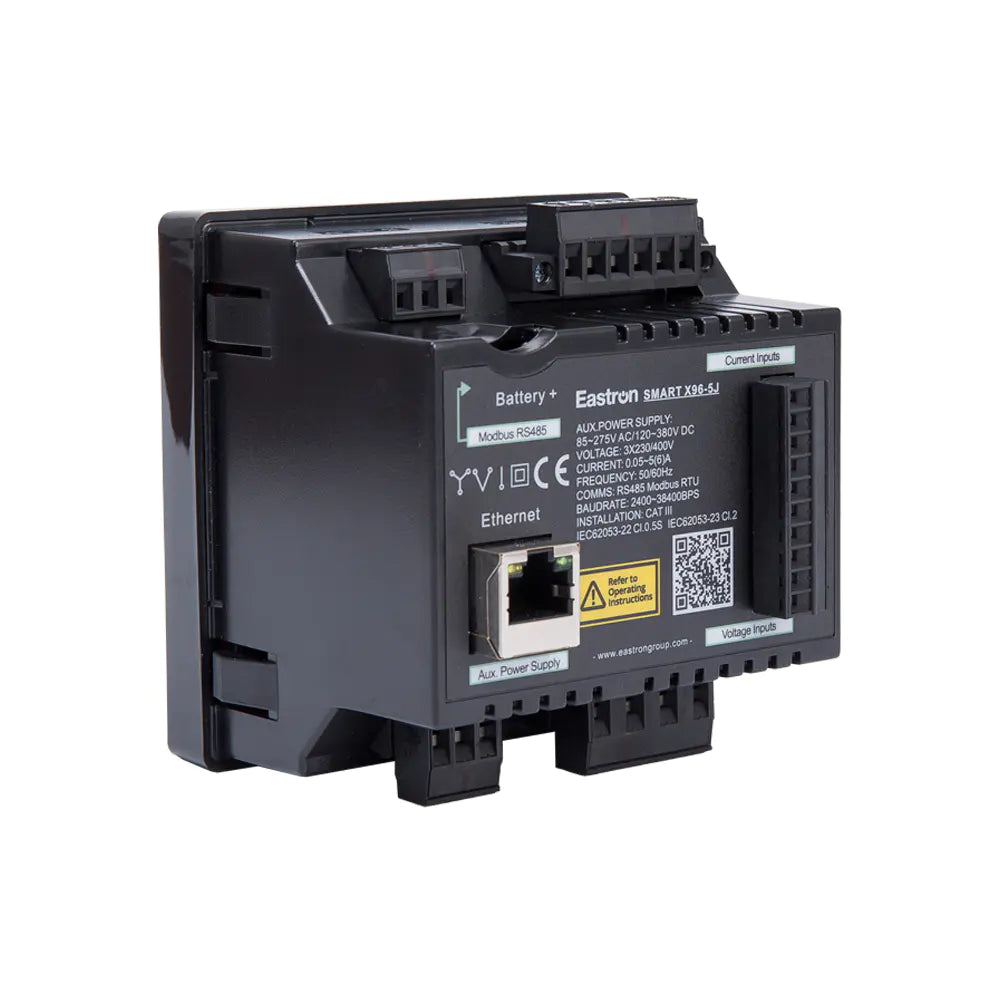

The EASTRON Smart X96-5-MID is a MID certified multifunction three-phase panel mounted energy meter designed for accurate energy measurement, power monitoring and industrial energy management applications.
The meter operates with external current transformers (1A / 5A CT inputs) and can be used in single phase and three phase electrical systems (1P2W, 3P3W, 3P4W), making it suitable for electrical panels, industrial installations, power distribution systems and energy monitoring applications.
The Smart X96-5-MID measures a wide range of electrical parameters including voltage, current, active power, reactive power, apparent power, power factor, frequency, imported and exported energy, harmonics and maximum demand, providing a complete energy monitoring solution for industrial and commercial installations.
The meter features RS485 Modbus RTU communication and pulse outputs, allowing remote monitoring and integration with PLC, SCADA, BMS and energy monitoring systems. The panel mounted 96×96 design makes it ideal for installation in power distribution panels and industrial control panels.
This energy meter is suitable for power distribution, industrial automation, smart buildings, data centers, energy monitoring systems and IoT energy management applications.
📡 Communication & Energy Monitoring
The Smart X96-5-MID supports:
- RS485 Modbus RTU communication
- Pulse outputs for energy monitoring
- Remote energy monitoring
- Integration with PLC, SCADA and BMS systems
- Energy monitoring and demand measurement
- Power quality monitoring
- Smart energy management systems
⚙️ Energy Meter Features
The EASTRON Smart X96-5-MID offers:
- MID certified three phase energy meter
- CT operated energy meter (1A / 5A CT inputs)
- Panel mounted meter (96 × 96 mm)
- RS485 Modbus RTU communication
- Pulse outputs
- Multi-parameter measurement
- Harmonic measurement
- Maximum demand measurement
- Backlit LCD display
- High accuracy Class 0.5s
- Suitable for power distribution and industrial monitoring
- Suitable for smart building and energy management systems
🔌 Typical Applications
- Power distribution panels
- Industrial automation
- Energy monitoring systems
- Smart buildings
- SCADA systems
- PLC monitoring
- Data centers
- Power quality monitoring
- Smart grid applications
- IoT energy monitoring
📦 Package Includes
- EASTRON Smart X96-5-MID Panel Energy Meter
- Installation manual
- Modbus communication documentation
Product Downloads
| Meter Type | Three Phase Multifunction Energy Meter |
| Model | Eastron Smart X96-5-MID |
| Mounting | Panel Mounted (96 x 96 mm) |
| Connection Type | CT Operated (1A / 5A) |
| Voltage Input | 3 x 230/400V AC |
| Current Input | 1A / 5A via CT |
| Frequency | 45 – 65 Hz |
| Accuracy | Class 0.5S (Energy) |
| Certification | MID Certified |
| Communication | RS485 Modbus RTU |
| Pulse Output | Energy Pulse Output |
| Measured Parameters | V, A, kW, kVAr, kVA, PF, Hz, kWh, kVArh |
| Harmonic Measurement | Up to 63rd Harmonic |
| Maximum Demand | Yes |
| Display | Backlit LCD |
| Protection Class | IP54 (Front Panel) |
| Operating Temperature | -25°C to +55°C |
