Dragino MS48-LR LoRaWAN (EU868) to Modbus Gateway
Dragino MS48-LR LoRaWAN (EU868) to Modbus Gateway
Dragino MS48-LR LoRaWAN (EU868) to Modbus Gateway
Dragino MS48-LR LoRaWAN (EU868) to Modbus Gateway
Dragino MS48-LR LoRaWAN (EU868) to Modbus Gateway
Dragino MS48-LR LoRaWAN (EU868) to Modbus Gateway
Dragino MS48-LR LoRaWAN (EU868) to Modbus Gateway

Dragino MS48-LR LoRaWAN (EU868) to Modbus Gateway

Availability: In stock

€188,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Dragino

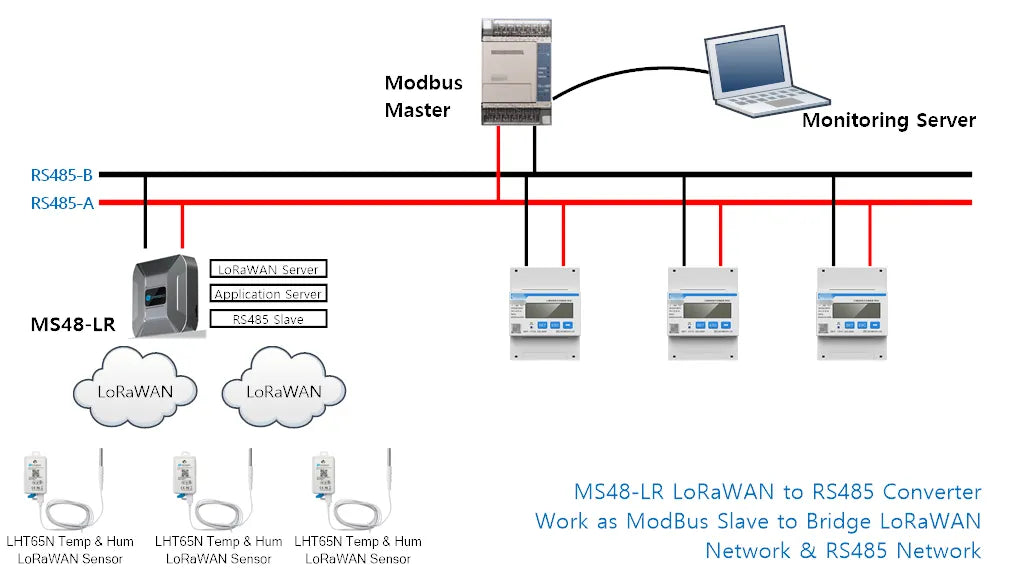

The Dragino MS48-LR is an advanced LoRaWAN® to Modbus RTU/TCP Gateway, designed to bridge long-range LoRaWAN wireless networks with industrial Modbus and IP-based control systems.
It enables seamless communication between LoRaWAN sensors and PLC/SCADA systems, making it ideal for Industrial IoT, Smart Buildings, Automation, Logistics, and Smart Infrastructure applications.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

✨ Key Features

📡 Multi-Channel LoRaWAN Gateway – Supports multi-channel LoRa communication with up to 10 programmable demodulation paths for flexible network capacity.

🔧 Modbus Integration – Works as a Modbus Slave, converting LoRaWAN sensor data into Modbus RTU/TCP registers for industrial systems.

🧠 Built-In Local Servers – Includes ChirpStack LoRaWAN Network Server and Node-RED Application Server for local data processing and on-premise deployments.

🌐 Backhaul Connectivity – Provides Ethernet (10/100M) and Wi-Fi 802.11 b/g/n for network uplink.

⚙️ Open-Source Debian System – Managed via Web UI and SSH, supports remote management and auto-provisioning.

📶 LoRaWAN Protocol Support – Compatible with Semtech UDP Packet Forwarder, LoRaWAN Basic Station, and ChirpStack Gateway Bridge (MQTT).

📡 Optional 4G LTE Support – Supports Quectel EC25 cellular module for mobile network uplink (optional).

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📌 Specifications

  • Device Type: LoRaWAN® to Modbus RTU/TCP Gateway

  • CPU: Quad-core Cortex-A7 @ 1.2 GHz

  • RAM: 512 MB

  • Storage: 4 GB eMMC

  • Backhaul: 10/100M Ethernet, Wi-Fi 802.11 b/g/n

  • Interfaces: RS485 ×1, RS232 ×1, USB 2.0 Host ×1, Mini-PCIe ×1

  • LoRaWAN: Multi-channel wireless operation, high sensitivity radio front-end

  • Servers: Built-in ChirpStack LoRaWAN Server, built-in Node-RED

  • Optional Cellular: 4G LTE (Quectel EC25), SIM slot

  • Power Input: 12 V DC, 2 A

  • Operating Temperature: –20 °C to +70 °C

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📥 Product Downloads

📄 Datasheet
📖 User Guide

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

  • Device Type: LoRaWAN® to Modbus RTU/TCP Gateway
  • CPU: Quad-core Cortex-A7 @ 1.2 GHz
  • RAM: 512 MB
  • Storage: 4 GB eMMC
  • Backhaul: 10/100M Ethernet, Wi-Fi 802.11 b/g/n
  • Interfaces: RS485 ×1, RS232 ×1, USB 2.0 Host ×1, Mini-PCIe ×1
  • Local Servers: Built-in ChirpStack, Built-in Node-RED
  • Optional Cellular: 4G LTE (Quectel EC25), SIM slot
  • Power Input: 12 V DC, 2 A
  • Operating Temperature: –20 °C to +70 °C
