Milesight CT310 LoRaWAN® Smart Current Transformer – Up to 1000 A (EU868)
Milesight CT310 LoRaWAN® Smart Current Transformer – Up to 1000 A (EU868)

Milesight CT310 LoRaWAN® Smart Current Transformer – Up to 1000 A (EU868)

Availability: In stock

€299,90 €325,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Milesight

⚡ Non-invasive and self-powered current monitoring
📊 Measures real-time RMS and cumulative current
🚨 Threshold-based over/under current alerts
🔋 Energy harvesting from the monitored circuit
📡 LoRaWAN® wireless communication – Class A

📖 Description

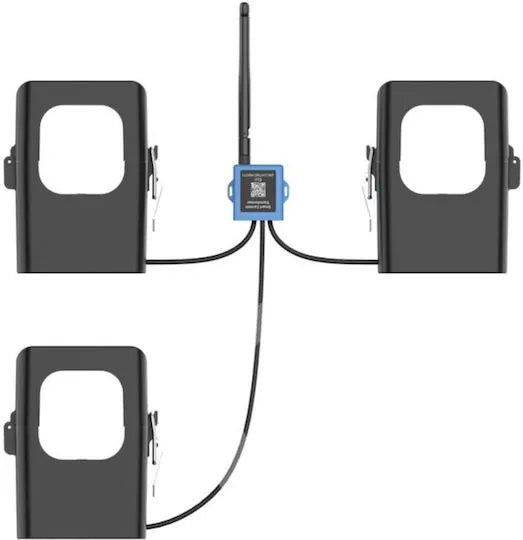

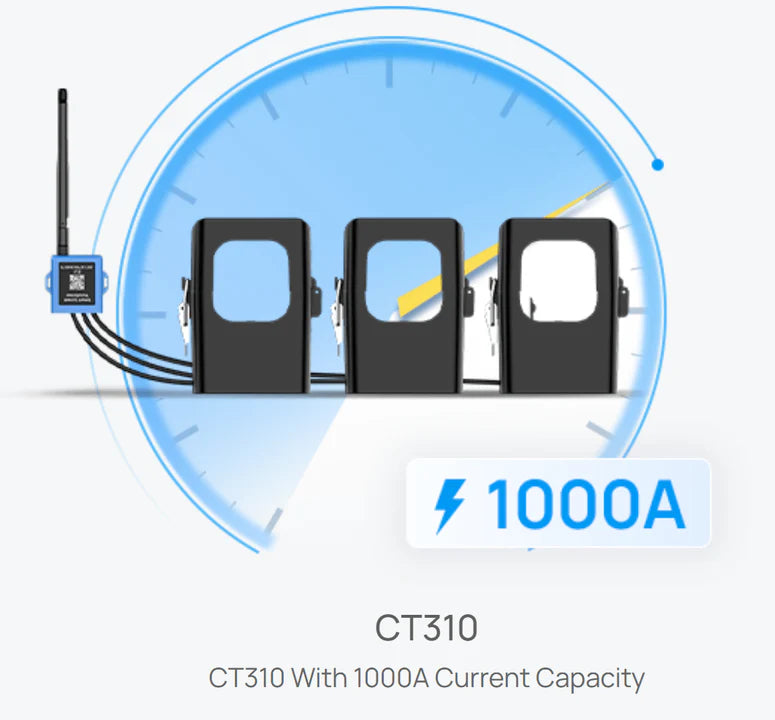

The Milesight CT310 is a LoRaWAN® smart current transformer designed for real-time, high-accuracy current monitoring in both single-phase and three-phase electrical installations. With a maximum supported current of 1000 A, it enables non-intrusive, clamp-on measurement without interrupting the power supply.

The CT310 is self-powered, harvesting energy directly from the current it measures, and features LoRaWAN® Class A support for long-range, low-power wireless communication. It provides real-time RMS values, cumulative ampere-hour measurements, and configurable alarms for over-current and under-current detection.

🔧 Features

  • ⚡ Current Range: 0 – 1000 A RMS

  • 📈 Sampling Frequency: 3.3 kHz

  • 🧮 Accuracy: ±1% (typical)

  • 🔍 Resolution: 1 mA

  • ⏱️ Data Reporting: Real-time RMS (1s) & cumulative Ah (1min)

  • 🔋 Power Supply: Self-powered from measured circuit or USB Type-C

  • 🛠️ Mounting: Clamp-on design for easy installation

  • 🌐 LoRaWAN®: Class A, EU868 (and other regions)

  • 📦 Enclosure: IP30 rated

  • 🌡️ Operating Temp: –20°C to +70°C (sensor head up to 55°C)

📂 Product Downloads

🎥 Product Video

ModelMilesight CT310
Current Range0 – 1000 A RMS
Measurement MethodClamp-on (non-invasive)
Sampling Frequency3.3 kHz
Accuracy±1% (typical)
Resolution1 mA
Measurement IntervalRMS: every 1 s
Ah: every 1 min
Power SupplySelf-powered from current loop or USB Type-C
LoRaWAN® Protocolv1.0.3, Class A
Frequency BandEU868 (default), configurable for other regions
Communication RangeUp to 15 km (ideal conditions)
AntennaExternal SMA antenna
ConfigurationUSB Type-C via Milesight Toolbox
Alarm FunctionsOver/under current alarms, optional cable temp sensor
InstallationClamp-on design, tool-free
Ingress ProtectionIP30
Operating Temperature−20°C to +70°C (Clamp: max 55°C)
Storage Temperature−40°C to +85°C
DimensionsDepends on clamp size (60A/100A/250A/600A/1000A)
CertificationsCE, RoHS, LoRa Alliance Certified
