Dragino A02-15 – Ultrasonic Probe for LDDS04
Dragino A02-15 – Ultrasonic Probe for LDDS04

Dragino A02-15 – Ultrasonic Probe for LDDS04

Availability: In stock

€21,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Dragino

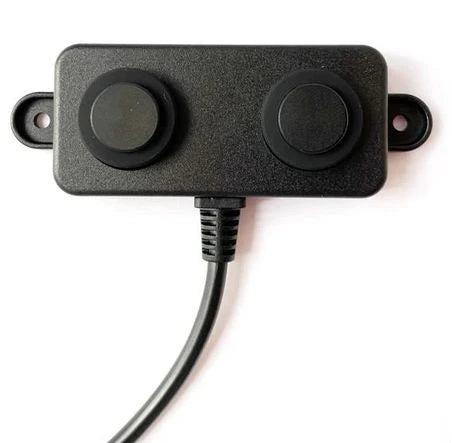

The Dragino A02-15 is an ultrasonic distance sensor, designed for use with the Dragino LDDS04 LoRaWAN distance sensor. It is ideal for waste management, object detection, and automated monitoring systems, providing accurate and reliable distance measurements.

🔑 Key Features

✔ Wide Measurement Range – Measures distances from 3 cm to 450 cm, making it suitable for various applications.
✔ Measurement Angle – Approximately 60°, ideal for detecting flat surfaces and monitoring waste bins.
✔ High Accuracy – Provides ±(1 cm + S*0.3%) (S: distance), ensuring reliable results.
✔ IP67 Waterproof Protection – Dustproof and waterproof, allowing operation in harsh outdoor environments.
✔ Temperature Compensation – Maintains measurement accuracy even with changing temperatures.
✔ Long Cable for Flexible Installation – Equipped with a 1.5-meter cable, allowing versatile placement.

📦 Technical Specifications

✅ Measurement Range: 3 cm – 450 cm
✅ Measurement Angle: ~60°
✅ Accuracy: ±(1 cm + S*0.3%) (S: distance)
✅ Protection Rating: IP67 (waterproof and dustproof)
✅ Cable Length: 1.5 meters
✅ Dimensions: 63 x 30 x 18 mm
✅ Weight: 96 g

📦 Package Contents

✅ 1 x Dragino A02-15 Ultrasonic Distance Sensor

The Dragino A02-15 is an accurate and durable solution for distance measurement applications, especially when paired with the Dragino LDDS04 LoRaWAN sensor.

📦 Related Product

Dragino LDDS04 LoRaWAN 4-Channels Ultrasonic Distance Detection Sensor

📥 Product Downloads

📘 User Manual

  • Device Type: Ultrasonic Distance Sensor Probe
  • Compatible Main Device: Dragino LDDS04 LoRaWAN 4-Channels Distance Sensor
  • Detection Distance: 3 cm to 450 cm
  • Blind Spot Distance: 0 to 3 cm
  • Accuracy: ±(1 cm + S × 0.3%) (S: Distance)
  • Measurement Angle: Approximately 60°
  • Cable Length: 1.5 meters
  • Temperature Compensation: Yes
  • Ingress Protection: IP67 Waterproof
  • Suitable Applications: Flat Object Detection, Rubbish Bin Monitoring
