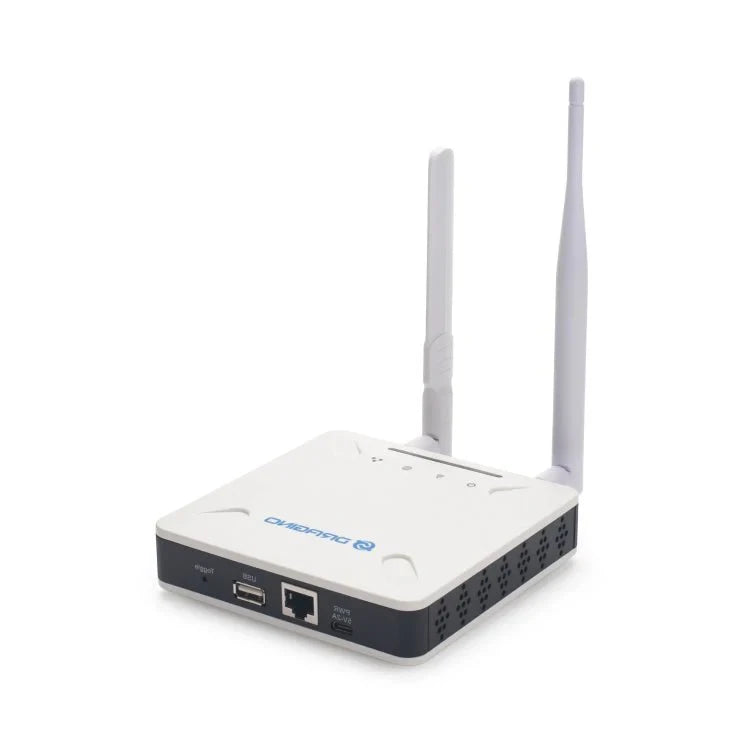

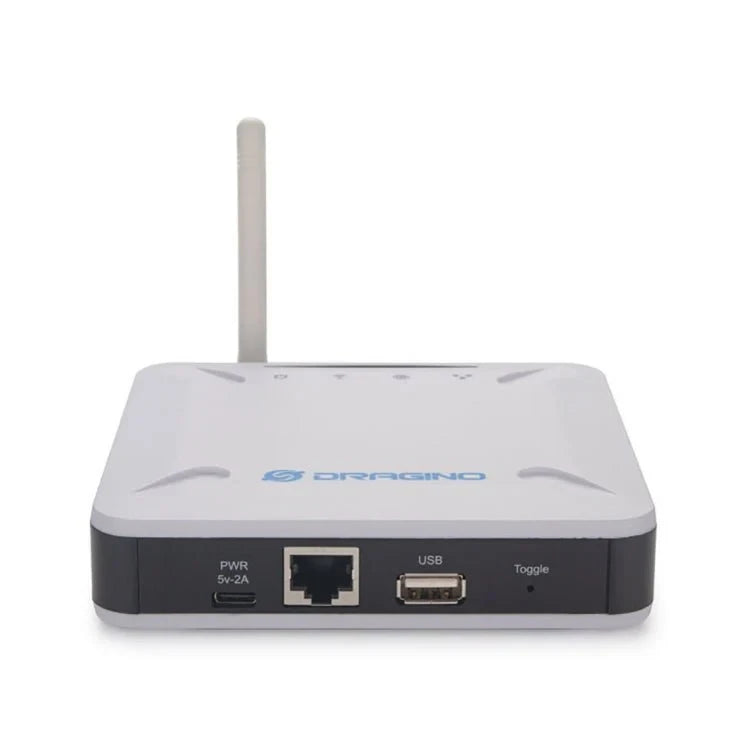

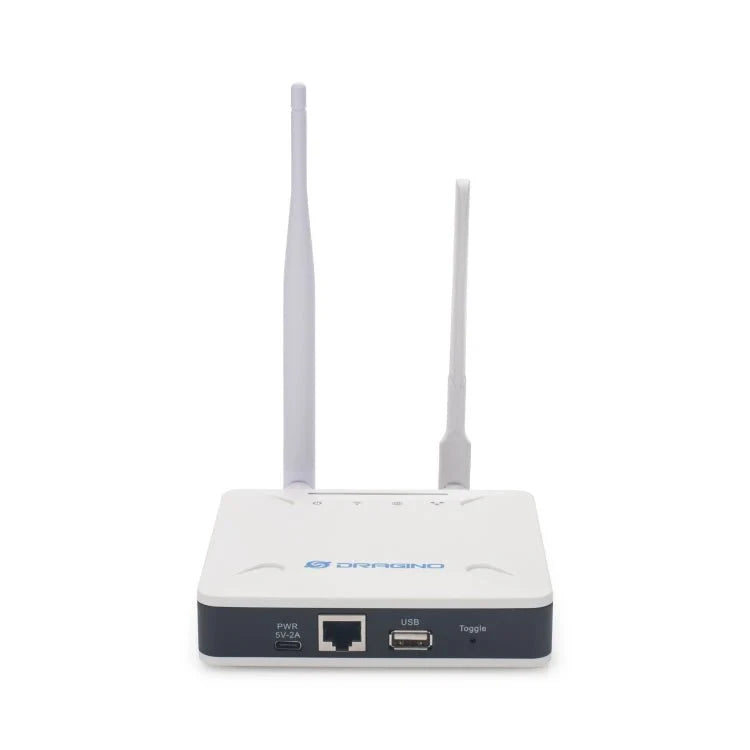

The Dragino LPS8N is a compact, open-source indoor LoRaWAN® gateway (EU868) designed to connect LoRaWAN sensors and devices to IP networks through Ethernet or Wi-Fi.
Equipped with a Semtech SX1302 concentrator and two SX1250 transceivers, the LPS8N supports multi-channel LoRaWAN communication with 10 programmable parallel demodulation paths, making it suitable for smart buildings, offices, laboratories, agricultural monitoring and IoT development.
The gateway runs OpenWrt Linux and supports the Semtech UDP Packet Forwarder and LoRaWAN Basic Station, enabling integration with compatible LoRaWAN network servers and IoT platforms.
The standard LPS8N is powered through USB Type-C (5 V / 2 A). Power over Ethernet (802.3af) is available on the separate LPS8NP version.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 Key Features
📡 LoRaWAN EU868 Connectivity – Multi-channel LoRaWAN gateway for compatible EU868 sensors and devices.
⚙️ SX1302 LoRaWAN Concentrator – High-performance concentrator with two SX1250 transceivers and 10 programmable parallel demodulation paths.
🌐 Ethernet & Wi-Fi Backhaul – Internet connectivity through 10/100 Mbps Ethernet or 2.4 GHz Wi-Fi.
🔌 USB-C Power Supply – Operates with a 5 V / 2 A power input.
💻 OpenWrt Linux – Open-source operating system offering flexible configuration and management.
🔗 LoRaWAN Network Server Integration – Supports Semtech Packet Forwarder and LoRaWAN Basic Station connections.
🔐 Web-Based Management – Configuration and administration through a web interface, with SSH access.
🛠️ Remote Management – Supports remote.it for remote access and administration.
📦 Compact Indoor Design – Suitable for installation in homes, offices, laboratories and other protected indoor environments.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛠 Applications
🏠 Smart Homes & Buildings – Connect temperature, humidity, occupancy and other LoRaWAN sensors.
🏢 Offices & Commercial Facilities – Support environmental monitoring, smart metering and building automation.
🌾 Smart Agriculture – Connect agricultural and environmental sensors where indoor gateway placement is appropriate.
🎓 Research & Development – Suitable for IoT testing, prototyping, training and laboratory deployments.
🏭 Industrial IoT – Connect compatible LoRaWAN monitoring devices within the gateway's coverage area.
📡 Private LoRaWAN Networks – Build and manage LoRaWAN infrastructure using compatible network servers.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

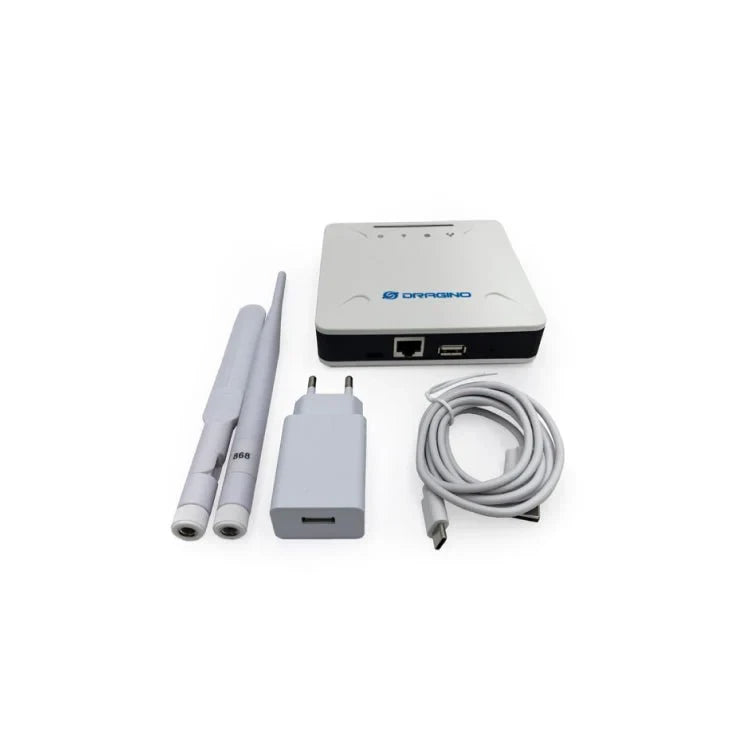

📦 Package Includes
-
1 × Dragino LPS8N Indoor LoRaWAN Gateway (EU868)
-
1 × LoRa Antenna
-
1 × USB Type-C power accessory, as supplied by the manufacturer
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📥 Product Downloads
- Manufacturer: Dragino
- Model: LPS8N-868
- Device Type: Indoor LoRaWAN Gateway
- LoRaWAN Frequency Band: EU868
- LoRaWAN Concentrator: Semtech SX1302
- RF Transceivers: 2 × SX1250
- LoRaWAN Channels: 8-channel multi-SF operation
- Parallel Demodulation Paths: 10 programmable
- LoRa Sensitivity: Up to -140 dBm
- Ethernet: 1 × 10/100 Mbps RJ45
- Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
- USB Host: 1 × USB 2.0
- Power Input: USB Type-C, 5 V DC / 2 A
- PoE: Not supported on standard LPS8N; 802.3af PoE available on LPS8NP
- Cellular Connectivity: Not included in standard Ethernet/Wi-Fi version
- Processor: 400 MHz AR9331
- RAM: 64 MB
- Flash: 16 MB
- Operating System: OpenWrt Linux
- Gateway Protocols: Semtech Packet Forwarder, LoRaWAN Basic Station
- Management: Web GUI, SSH, remote.it
- Dimensions: 120 × 120 × 30 mm
- Device Weight: 187 g
- Installation: Indoor
