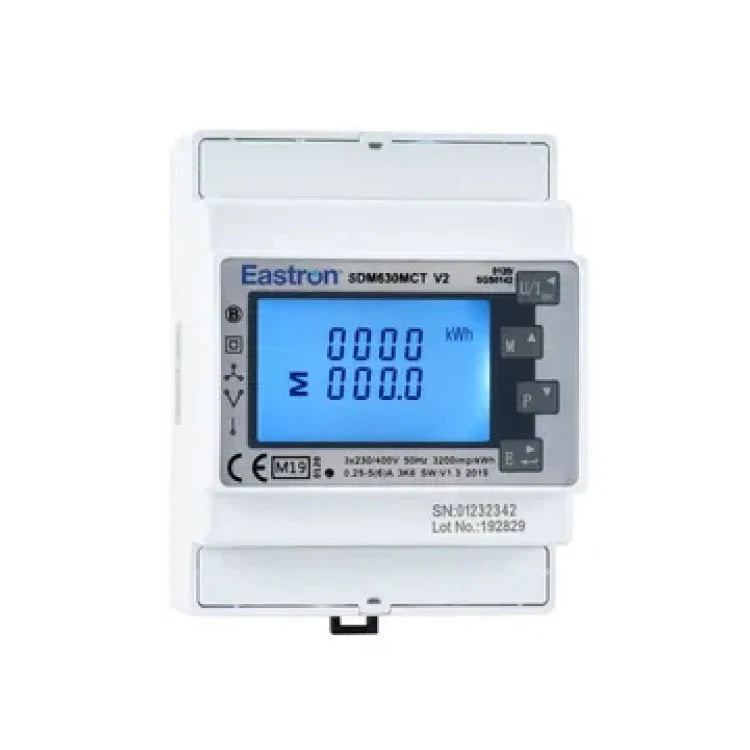

The Eastron SDM630MCT LoRaWAN MID is a professional three-phase, CT-operated smart electricity meter designed for accurate energy measurement and wireless power monitoring in commercial buildings, industrial facilities and energy management systems.
Featuring integrated LoRaWAN EU868 connectivity, the meter enables remote transmission of electrical measurements to compatible LoRaWAN gateways and IoT platforms, helping businesses monitor energy consumption, analyse electrical performance and improve energy efficiency.
Unlike direct-connected electricity meters, the SDM630MCT uses external current transformers (CTs) to measure current, making it suitable for electrical installations where direct current measurement is impractical or where higher current ratings are required.
The meter measures a wide range of electrical parameters, including voltage, current, active power, reactive power, apparent power, power factor, frequency and energy consumption. It also supports the measurement of imported and exported energy, making it suitable for installations with bidirectional energy flows.
The MID version is intended for applications requiring certified active energy measurement, subject to the certification scope, correct installation and applicable national regulations.
Its DIN-rail mounting design allows convenient installation inside electrical distribution panels, while LoRaWAN communication supports integration into remote monitoring and building energy management systems.
The Eastron SDM630MCT LoRaWAN MID is an effective solution for organisations seeking accurate three-phase energy measurement, CT-based installation flexibility and long-range wireless monitoring.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 Key Features
⚡ Three-Phase Energy Measurement – Monitors electrical consumption and performance in three-phase installations.
📡 Integrated LoRaWAN EU868 – Wireless transmission of electrical measurements through compatible LoRaWAN networks.
🔌 CT-Operated Metering – Uses external current transformers for flexible current measurement.
📊 Multifunction Electrical Monitoring – Measures voltage, current, active power, reactive power, apparent power, frequency and power factor.
🔄 Bidirectional Energy Measurement – Supports imported and exported energy monitoring.
🏅 MID Version – Designed for applications requiring certified active energy measurement, subject to the meter's applicable conformity documentation.
🏢 DIN-Rail Installation – Compact design for installation in electrical distribution boards.
📈 Energy Management Integration – Suitable for integration with compatible LoRaWAN monitoring platforms.
🌍 Commercial & Industrial Applications – Designed for building management, energy monitoring and electrical infrastructure projects.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛠 Applications
🏢 Commercial Buildings – Monitoring three-phase electricity consumption in offices, shopping centres and business facilities.
🏭 Industrial Energy Management – Measuring electrical consumption in factories, production lines and industrial installations.
⚡ Electrical Distribution Panels – Monitoring power and energy parameters through external current transformers.
🏬 Tenant & Sub-Metering – Monitoring energy consumption in multi-tenant commercial properties, subject to applicable metering requirements.
☀️ Renewable Energy Installations – Monitoring imported and exported electrical energy.
🚗 EV Charging Infrastructure – Energy measurement and monitoring for charging installations, subject to system compatibility and billing requirements.
📡 Smart Building IoT Systems – Wireless integration of electrical consumption data into LoRaWAN monitoring platforms.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 Package Includes
-
1 × Eastron SDM630MCT LoRaWAN MID Three-Phase Electricity Meter
Important: External current transformers are required for current measurement and should be selected according to the installation and meter specifications. They are not assumed to be included in the package.
A compatible LoRaWAN gateway and network server are required for remote data transmission.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📥 Product Downloads
- Manufacturer: Eastron
- Model: SDM630MCT LoRaWAN MID
- Device Type: Three-Phase Multifunction Electricity Meter
- Measurement Method: Current Transformer (CT) Operated
- Electrical System: Three-Phase AC
- Wireless Communication: LoRaWAN
- Frequency Band: EU868
- Measured Parameters: Voltage, Current, Power, Power Factor, Frequency and Energy
- Voltage Measurement: Supported
- Current Measurement: Via External Current Transformers
- Active Power: W / kW
- Reactive Power: VAR / kVAR
- Apparent Power: VA / kVA
- Power Factor: Dimensionless (PF)
- Frequency: Hz
- Active Energy: kWh
- Energy Direction: Imported & Exported
- Metering Certification: MID Version (Subject to Model-Specific Documentation)
- Mounting: DIN Rail
- Ingress Protection: IP51 (Indoor)
- Current Transformers: External, Required
- Remote Monitoring: Via Compatible LoRaWAN Gateway and Network Server
