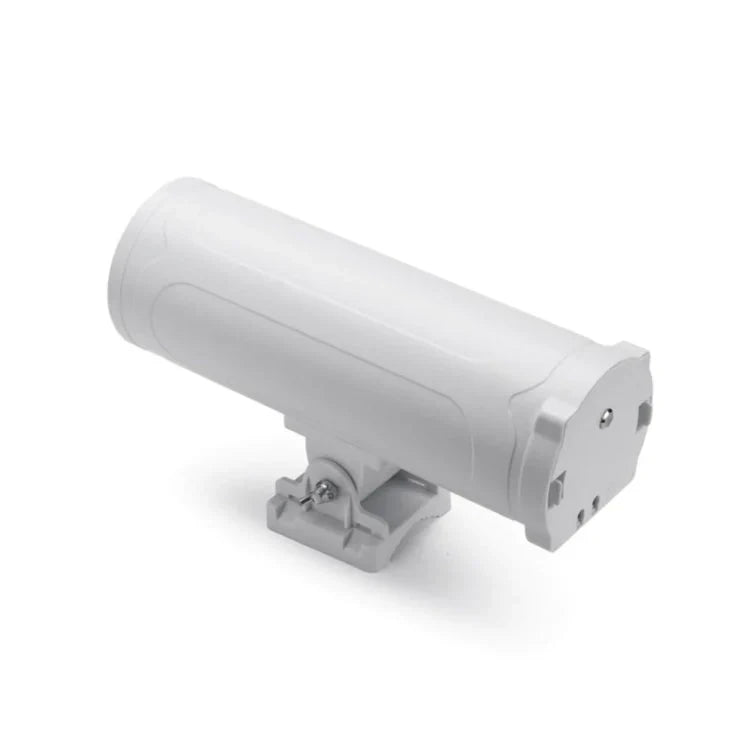

The Dragino DLOS8N is a high-performance outdoor LoRaWAN® gateway (EU868) designed for reliable, long-range IoT connectivity in demanding environments.
Equipped with a Semtech SX1302 LoRaWAN concentrator and two SX1250 transceivers, it provides multi-channel LoRaWAN communication with 10 programmable parallel demodulation paths.
This version includes an integrated Quectel EC25-E 4G LTE modem, allowing internet connectivity through cellular networks, Ethernet or Wi-Fi. The cellular connection can also be configured as a backup connection.
The rugged IP65-rated enclosure, built-in GPS module and IEEE 802.3af PoE support make the DLOS8N suitable for smart agriculture, industrial monitoring, smart cities and remote IoT installations.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 Key Features
📡 LoRaWAN EU868 Gateway – Multi-channel communication for compatible LoRaWAN sensors and devices.
⚙️ Semtech SX1302 Concentrator – Two SX1250 transceivers and 10 programmable parallel demodulation paths.
📶 Integrated 4G LTE Modem – Quectel EC25-E cellular connectivity for remote deployments.
🌐 Multiple Internet Connections – Supports 4G LTE, Ethernet and 2.4 GHz Wi-Fi.
🌧️ IP65 Outdoor Enclosure – Protection against dust and water jets for outdoor installation.
🔌 IEEE 802.3af PoE – Power and network connectivity through a compatible PoE infrastructure.
🛰️ Built-in GPS – Supports location and timing functions.
🔗 LoRaWAN Network Server Integration – Supports Semtech UDP Packet Forwarder and LoRaWAN Basic Station.
💻 Open-Source Linux Platform – Flexible configuration through a web interface and SSH.
🛠️ Remote Monitoring & Auto-Provisioning – Designed to simplify deployment and maintenance.
🔐 Secure Connectivity Options – Supports MQTTS and configurable network connectivity.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛠 Applications
🌾 Smart Agriculture – Monitoring fields, irrigation systems and agricultural installations.
🏭 Industrial IoT – Wireless sensor connectivity in industrial and infrastructure environments.
🏙️ Smart Cities – Environmental monitoring, smart metering and municipal IoT applications.
🚰 Water & Utility Infrastructure – Remote monitoring of tanks, pumping stations and utility networks.
🏞️ Remote Locations – IoT deployments where cellular connectivity is preferable to fixed internet access.
🏢 Smart Buildings & Facilities – Outdoor LoRaWAN coverage for building and facility monitoring.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

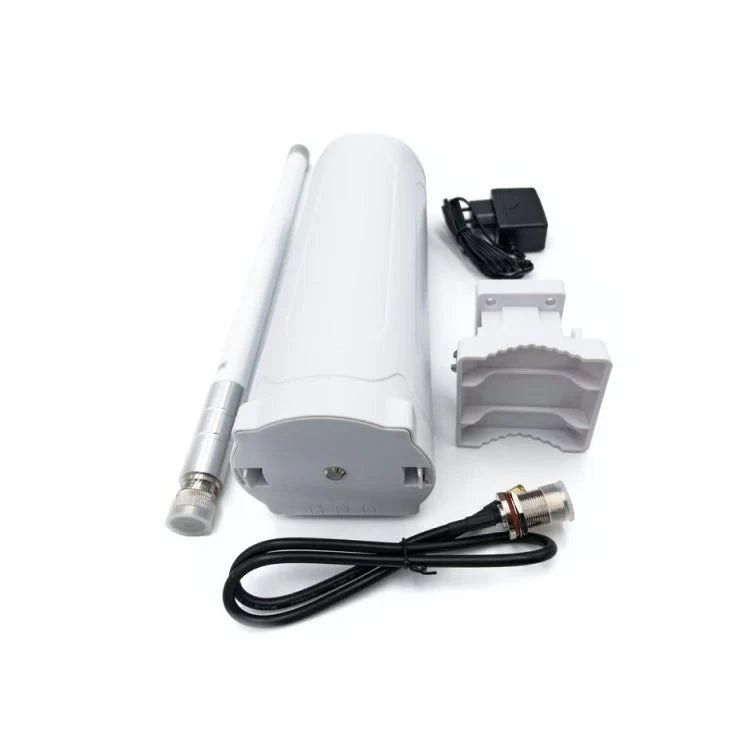

📦 Package Includes
-
1 × Dragino DLOS8N Outdoor LoRaWAN Gateway (EU868), 4G LTE version
-
1 × LoRa antenna
-
1 × Power adapter
Note: The exact accessories supplied with the 4G version should be confirmed against the product packaging. A SIM card and cellular data subscription are required for 4G connectivity and are not included unless explicitly specified.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📥 Product Downloads
- Manufacturer: Dragino
- Model: DLOS8N-868-EC25-E
- Device Type: Outdoor LoRaWAN Gateway
- Frequency Band: EU868
- LoRaWAN Concentrator: Semtech SX1302
- RF Transceivers: 2 × SX1250
- Parallel Demodulation Paths: 10 programmable
- LoRa Sensitivity: Up to -140 dBm
- Cellular Modem: Quectel EC25-E, LTE Cat 4
- Cellular Data Rate: Up to 150 Mbps download / 50 Mbps upload
- SIM Interface: Standard SIM slot
- Ethernet: 1 × RJ45, 10/100 Mbps
- Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
- GPS: Built-in
- Power Input: 12–24 V DC, 2 A
- PoE: IEEE 802.3af, 37–57 V DC
- Processor: AR9331, 400 MHz
- RAM: 64 MB
- Flash: 16 MB
- USB: 1 × USB 2.0 Host
- Operating System: Embedded Linux
- Gateway Protocols: Semtech UDP Packet Forwarder, LoRaWAN Basic Station
- Management: Web GUI, SSH, Remote Monitoring, Auto-Provisioning
- Ingress Protection: IP65
- Installation: Outdoor
