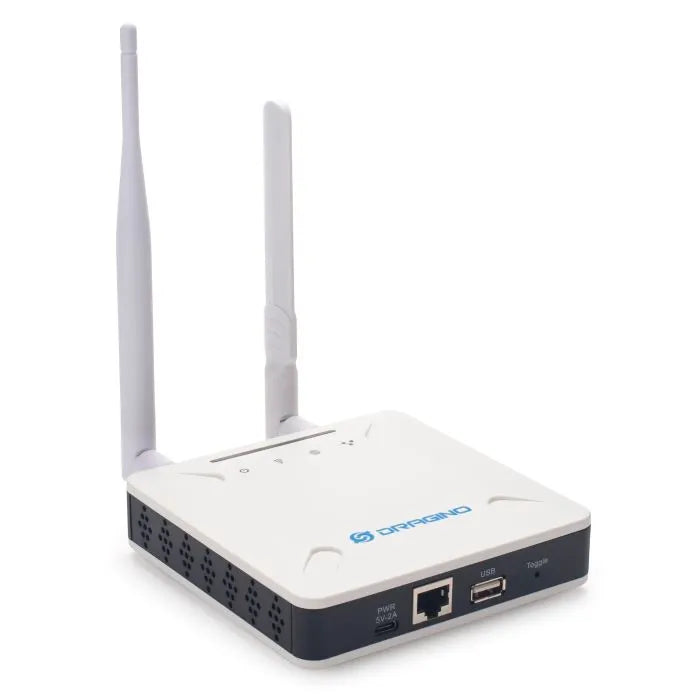

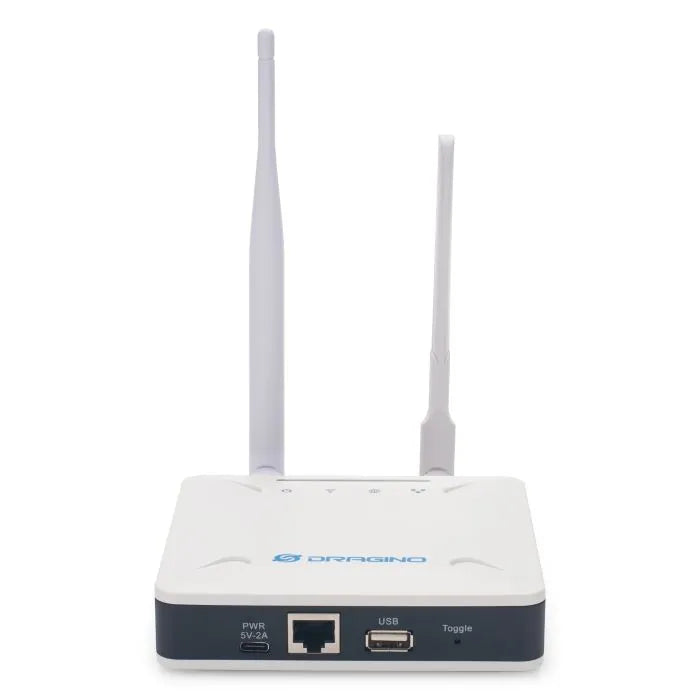

The LPS8v2 is an open-source indoor LoRaWAN® gateway that bridges LoRa® wireless sensor networks to IP networks via Wi-Fi or Ethernet,
⚡ Powered by the Semtech SX1302 chipset, the LPS8v2 supports 10+1 channels, ensuring reliable data forwarding for dense sensor deployments. It runs on Debian Linux with a 1.2 GHz Cortex-A7 CPU, 512 MB RAM, and 4 GB eMMC storage, providing robust performance and flexibility.
🛰️ The LPS8v2 supports Semtech UDP Packet Forwarder, LoRaWAN Basic Station, and ChirpStack MQTT Bridge, making it fully compatible with The Things Network (TTN) and private LoRaWAN servers. It also integrates a built-in LoRaWAN server for local deployments.
🔌 Compact and efficient, the gateway measures only 120×120×30 mm, operates at 5 V/2 A, and withstands temperatures from −20 °C to 65 °C, making it suitable for diverse indoor environments.
✨ Key Features
-
✅ 10+1-channel SX1302 LoRaWAN® concentrator
-
✅ Wi-Fi / Ethernet backhaul
-
✅ Compatible with Basic Station, Semtech UDP, ChirpStack MQTT
-
✅ Built-in LoRaWAN server for on-premises deployment
-
✅ Debian Linux OS with Cortex-A7 1.2 GHz, 512 MB RAM, 4 GB eMMC
-
✅ Compact size 120×120×30 mm, 5 V/2 A, operating range −20 ~ 65 °C
📥 Product Downloads
🎬 Product Video
📊 Product Specifications
- Model: Dragino LPS8v2
- Band: EU868
- Channels: 10+1 (SX1302 chipset)
- Backhaul: Wi-Fi 802.11 b/g/n, 10/100M Ethernet,
- Protocols: Semtech UDP Packet Forwarder, LoRaWAN Basic Station, ChirpStack MQTT
- CPU: Cortex-A7 1.2 GHz
- RAM: 512 MB
- Storage: 4 GB eMMC
- LoRaWAN Server: Built-in (on-prem)
- Power: 5 V / 2 A
- Dimensions: 120 × 120 × 30 mm
- Operating Temp: −20 ~ 65 °C
