Accurate Dissolved Oxygen Measurement for Water Quality Applications

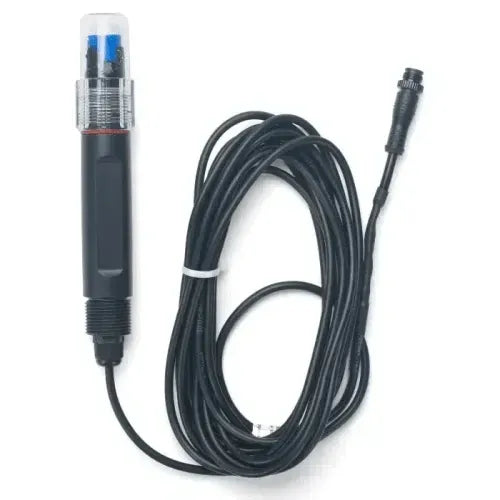

The Dragino DR-DO1 is a high-precision optical dissolved oxygen sensor designed for accurate and long-term monitoring of DO levels in water. With a measurement range of 0–20 mg/L and a resolution of 0.01 mg/L, it is ideal for aquaculture, wastewater treatment, and natural water bodies monitoring.
✅ Key Features
-
📏 DO Range: 0–20 mg/L
-
🎯 Resolution: 0.01 mg/L
-
🧪 Accuracy: ±3%
-
🔌 Interface: RS485 with Modbus RTU protocol
-
🔋 Power Supply: DC 5–24V
-
🌡️ Operating Temperature: 0°C to 60°C
-
💧 IP68 waterproof protection for full submersion
-
🛠️ Pressure resistance up to 0.6 MPa
-
📏 Dimensions: 30 × 30 × 205 mm
-
⚖️ Weight: 384 g
-
🔗 Fully compatible with Dragino WQS-LB and WQS-NB LoRaWAN converters
🏭 Typical Applications
-
Aquaculture oxygen level monitoring
-
Dissolved oxygen control in wastewater plants
-
River and lake water quality monitoring
-
Water tank oxygen content analysis
-
Irrigation and greenhouse DO measurement
📊 Specifications
-
-
Power Supply: DC 5–24V
-
Power Consumption: ≤0.5W
-
Communication Interface: RS485, 9600 bps
-
Measurement Method: Optical dissolved oxygen detection
-
DO Range: 0–20 mg/L
-
DO Resolution: 0.01 mg/L
-
DO Accuracy: ±3%
-
Operating Temperature Range: 0°C to 60°C
-
Temperature Accuracy: ±0.5°C
-
Waterproof Rating: IP68
-
Maximum Pressure: 0.6 MPa
-
Cable Length: 2 meters
-
Dimensions: 30 × 30 × 205 mm
-
Weight: 384 g
-
📥 Product Downloads
- Device Type: ORP (Oxidation-Reduction Potential) Sensor
- Model: DR-ORP1
- Measurement Range: -1999 to +1999 mV
- Resolution: 1 mV
- Accuracy: ±3 mV
- Stability: ≤2 mV/24h
- Operating Temperature: 0°C to 60°C
- Operating Humidity: <85% RH
- Operating Pressure: ≤0.6 MPa
- Interface: RS485 (Modbus RTU, 9600 baud)
- Power Supply: DC 7–30V
- Power Consumption: <0.5 W
- Ingress Protection: IP68 (Fully submersible)
- Dimensions: 205 × 30 × 30 mm
- Weight: ~338 g
- Cable Length: 2 meters
- Installation: Threaded 3/4", submersible use recommended with care
- Compatibility: Dragino WQS-LB and WQS-NB water quality transmitters
