Accurate Rainfall Monitoring for Smart Agriculture & Weather Stations

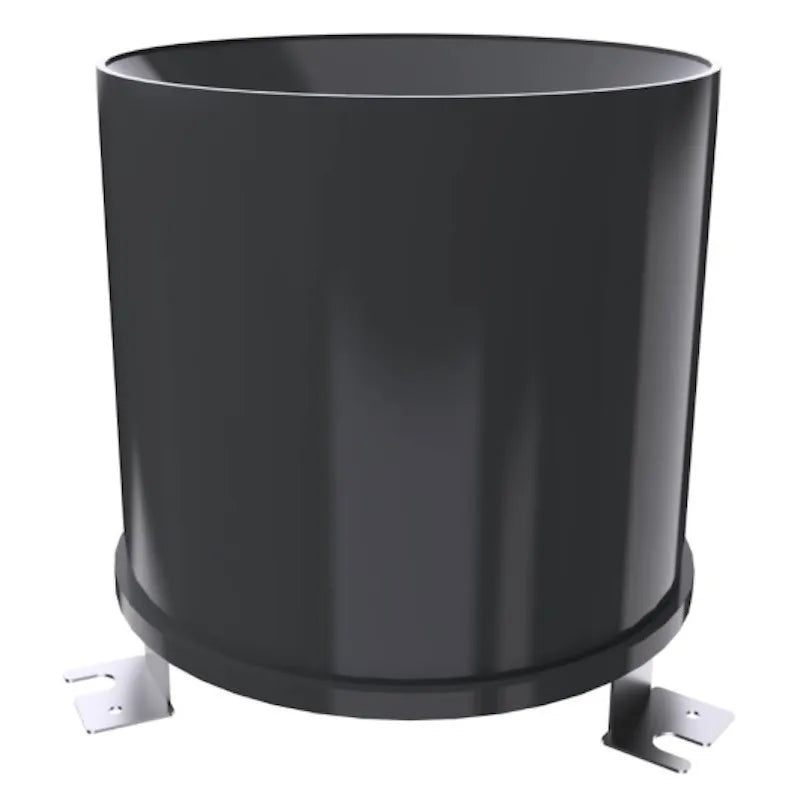

The Dragino DR-RG-6P is a high-precision tipping bucket rain gauge sensor designed for rainfall monitoring in smart agriculture, environmental monitoring and weather station applications. It is specifically designed for the Dragino WSC2-Compact series weather station transmitters.

The sensor measures real-time rainfall intensity and accumulated precipitation using a reliable tipping bucket mechanism with pulse signal output. With its robust outdoor construction and simple installation, the DR-RG-6P is ideal for long-term outdoor deployments in farms, meteorological stations and environmental monitoring networks.

The DR-RG-6P connects directly to compatible Dragino weather station transmitters such as the WSC2-Compact-LS and is optimized for low-maintenance operation in demanding environments.

Key Features

✔ High-Precision Tipping Bucket Rain Gauge
✔ Designed for WSC2-Compact Series
✔ Pulse Signal Output
✔ Accurate Rainfall Monitoring
✔ Suitable for Outdoor Installations
✔ Easy Installation on Ground or Pole
✔ Durable Weather-Resistant Construction
✔ Ideal for Smart Agriculture & Weather Stations

Typical Specifications

• Rain-bearing Diameter: 200mm
• Blade Sharp Angle: 40° ~ 45°
• Rainfall Range: 0 ~ 100mm/day
• Resolution: 0.1mm
• Rain Intensity Range: 0.01 ~ 4mm/min
• Output Signal: Pulse Signal
• Cable Length: 2 meters
• Interface: 2-wire pulse signal

Applications

Smart Agriculture
Weather Monitoring Stations
Hydrology & Flood Monitoring
Environmental Monitoring
Greenhouses
Research Stations
IoT Weather Networks

Package Includes

✔ 1 × Dragino DR-RG-6P Rain Gauge Sensor

✔ 1 × Dragino WS-K2 Installation Bracket

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Compatible Products

Dragino WSC2-Compact-LS

  • Model: DR-RG-6P
  • Sensor Type: Tipping Bucket Rain Gauge
  • Rain-bearing Diameter: 200mm
  • Blade Angle: 40° ~ 45°
  • Rainfall Range: 0 ~ 100mm/day
  • Resolution: 0.1mm
  • Rain Intensity Range: 0.01 ~ 4mm/min
  • Output Signal: Pulse Signal
  • Interface: 2-wire Pulse Signal
  • Cable Length: 2m
  • Compatible Systems: WSC2-Compact Series
