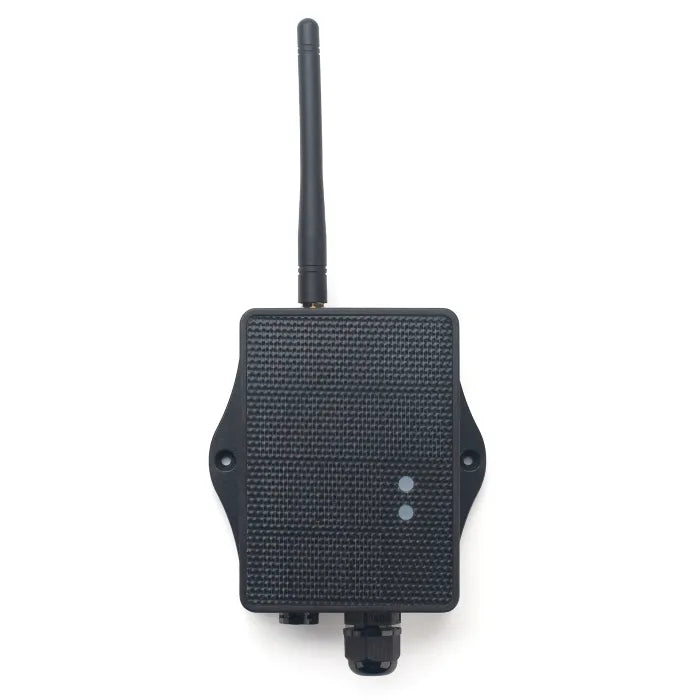

Dragino PS-LS-NA – Solar Powered LoRaWAN Analog Sensor Node
  1. Home
  2. All LoRaWAN Sensors & Devices
  3. Dragino PS-LS-NA – Solar Powered LoRaWAN Analog Sensor Node

Dragino PS-LS-NA – Solar Powered LoRaWAN Analog Sensor Node

Availability: In stock

€69,90

VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Dragino

Industrial LoRaWAN® Analog Sensor Interface for Smart IoT Applications

The Dragino PS-LS-NA is a professional LoRaWAN® Analog Sensor Node designed to connect industrial analog sensors to LoRaWAN® IoT networks. It supports both 4-20mA current input and 0-30V voltage input, allowing integration with a wide range of industrial, agricultural and environmental sensors.

The device can power external analog sensors through its integrated 5V and 12V outputs, while converting analog measurements into long-range LoRaWAN® wireless data for transmission to IoT platforms via LoRaWAN® gateways.

The PS-LS-NA features a built-in solar panel together with a 3000mAh rechargeable Li-ion battery, making it ideal for long-term outdoor deployments with minimal maintenance requirements.

The device also supports:

  • Bluetooth v5.1 configuration
  • LoRaWAN remote configuration
  • OTA firmware updates
  • battery monitoring
  • periodic uplink reporting

making it a flexible industrial IoT solution for analog sensor connectivity.

Key Features

✔ LoRaWAN® 1.0.3 Class A
✔ 1 × 4-20mA Analog Input
✔ 1 × 0-30V Analog Input
✔ 5V & 12V Output for External Sensors
✔ Solar Powered with 3000mAh Li-ion Battery
✔ Bluetooth v5.1 Configuration
✔ OTA Firmware Updates
✔ Ultra-Low Power Consumption
✔ Long Range Wireless Communication
✔ IP66 Waterproof Enclosure
✔ Battery Level Monitoring
✔ Industrial IoT Ready

Typical Specifications

• LoRaWAN® 1.0.3 Class A
• Frequency Bands: EU868 / US915 / AU915 / AS923 / IN865 / KR920 / EU433 / CN470
• Current Input Range: 0 ~ 20mA
• Voltage Input Range: 0 ~ 30V
• Current Accuracy: 0.02mA
• Voltage Accuracy: 0.02V
• 5V & 12V Sensor Power Output
• Solar Panel + 3000mAh Li-ion Battery
• BLE v5.1 Configuration
• OTA Firmware Upgrade
• IP66 Waterproof Enclosure

Applications

Industrial Sensor Monitoring
Water Pressure Monitoring
Tank Level Monitoring
Environmental Monitoring
Smart Agriculture
Industrial Automation
Analog Sensor IoT Integration
Remote Monitoring Systems

Package Includes

✔ 1 × Dragino PS-LS-NA LoRaWAN® Analog Sensor Node

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Product Downloads

Datasheet
User Manual

  • Model: PS-LS-NA
  • Wireless Protocol: LoRaWAN® 1.0.3 Class A
  • Current Input: 0 ~ 20mA
  • Voltage Input: 0 ~ 30V
  • Current Accuracy: 0.02mA
  • Voltage Accuracy: 0.02V
  • Current Resolution: 0.001mA
  • Voltage Resolution: 0.001V
  • Sensor Power Output: 5V & 12V
  • Power Supply: Solar Panel + 3000mAh Li-ion Battery
  • Enclosure: IP66 Waterproof
  • BLE Configuration: Supported
  • OTA Firmware Upgrade: Supported
  • Operating Temperature: -40°C ~ 85°C
