Dragino WSS-26 LoRaWAN Solar Radiation Sensor (EU868)

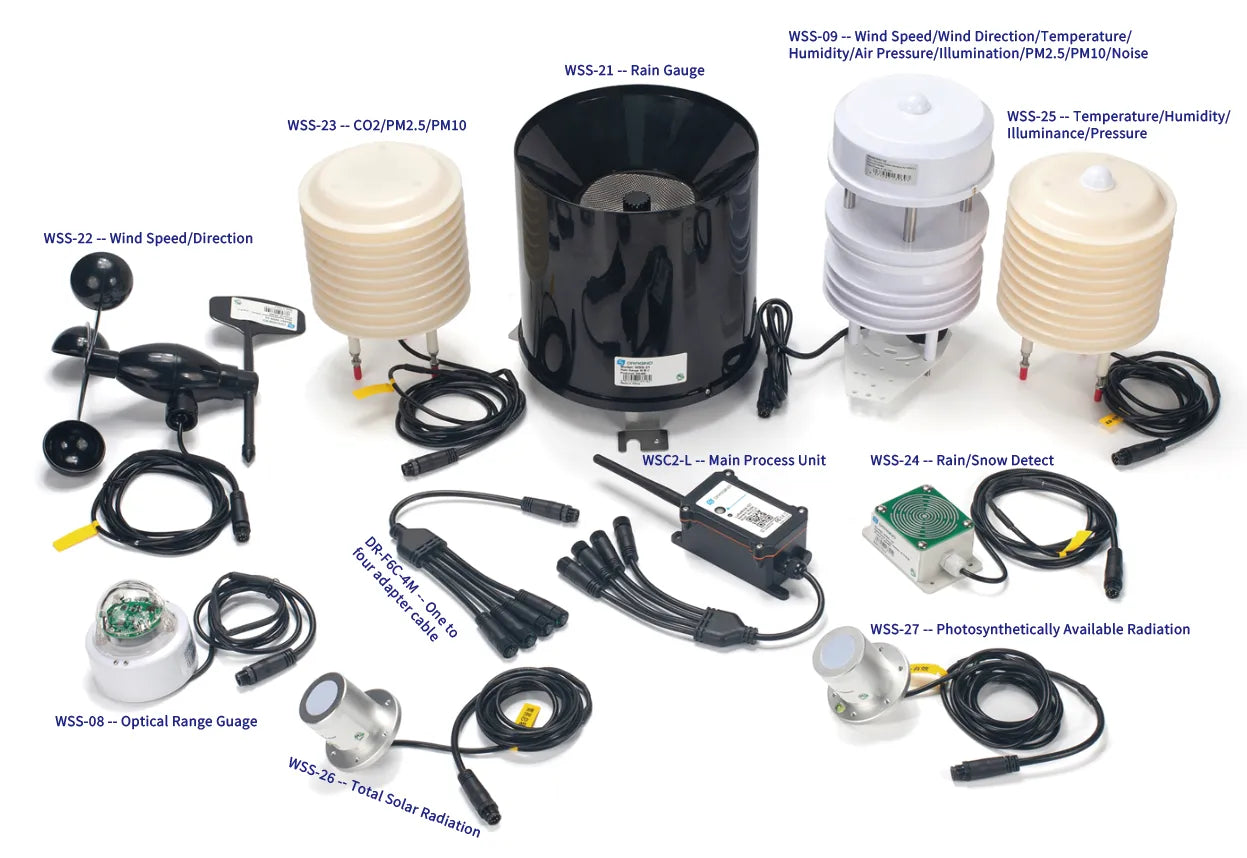

Dragino WSC2-L LoRaWAN Main Process Unit
Dragino WSS-26 LoRaWAN Solar Radiation Sensor (EU868)

Dragino WSS-26 RS485 Solar Radiation Sensor (EU868)

Availability: In stock

€237,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Dragino

    The Dragino WSS-26 is a high-performance Total Solar Radiation Sensor designed for accurate measurement of global solar irradiance in environmental monitoring, weather stations, and smart agriculture applications. With an RS485 Modbus-RTU interface for reliable data transmission, the WSS-26 covers the full solar spectrum from 0.3 µm to 3 µm, delivering precise readings even in outdoor and harsh environments.

    Built with a robust housing, the sensor offers excellent resistance to water, dust and corrosion — ideal for long-term field deployments. Compatible with Dragino LoRaWAN® Weather Station Controllers, the WSS-26 integrates seamlessly into your IoT network and supports EU868 frequency band.

    ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

    💡 Key Features

    📡 LoRaWAN® Connectivity – Long-range wireless transmission on EU868 (via RS485)
    🌞 Total Solar Radiation Measurement – Covers 0.3 µm to 3 µm spectrum
    📊 High Accuracy & Resolution – ±3 % typical accuracy, 0.1 W/m² resolution
    🔌 RS485 Modbus-RTU Output – Reliable digital communication for weather stations
    🌦️ Wide Measurement Range – 0 to 2000 W/m²
    🌍 Outdoor-Ready Enclosure – Durable housing for all weather conditions
    ⚙️ Easy Integration – Works with Dragino Weather Station Controllers
    ⚡ Low Power Consumption – Efficient operation with minimal power draw

    ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

    🛠 Applications

    ☀️ Weather & Climate Monitoring – Part of LoRaWAN® weather station setups
    🌾 Smart Agriculture – Solar radiation data for irrigation and crop planning
    🏙️ Environmental Sensing – Outdoor radiation monitoring
    📡 IoT Data Networks – Works with Dragino LoRaWAN® infrastructure

    ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

    📈 Specifications

    • Spectral Range: 0.3 µm ~ 3 µm

    • Measurement Range: 0 ~ 2000 W/m²

    • Accuracy: ±3 % (typical)

    • Resolution: 0.1 W/m²

    • Output: RS485 Modbus-RTU

    • Power Supply: DC 5 ~ 24 V

    • Operating Temp: -40 °C ~ +70 °C

    • Protection Rating: Weatherproof enclosure

    • Frequency: LoRaWAN® EU868 compatible

    ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

    📥 Product Downloads

    📄 Datasheet
    📘 User Guide

    • Device Type: RS485 Solar Radiation Sensor
    • Measurement Parameter: Total Solar Radiation (Irradiance)
    • Measurement Range: 0 to 2000 W/m²
    • Spectral Range: 300 nm to 3000 nm
    • Accuracy: ±3%
    • Output Interface: RS485 (Modbus RTU protocol)
    • Supply Voltage: 5-24 VDC
    • Ingress Protection: IP65 (Outdoor & harsh environment)
    • Operating Temperature: -40°C to 70°C
    • Operating Humidity: 10 to 90%RH
    • Installation: Pole or bracket mounting
    • Additional Features: Compact design, rugged housing, high reliability, suitable for weather stations and agricultural monitoring systems
