Milesight EM410‑RDL LoRaWAN Radar Distance/Level Sensor with Ext. Antenna

Availability: In stock

€304,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Milesight

Designed for precise, non-contact liquid and solid level monitoring, the EM410‑RDL leverages 60 GHz millimeter-wave radar to deliver highly accurate measurements (±2 mm) over ranges from 0.3 m to 12 m in harsh environments. Its 8° narrow beam focuses on the target while filtering out interference from dust, condensate, and acoustic noise.

Built with a rugged PVDF enclosure rated IP68, it’s resistant to water (up to 1 m/48 hr), corrosion, and wear. Configuration is simple via NFC + Bluetooth, and it includes a 3-axis accelerometer for tilt alerts.

Available in LoRaWAN® and Cellular versions, the LoRaWAN variant supports OTAA/ABP, multiple regional bands, and seamlessly integrates with Milesight IoT Cloud and standard network servers.

Powered by a large 19,000 mAh ER34615 battery, it lasts up to 7 years on LoRaWAN mode.

Ideal for sewers, tanks, reservoirs, rivers, industrial tanks, and smart agriculture, offering reliable remote level sensing in remote or challenging locations.

🚀 Key Features

  • 60 GHz radar technology, non-contact measurement

  • Range: 0.3 m–12 m, accuracy ±2 mm, resolution 1 mm

  • 8° narrow beam for precise targeting

  • Rugged PVDF housing, IP68 rated (1 m/48 hr)

  • NFC & Bluetooth configuration with tilt sensor

  • Battery life up to 7 years (LoRaWAN)

  • LoRaWAN® (OTAA/ABP, multi-band) & Cellular options

  • Multiple application modes: standard, rainwell, sewage, tank

  • Built-in alarms: blind-zone, threshold, tilt, echo-curve diagnostics, data storage (~2,000 entries)

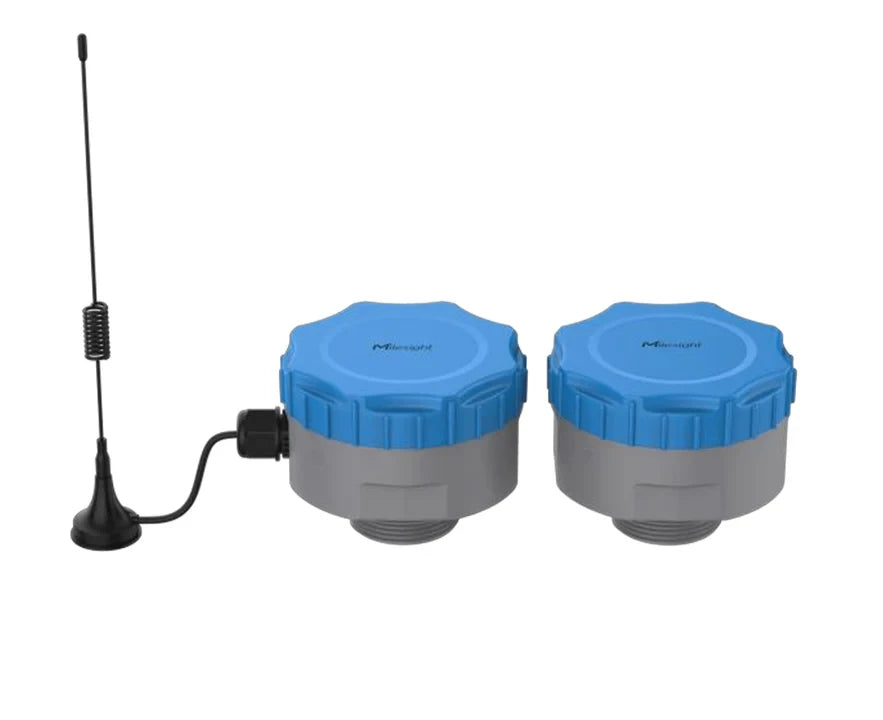

  • External Antenna

📥 Product Downloads

🎬 Product Video

"• Measurement: Millimeter Wave Radar (60 GHz) • Range: 0.3 m – 12 m • Accuracy: ±2 mm (typical) • Resolution: 1 mm • Beam Angle: 8° • Material: PVDF (UL94 V0) • Ingress Protection: IP68 (1 m / 48 h) • Power Supply: 1× 19 000 mAh ER34615 Li-SOCL2 Battery • Battery Life: ≈ 7 years (LoRaWAN®) / ≈ 5 years (Cellular) • Operating Temperature: –40 °C ~ +70 °C • Wireless: LoRaWAN® or LTE (CAT 1) • External Antenna • Mounting: Wall or Tank Thread G1 ½″ • Dimensions: Ø101 × 87 mm Weight: 400 g • Certifications: CE, FCC"
