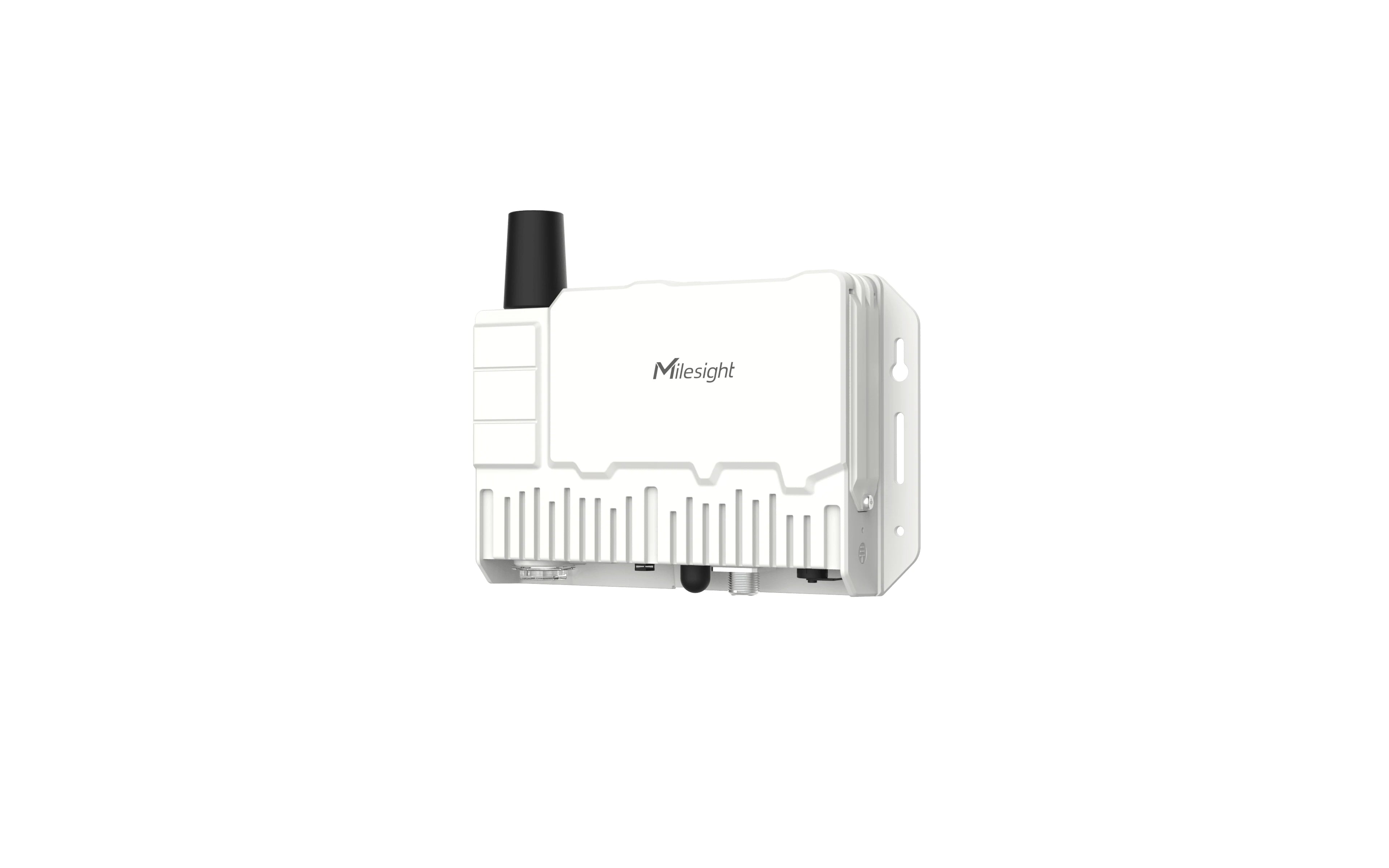

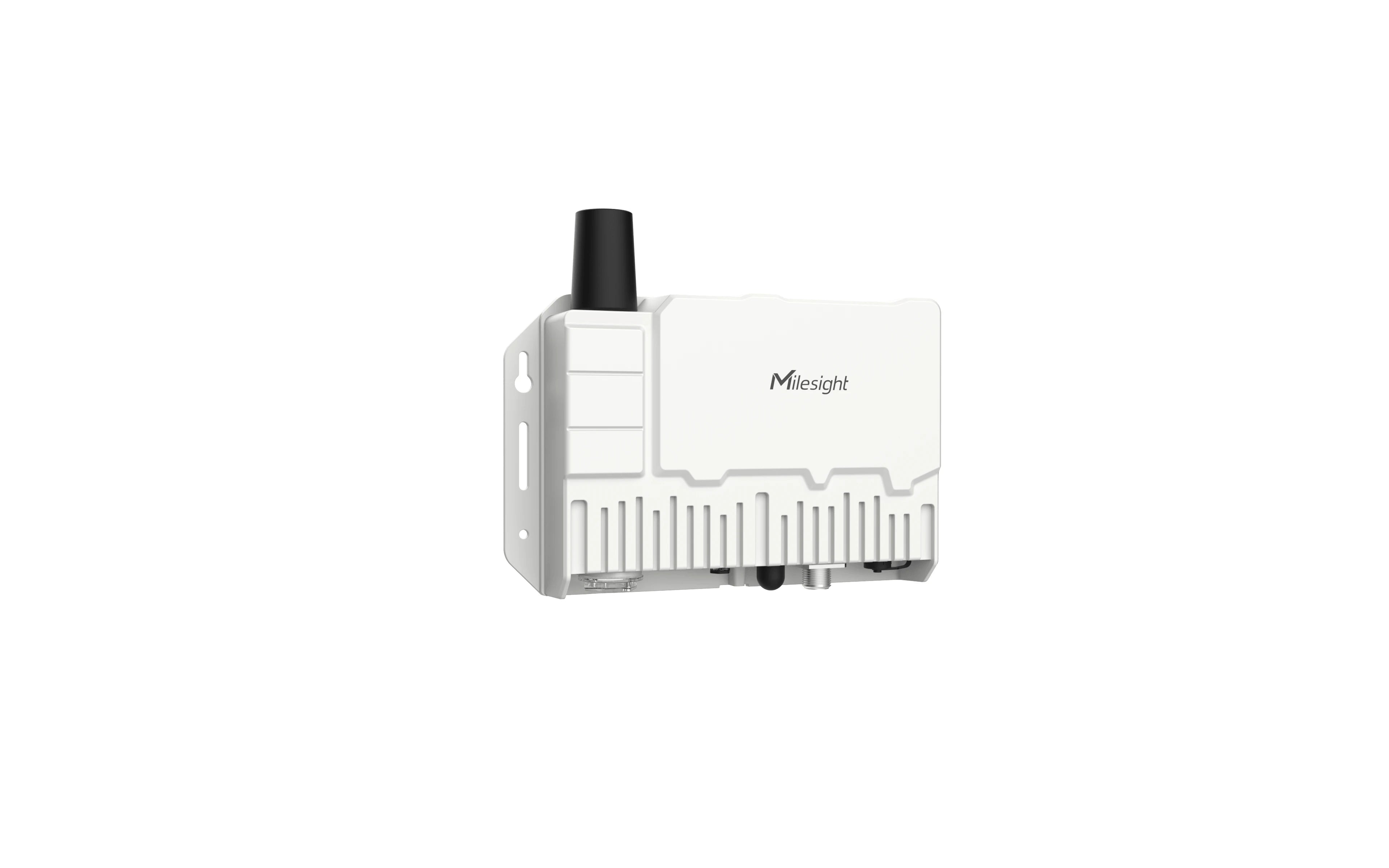

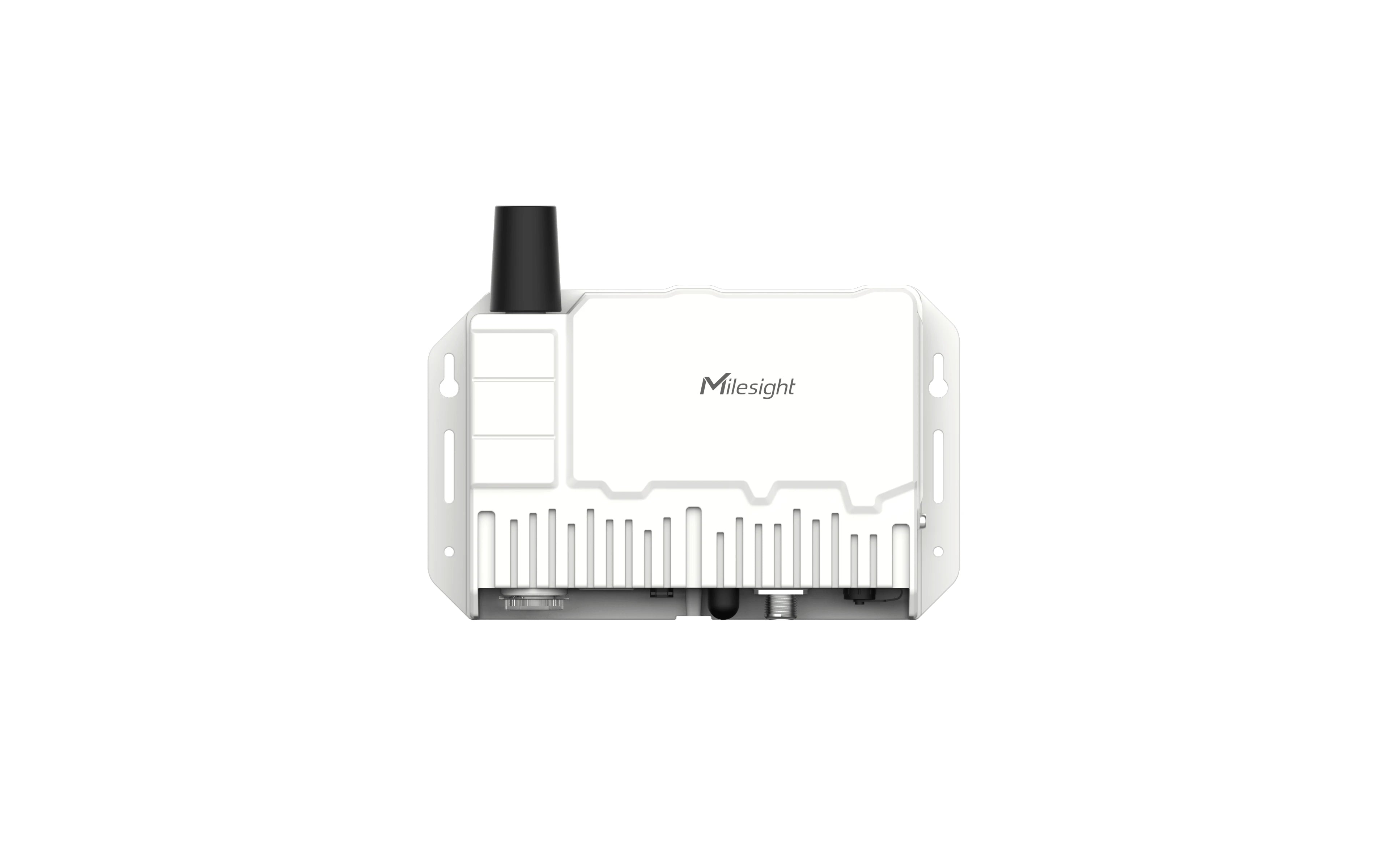

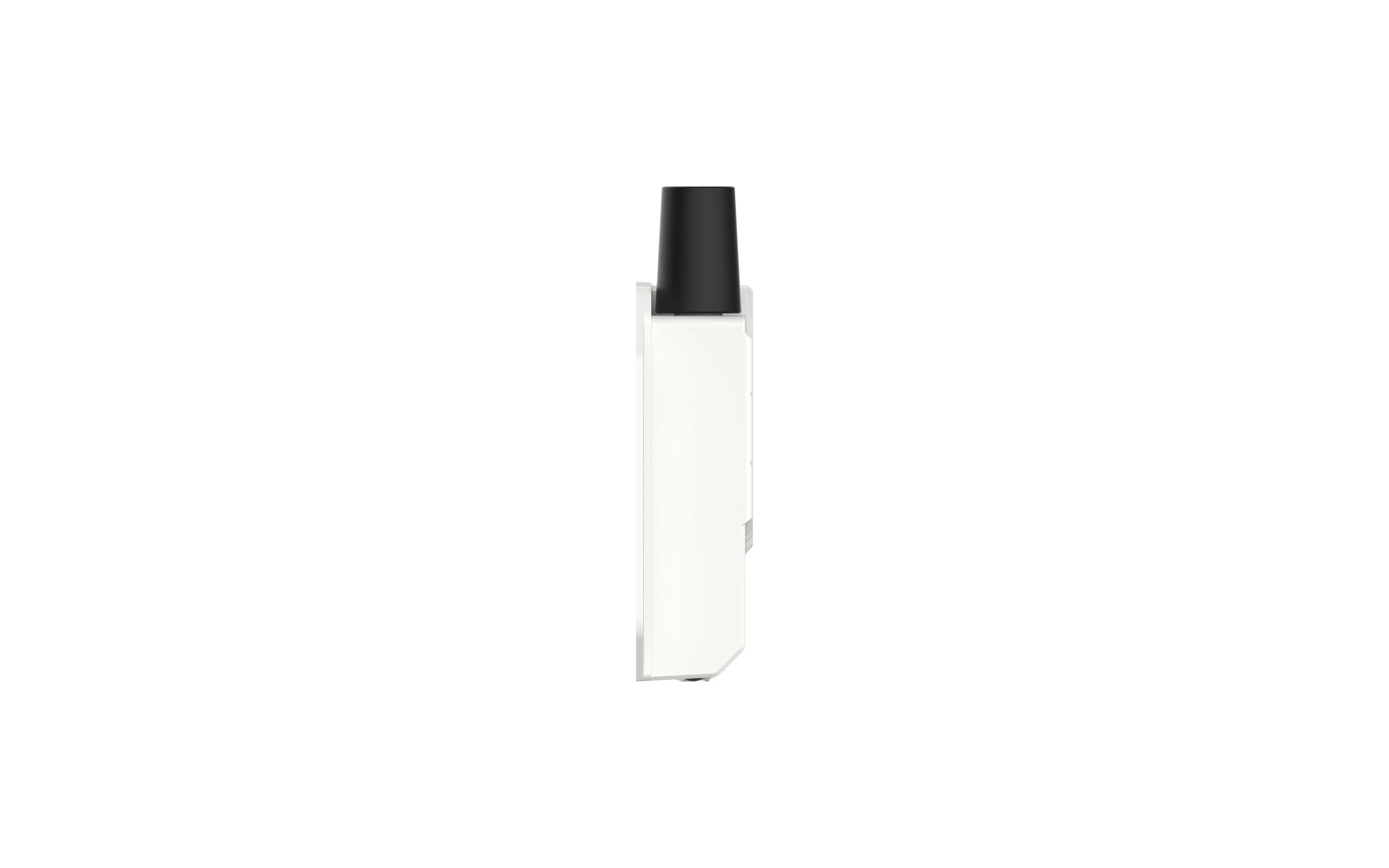

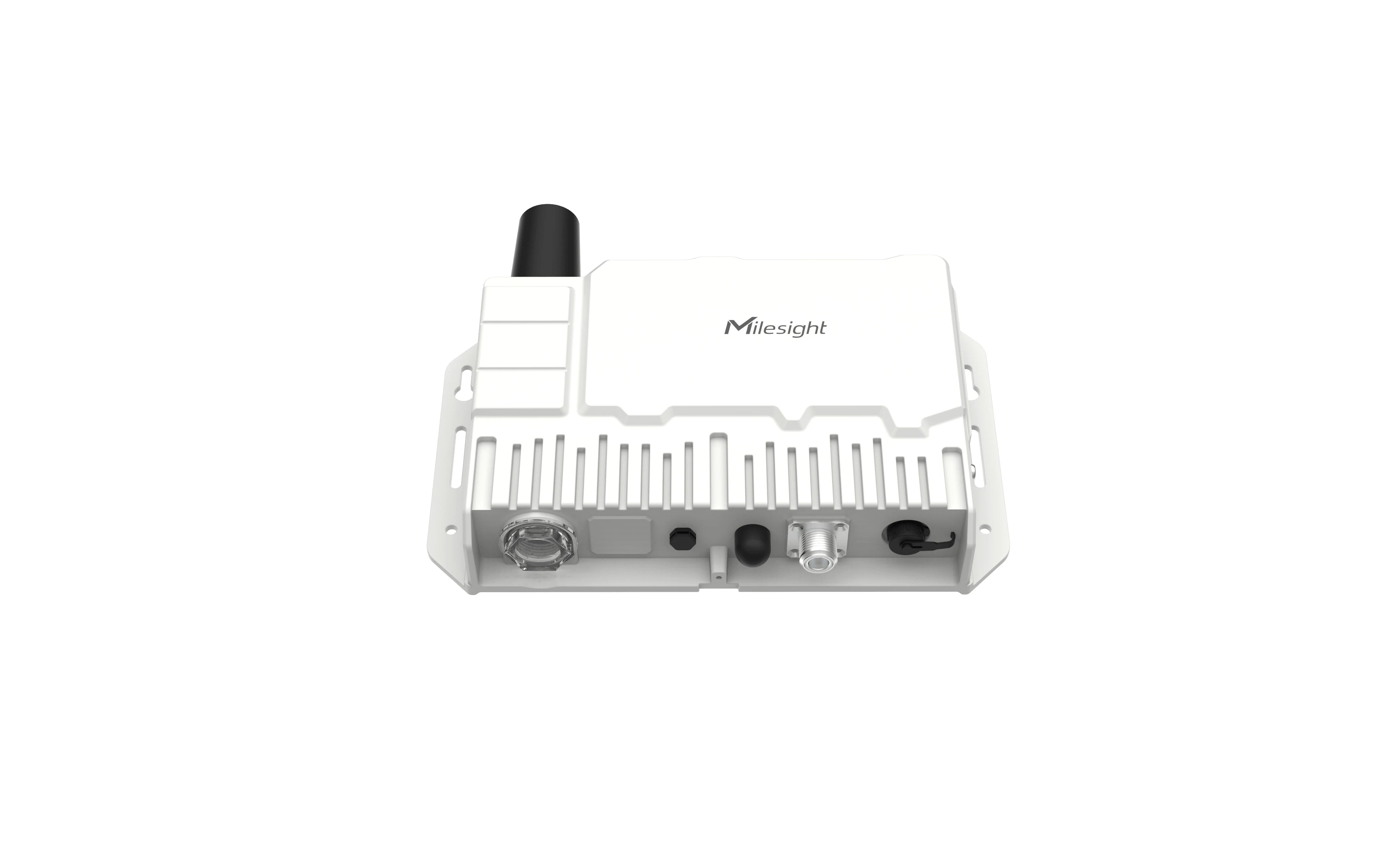

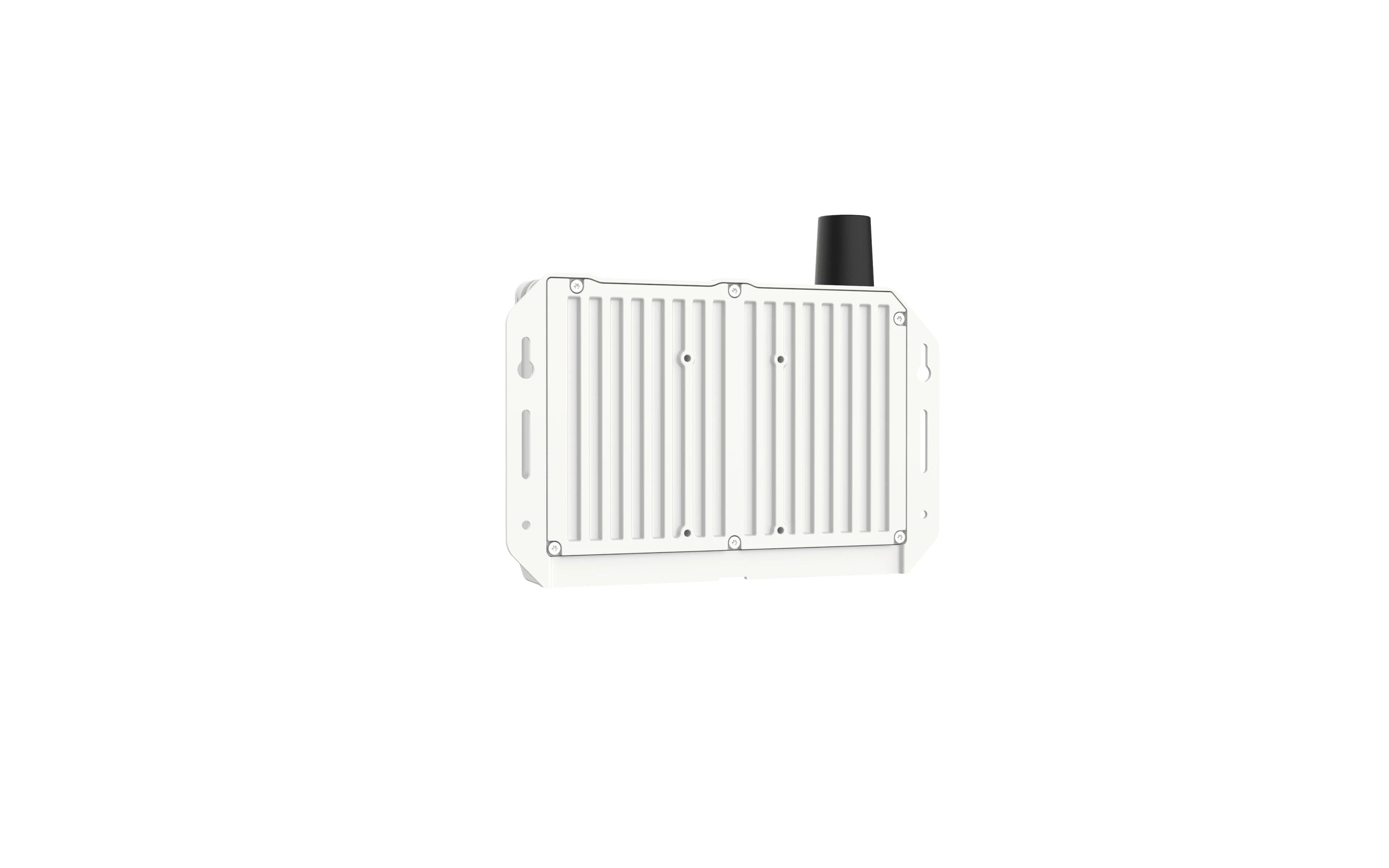

The Milesight SG50 45W is an ultra-low-power solar-powered outdoor LoRaWAN® gateway (EU868), designed for reliable IoT communication in remote locations without conventional power infrastructure.
The gateway uses a Semtech SX1302 concentrator with 8 LoRaWAN channels, enabling long-range communication with distributed IoT sensors.
Its integrated 4G LTE Cat 1 modem provides cellular internet connectivity, while the upgraded 45W monocrystalline solar panel (SP1545) offers higher rated solar power output than the standard 30W version.
The system incorporates a 25,000 mAh rechargeable battery to maintain operation during nighttime and periods of insufficient sunlight. The manufacturer specifies up to 4 days of battery operation without sunlight under defined laboratory conditions.
The IP67-rated aluminum enclosure, built-in GPS, embedded LoRaWAN Network Server and remote management capabilities make the SG50 suitable for smart agriculture, environmental monitoring, water infrastructure and industrial IoT.
The 45W version uses the same SG50 gateway hardware as the 30W model; the main difference is the higher-power solar panel, which may offer improved energy harvesting under suitable conditions.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 Key Features
☀️ 45W Monocrystalline Solar Panel – SP1545 panel with 15 V rated voltage and 3 A rated current.
🔋 25,000 mAh Rechargeable Battery – Backup power with up to 4 days of autonomy under manufacturer test conditions.
📡 8-Channel LoRaWAN EU868 Gateway – Semtech SX1302 concentrator for long-range IoT connectivity.
📶 4G LTE Cat 1 Backhaul – Cellular connectivity for installations without fixed broadband access.
🌧️ IP67 Aluminum Enclosure – Robust outdoor protection against dust and water ingress.
⚡ Ultra-Low Power Consumption – Approximately 0.8 W typical consumption.
🛰️ Integrated GPS – Location functionality for remote deployment and management.
🖥️ Embedded LoRaWAN Network Server – Supports up to 100 devices in embedded network server mode.
🔗 Network Server Compatibility – Integration with compatible external LoRaWAN platforms.
📱 Wi-Fi Connectivity – Supports configuration via Wi-Fi AP mode and Wi-Fi client operation.
🛠️ Remote Management – Web configuration, MQTT API and compatible Milesight platforms.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛠 Applications
🌾 Smart Agriculture – Remote monitoring of crops, soil conditions and irrigation systems.
🌍 Environmental Monitoring – Weather stations and distributed environmental sensors.
🚰 Water Infrastructure – Monitoring of reservoirs, water networks and pumping stations.
🏞️ Off-Grid IoT Networks – Installations without mains power or wired internet access.
🏭 Industrial & Utility Monitoring – Remote outdoor industrial infrastructure.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 Package Configuration
-
Milesight SG50 LoRaWAN Gateway (EU868)
-

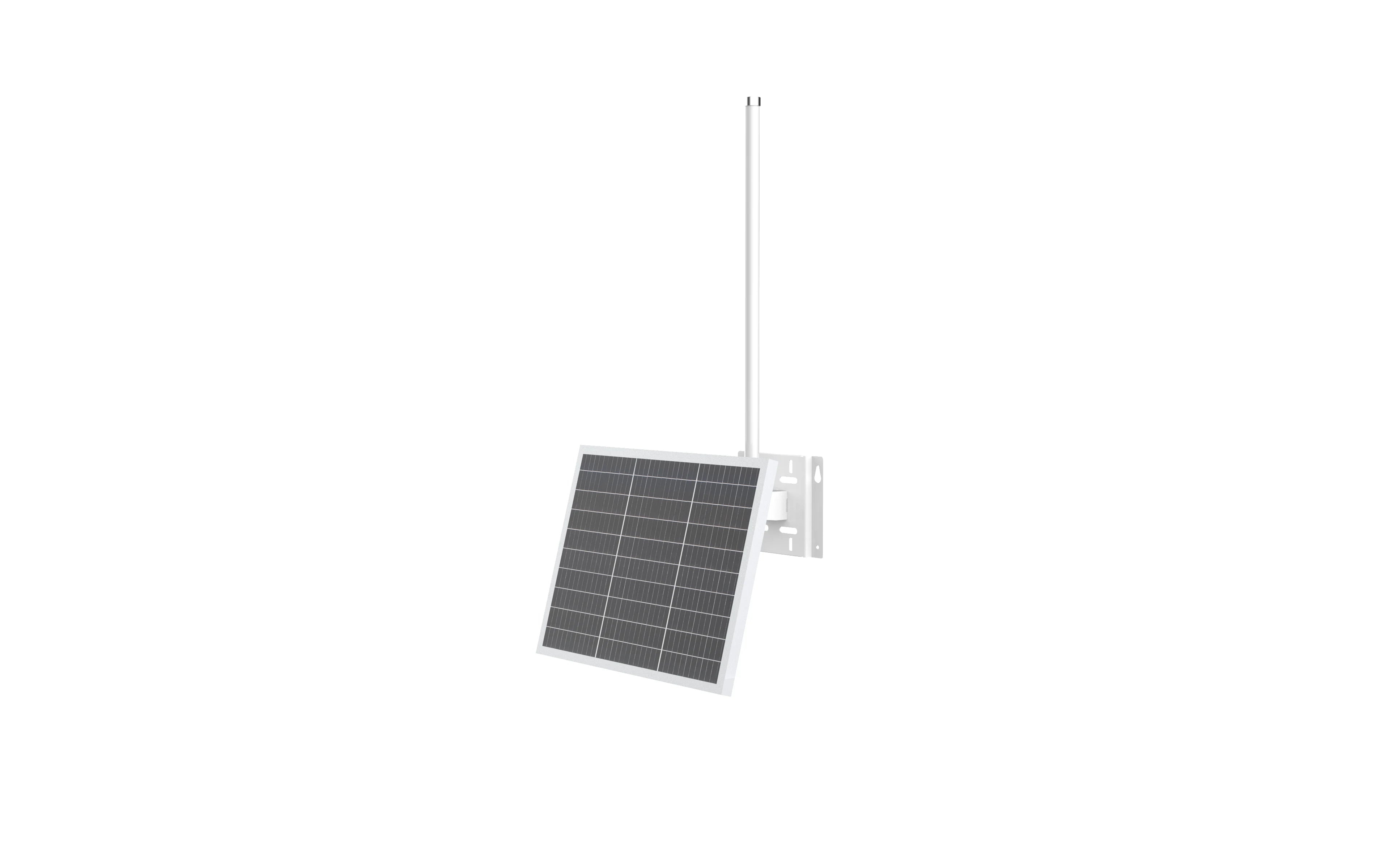

45W Monocrystalline Solar Panel (SP1545)
-
25,000 mAh Rechargeable Battery System
-
LoRaWAN Antenna and Installation Accessories
📥 Product Downloads
Product Video
- Manufacturer: Milesight
- Gateway Model: SG50-L08GL-868M
- Device Type: Ultra Low Power Solar LoRaWAN Gateway
- LoRaWAN Frequency: EU868
- LoRaWAN Concentrator: Semtech SX1302
- Channels: 8, Half-Duplex
- LoRaWAN Sensitivity: -140 dBm @ 292 bps
- Maximum LoRaWAN TX Power: 27 dBm
- LoRaWAN Antenna Connector: N-Female, 50 Ohm
- Cellular Network: 4G LTE Cat 1 / GSM
- Cellular Modem Version: L08GL
- SIM Slot: Nano SIM (4FF)
- Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
- Wi-Fi Modes: AP (Configuration), Client
- GNSS: GPS
- CPU: Dual-Core 240 MHz Xtensa LX7
- RAM: 8 MB PSRAM
- Flash: 16 MB
- Embedded Network Server: Up to 100 Devices
- Packet Forwarding Capacity: Approximately 2,000 Devices, Depending on Traffic
- Integration: MQTT, HTTP, HTTPS
- VPN: OpenVPN Client
- Management: Web, MQTT API, Milesight Platforms
- Rechargeable Battery: 3.6 V / 25,000 mAh
- Battery Autonomy: Up to 4 Days Without Sunlight (Specified Test Conditions)
- Typical Power Consumption: 0.8 W
- Solar Power / DC Input: M12 Connector, 12–24 V DC
- USB: USB Type-C, 5 V / 2 A Power and Console
- Ingress Protection: IP67
- Enclosure: Cast Aluminum
- Operating Temperature: -30°C to +70°C
- Battery Charging Temperature: -20°C to +50°C
- Gateway Dimensions: 250 × 157.5 × 46 mm
- Gateway Weight: 1.755 kg (Including Batteries)

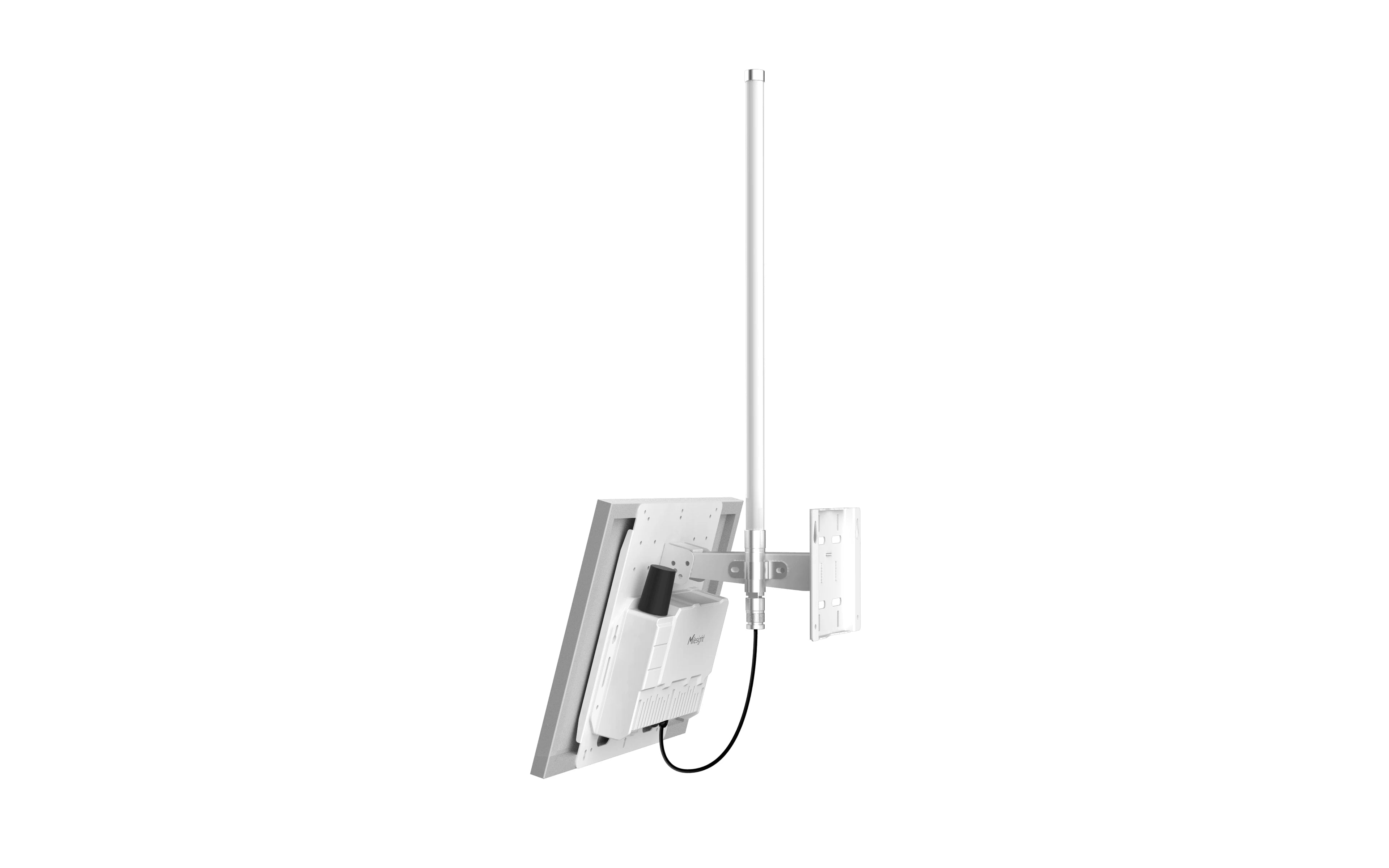

- Installation: Wall or Pole Mounting
- Solar Panel Model: SP1545
- Solar Panel Type: Monocrystalline Silicon
- Solar Panel Power: 45 W
- Solar Panel Rated Voltage: 15 V
- Solar Panel Rated Current: 3 A
- Solar Panel Dimensions: 570 × 380 × 17 mm
- Solar Panel Weight: 2.305 kg
