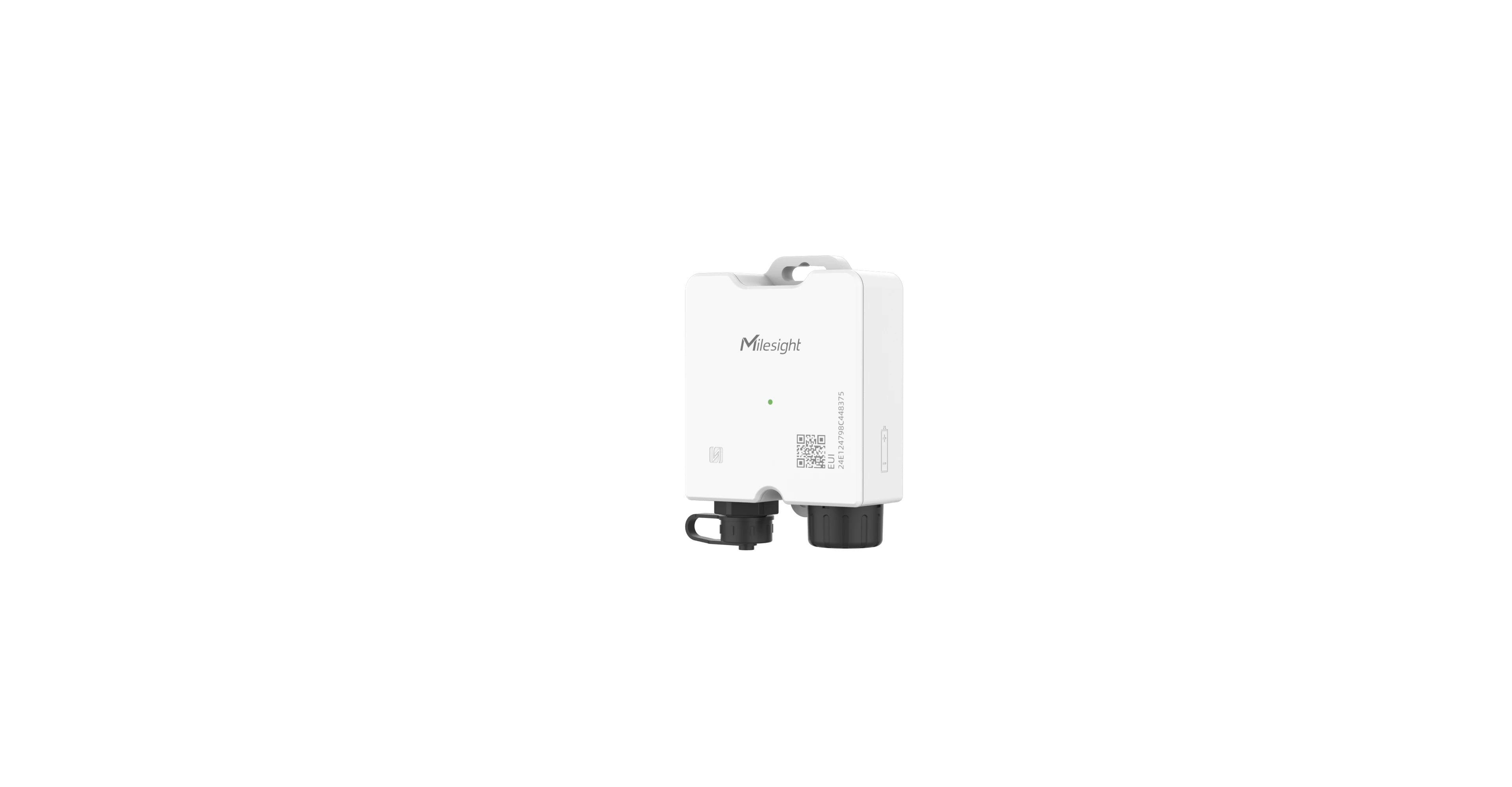

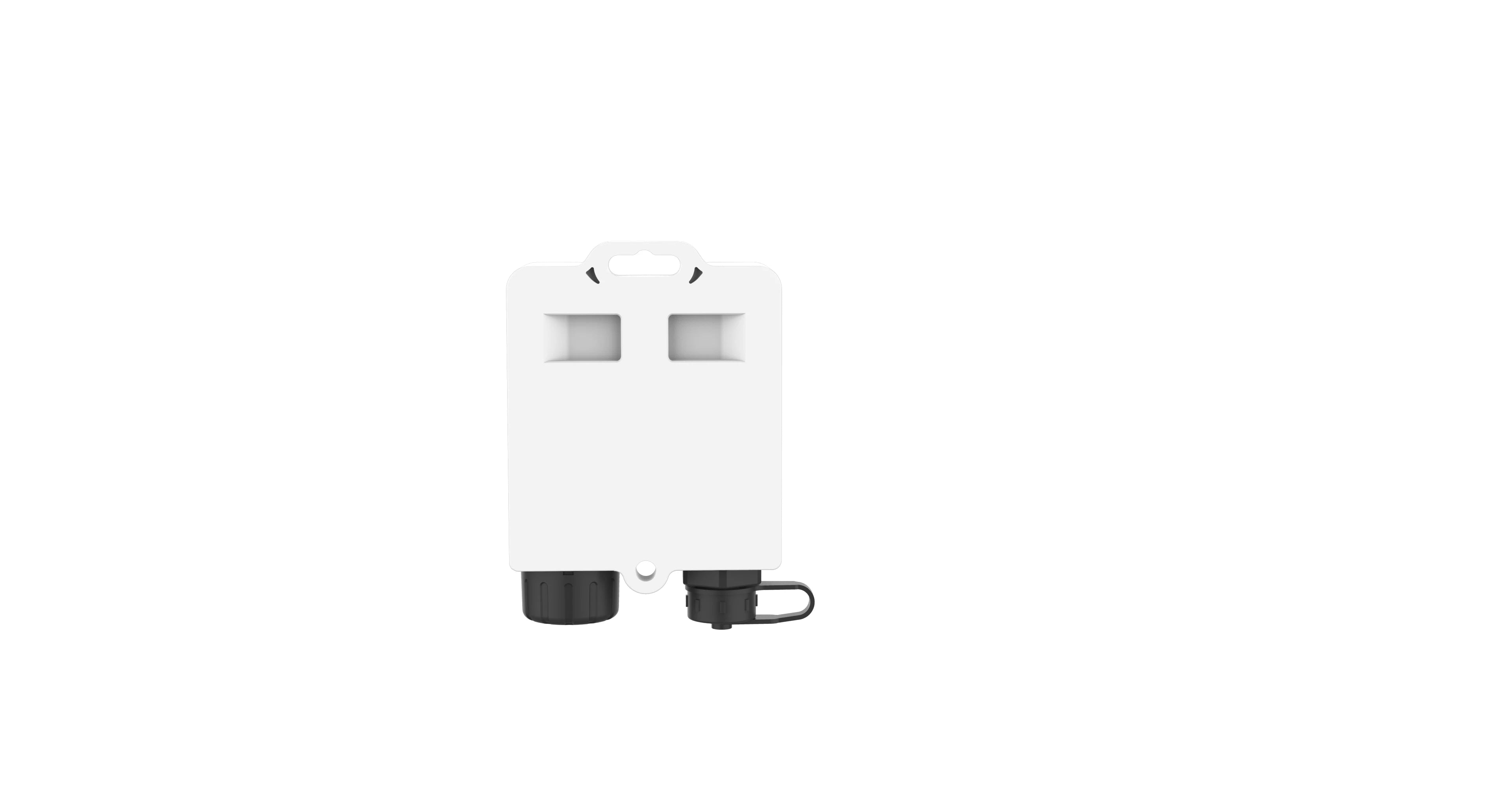

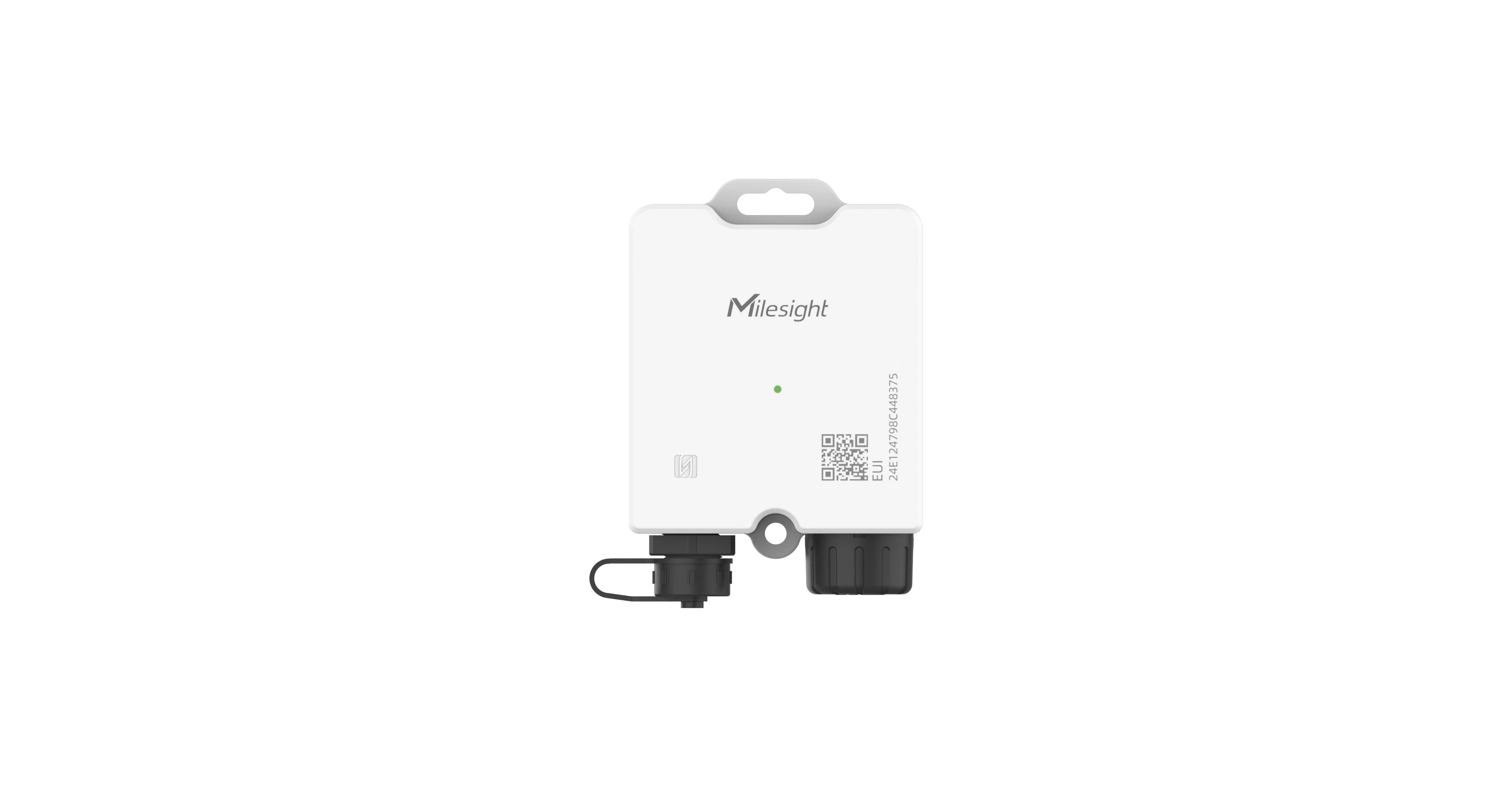

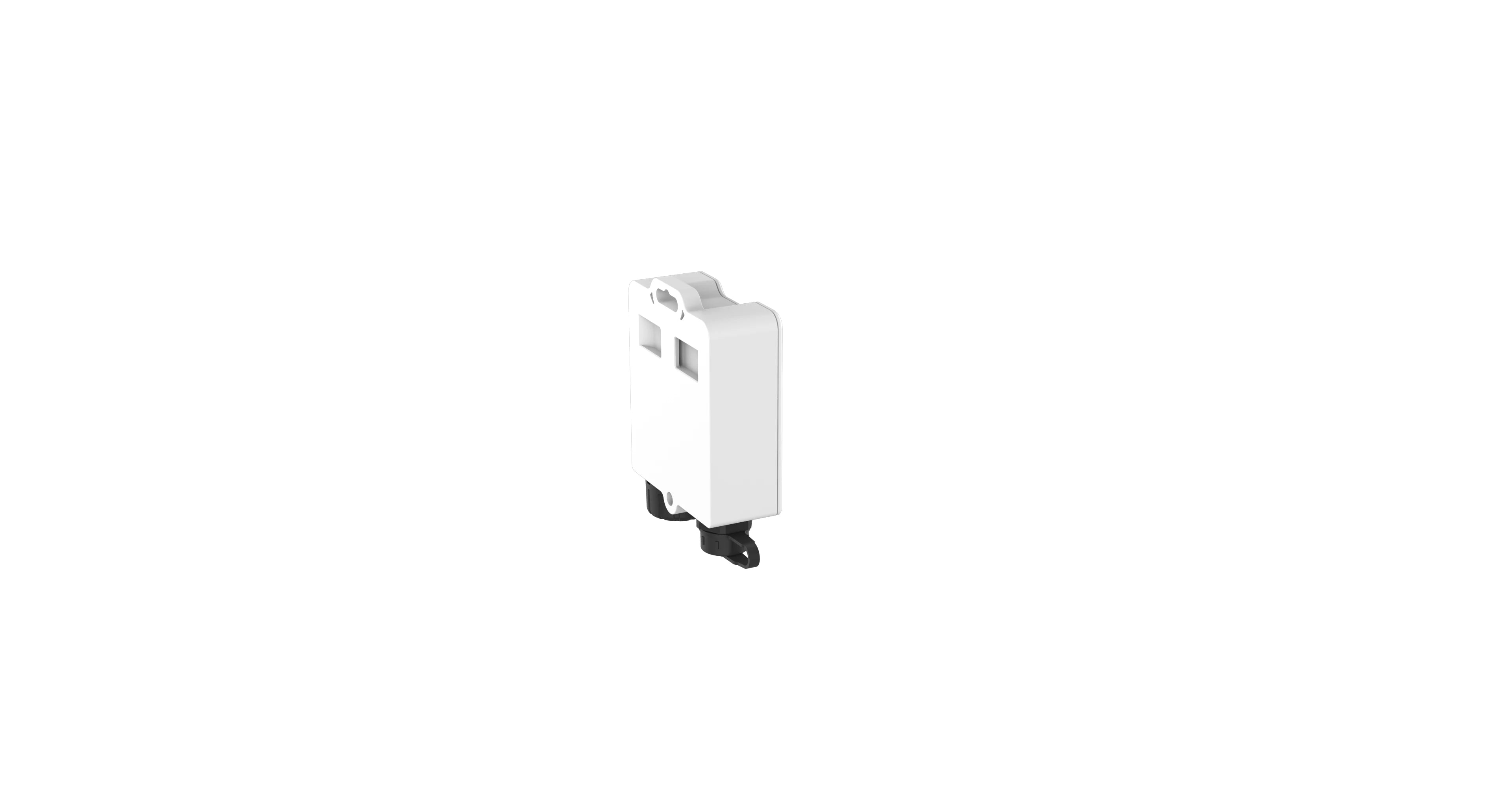

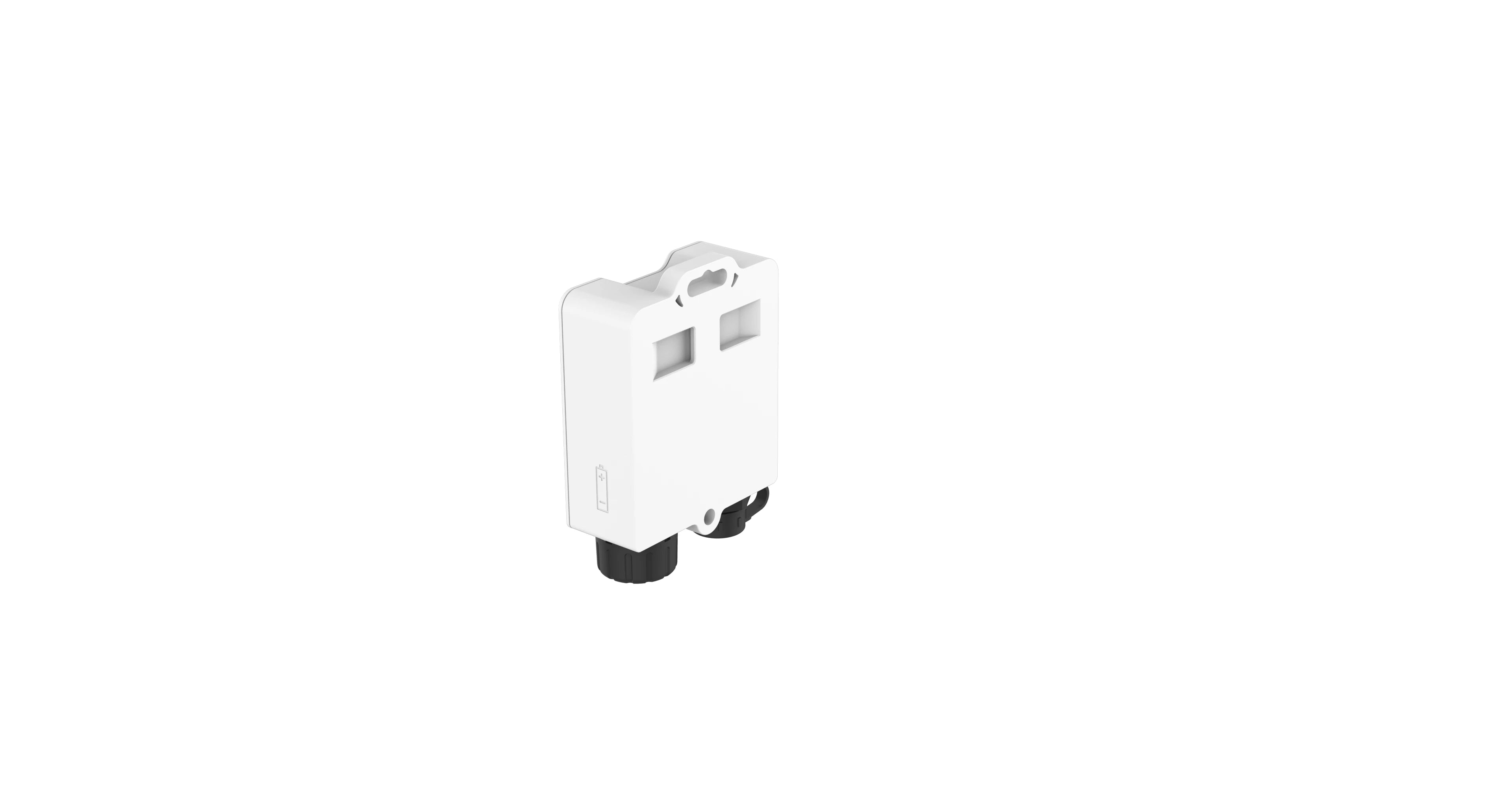

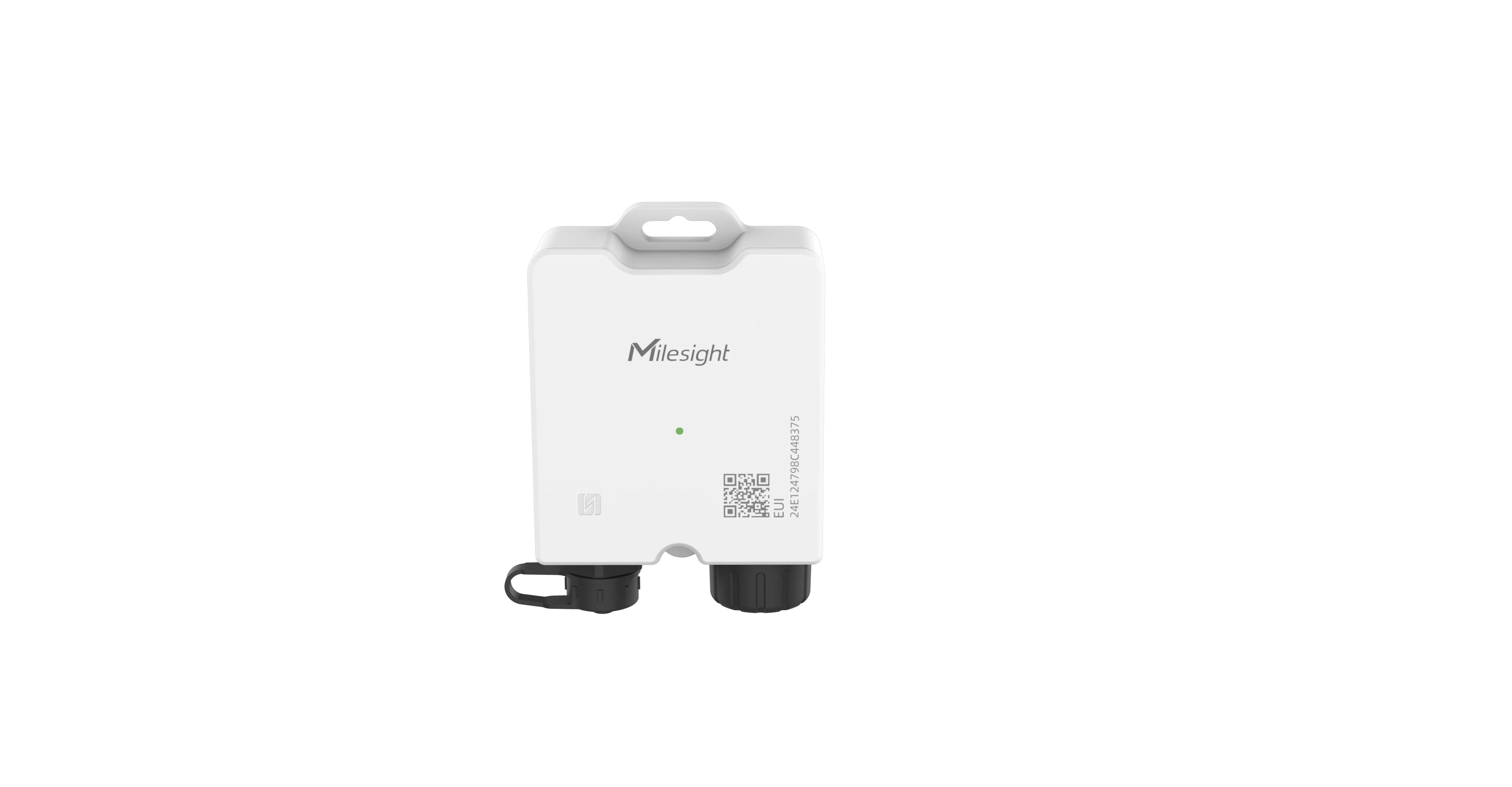

Milesight TS201 PN:ΤΗ LoRaWAN Temperature Sensor (EU868)

MODEL Model: Milesight TS201 Part Number / Version: TH Product Type: LoRaWAN Temperature & Humidity Sensor SENSOR Sensor Type: Digital CMOSens® Technology (MEMS) Probe Type: External Detachable Temperature & Humidity Probe Connector Type: 5-Pin M12 A-Coded Male Connector Connector Number: 1 × Connector for TH Sensor TEMPERATURE Measuring Range: -40°C to +125°C Accuracy: ±0.3°C (-40°C to 0°C) ±0.2°C (0°C to 60°C) ±0.5°C (60°C to 125°C) Resolution: 0.1°C Long-Term Drift: Typically <0.03°C/year HUMIDITY Measuring Range: 0% to 100% RH Accuracy: Typically ±2% RH at 25°C Resolution: 0.5% RH Long-Term Drift: Typically <0.2% RH/year WIRELESS TRANSMISSION Technology: LoRaWAN®, Milesight D2D Frequency: EU868 Tx Power: 16 dBm @ 868 MHz Sensitivity: -137 dBm @ 300 bps Mode: OTAA / ABP, Class A CONFIGURATION & ADVANCED FEATURES LED Indicator: 1 × Status Indicator Button: 1 × External Power Button Configuration: Mobile App via NFC or LoRaWAN Downlink Data Retransmission: Yes Historical Data Retrievability: Yes Data Storage: Up to 4,000 entries Abrupt Change Alarm: Yes Milesight D2D Controller: Yes Milesight D2D Data Transmission: Yes FUOTA: Supported POWER SUPPLY Battery: 1 × ER14505 Li-SOCl₂ Battery Capacity: 2700 mAh Battery Life at EU868 / SF7: Around 9 years Battery Life at EU868 / SF10: Around 2.8 years Reference Conditions: 10-minute reporting interval, 25°C ENVIRONMENTAL Device Operating Temperature: -30°C to +55°C Relative Humidity: 0% to 95% RH, non-condensing Ingress Protection: IP67 PHYSICAL CHARACTERISTICS Device Housing: ABS + PC Device Color: White Sensor Cable Material: TPE Sensor Cable Color: White Sensor Probe Material: Stainless Steel 304, FDA Compliant Device Weight: 70 g Sensor Cable + Probe Weight: 26.5 g Sensor Cable Length: 1.5 m Sensor Probe Length: 50 mm Dimensions: 58 × 65 × 25 mm Installation: Wall Screw Mounting, Cable-Tie Mounting, Optional Magnetic Mounting CERTIFICATIONS Regulatory: CE, FCC, EN12830 Environmental: RoHS
