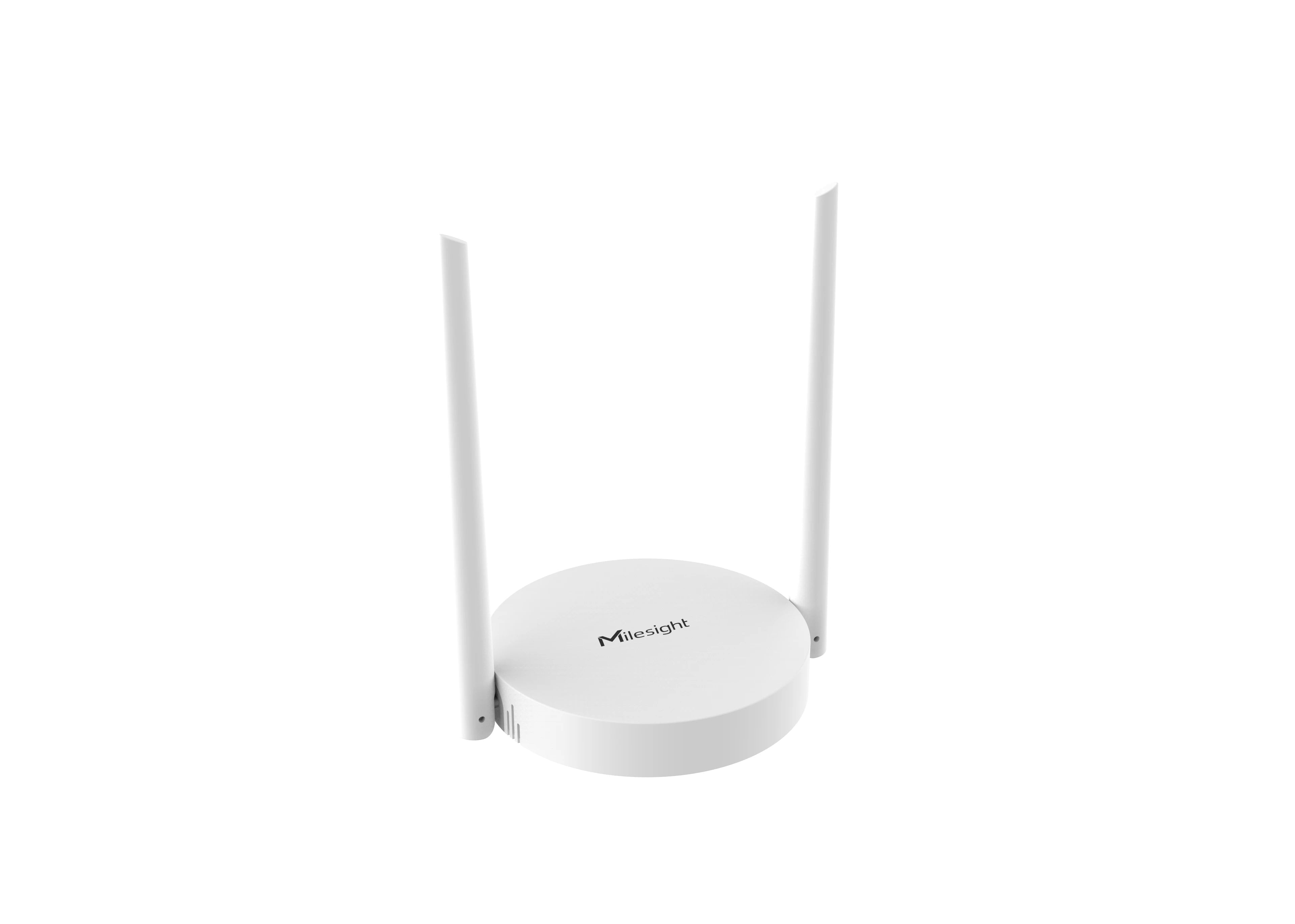

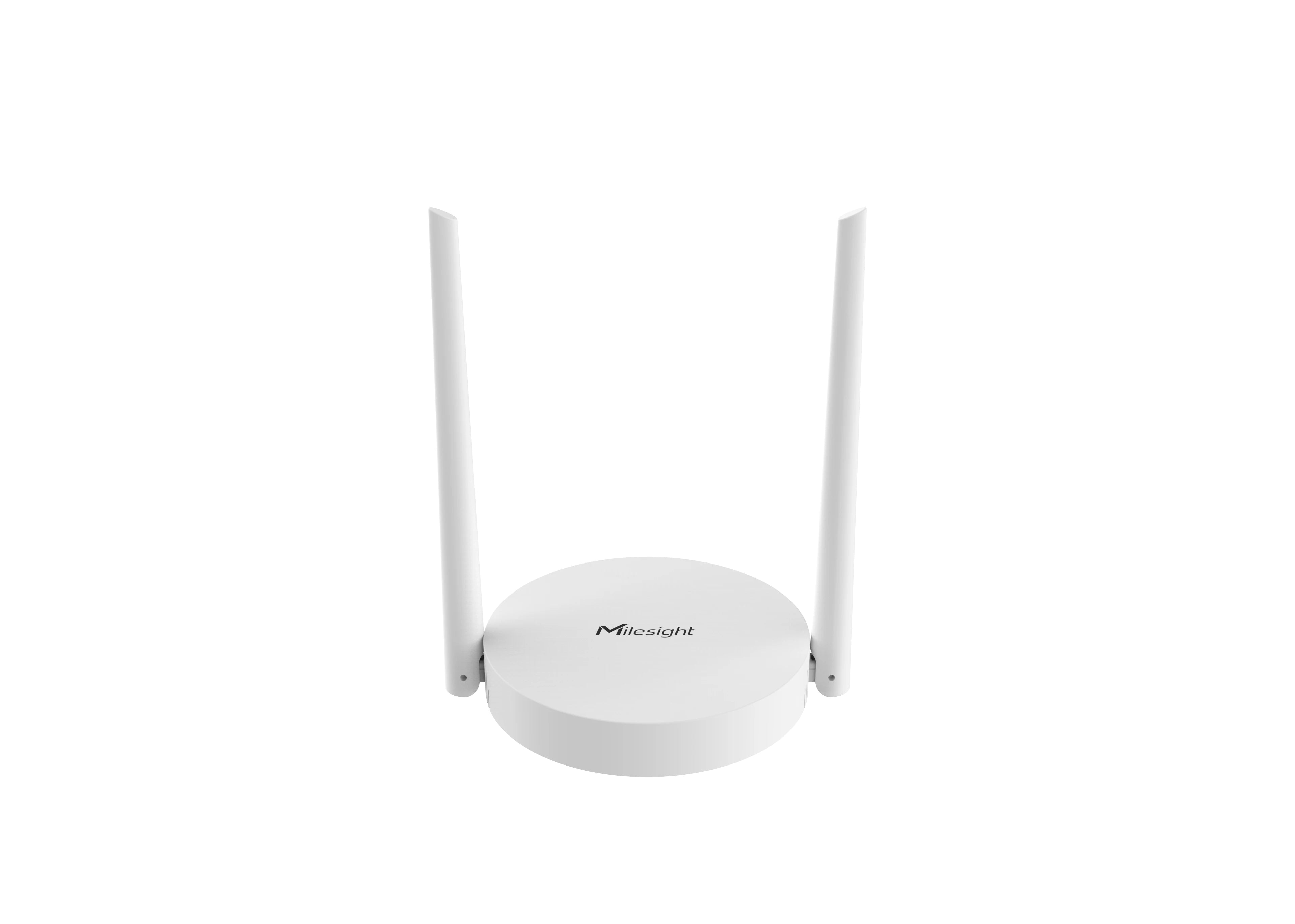

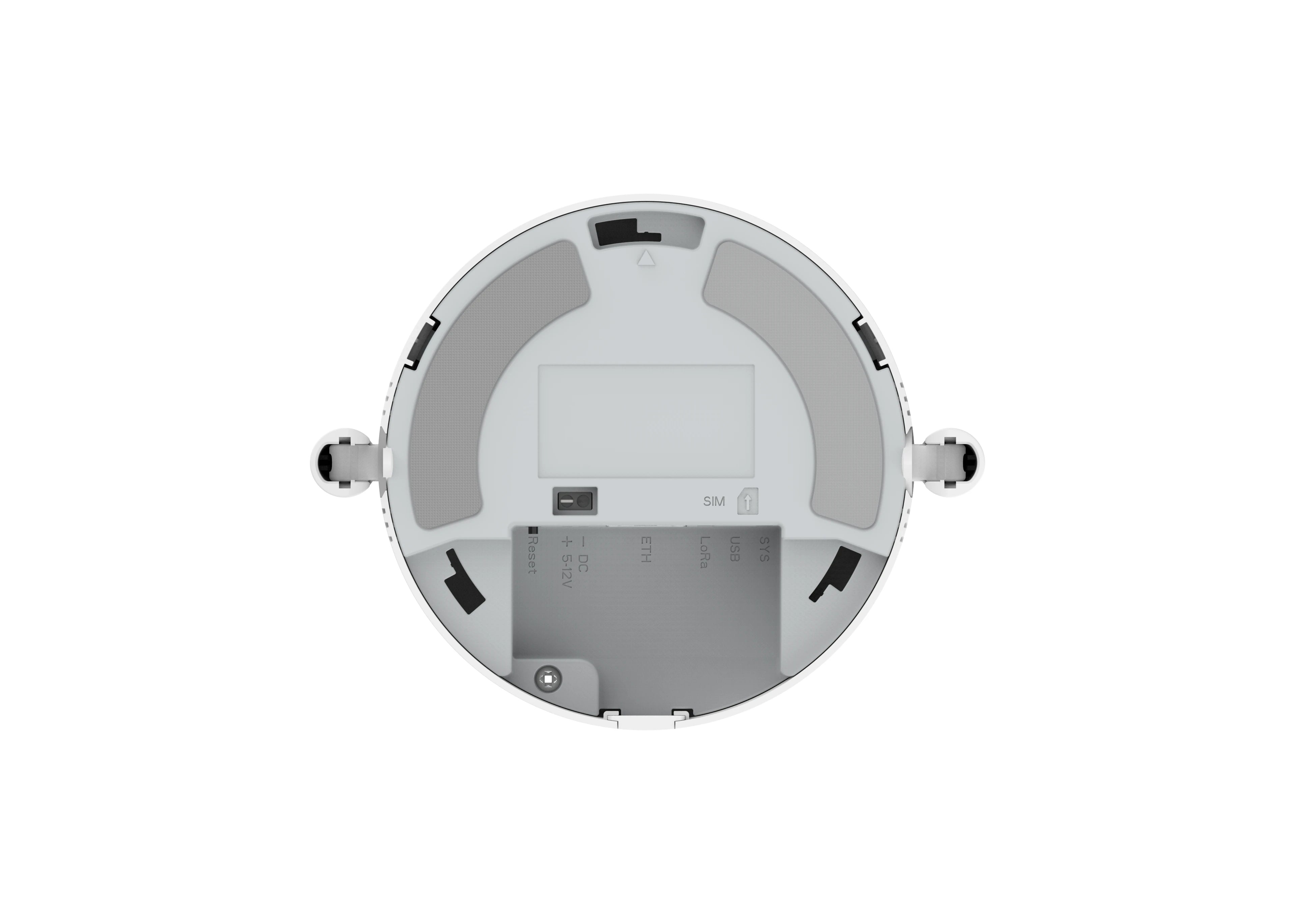

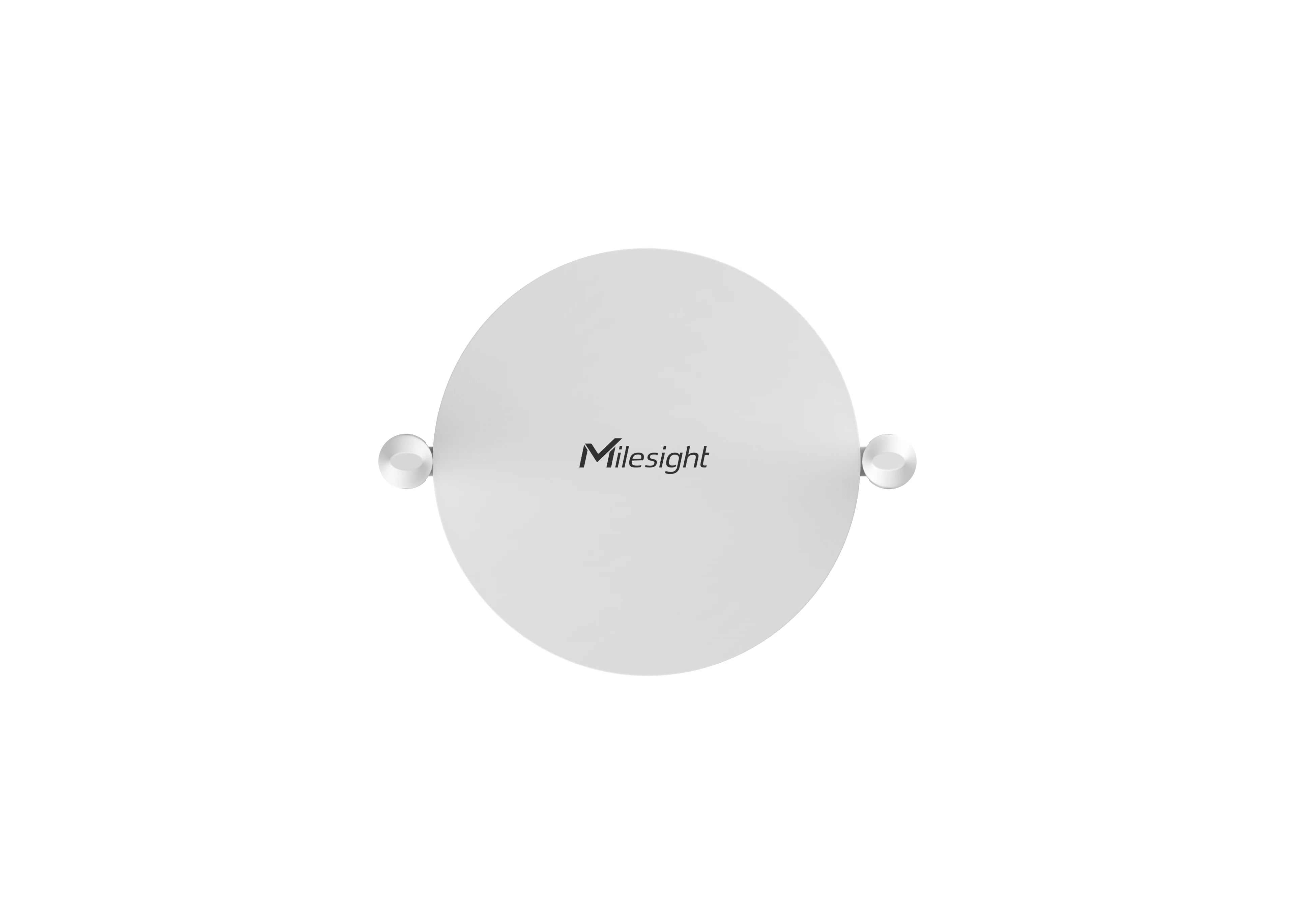

Milesight UG63 Mini LoRaWAN Indoor Ethernet Gateway (EU868)
  1. Home
  2. Deals
  3. Milesight UG63 Mini LoRaWAN Indoor Ethernet Gateway (EU868)
Milesight UG63 Mini LoRaWAN Indoor Gateway, Ethernet & Wi-Fi (EU868)
Milesight UG63 Mini LoRaWAN Indoor Gateway, Ethernet & Wi-Fi (EU868)
Milesight UG63 Mini LoRaWAN Indoor Gateway, Ethernet & Wi-Fi (EU868)
Milesight UG63 Mini LoRaWAN Indoor Gateway, Ethernet & Wi-Fi (EU868)

Milesight UG63 Mini LoRaWAN Indoor Ethernet Gateway (EU868)

Availability: In stock

€122,90 €142,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Milesight

The Milesight UG63 is a compact and cost-effective LoRaWAN gateway designed for indoor IoT applications. It enables long-range wireless communication between LoRaWAN end devices and network servers, making it ideal for smart buildings, offices, warehouses, and industrial facilities.

Its sleek and compact design allows for easy installation in various indoor environments.

🔑 Key Features

✔ Efficient LoRaWAN Connectivity – Supports up to 1,000 end devices with a reliable long-range connection.
✔ Ethernet  Backhaul Support  for flexible network integration.
✔ Compact & Lightweight Design – Ideal for indoor deployment in smart buildings, offices, and industrial settings.
✔ Secure & Scalable – Features TLS/SSL encryption and supports multiple network server platforms.
✔ Low Power Consumption – Optimized for energy-efficient operation with minimal maintenance.
✔ Easy Configuration & Remote Management – Compatible with Milesight IoT Cloud for effortless setup and monitoring.

📦 Technical Specifications

✅ LoRaWAN Protocol: 1.0.3, Class A & C
✅ Frequency Band: EU868
✅ Backhaul Connectivity: Ethernet
✅ Power Supply: 5V DC via USB Type-C
✅ Operating Temperature: -20°C to 55°C
✅ Maximum LoRaWAN Nodes: Up to 1,000
✅ Compact Design: Suitable for space-saving indoor installations

📥 Product Downloads:

📑 Datasheet | 📘 User Manual

Product Video

    • Device Type: Mini Indoor LoRaWAN® Gateway
    • LoRaWAN® Protocol: 1.0.3, Class A & C
    • LoRa® Chipset: Semtech SX1302
    • LoRa® Channels: 8 (Half-duplex)
    • LoRa® Frequency Band: EU868
    • LoRa® TX Power: Up to 27 dBm
    • LoRa® Sensitivity: Down to -140 dBm @ 292bps
    • Backhaul Connectivity:
      • Ethernet: 1 × RJ45 WAN Port (10/100 Base-T, auto-sensing)
    • Power Supply:
      • 5V USB Type-C
      • 5-12V DC via 3.5mm 2-pin terminal block
      • Optional 802.3af PoE Input
    • Power Consumption: Typical 1.8 W, Max 4 W
    • Operating Temperature: -40°C to 70°C
    • Ingress Protection: IP30
    • Dimensions: 115 x 21 mm
    • Weight: 180 g
    • Installation: Desktop, Wall-Mount, Ceiling-Mount
    • Features:
      • Embedded network server compatible with The Things Network (TTN) and ChirpStack
      • Supports BACnet/IP and Modbus integration
      • Secure management via Milesight DeviceHub
      • Supports VPNs: IPsec, OpenVPN, L2TP, PPTP
    • Applications:
      • Smart Buildings
      • Industrial IoT
      • Environmental Monitoring
      • Smart Cities
