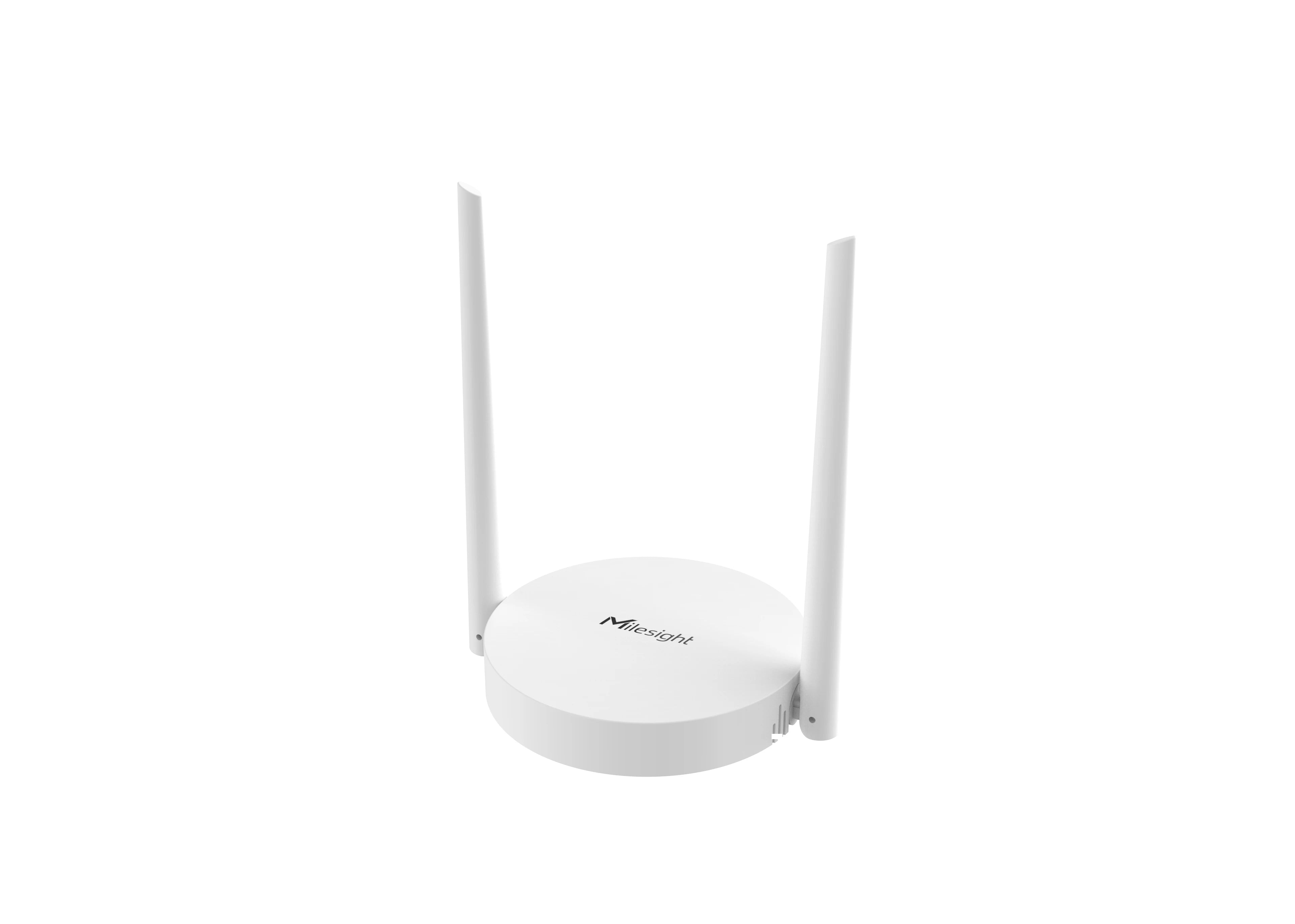

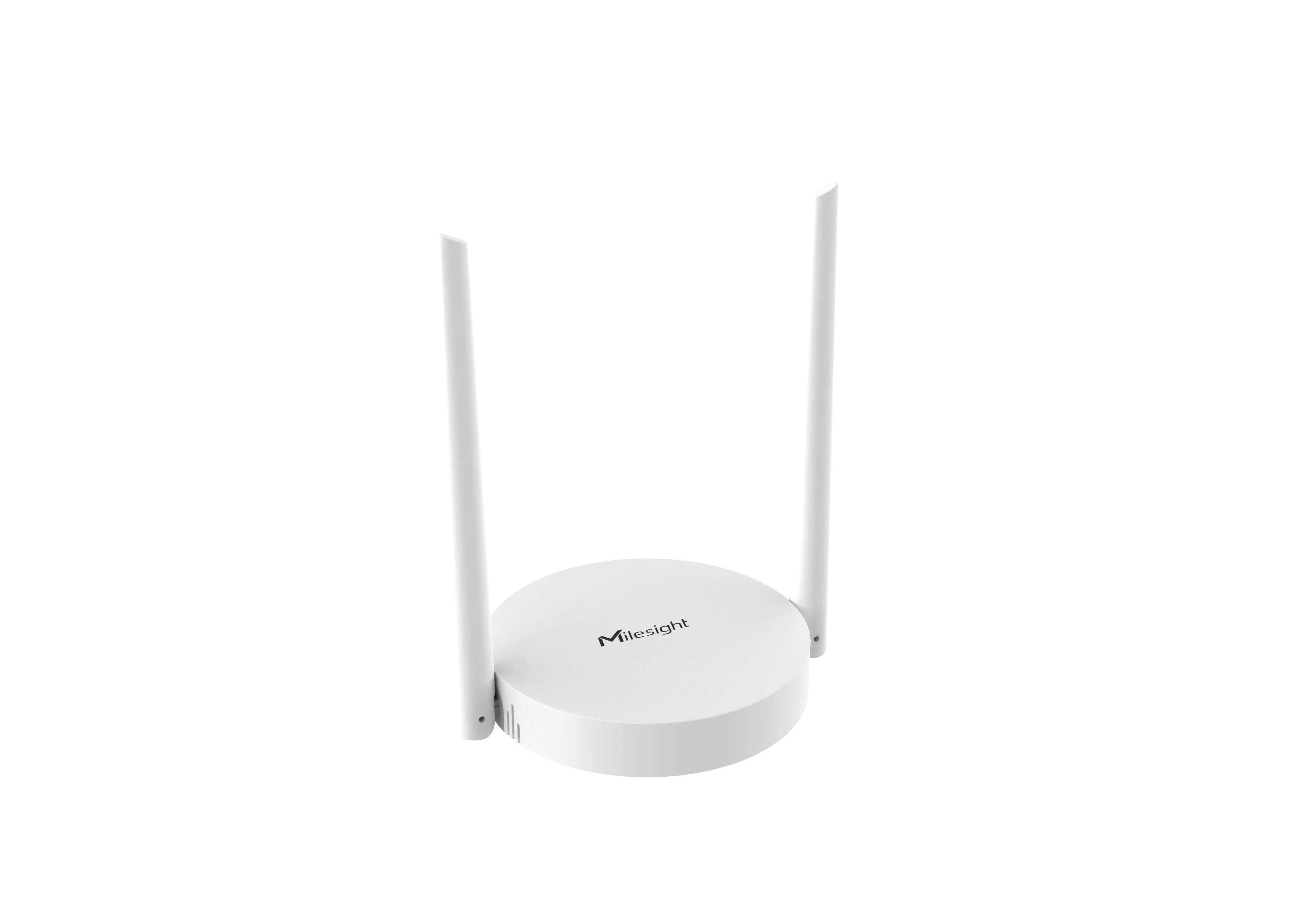

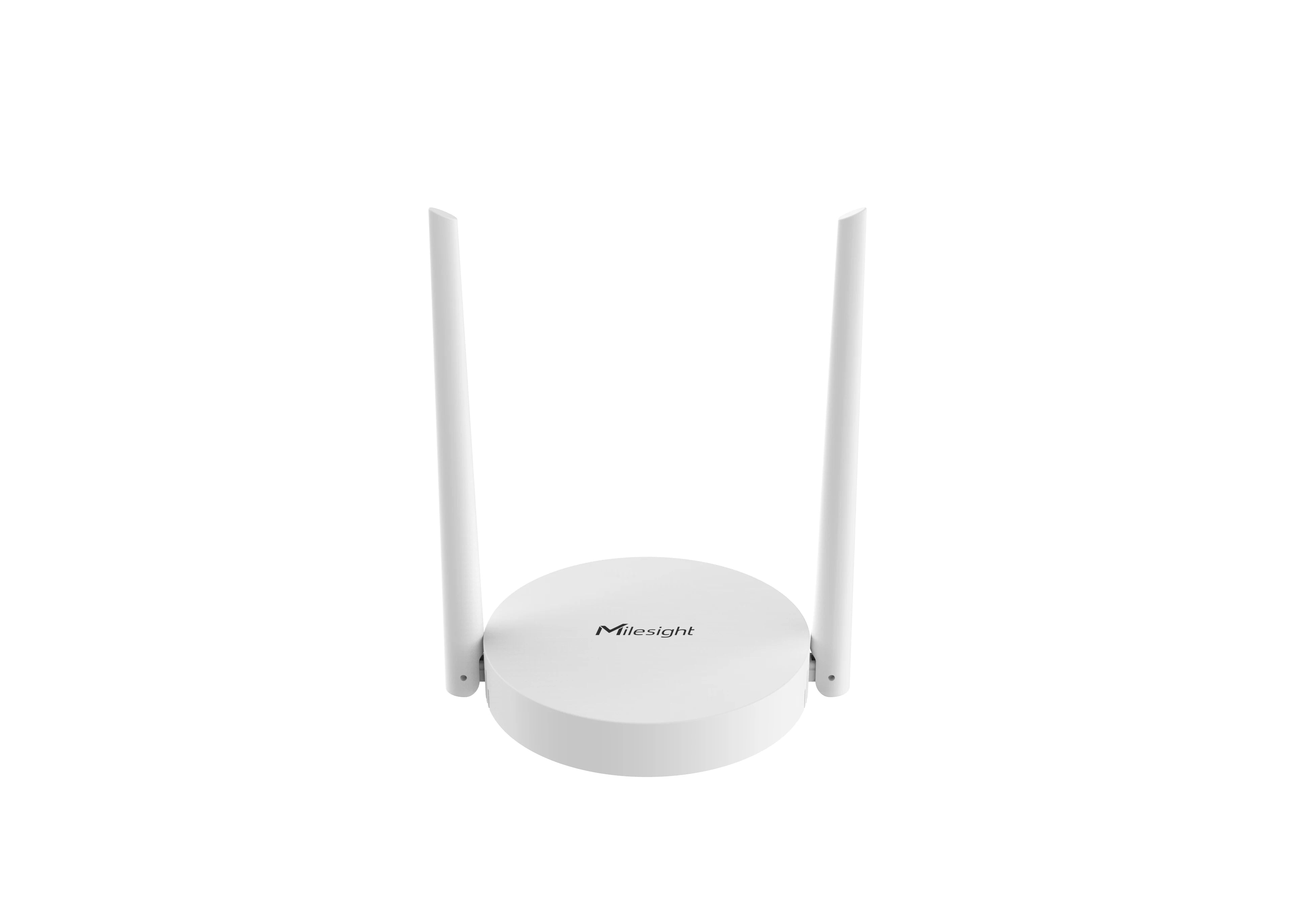

The Milesight UG63 4G is a compact and cost-effective 8-channel LoRaWAN® Gateway, designed for small to medium-scale indoor IoT deployments. Built around modern LoRaWAN® technology, it provides reliable communication between LoRaWAN sensors and Network Servers.
It supports approximately 2,000 LoRaWAN® end devices in packet-forwarding applications and provides reliable LoRaWAN coverage for indoor environments. The EU868 version is specifically designed for European LoRaWAN deployments.
For network connectivity, the UG63 4G offers 4G LTE (Cat 1) / GSM cellular connectivity via a Micro SIM (3FF), as well as 10/100 Mbps Ethernet through an RJ45 WAN port. This provides flexible backhaul options, making the gateway particularly suitable for installations where a fixed Ethernet connection is unavailable or where cellular connectivity is required.
The gateway also supports 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) in AP Mode for device configuration.
Thanks to its compact design and flexible installation options, including desktop, wall, and ceiling mounting, the UG63 4G is an ideal solution for Smart Buildings, offices, retail stores, warehouses, parking facilities, campuses, remote installations, environmental monitoring, and a wide range of IoT applications.
🔑 Key Features
✔ Compact & Efficient LoRaWAN Gateway – Small indoor design with high-performance LoRaWAN connectivity.
✔ Multi-Connectivity Backhaul – Offers 4G LTE and Ethernet for reliable data transmission.
✔ Supports up to 8 LoRaWAN Channels – Ensures stable communication with multiple LoRa devices.
✔ Long-Range LoRaWAN Coverage – Provides up to 10 km (rural) and 2 km (urban) range.
✔ Built-in Network Server – Enables local data processing without external dependencies.
✔ Low Power Consumption – Optimized for energy efficiency, suitable for continuous operation.
✔ Remote Management & Security – Supports TLS encryption, VPN, and OTA firmware updates.
📦 Technical Specifications
✅ LoRaWAN Protocol: 1.0.3, Class A & C
✅ Frequency Band: EU868
✅ Backhaul Connectivity: 4G LTE, Ethernet
✅ Max Concurrent End Devices: Up to 8 LoRaWAN® channels
✅ Security Features: TLS, VPN, Secure Boot
✅ Operating Temperature: -20°C to 50°C
✅ Enclosure Rating: Indoor Use Only
✅ Dimensions: Refer to the datasheet for detailed measurements
📥 Product Downloads
🏠 Product Video
oRaWAN® Channels: 8 (Half-Duplex) Frequency Band: EU868 Packet Forwarder Capacity: Approx. 2,000 Class A/B/C Devices Embedded Network Server Capacity: Max. 20 Devices LoRa Sensitivity: -140 dBm @ 292 bps Tx Power: Max. 27 dBm Cellular: 4G LTE (Cat 1) / GSM SIM Slot: 1 × Micro SIM (3FF) EU/Global Cellular Version: L08GL LTE-FDD Bands: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-TDD Bands: B34/38/39/40/41 GSM Bands: B2/3/5/8 Ethernet: 1 × RJ45 WAN, 10/100 Mbps Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz Wi-Fi Mode: AP Mode – Device Configuration Only Wi-Fi Security: WPA-PSK Network Server: Embedded LoRaWAN® Network Server Integration: MQTT Power Input: 5V/2A USB Type-C / 2.5–12V DC / optional 802.3af PoE Splitter Power Consumption: Typical 2.9 W / Max. 4.2 W Ingress Protection: IP30 Mounting: Desktop / Wall / Ceiling
