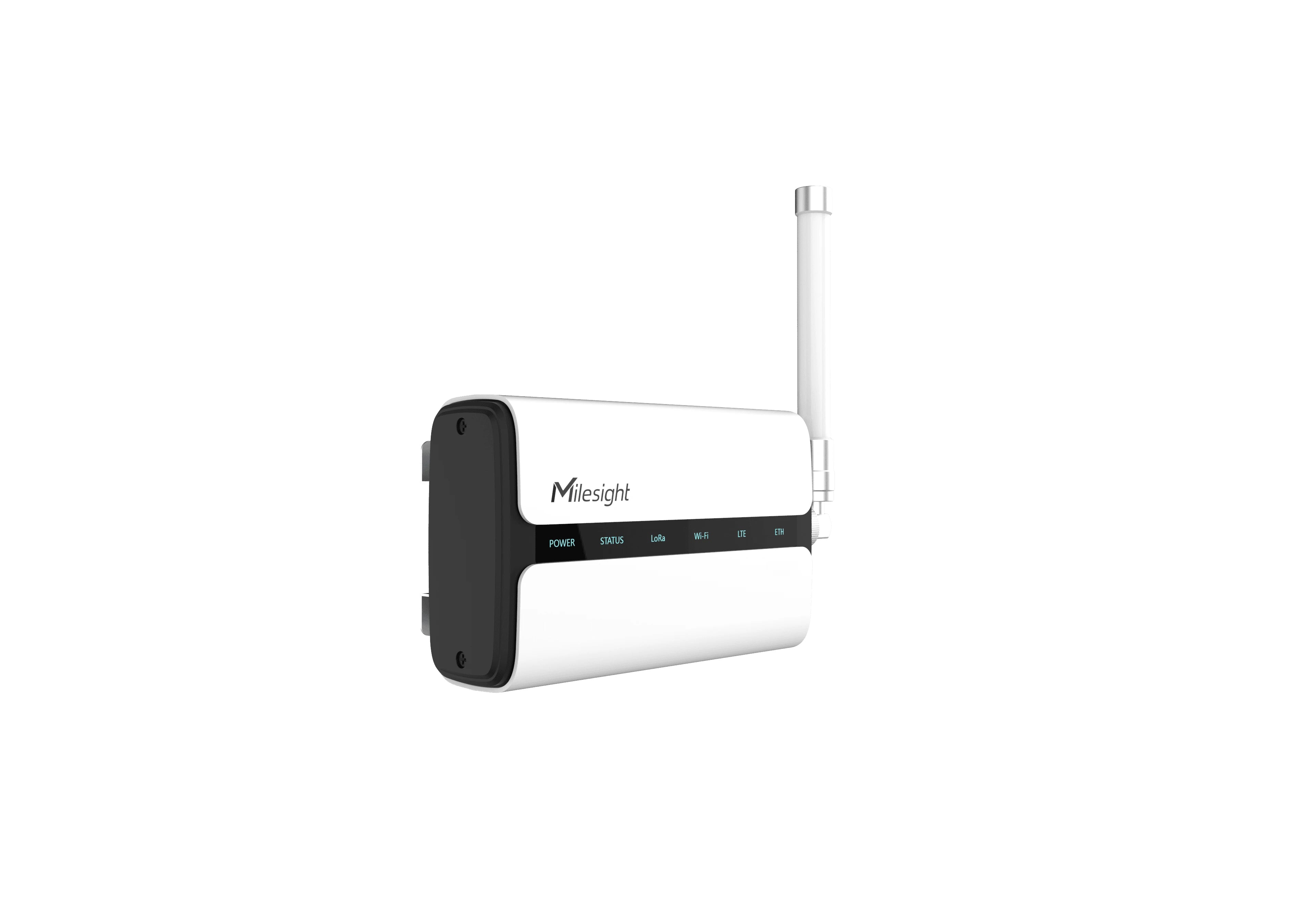

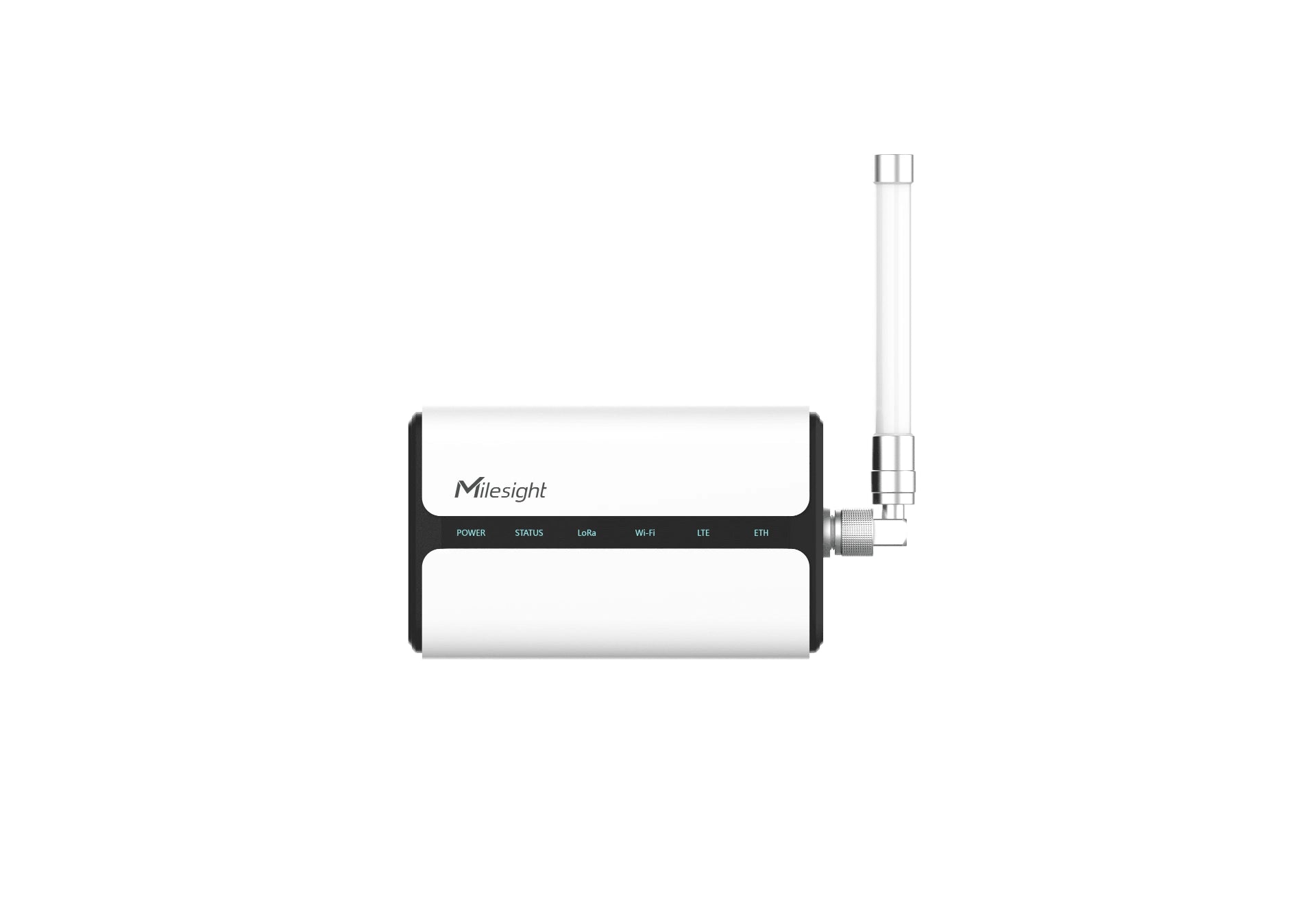

The Milesight UG65 is a semi-industrial LoRaWAN® gateway designed for long-range, low-power IoT applications. Equipped with 4G LTE, Ethernet, and Wi-Fi connectivity, the UG65 ensures reliable and flexible communication across various environments. Featuring an external antenna for improved signal reception, this gateway is ideal for smart cities, industrial monitoring, agricultural IoT, and remote sensing applications.
With a high-performance Semtech SX1302 LoRa chip, robust industrial-grade design, and multi-backhaul connectivity, the UG65 delivers stable and efficient LoRaWAN® network coverage, making it an excellent choice for indoor and semi-outdoor deployments.
🔑 Key Features
✔ Long-Range LoRaWAN® Connectivity – Supports up to 2000 end nodes with long-range communication and low power consumption.
✔ Multi-Backhaul Support – Equipped with 4G LTE, Ethernet, and Wi-Fi, ensuring reliable network connectivity.
✔ External Antenna for Enhanced Reception – Provides stronger LoRa signal coverage, ideal for challenging environments.
✔ Semtech SX1302 LoRa Chip – Delivers high sensitivity and superior anti-interference performance.
✔ High Capacity & Scalability – Supports 8 concurrent LoRaWAN® channels with a high message rate.
✔ Industrial-Grade Durability – IP65-rated enclosure for dustproof and waterproof protection, suitable for semi-outdoor installations.
✔ Edge Computing & Data Processing – Enables efficient real-time data transmission and filtering.
✔ Intelligent Network Server – Comes with built-in LoRaWAN® network server and is compatible with major IoT cloud platforms.
✔ Multiple Deployment Scenarios – Ideal for factories, warehouses, farms, smart buildings, and logistics monitoring.
📦 Technical Specifications
✅ LoRaWAN® Protocol: 1.0.3, Class A/C
✅ LoRa® Frequency Band: EU868
✅ LoRa® Channels: 8 Concurrent Channels
✅ LoRa® TX Power: Up to 27 dBm
✅ LoRa® Sensitivity: -137 dBm
✅ Backhaul Connectivity: 4G LTE, Ethernet, Wi-Fi
✅ Antenna: External LoRa Antenna for improved coverage
✅ Power Supply: 9V-24V DC (PoE supported)
✅ Operating Temperature: -40°C to 70°C
✅ Ingress Protection: IP65 Waterproof & Dustproof

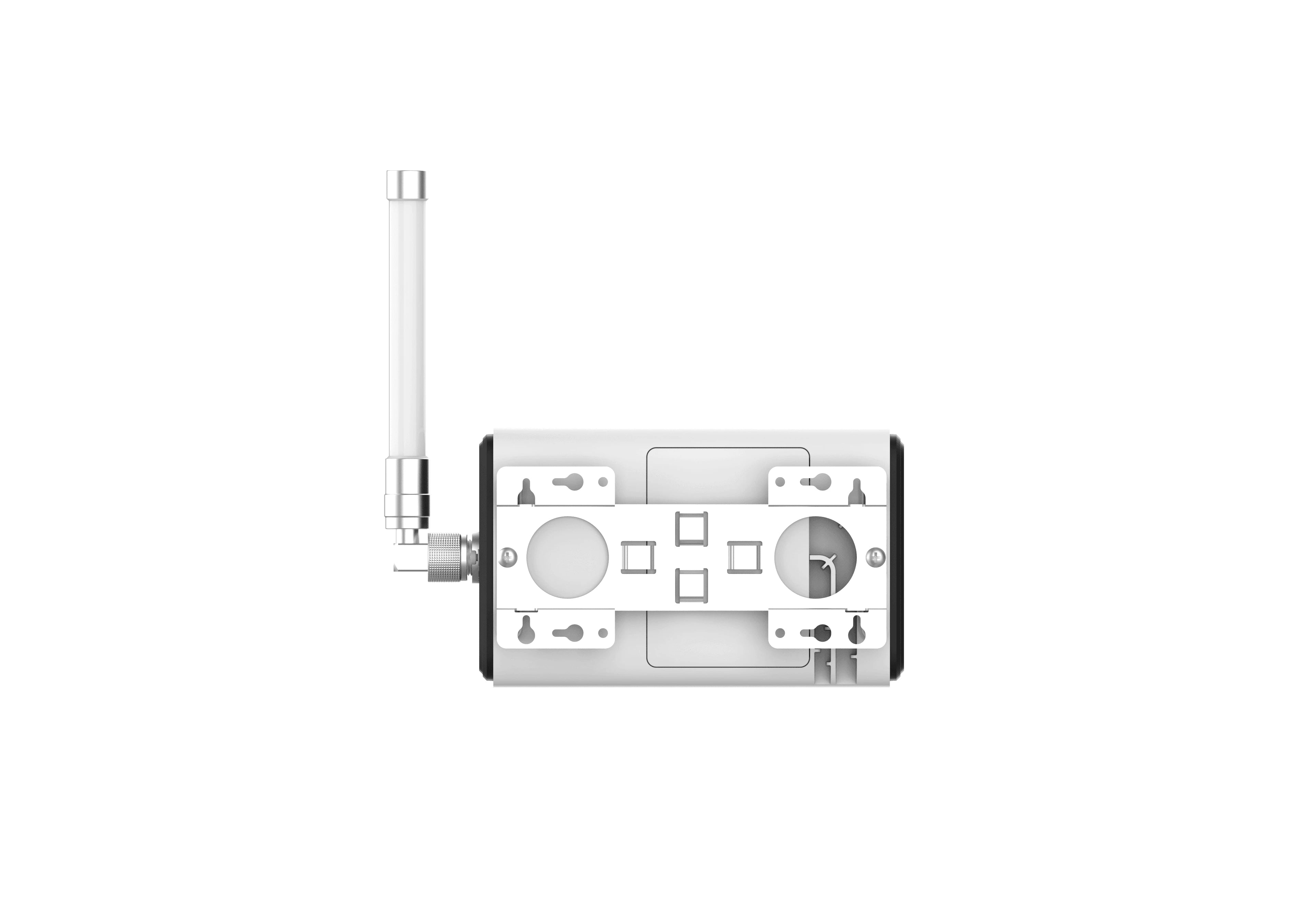

✅ Installation: Wall-Mounted or Pole-Mounted
🌍 Applications
🏭 Industrial IoT & Smart Factories – Connects sensors for real-time monitoring of machines, energy usage, and environmental conditions.
🌆 Smart Cities & Infrastructure – Supports street lighting control, parking management, and environmental monitoring.
🌾 Smart Agriculture & Precision Farming – Enables remote soil moisture, weather station, and irrigation monitoring.
🚛 Logistics & Supply Chain Monitoring – Improves tracking of shipments, storage conditions, and warehouse operations.
🏠 Smart Buildings & Home Automation – Provides connectivity for energy-efficient management of smart offices and homes.
📥 Product Downloads:
Product Video
- Device Type: Semi-Industrial LoRaWAN® Gateway
- Model: Milesight UG65
- LoRaWAN® Channels: 8 simultaneous channels (multi-SF)
- Frequency Band: EU868 MHz
- Connectivity: Cellular (4G LTE), Ethernet (RJ45, 10/100 Mbps), Wi-Fi (802.11 b/g/n)
- Antenna: External antennas for LoRa and 4G (included, N-Type connectors)
- LoRa® TX Power: Up to 27 dBm (Adjustable)
- LoRa® Sensitivity: -140 dBm (SF12)
- Power Supply: DC 12V adapter (included) or Passive PoE (9-24V DC)
- Ingress Protection: IP65 (Indoor & semi-outdoor use)
- Operating Temperature: -40°C to 70°C
- Installation: Desktop, wall, or pole mounting
- Additional Features: 4G LTE cellular backhaul, robust semi-industrial design, secure remote management, embedded Network Server, ideal for smart agriculture, smart buildings, industrial IoT, environmental monitoring, and LoRaWAN® network deployment
