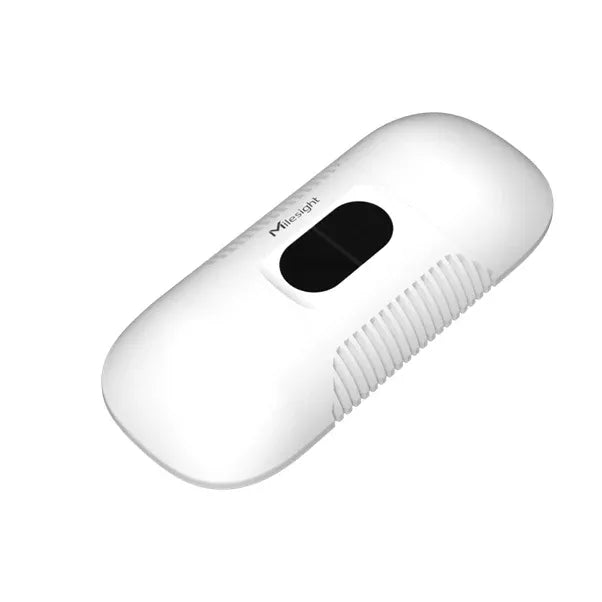

Milesight VS135 AI ToF People Counter – LoRaWAN (EU868)

🎯 High-Precision AI ToF People Counting with LoRaWAN Connectivity

The Milesight VS135 is an advanced people counting sensor featuring second-generation Time-of-Flight (ToF) technology and AI algorithms for accurate visitor counting and occupancy analytics.

With up to 99.8% counting accuracy, bi-directional people counting, dwell time analysis, and heat map generation, the VS135 provides valuable insights into visitor traffic and space utilization.

Its LoRaWAN EU868 connectivity enables efficient wireless data transmission, making it ideal for retail stores, shopping malls, offices, public buildings, and other smart facilities.

✅ Key Features

🧠 AI-Powered ToF Technology for accurate people counting without conventional video surveillance

🚶 Bi-directional People Counting with up to 99.8% accuracy under suitable conditions

📡 LoRaWAN EU868 Connectivity for long-range wireless data transmission

📊 Occupancy & Dwell Time Analytics for monitoring visitor traffic and space utilization

🎯 Advanced Detection Functions including U-turn filtering, group counting, and staff detection

🌡️ Heat Map Generation for visualizing visitor movement and dwell patterns

🔄 Multi-Device Stitching supporting up to 4 devices for wider coverage

🔒 Privacy-Friendly ToF Technology using depth information rather than conventional RGB video

🏢 Typical Applications

• Retail stores and shopping malls

• Visitor counting and traffic analysis

• Office buildings and smart workplaces

• Museums, exhibitions, and public facilities

• Airports and transportation hubs

• Occupancy monitoring and space utilization

• Visitor flow optimization and operational planning

📶 Specifications

• Detection Technology: 2nd Generation Time-of-Flight (ToF) with AI Algorithms

• Counting Accuracy: Up to 99.8% under suitable conditions

• Field of View: 98° Horizontal / 80° Vertical

• Detection Range: 0.5–3.5 m

• Installation Height: Up to 3.5 m (Standard Version)

• Communication: LoRaWAN EU868

• LoRaWAN Device Class: Class C

• Advanced Functions: Bi-directional Counting, U-turn Filtering, Group Counting, Staff Detection, Dwell Time Analysis, Heat Maps

• Configuration: Wi-Fi 2.4 GHz (AP Mode)

• Local Storage: Up to 1,000,000 records

• Power Supply: DC 12V/2A

• Power Consumption: 7 W Average / 15 W Maximum

• Operating Temperature: -20°C to +50°C

• Dimensions: 200 × 35 × 85 mm

• Installation: Ceiling Mounting

• IP Rating: IP40

🌐 Smart People Counting for Data-Driven Decisions

The Milesight VS135 combines advanced AI ToF sensing with LoRaWAN connectivity to deliver reliable people counting and occupancy insights, helping businesses optimize operations, understand visitor behavior, and improve space management.

📥 Product Downloads

• 📄 Milesight VS135 Datasheet

• 🛠️ Milesight VS135 User Guide


🎬 Product Video
