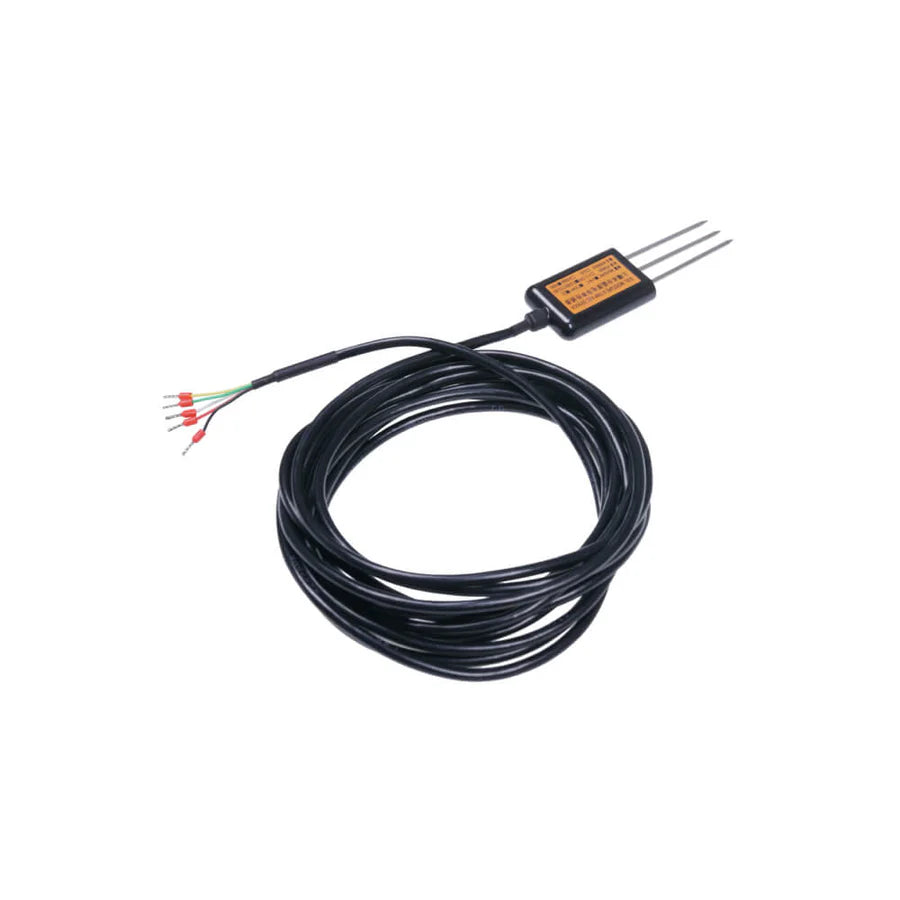

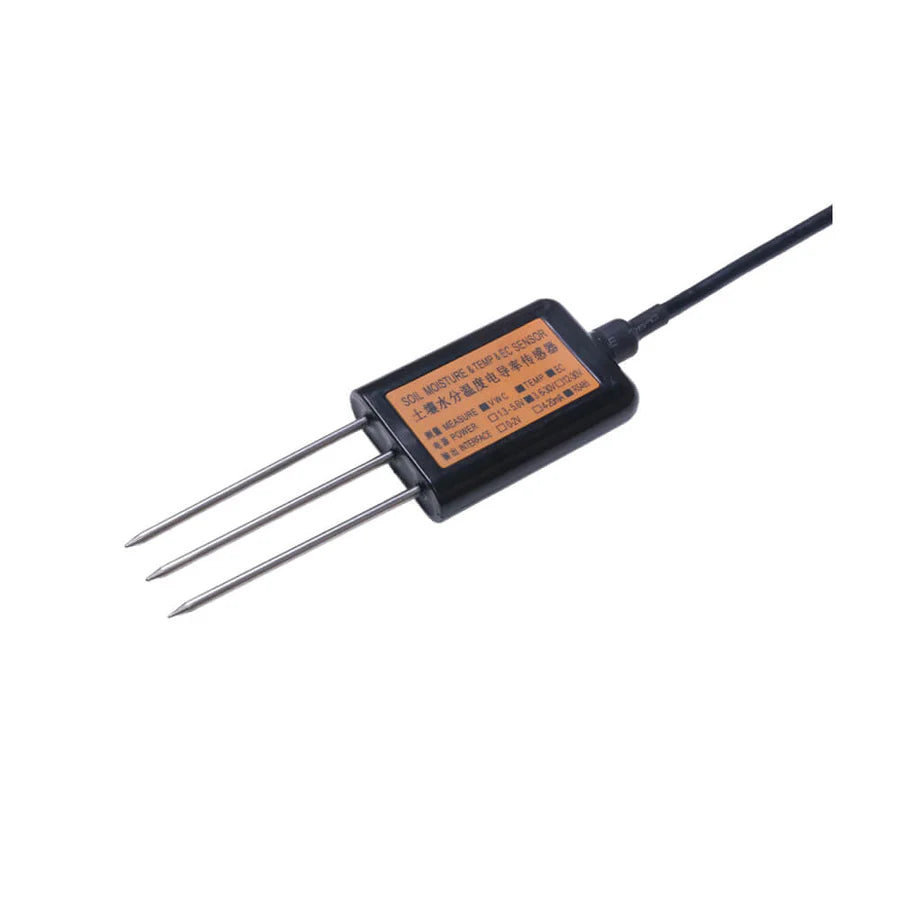

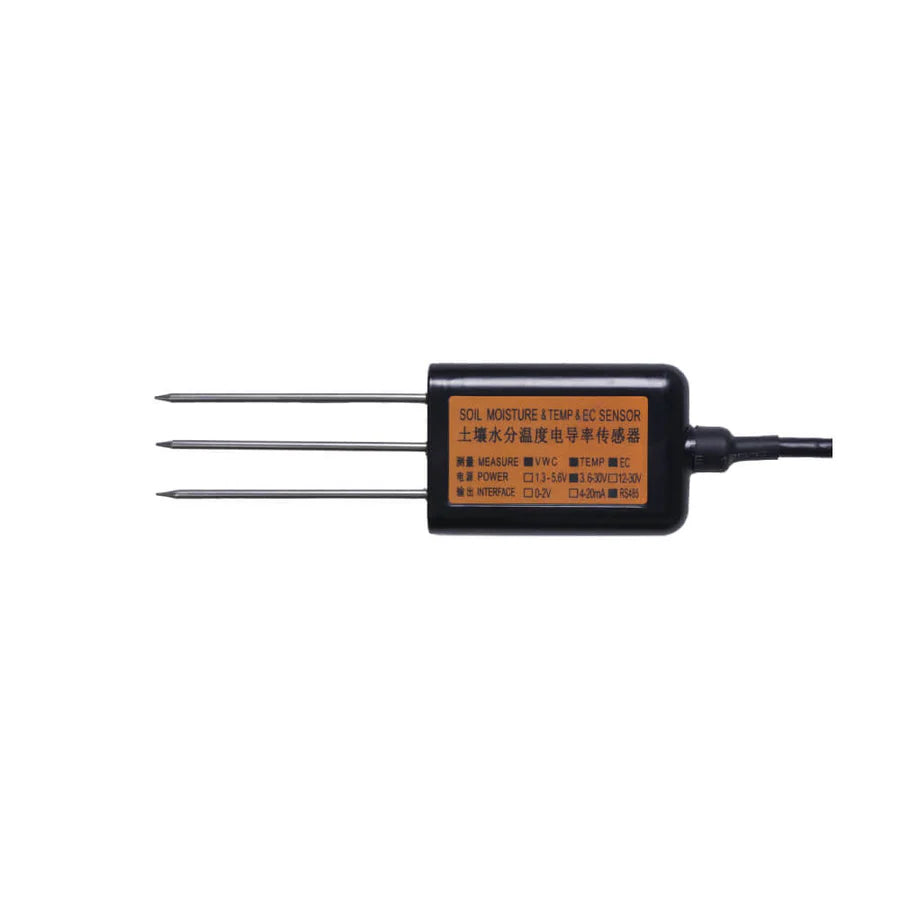

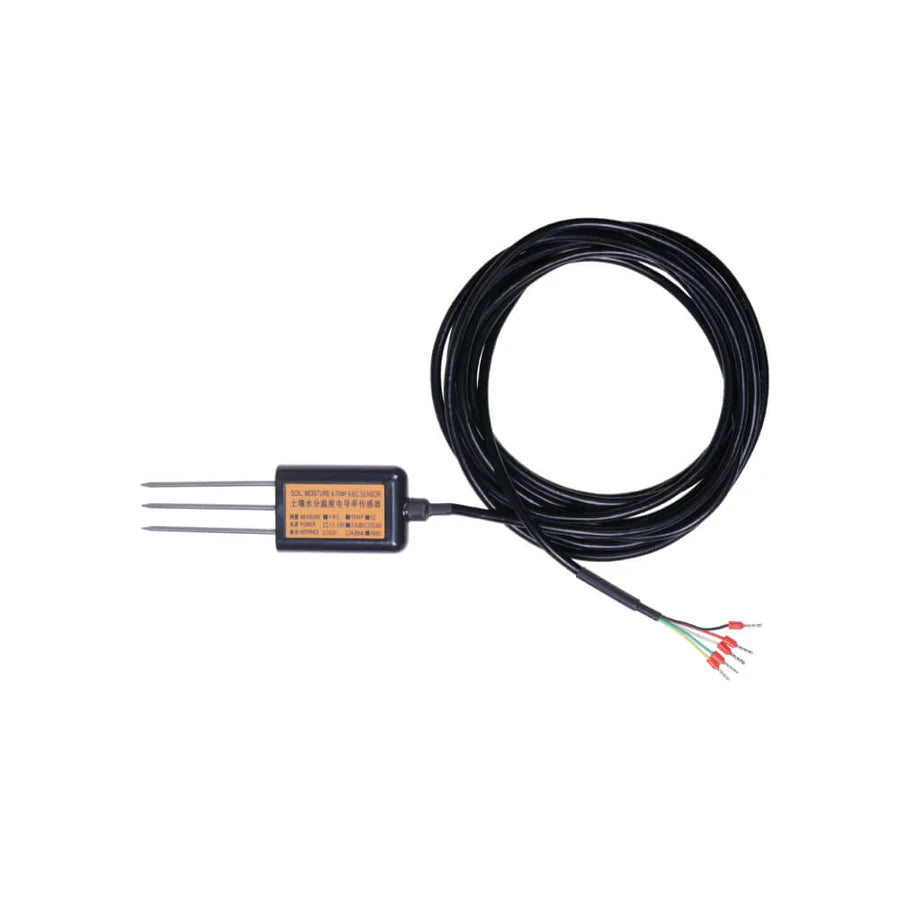

Industrial 3-in-1 Soil Sensor for Smart Agriculture & Irrigation Monitoring

The Seeed Studio NH2405080008 / S-Soil MTEC-02A is a professional industrial-grade soil moisture, temperature and electrical conductivity sensor designed for precision agriculture, irrigation control, greenhouse monitoring and long-term environmental sensing applications.

The sensor measures soil volumetric water content (VWC), soil temperature and soil electrical conductivity (EC) in a single rugged probe. This makes it ideal for applications where accurate soil condition monitoring is required for crop optimization, water-saving irrigation and soil health analysis.

Using an industrial RS485 Modbus-RTU interface, the sensor can be easily integrated with PLCs, RTUs, data loggers, IoT gateways and smart agriculture platforms. Its wide supply voltage range of 3.6–30V DC provides installation flexibility in both standalone and gateway-connected systems.

The device is built with an IP68-rated enclosure, flame-retardant epoxy resin and corrosion-resistant stainless-steel probes, making it suitable for long-term installation in soil, water, nutrient solutions and other substrates.

With measurement ranges of 0–100% soil moisture, -40°C to +80°C temperature and 0–10000 μS/cm EC, the S-Soil MTEC-02A provides a robust and reliable sensing solution for professional agricultural and environmental monitoring projects.

Key Features

✔ 3-in-1 Soil Monitoring Sensor
✔ Soil Moisture / VWC Measurement
✔ Soil Temperature Measurement
✔ Soil EC / Electrical Conductivity Measurement
✔ RS485 Modbus-RTU Interface
✔ Industrial-Grade Construction
✔ IP68 Waterproof Protection
✔ Stainless Steel Probe
✔ Wide 3.6–30V DC Power Supply
✔ High Reliability & Stability
✔ Suitable for Long-Term Soil Installation
✔ Ideal for Smart Agriculture & Irrigation Control

Typical Specifications

• Interface: RS485 Modbus-RTU
• Measurements: Soil Moisture / Temperature / EC
• Soil Moisture Range: 0–100%
• Soil Temperature Range: -40°C ~ +80°C
• EC Range: 0–10000 μS/cm
• Power Supply: 3.6–30V DC
• Protection Rating: IP68
• Housing: Flame-Retardant Epoxy Resin
• Probe Material: Stainless Steel
• Suitable for Soil, Water, Nutrient Solution & Other Substrates
• Designed for Long-Term Monitoring Applications

Applications

Smart Agriculture
Precision Farming
Greenhouses
Irrigation Systems
Soil Monitoring
Crop Monitoring
Horticulture
Gardening
Water-Saving Irrigation
Environmental Monitoring
Scientific Research
Golf Turf Management
Forestry

Specifications

General

• Model: NH2405080008 / S-Soil MTEC-02A
• Alternative Name: S-Temp&VWC&EC-02A
• Seeed SKU: 101990667
• Sensor Type: Soil Moisture, Temperature & EC Sensor
• Interface: RS485
• Protocol: Modbus-RTU
• Protection Rating: IP68

Soil Moisture

• Measurement: Volumetric Water Content / Soil Moisture
• Range: 0–100%
• Application: Soil, water, nutrient solution and other substrates

Soil Temperature

• Range: -40°C ~ +80°C

Soil EC

• Measurement: Electrical Conductivity
• Range: 0–10000 μS/cm

Electrical & Mechanical

• • C
  • Power Supply: 3.6–30V DC
  • Housing: Flame-Retardant Epoxy Resin
  • Probe Material: Stainless Steel
  • Communication: RS485 Modbus-RTU


    ---

    Product Downloads

    Datasheet
