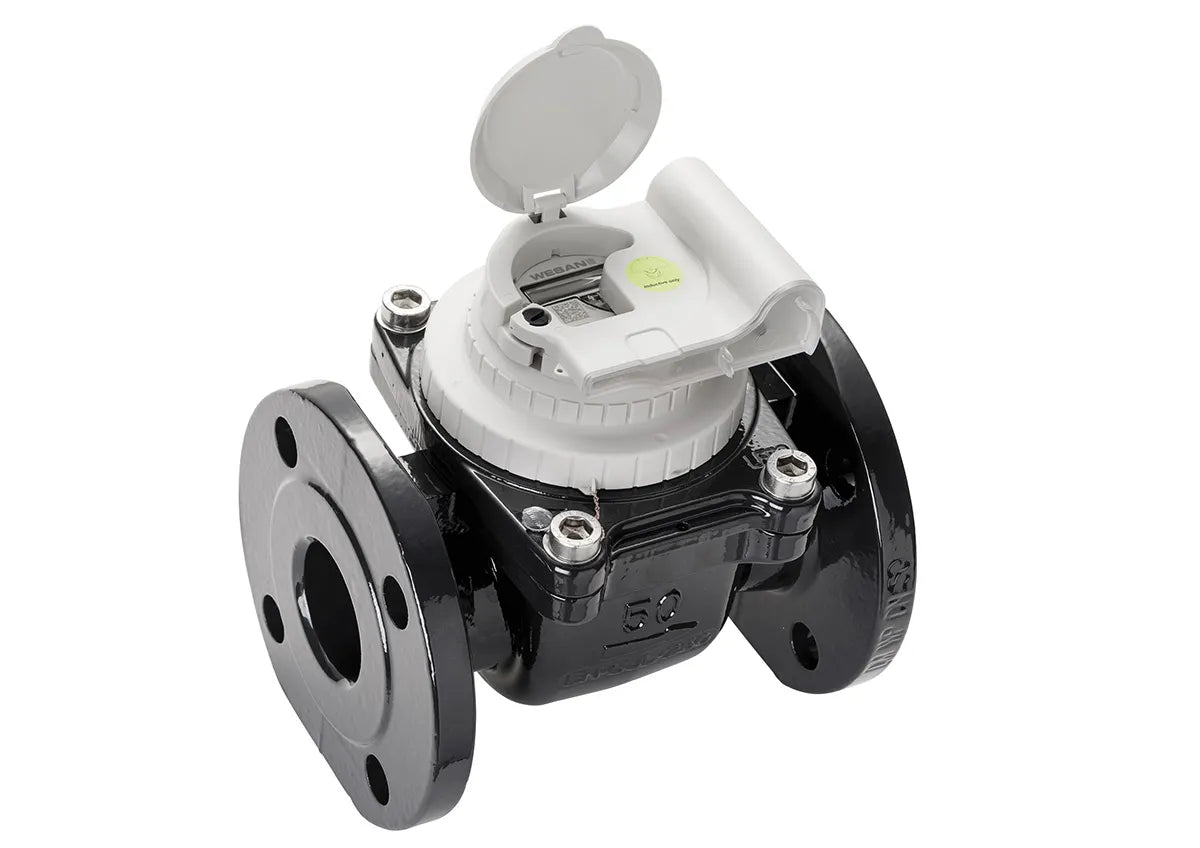

The Diehl Metering WESAN WP-G DN80 is a high-performance Woltman bulk water meter designed for high flow water measurement with very low pressure loss.
Combined with the IZAR RC IoT LRW WMB LoRaWAN® radio module, the meter becomes a smart water meter for remote monitoring, consumption analysis and leak detection.
This solution is ideal for water utilities, smart city projects, industrial installations and irrigation networks.
📡 LoRaWAN Smart Metering

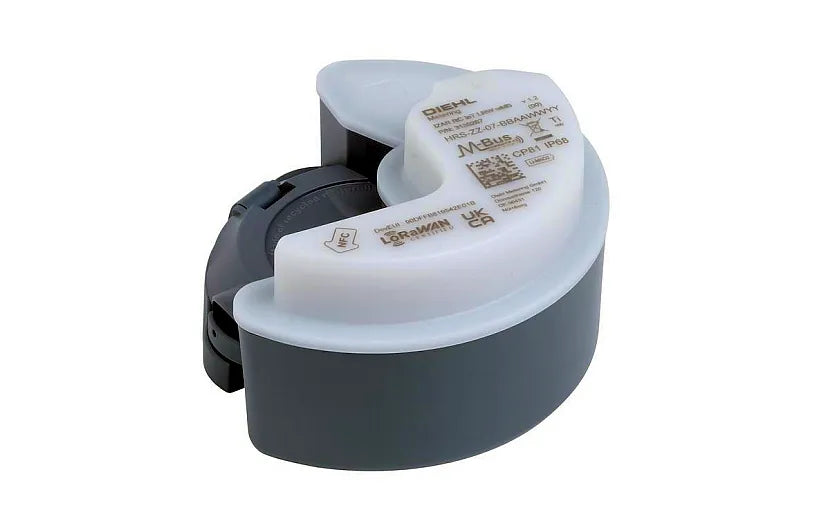

The included IZAR RC IoT LRW WMB module enables:
- LoRaWAN remote meter reading
- Wireless M-Bus mobile reading
- Consumption data logging
- Leak detection alarms
- Backflow detection
- Magnetic tamper detection
- Freezing risk alarm
- Hourly / daily / monthly consumption data
- NFC local configuration
- Battery lifetime up to 15 years
- IP68 protection
The module operates in LoRaWAN Class A with OTAA activation and ADR support.
⚙️ Water Meter Features
The WESAN WP-G DN80 bulk water meter offers:
- Woltman turbine meter for high flow rates
- Very low pressure loss
- Replaceable and calibratable measuring insert
- Sealed measuring insert for high accuracy
- Hydraulic bearing relief
- IP68 encapsulated mechanical counter
- Rotatable counter head (350°)
- Horizontal or vertical installation
- Protection against magnetic manipulation
- Modular design for radio / pulse modules
- MID approved versions available
🚰 Typical Applications
- Municipal water networks
- Smart water metering projects
- Industrial water monitoring
- Irrigation systems
- Pumping stations
- Large buildings
- Water distribution pipelines
- Smart City IoT projects
📊 Technical Specifications (Summary)
- Type: Woltman bulk water meter
- Nominal diameter: DN80
- Temperature: 1°C to 50°C
- Pressure rating: PN16
- Protection class: IP68
- Communication: LoRaWAN + Wireless M-Bus
- Frequency: EU868
- Battery lifetime: up to 15 years
- Installation: Horizontal or Vertical
- MID approved (depending on version)
📦 Package Includes
- Diehl WESAN WP-G DN80 water meter
- IZAR RC IoT LRW WMB LoRaWAN module
- Installation documentation
- MID certification (if applicable)
📥 Product Downloads
📄 Datasheet WESAN WP G
📖 Installation Guide WESAN WP G
📄 Datasheet LoRaWAN Module
📖 Installation Guide LoRaWAN Module
Technical Specifications
- Meter Type: Woltman bulk water meter
- Model: Diehl WESAN WP-G DN80
- Nominal Diameter: DN80
- Communication: LoRaWAN® + Wireless M-Bus
- LoRaWAN Frequency: EU868
- Temperature Range: 1°C to 50°C
- Pressure Rating: PN16
- Protection Class: IP68
- Installation: Horizontal / Vertical
- Meter Body Material: Glass fiber composite & copper alloy
- Counter Type: Encapsulated mechanical counter
- Battery Lifetime: Up to 15 years
- Data Logging: Yes
- Leak Detection: Yes
- Backflow Detection: Yes
- Magnetic Tamper Detection: Yes
- NFC Configuration: Yes
- Remote Reading: Yes
- MID Approved: Yes (depending on version)
