Precise Conductivity Measurement for Water Quality Applications

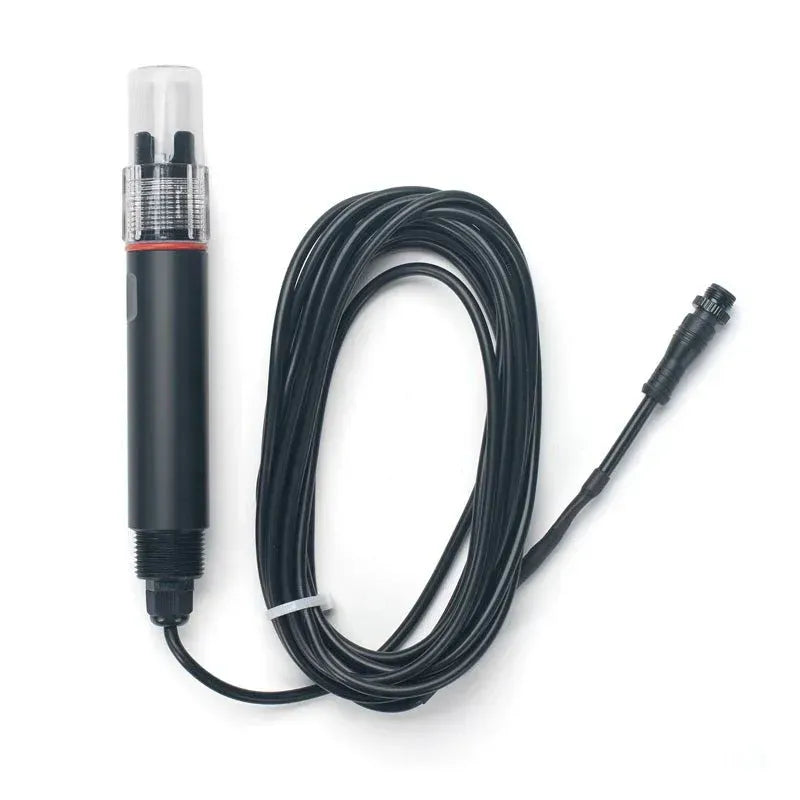

The Dragino DR-ECK1.0 is a high-accuracy electrical conductivity (EC) sensor designed to monitor water quality in real time. With a measuring range of 0 to 2000 μS/cm and a resolution of 1 μS/cm, it is ideal for drinking water systems, aquaculture, wastewater treatment, and environmental monitoring.
(iot-shop.de)
✅ Key Features
-
📏 EC Measurement Range: 0–2000 μS/cm
-
🎯 Resolution: 1 μS/cm
-
🧪 Accuracy: ±1% FS
-
🔌 Interface: RS485 with Modbus RTU protocol
-
🔋 Power Supply: DC 7–30V
-
🌡️ Operating Temperature: 0°C to 60°C
-
💧 IP68 waterproof enclosure
-
🛠️ Pressure resistance up to 0.6 MPa
-
📏 Dimensions: 30 × 30 × 205 mm
-
⚖️ Weight: 356 g
-
🔗 Compatible with Dragino WQS-LB and WQS-NB water quality converters
🏭 Typical Applications
-
Drinking water conductivity monitoring
-
Conductivity control in aquaculture systems
-
Wastewater and sewage monitoring
-
Food and beverage water quality assessment
-
Environmental surface water monitoring
📊 Specifications
-
Power Supply: DC 7–30V
-
Power Consumption: ≤0.5W
-
Communication Interface: RS485, 9600 bps
-
EC Measuring Range: 0–2000 μS/cm
-
EC Resolution: 1 μS/cm
-
EC Accuracy: ±1% FS
-
Operating Temperature: 0°C to 60°C
-
Temperature Accuracy: ±0.5°C
-
Waterproof Rating: IP68
-
Max Pressure: 0.6 MPa
-
Cable Length: 2 meters
-
Dimensions: 30 × 30 × 205 mm
-
Weight: 356 g
📥 Product Downloads
- Device Type: Water Electrical Conductivity (EC) Sensor
- Model: DR-ECK1.0
- Measurement Range: 0 to 2,000 μS/cm
- Resolution: 1 μS/cm
- Accuracy: ±1% FS
- Temperature Measurement Range: -20°C to 60°C
- Temperature Accuracy: ±0.5°C
- Interface: RS485 (Modbus RTU, 9600 Baud)
- Power Supply: DC 7–30V
- Power Consumption: ≤0.5 W
- Ingress Protection: IP68 (Fully submersible)
- Pressure Resistance: Up to 0.6 MPa
- Dimensions: 205 × 30 × 30 mm
- Weight: Approximately 356 g
- Cable Length: 2 meters
- Installation: Threaded 3/4", suitable for submersible use
- Compatibility: Dragino WQS-LB and WQS-NB water quality transmitters
