Dragino DR-ORP1 Oxidation-Reduction Potential Sensor

  1. Home
  2. Accessories
  3. Dragino DR-ORP1 Oxidation-Reduction Potential Sensor

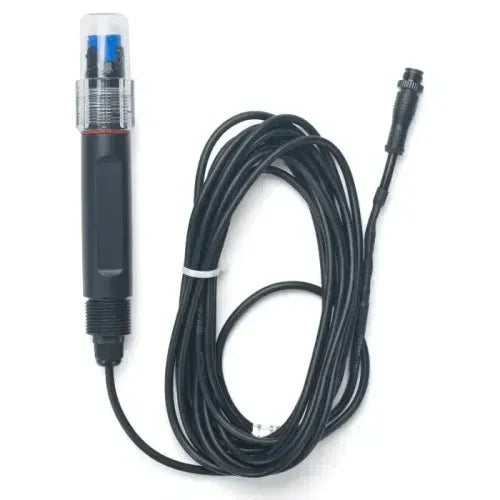

Dragino DR-ORP1 Oxidation-Reduction Potential Sensor

Availability: In stock

€147,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Dragino

Accurate ORP Monitoring for Water Quality Applications

The Dragino DR-ORP1 is a high-precision ORP (Oxidation-Reduction Potential) sensor designed to measure water quality in various environments. With a measurement range from -1999 mV to +1999 mV and 1 mV resolution, it provides stable and reliable data for process control, environmental monitoring, and aquaculture systems.

✅ Key Features

  • 📏 ORP Range: -1999 mV to +1999 mV

  • 🎯 Resolution: 1 mV

  • 🧪 Accuracy: ±3 mV

  • 🔌 Interface: RS485 with Modbus RTU protocol

  • 🔋 Power Supply: DC 7~30V

  • 🌡️ Operating Temperature: 0°C to 60°C

  • 💧 IP68 waterproof enclosure

  • 🛠️ Pressure resistance up to 0.6 MPa

  • 📏 Dimensions: 30 x 30 x 205 mm

  • ⚖️ Weight: 338 g

  • 🔗 Compatible with Dragino WQS-LB and WQS-NB converter modules

🏭 Typical Applications

  • 💧 Drinking water quality monitoring

  • 🏭 Industrial process control

  • 🐟 Aquaculture water management

  • 🏊 Swimming pool and spa ORP monitoring

  • 🧪 Laboratory or field oxidation-reduction analysis

📊 Specifications

  • Power Supply: DC 7~30V

  • Power Consumption: < 0.5W

  • Communication Interface: RS485, 9600 bps

  • Electrode Material: Platinum

  • ORP Resolution: 1 mV

  • ORP Accuracy: ±3 mV

  • Temperature Compensation: Automatic

  • Operating Temperature Range: 0°C to 60°C

  • Temperature Accuracy: ±0.5°C

  • Waterproof Rating: IP68

  • Maximum Pressure: 0.6 MPa

  • Cable Length: 2 meters

  • Dimensions: 30 x 30 x 205 mm

  • Weight: 338 g

📥 Product Downloads

  • Device Type: ORP (Oxidation-Reduction Potential) Sensor
  • Model: DR-ORP1
  • Measurement Range: -1999 to +1999 mV
  • Resolution: 1 mV
  • Accuracy: ±3 mV
  • Stability: ≤2 mV/24h
  • Operating Temperature: 0°C to 60°C
  • Operating Humidity: <85% RH
  • Operating Pressure: ≤0.6 MPa
  • Interface: RS485 (Modbus RTU, 9600 baud)
  • Power Supply: DC 7–30V
  • Power Consumption: <0.5 W
  • Ingress Protection: IP68 (Fully submersible)
  • Dimensions: 205 × 30 × 30 mm
  • Weight: ~338 g
  • Cable Length: 2 meters
  • Installation: Threaded 3/4", submersible use recommended with care
  • Compatibility: Dragino WQS-LB and WQS-NB water quality transmitters
