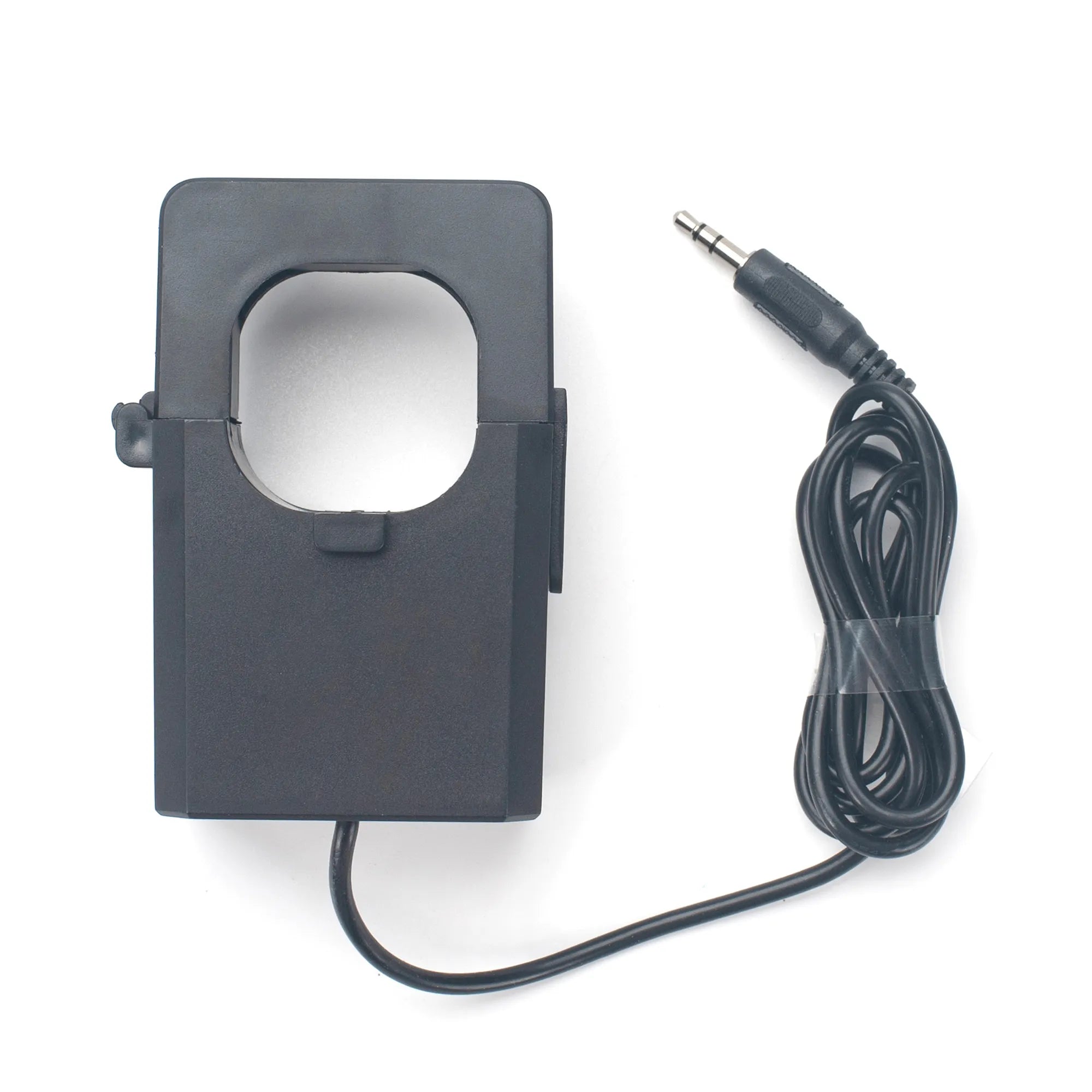

The Dragino SCT036-600 is a split-core current transformer designed for accurate AC current measurement up to 600 A.
It provides a 50 mA secondary output and connects directly to the Dragino CS01-LB LoRaWAN® current sensor converter for wireless energy monitoring and machine status analysis.
Its split-core clamp design enables quick installation without disconnecting existing cables, making it ideal for retrofit deployments.
With a 36 mm aperture, robust construction, and wide temperature range, the SCT036-600 is suitable for industrial power monitoring, large building loads, solar and wind systems, and high-current infrastructure.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✨ Key Highlights
⚡ AC current measurement up to 600 A
🔌 50 mA secondary output for CS01-LB
🧲 Split-core clamp – non-intrusive installation
📏 36 mm aperture for large cables and busbars
🎯 High accuracy (Class 1 typical)
🌡️ Wide operating temperature range
🏭 Ideal for industrial energy monitoring
- Sensor Type: Split-core current transformer
- Primary Current Range: 0 – 600 A AC
- Secondary Output: 50 mA
- Output Ratio: 600A : 50mA
- Aperture Diameter: 36 mm
- Accuracy: Class 1 (typical)
- Operating Temperature: -40°C to +85°C
- Cable Length: ~1 m
- Compatibility: Dragino CS01-LB
