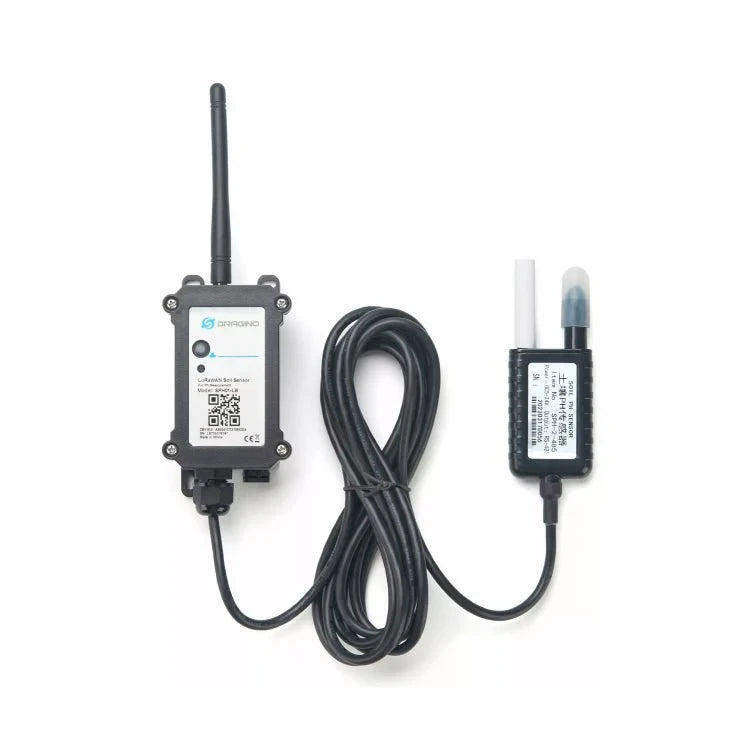

Dragino SPH01-LB LoRaWAN Soil pH & Temperature Sensor (EU868)

The Dragino SPH01-LB is a battery-powered LoRaWAN soil pH and temperature sensor, specifically designed for precision agriculture, smart farming and long-term soil condition monitoring.

The sensor measures soil pH from 3.5 to 9.0 and soil temperature from −40°C to +80°C, providing essential information about soil acidity, alkalinity and temperature conditions.

These measurements help farmers, agronomists and agricultural operators monitor soil conditions and make informed decisions regarding crop management and soil treatment.

The specialized pH probe features a solid AgCl reference electrode and a pure-metal pH-sensitive electrode, enabling direct soil pH measurements.

Integrated temperature sensing supports temperature-compensated pH measurements, helping improve consistency under changing environmental conditions.

Operating on the LoRaWAN EU868 frequency band, the SPH01-LB wirelessly transmits measurement data to a compatible LoRaWAN gateway and network server. The collected data can then be visualized, recorded and analyzed through a suitable IoT monitoring platform.

The device is designed for low-power battery operation, making it suitable for agricultural installations where wired power connections are unavailable or impractical.

Its robust construction includes an IP66-rated main enclosure and an IP68-rated soil probe, providing protection against demanding outdoor conditions and allowing long-term soil installation according to the manufacturer's instructions.

The SPH01-LB also supports Bluetooth configuration and OTA firmware updates, simplifying device setup and maintenance.

The Dragino SPH01-LB is an effective solution for vineyards, orchards, greenhouses, vegetable cultivation, agricultural research and other applications requiring remote soil pH and temperature monitoring.

Important: The SPH01-LB measures soil pH and temperature only. It does not measure soil moisture, electrical conductivity or nutrient concentrations. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote access to measurement data.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🔑 Key Features

🌱 Soil pH Measurement – Measures soil acidity and alkalinity from 3.5 to 9.0 pH.

🌡️ Soil Temperature Monitoring – Measures soil temperature from −40°C to +80°C.

🔬 Specialized pH Electrodes – Solid AgCl reference electrode and pure-metal pH-sensitive electrode.

📡 LoRaWAN EU868 Connectivity – Long-range, low-power wireless communication.

🔋 Battery-Powered Operation – Suitable for agricultural installations without an external power supply.

💧 IP68 Soil Probe – Waterproof probe designed for soil installation.

🛡️ IP66 Main Enclosure – Protection against dust and water ingress.

📲 Bluetooth Configuration – Supports local device setup and parameter adjustment.

🔄 OTA Firmware Updates – Supports compatible wireless firmware updates.

🌡️ Temperature Compensation – Uses temperature data to support reliable soil pH monitoring.

📊 Remote Monitoring – Sends measurement data to compatible IoT platforms.

🌾 Precision Agriculture – Supports informed soil management and agricultural monitoring.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🛠 Applications

🌾 Precision Agriculture – Monitor soil pH and temperature in cultivated fields.

🍇 Vineyards – Track soil acidity conditions in vineyard management.

🌳 Orchards – Monitor soil pH and temperature in fruit-growing applications.

🏡 Greenhouses – Integrate soil measurements into greenhouse monitoring systems.

🥬 Vegetable Cultivation – Monitor soil conditions in vegetable production.

🌱 Agricultural Research – Collect soil measurement data for agricultural studies.

📊 Agricultural IoT Systems – Integrate measurements into dashboards and historical data analysis platforms.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 Package Includes

• 1 × Dragino SPH01-LB LoRaWAN Soil pH Sensor (EU868)

• 1 × Soil pH and Temperature Probe
