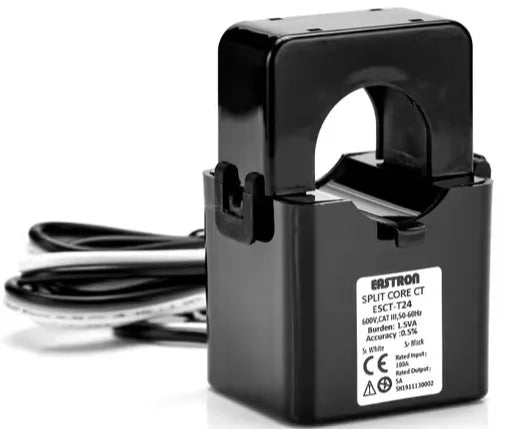

Eastron ESCT-T24 Split Core Current Transformer – 100A : 5A
Eastron ESCT-T24 Split Core Current Transformer – 100A : 5A

Eastron ESCT-T24 Split Core Current Transformer – 100A : 5A

Availability: In stock

€23,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Eastron

🧲 Compact split-core current transformer
⚡ Input: 0–100 A AC – Output: 5 A
🔧 Tool-free installation with hinged core
📏 24 mm inner diameter for busbar or cable
🔒 Secure locking mechanism

📖 Description

The Eastron ESCT-T24 is a split-core current transformer designed for non-intrusive current measurement in electrical installations up to 100 A. With a standard 5 A secondary output, it is ideal for use with compatible energy meters such as the SDM630MCT series.

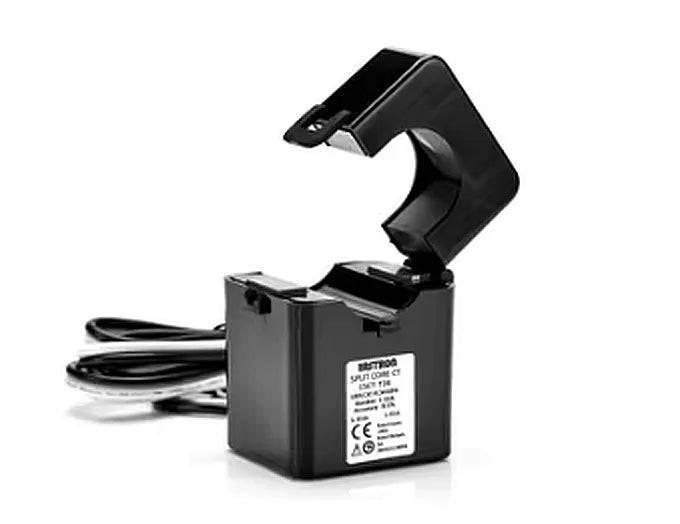

Its compact design and hinged-core construction allow fast and safe installation without disconnecting cables. Featuring a 24 mm aperture, it fits around conductors or busbars in commercial or industrial panels.

This CT is precision-molded, provides excellent linearity, and meets IEC standard requirements. An ideal solution for retrofit metering applications.

🔧 Key Features

  • ⚡ Primary Current: 0 – 100 A AC

  • 🔁 Secondary Output: 5 A

  • 🔗 Type: Split-core (hinged) with latch

  • 📏 Window Size: 24 mm (inner diameter)

  • 🛠️ Installation: Tool-free, non-intrusive, clamp-on

  • 🎯 Accuracy: Class 1 (IEC60044-1 compliant)

  • 🔒 Locking mechanism for secure mounting

  • 🧩 Compatible with Eastron SDM630MCT & other 5 A CT-input meters

ModelESCT-T24
Primary Current0 – 100 A AC
Secondary Output5 A
Core TypeSplit-core (hinged, clamp-on)
Aperture Size24 mm (inner diameter)
Accuracy ClassClass 1 (IEC60044-1)
MountingTool-free installation
Insulation ClassE Class
Operating Temperature–20 °C to +50 °C
Use CaseCompatible with 5 A CT-input energy meters (e.g., SDM630MCT)
