🎯 High-Precision Soil Monitoring for Smart Agriculture

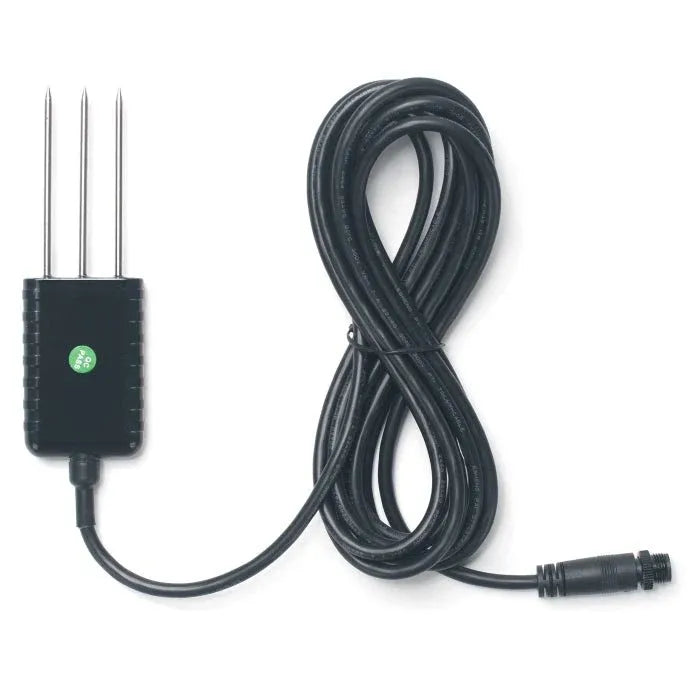

The Dragino DR-SE-6P is a high-precision soil probe designed for accurate measurement of soil moisture, temperature, and electrical conductivity. Utilizing Frequency Domain Reflectometry (FDR) technology, it ensures reliable data collection for various agricultural applications.
✅ Key Features
-

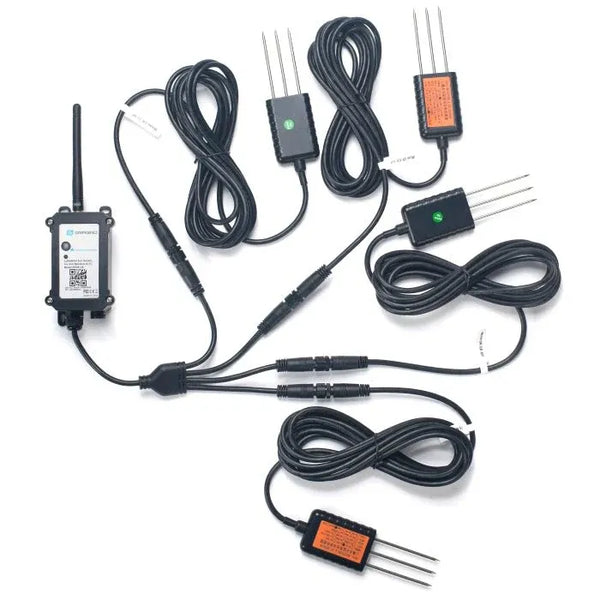

🌍 Compatible with Dragino SE0X-LB LoRaWAN® Soil Sensor Transmitter
-
🌡️ Measures soil moisture, temperature, and electrical conductivity
-
🔌 2.5-meter cable for flexible installation
-
🔧 Robust design for long-term field deployment
-
📈 Factory-calibrated for mineral soil types
-
💧 IP66 waterproof rating for outdoor use
🏡 Typical Applications
-
Precision agriculture
-
Greenhouse monitoring
-
Orchard and vineyard management
-
Soil health assessment
-
Irrigation optimization
📊 Specifications
-
Soil Moisture:
-
Range: 0–100% V/V
-
Resolution: 0.01% V/V
-
Accuracy: ±3% (0–53%), ±5% (>53%)
-
Measurement Method: FDR with temperature and EC compensation
-
-
Soil Temperature:
-
Range: -40°C to 85°C
-
Resolution: 0.01°C
-
Accuracy: ±0.3°C (-10°C to 50°C), ±0.6°C (other ranges)
-
Measurement Method: RTD, factory calibrated
-
-
Soil Conductivity:
-
Range: 0–20,000 µS/cm (0–20 EC)
-
Resolution: 1 µS/cm
-
Accuracy: ±2% FS
-
Measurement Method: Conductivity with temperature compensation
-
📥 Product Downloads

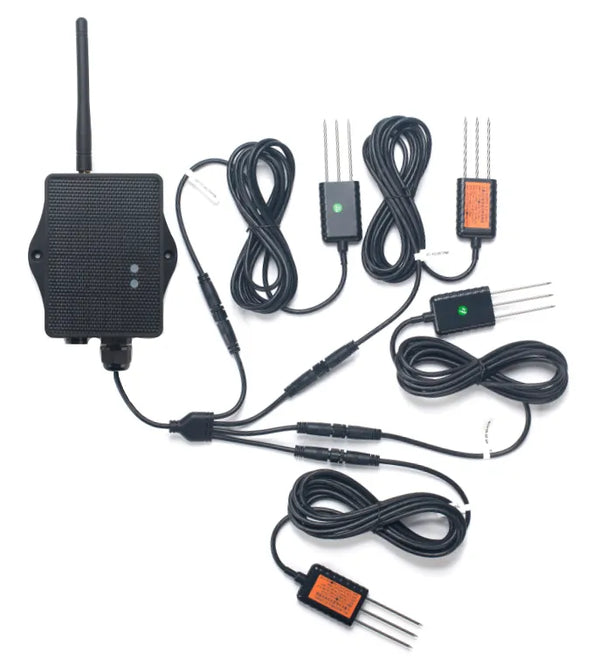

📥 Related Product
- Device Type: Soil Moisture, Temperature & EC Sensor Probe
- Model: DR-SE-6P
- Compatible Transmitters: Dragino SE0X-LB Series
- Measurement Parameters:
- Soil Moisture: 0–100.00 V/V %, Resolution: 0.01 V/V %, Accuracy: ±3% (0–53%), ±5% (>53%)
- Soil Temperature: -40.00°C to 85.00°C, Resolution: 0.01°C, Accuracy: <0.3°C (-10°C to 50°C), <0.6°C (others)
- Soil Conductivity: 0–20000 μS/cm (25°C), Resolution: 1 μS/cm, Accuracy: ±2% FS
- Measurement Methods:
- Soil Moisture: Frequency Domain Reflectometry (FDR) with temperature and EC compensation
- Soil Temperature: RTD with calibration
- Soil Conductivity: Conductivity method with temperature compensation
- Probe Cable Length: 2.5 meters
- Operating Temperature: -40°C to 85°C
- Enclosure: Waterproof and UV-resistant
- Installation: Suitable for outdoor use in agriculture and environmental monitoring
