🎯 Advanced Soil Monitoring for Smart Agriculture

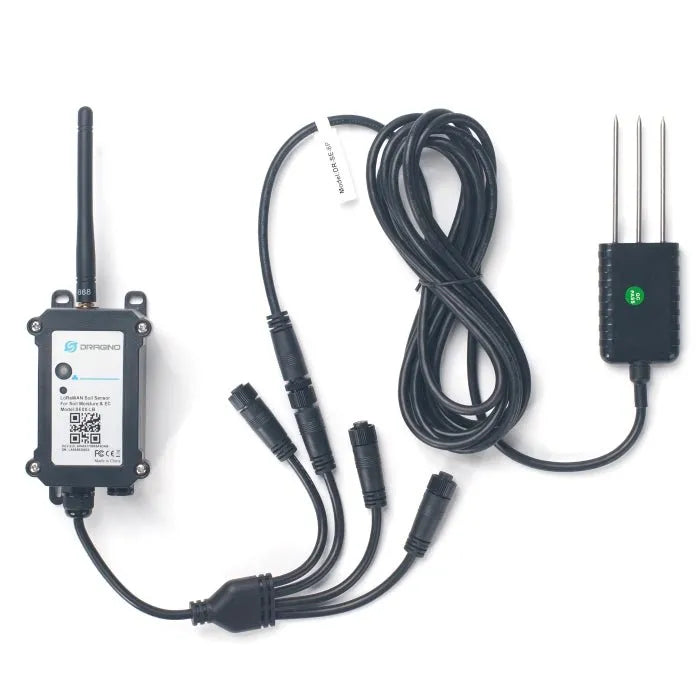

The Dragino SE0X-LB is a high-performance LoRaWAN® sensor designed for precision agriculture. It accurately measures soil moisture, temperature, and electrical conductivity using FDR technology, providing real-time data for optimal crop management.
✅ Key Features
-
🌍 LoRaWAN® 1.0.3 Class A compliance
-
📡 Supports multiple frequency bands: EU868, US915, AS923, and more
-
🌡️ Measures soil moisture, temperature, and electrical conductivity
-

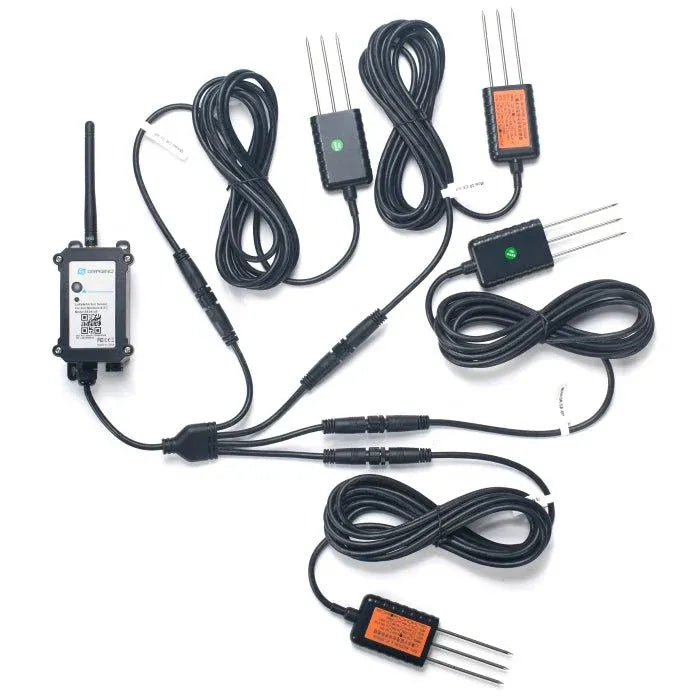

🔌 Connects up to 4 external 2.5m probes (sold separately)
-
🔋 Powered by 8500mAh Li-SOCI2 battery for long-term use
-
📱 Supports Bluetooth v5.1 and LoRaWAN remote configuration
-
🔄 Wireless OTA firmware updates
-
💧 IP66 waterproof enclosure for outdoor applications
🏡 Typical Applications
-
Precision agriculture
-
Greenhouse monitoring
-
Orchard and vineyard management
-
Soil health assessment
-
Irrigation optimization
📊 Specifications
-
Measurement Parameters: Soil moisture, temperature, electrical conductivity
-
Sensor Technology: FDR method with temperature and conductivity compensation
-
Probe Compatibility: Up to 4 external 2.5m probes (DR-SE-6P)
-
Communication Protocol: LoRaWAN® 1.0.3 Class A
-
Frequency Band: EU868
-
Power Supply: 8500mAh Li-SOCI2 battery
-
Enclosure: IP66 waterproof
-
Operating Temperature: -40°C to +85°C
-
Dimensions: 135 × 70 × 30 mm
📥 Product Downloads
📥 Related Product
- Device Type: LoRaWAN® Soil Moisture & EC Sensor Transmitter
- Model: SE0X-LB
- Measured Parameters: Soil Moisture, Soil Temperature, Soil Electrical Conductivity (EC)

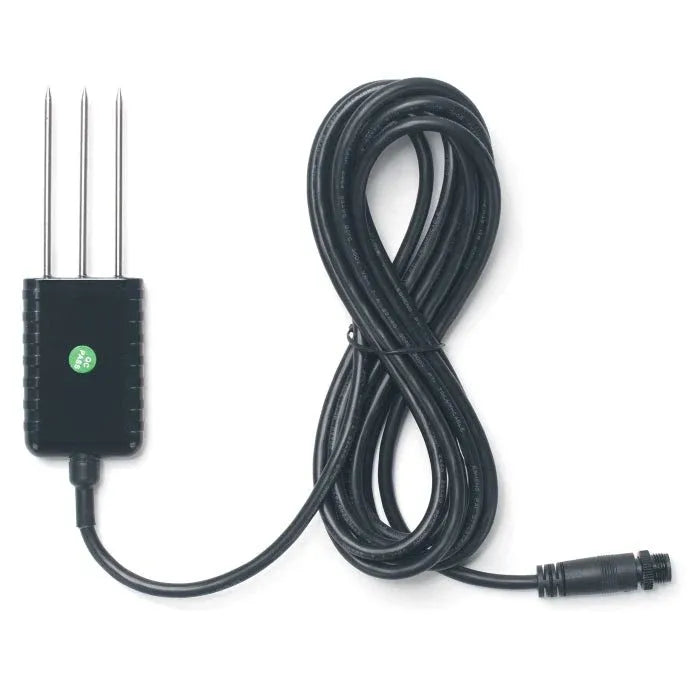

- Sensor Probes: Supports up to 4 external DR-SE-6P probes (2.5m each)
- Measurement Method: Frequency Domain Reflectometry (FDR) with temperature and conductivity compensation
- Soil Types: Calibrated for mineral, saline-alkali, and loamy soils
- LoRaWAN® Protocol: v1.0.3 Class A
- Frequency Band: EU868
- Communication: LoRaWAN®, Bluetooth v5.1 (for configuration)
- Firmware Updates: Supports wireless OTA updates
- Power Supply: 8500mAh Li-SOCl2 battery or optional solar panel with Li-ion battery
- Battery Life: Up to 5 years (depending on reporting interval)
- Operating Temperature: -40°C to 85°C
- Ingress Protection: IP66 (suitable for outdoor use)
- Installation: Pole or wall mount
