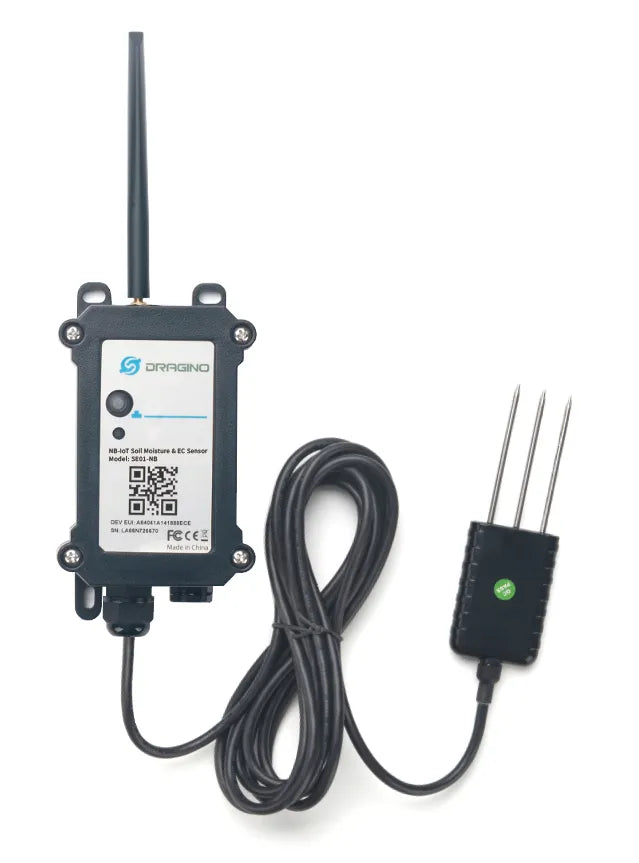

Dragino SE01-NB – NB-IoT Soil Moisture, Temperature & EC Sensor

Availability: In stock

€162,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Dragino

Industrial NB-IoT Soil Sensor for Smart Agriculture

The Dragino SE01-NB is a professional NB-IoT soil sensor designed for IoT agriculture and environmental monitoring applications. It accurately measures soil moisture, soil temperature, and soil electrical conductivity (EC) and uploads the data to cloud servers via NB-IoT cellular networks. It is ideal for smart agriculture, irrigation control, greenhouse monitoring and precision farming applications.

The sensor uses the FDR (Frequency Domain Reflectometry) method to calculate soil moisture with compensation from soil temperature and soil conductivity, ensuring reliable and stable measurements. It is factory calibrated for mineral soil, saline-alkali soil, and loamy soil.

In addition to soil moisture measurement, the SE01-NB continuously monitors soil temperature and soil conductivity, providing essential data for irrigation optimization, crop management and soil condition analysis. This helps farmers improve water efficiency and crop productivity.

The SE01-NB supports multiple uplink methods including MQTT, MQTTs, TCP, UDP and CoAP, allowing integration with various IoT platforms and cloud applications. It also supports BLE configuration and OTA firmware upgrades, making deployment and maintenance simple and efficient.

Powered by an 8500mAh Li-SOCl₂ battery, the SE01-NB is optimized for ultra-low-power operation and can function autonomously for several years depending on reporting intervals and network conditions. This makes it ideal for long-term field deployment.

Key Features

✔ NB-IoT Soil Sensor
✔ Soil Moisture Monitoring
✔ Soil Temperature Monitoring
✔ Soil Conductivity (EC) Monitoring
✔ FDR Measurement Technology
✔ High Accuracy Soil Monitoring
✔ BLE Configuration
✔ OTA Firmware Upgrade
✔ MQTT / MQTTs / TCP / UDP / CoAP Support
✔ Ultra-Low Power Consumption
✔ 8500mAh Battery
✔ Ideal for Smart Agriculture

Typical Specifications

• Wireless Technology: NB-IoT
• NB-IoT Module: BC660K-GL
• Measurements: Soil Moisture / Temperature / EC
• Measurement Method: FDR + RTD + Conductivity
• Battery: 8500mAh Li-SOCl₂
• Uplink: MQTT / MQTTs / TCP / UDP / CoAP
• BLE Configuration
• OTA Firmware Upgrade
• Ultra-Low Power Design
• Multi-Year Battery Life

Applications

Smart Agriculture
Precision Farming
Irrigation Systems
Greenhouses
Crop Monitoring
Soil Analysis
Environmental Monitoring
Research Applications
Remote IoT Monitoring

Specifications

General

  • Model: SE01-NB
  • Wireless Technology: NB-IoT
  • Module: BC660K-GL
  • Uplink Protocols: MQTT / MQTTs / TCP / UDP / CoAP
  • Configuration: BLE + AT Commands
  • Firmware Upgrade: OTA Supported

Soil Moisture

  • Range: 0 ~ 100 V/V %
  • Resolution: 0.01 V/V %
  • Accuracy: ±3% (0–53%), ±5% (>53%)
  • Method: FDR with Temperature & EC Compensation

Soil Temperature

  • Range: -40°C ~ +85°C
  • Resolution: 0.01°C
  • Accuracy: <0.3°C (-10°C to 50°C)

Soil Conductivity (EC)

  • Range: 0 ~ 20000 μS/cm
  • Resolution: 1 μS/cm
  • Accuracy: 2% FS

Power

  • Battery Type: Li-SOCl₂
  • Capacity: 8500mAh
  • Ultra-Low Power Design
  • Multi-Year Battery Life

Product Downloads

📑 Datasheet
📘 User Manual

  • Model: SE01-NB
  • Wireless: NB-IoT
  • Module: BC660K-GL
  • Soil Moisture: 0~100 V/V %
  • Temperature: -40°C ~ +85°C
  • EC Range: 0~20000 μS/cm
  • Battery: 8500mAh Li-SOCl₂
  • Protocols: MQTT / MQTTs / TCP / UDP / CoAP
