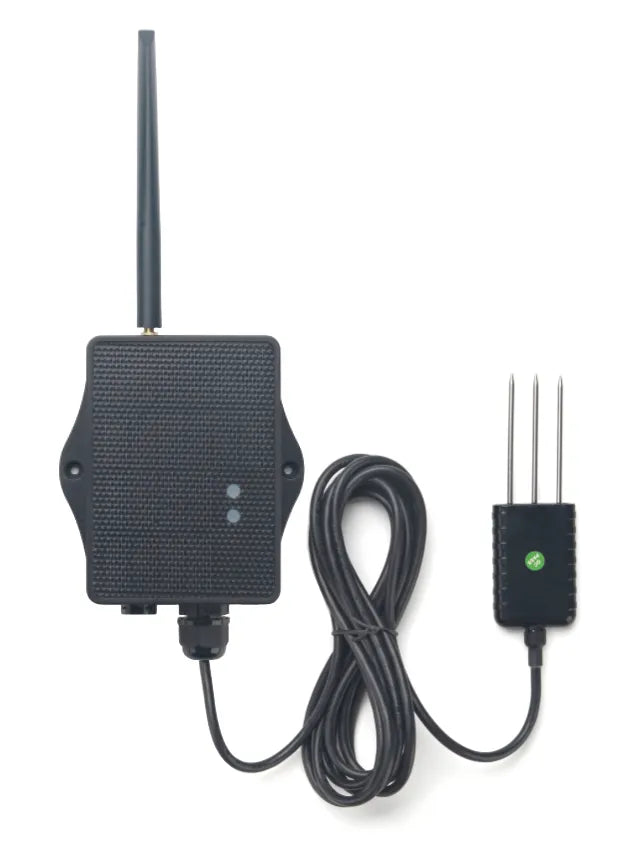

Dragino SE01-NS – Solar Powered NB-IoT Soil Moisture, Temperature & EC Sensor

Availability: In stock

€165,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Dragino

Solar-Powered NB-IoT Soil Sensor for Smart Agriculture

The Dragino SE01-NS is a professional solar-powered NB-IoT soil sensor designed for precision agriculture and environmental monitoring applications. It accurately measures soil moisture, soil temperature, and soil electrical conductivity (EC) and uploads data to IoT cloud servers via NB-IoT cellular networks.

The sensor uses FDR (Frequency Domain Reflectometry) technology to calculate soil moisture with compensation from soil temperature and soil conductivity, ensuring highly reliable and stable measurements. It is factory calibrated for mineral soil, saline-alkali soil, and loamy soil.

The SE01-NS continuously monitors soil conditions and provides critical data for irrigation optimization, crop management, greenhouse monitoring and precision farming. This helps improve water efficiency, crop productivity and overall soil health.

The device supports multiple uplink methods including MQTT, MQTTs, TCP, UDP and CoAP, making integration easy with most IoT servers and cloud platforms. It also supports BLE configuration and OTA firmware upgrades for easier deployment and maintenance.

Unlike the battery-powered SE01-NB, the SE01-NS uses a built-in solar panel combined with a 3000mAh rechargeable Li-ion battery, making it ideal for long-term field deployment with minimal maintenance. It is especially suitable for outdoor agricultural installations with sufficient sunlight.

Key Features

✔ NB-IoT Soil Sensor
✔ Solar Powered Design
✔ Soil Moisture Monitoring
✔ Soil Temperature Monitoring
✔ Soil Conductivity (EC) Monitoring
✔ FDR Measurement Technology
✔ High Accuracy Soil Monitoring
✔ BLE Configuration
✔ OTA Firmware Upgrade
✔ MQTT / MQTTs / TCP / UDP / CoAP Support
✔ Ultra-Low Power Consumption
✔ Ideal for Smart Agriculture

Typical Specifications

• Wireless Technology: NB-IoT
• NB-IoT Module: BC660K-GL
• Measurements: Soil Moisture / Temperature / EC
• Measurement Method: FDR + RTD + Conductivity
• Power Supply: Solar Panel + 3000mAh Li-ion Battery
• Uplink: MQTT / MQTTs / TCP / UDP / CoAP
• BLE Configuration
• OTA Firmware Upgrade
• Ultra-Low Power Design
• Long-Term Autonomous Operation

Applications

Smart Agriculture
Precision Farming
Irrigation Systems
Greenhouses
Crop Monitoring
Soil Analysis
Environmental Monitoring
Research Applications
Remote IoT Monitoring

Specifications

General

  • Model: SE01-NS
  • Wireless Technology: NB-IoT
  • Module: BC660K-GL
  • Uplink Protocols: MQTT / MQTTs / TCP / UDP / CoAP
  • Configuration: BLE + AT Commands
  • Firmware Upgrade: OTA Supported

Soil Moisture

  • Range: 0 ~ 100 V/V %
  • Resolution: 0.01 V/V %
  • Accuracy: ±3% (0–53%), ±5% (>53%)
  • Method: FDR with Temperature & EC Compensation

Soil Temperature

  • Range: -40°C ~ +85°C
  • Resolution: 0.01°C
  • Accuracy: <0.3°C (-10°C to 50°C)

Soil Conductivity (EC)

  • Range: 0 ~ 20000 μS/cm
  • Resolution: 1 μS/cm
  • Accuracy: 2% FS

Power

  • Power Supply: Solar Panel + Li-ion Battery
  • Battery Capacity: 3000mAh
  • Designed for Long-Term Outdoor Operation

Product Downloads

📑 Datasheet
📘 User Manual

  • Model: SE01-NS
  • Wireless: NB-IoT
  • Module: BC660K-GL
  • Soil Moisture: 0~100 V/V %
  • Temperature: -40°C ~ +85°C
  • EC Range: 0~20000 μS/cm
  • Battery: Solar + 3000mAh Li-ion
  • Protocols: MQTT / MQTTs / TCP / UDP / CoAP
