LC-1000 LoRaWAN Lamp Controller - Smart Control for Outdoor Lighting (EU868)

  1. Home
  2. All LoRaWAN® Sensors, Gateways & Devices – Invibit IoT Store
  3. LC-1000 LoRaWAN Lamp Controller - Smart Control for Outdoor Lighting (EU868)

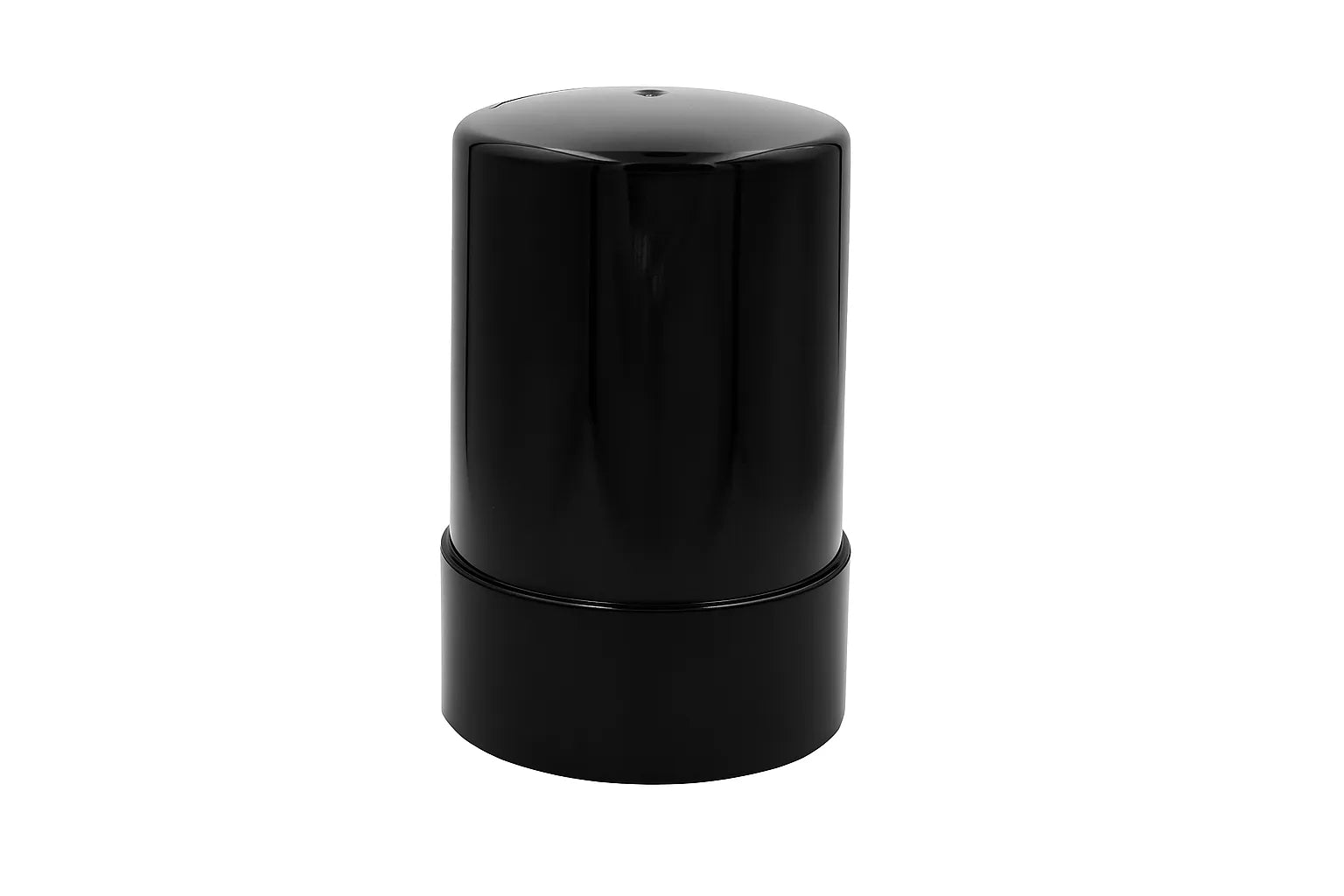

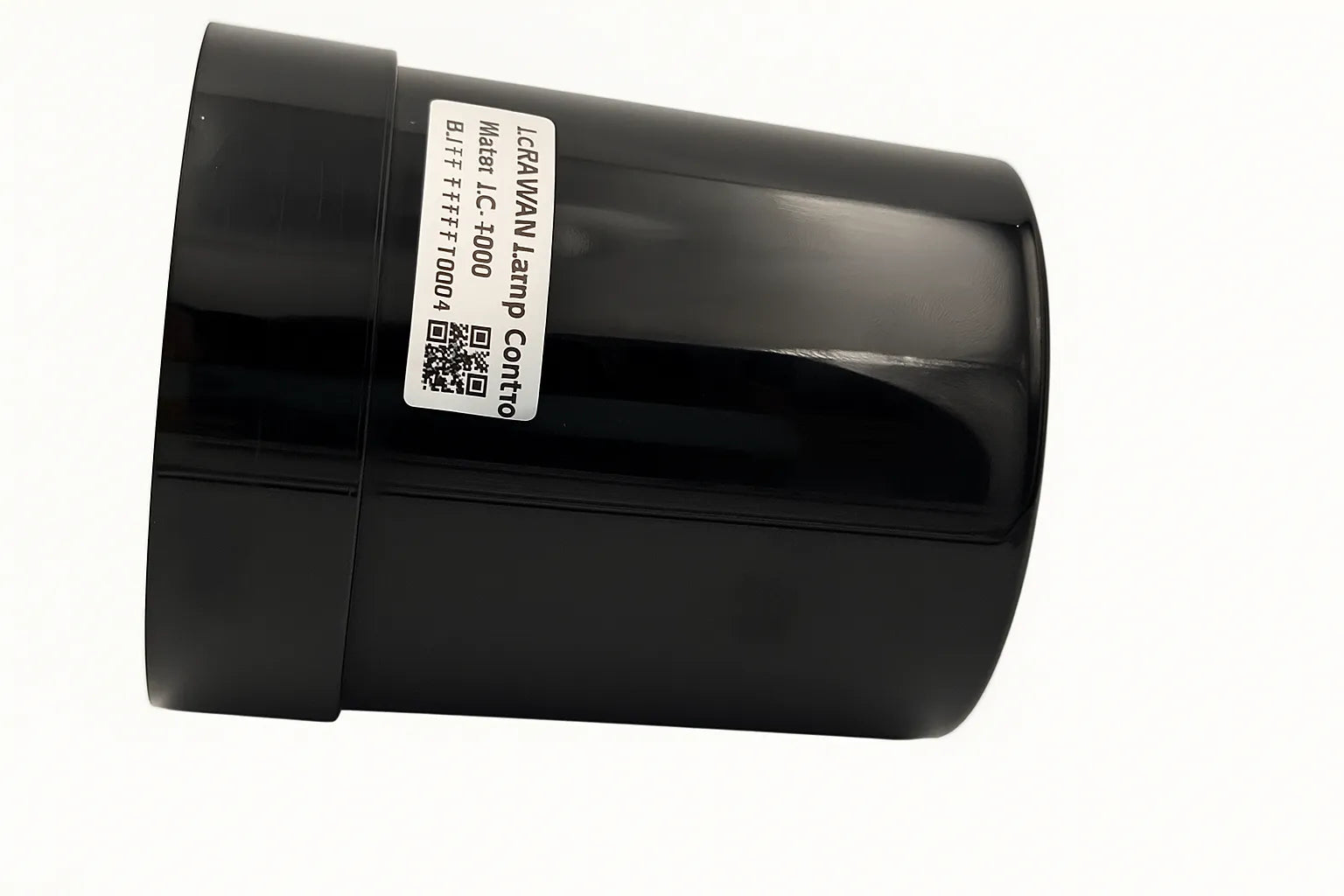

LC-1000 LoRaWAN® Lamp Controller with NEMA socket for outdoor smart lighting
LC-1000 LoRaWAN® Lamp Controller with NEMA socket for outdoor smart lighting
LC-1000 LoRaWAN® Lamp Controller with NEMA socket for outdoor smart lighting
LC-1000 LoRaWAN® Lamp Controller with NEMA socket for outdoor smart lighting
LC-1000 LoRaWAN® Lamp Controller with NEMA socket for outdoor smart lighting
LC-1000 LoRaWAN® Lamp Controller with NEMA socket for outdoor smart lighting

LC-1000 LoRaWAN Lamp Controller - Smart Control for Outdoor Lighting (EU868)

Availability: In stock

€79,95

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
HKTLora

💡 Smart Control for Outdoor Lighting

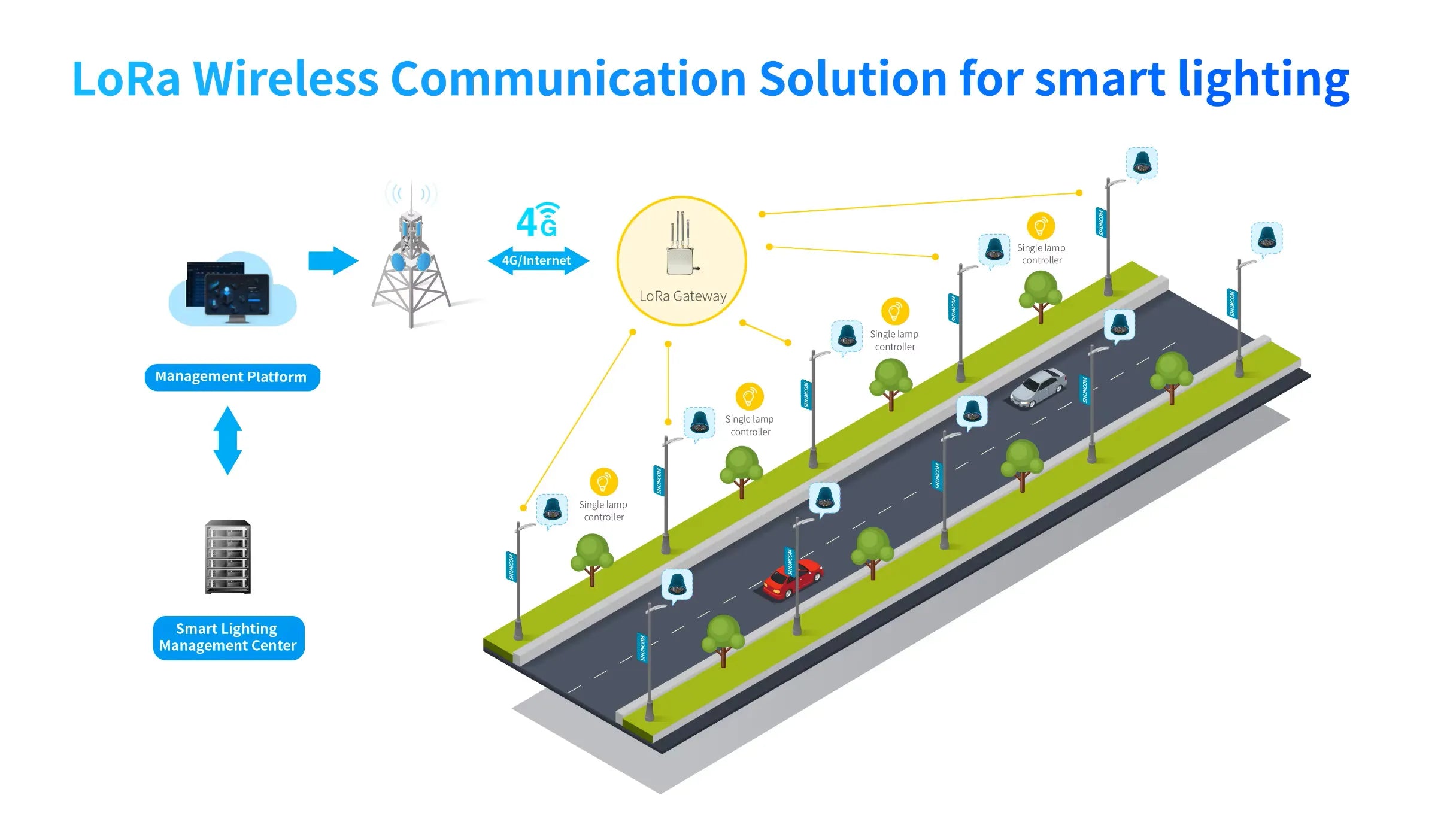

The LC-1000 LoRaWAN® Lamp Controller is an intelligent wireless device designed for remote control and scheduling of outdoor lighting. Ideal for street lights, parks, smart cities, and industrial environments, it enables reliable ON/OFF switching and dimming via any LoRaWAN® network. With the It complies with NEMA and the LoRaWAN®  Specification Class C standard for easy and fast access to LoRaWAN® network. With current and voltage measurement circuit inside, it collects the load status in real time. It has strong anti-interference ability and costs low power consumption, capable in long distance transmission. It has the advantages of small size, easy operation and maintenance, free wiring, reliable performance. It is an energy-saving design for smart lighting.

✅ Key Features

  • ✔️ Support NEMA and standard LoRaWAN Class C

  • ✔️ Frequency: EU868 MHz

  • ✔️ Switch and dimming functions suitable for LED light, high voltage sodium light and metal halide light and ect.

  • ✔️ Detection for current, voltage, power, electricity, frequency, temperature

  • ✔️ One-way switch and 0 ~ 10V dimming signal output

  • ✔️ It has functions of over current protection, lamp condition detection and default lighting.

  • ✔️ Overload protection

  • ✔️ Easy installation and quick response to application platform

  • ✔️ Working Temperature: -40℃~ +80℃

  • ✔️ With the photocell inside, the light controller can automatically adjust the brightness of lamp according to the ambient brightness.

📦 Applications

  • 🌆 Street and park lighting

  • 🏭 Industrial facility lighting control

  • 🌳 Smart agriculture greenhouses

  • 🏠 Remote lighting for private estates

  • 🌐 Smart city deployments

📋 Technical Specifications

Parameter Value
LoRaWAN® Protocol Class C
Frequency Band EU868
Power Input 90–265 VAC / 5–28 VDC
Power Consumption (standby) < 10 μA
Relay Output Max 5A @ 250VAC
Enclosure Rating IP65
Local Control Tactile button + LED feedback

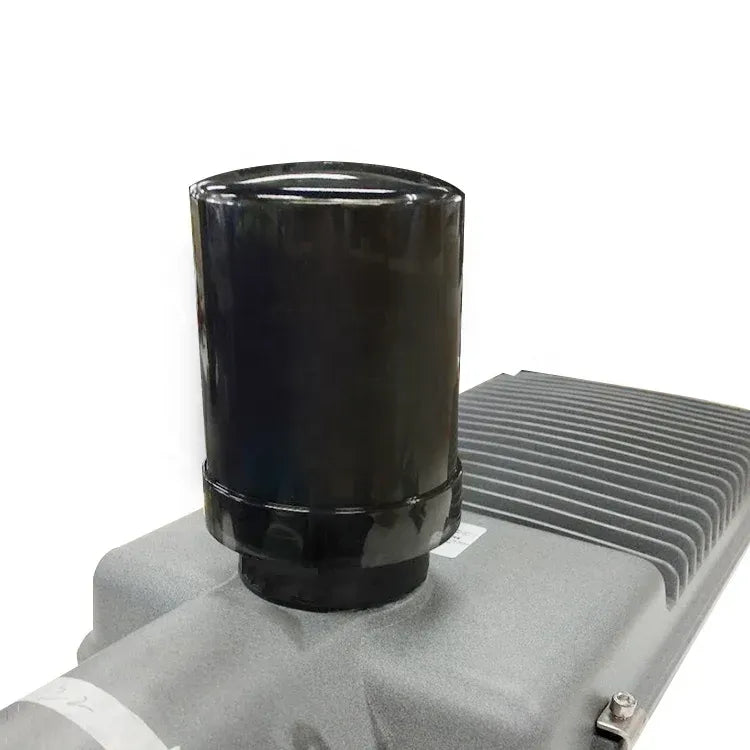

Mounting Installation on lighting fixtures
Operating Temp –40 °C to +80 °C
Dimensions 115 × 70 × 40 mm
Certifications CE, FCC, LoRaWAN® Certified



  • 📶 LoRaWAN® wireless communication (EU868)
  • 💡 Intelligent lamp control for public/street lighting

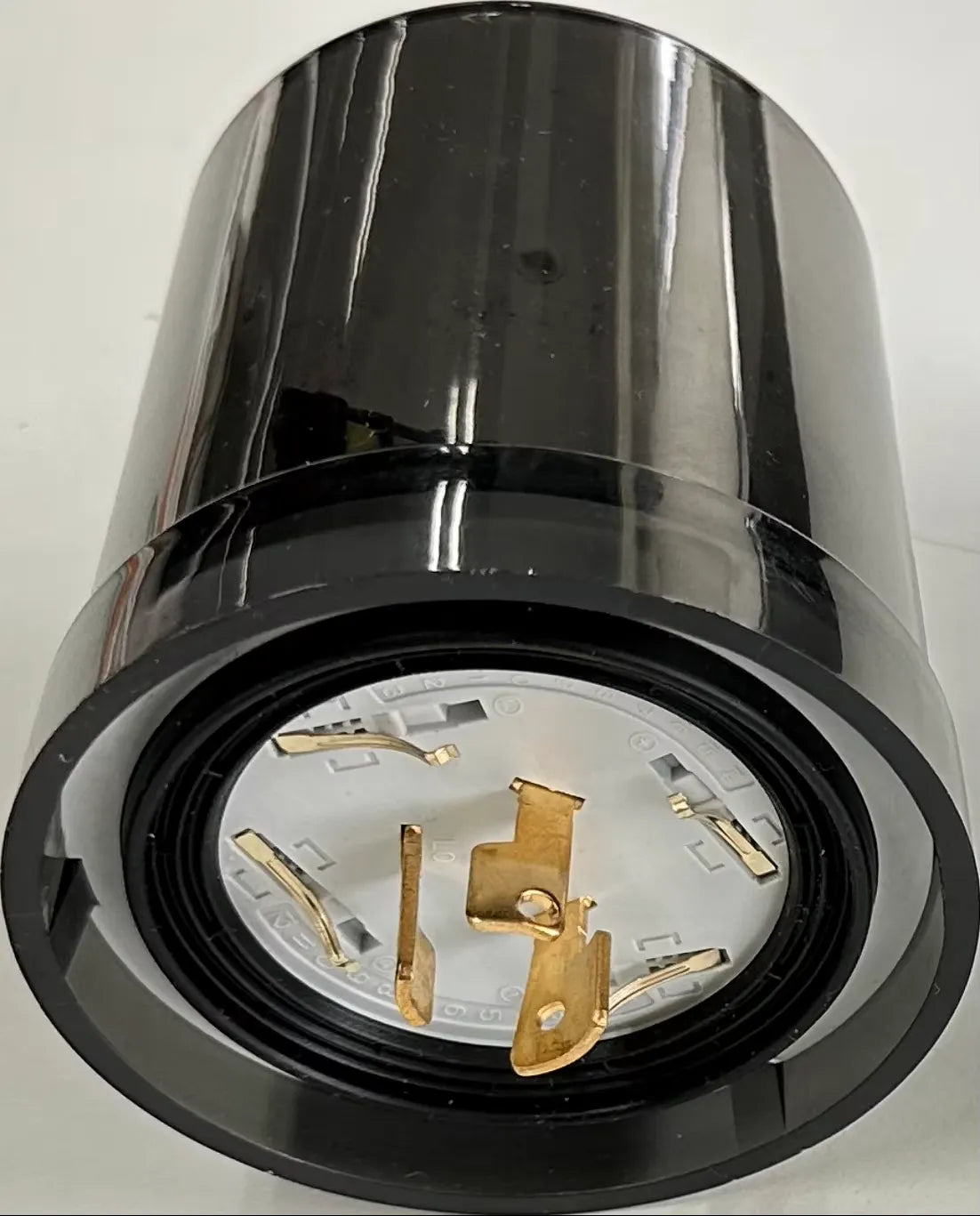

  • 🔌 NEMA socket interface for easy installation
  • 🌧️ Weatherproof design (IP65)
  • ⚙️ Adjustable dimming and switching modes
  • 📊 Real-time energy consumption monitoring
