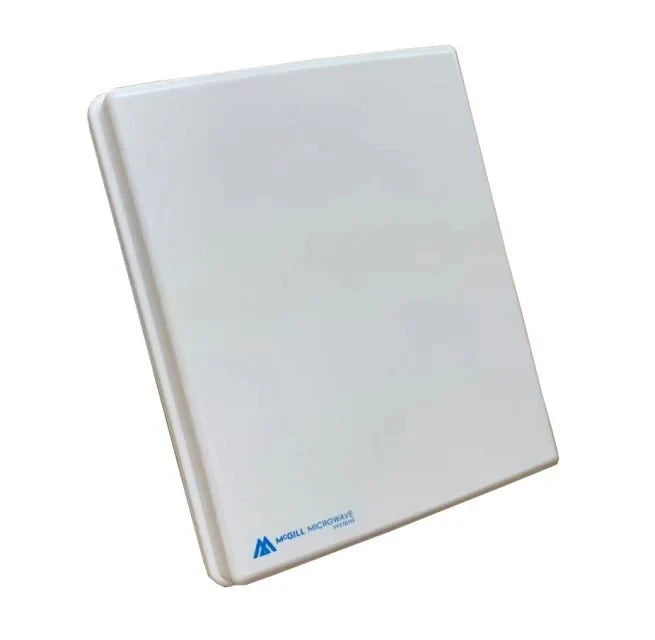

The McGill 8.5 dBi Directional Panel Antenna is a passive RF antenna for compatible 868 MHz LoRaWAN gateways and Helium hotspots. Its documented frequency range is 850–875 MHz.
The directional pattern concentrates coverage toward the selected sector and requires correct alignment. The vertical half-power beamwidth is 68° ±5°. Coverage depends on antenna placement, terrain and coaxial cable losses.
💡 Key Features
- Manufacturer reference: MM-ANT-FP-868-8.5DBI-MCGILL
- Gain: 8.5 dBi
- Horizontal / vertical HPBW: 68° ±5° / 68° ±5°
- RF connector: N-Type Female
- Dimensions: 180 × 140 × 43 mm
- Weight: 0.6 kg
- Operating temperature: -40°C to +70°C
- Mounting bracket: Included
🛠 Applications
Fixed LoRaWAN gateway and compatible hotspot antenna installations for smart cities, agricultural monitoring and industrial IoT networks.
📦 Supplied Items
Antenna and mounting bracket. RF cable, adapters and gateway are separate components.
📥 Manufacturer Documentation
- Manufacturer: McGill Microwave Systems
- Manufacturer reference: MM-ANT-FP-868-8.5DBI-MCGILL
- Type: Directional panel / sector antenna
- Frequency range: 850–875 MHz
- Gain: 8.5 dBi
- Horizontal half-power beamwidth: 68° ±5°
- Vertical half-power beamwidth: 68° ±5°
- Electrical tilt: 0°
- Polarisation: Vertical
- Input impedance: 50 Ω
- VSWR: ≤1.5
- Maximum RF input power: 50 W
- RF connector: N-Type Female
- Lightning protection construction: DC ground
- Dimensions: 180 × 140 × 43 mm
- Weight: 0.6 kg
- Radome material: Fiberglass
- Colour: Grey
- Rated wind speed: 200 km/h
- Operating temperature: -40°C to +70°C
- Mounting bracket: Included
- IP rating: Not specified in the manufacturer's datasheet
