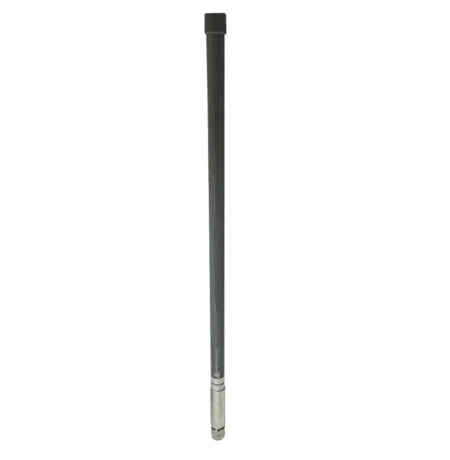

The McGill 9 dBi Omnidirectional Antenna is a passive RF antenna for compatible 868 MHz LoRaWAN gateways and Helium hotspots. Its documented frequency range is 865–870 MHz.
The omnidirectional radiation pattern provides 360° horizontal coverage. The vertical half-power beamwidth is 13° ±1°. Coverage depends on antenna placement, terrain and coaxial cable losses.
💡 Key Features
- Manufacturer reference: MM-ANT-NM-868-9DBI-MCGILL
- Gain: 9 dBi
- Horizontal / vertical HPBW: 360° / 13° ±1°
- RF connector: N-Type Male
- Dimensions: 1600 × Ø38 mm
- Weight: 2.5 kg
- Operating temperature: -40°C to +55°C
- Mounting bracket: Included
🛠 Applications
Fixed LoRaWAN gateway and compatible hotspot antenna installations for smart cities, agricultural monitoring and industrial IoT networks.
📦 Supplied Items
Antenna and mounting bracket. RF cable, adapters and gateway are separate components.
📥 Manufacturer Documentation
- Manufacturer: McGill Microwave Systems
- Manufacturer reference: MM-ANT-NM-868-9DBI-MCGILL
- Type: Omnidirectional fiberglass antenna
- Frequency range: 865–870 MHz
- Gain: 9 dBi
- Horizontal half-power beamwidth: 360°
- Vertical half-power beamwidth: 13° ±1°
- Electrical tilt: 0°
- Polarisation: Vertical
- Input impedance: 50 Ω
- VSWR: ≤1.5
- Maximum RF input power: 50 W
- RF connector: N-Type Male
- Lightning protection construction: DC ground
- Height × diameter: 1600 × Ø38 mm
- Weight: 2.5 kg
- Radome material: Fiberglass
- Colour: Grey
- Rated wind speed: 126 km/h
- Operating temperature: -40°C to +55°C
- Mounting bracket: Included
- IP rating: Not specified in the manufacturer's datasheet
