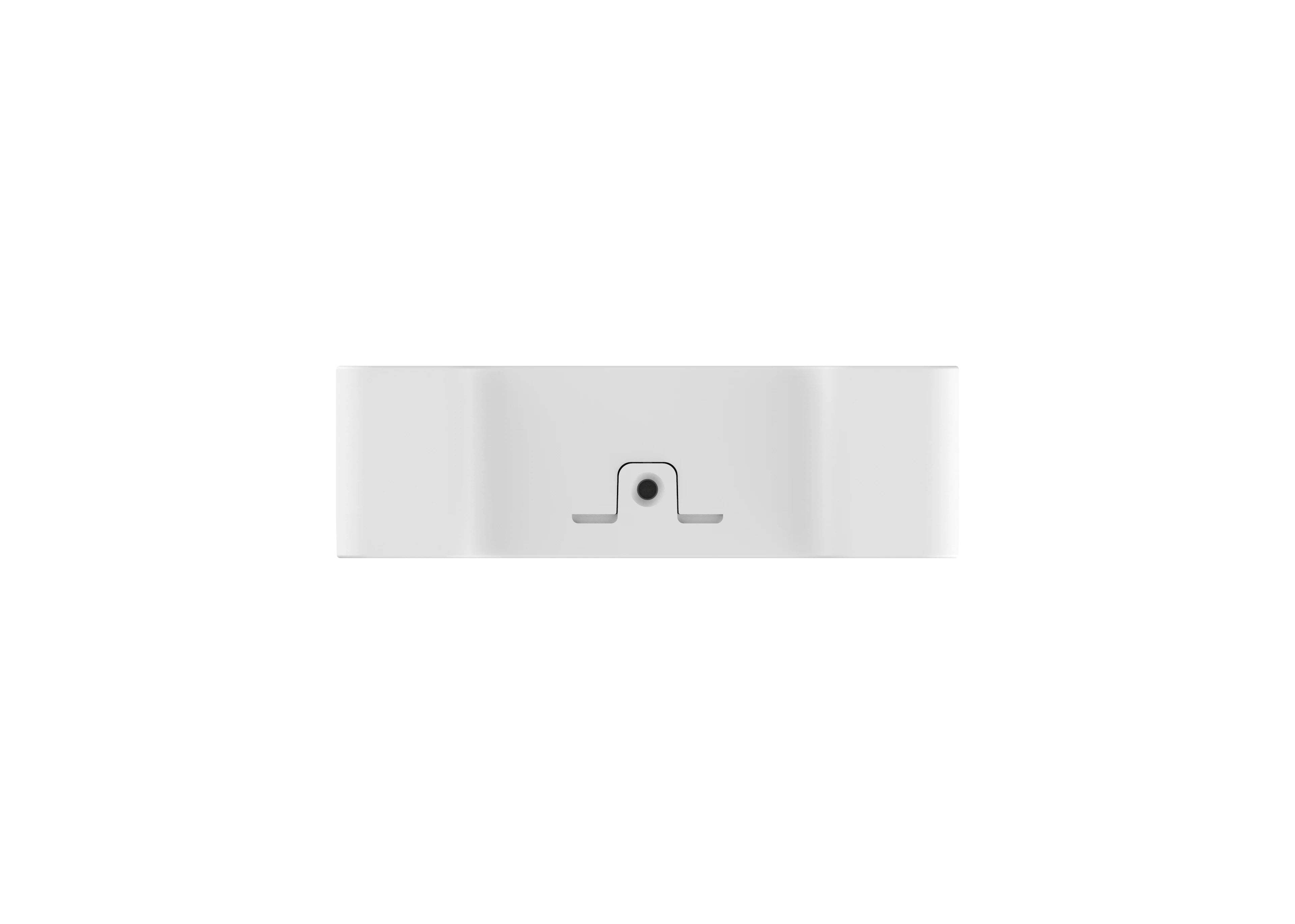

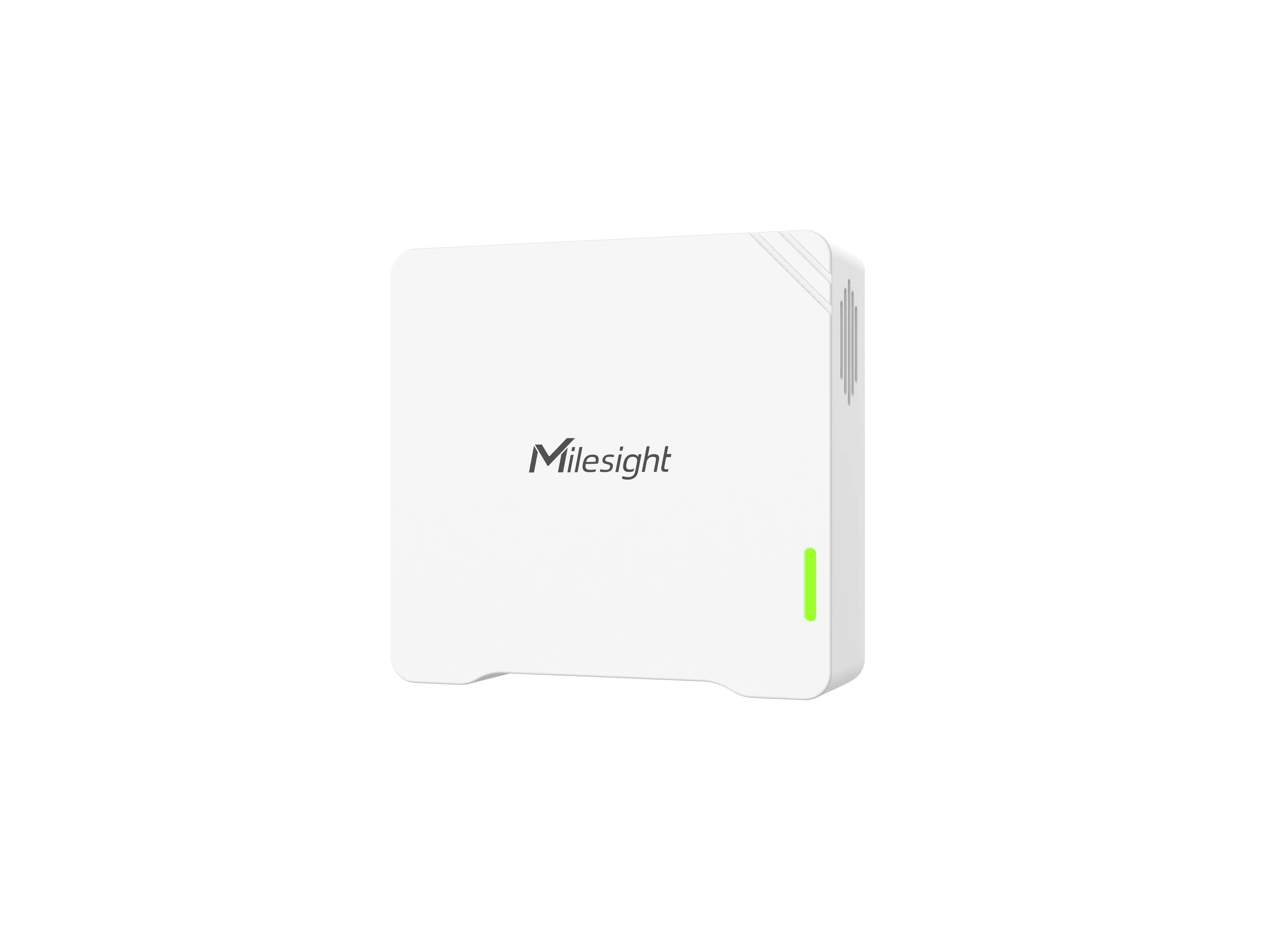

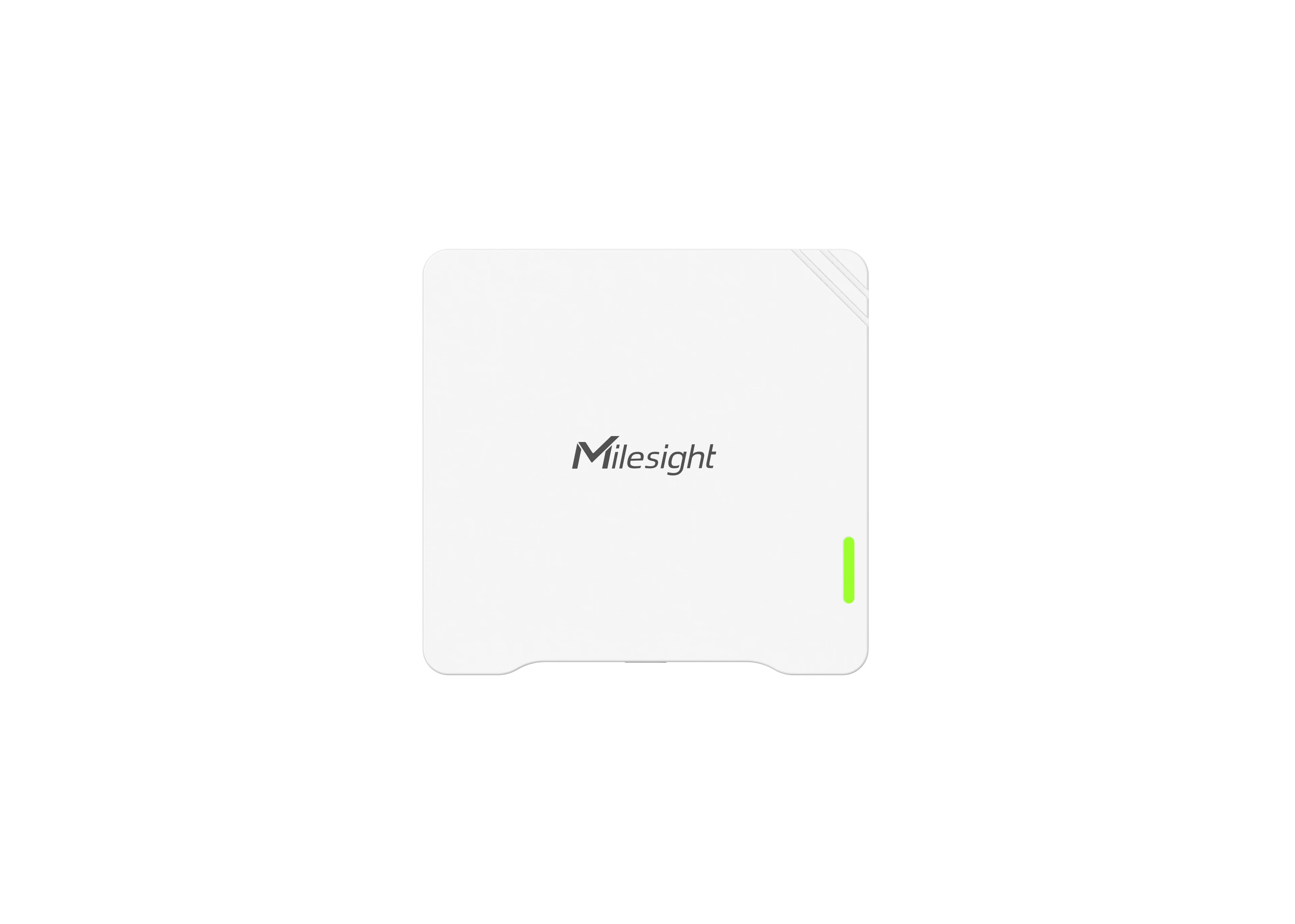

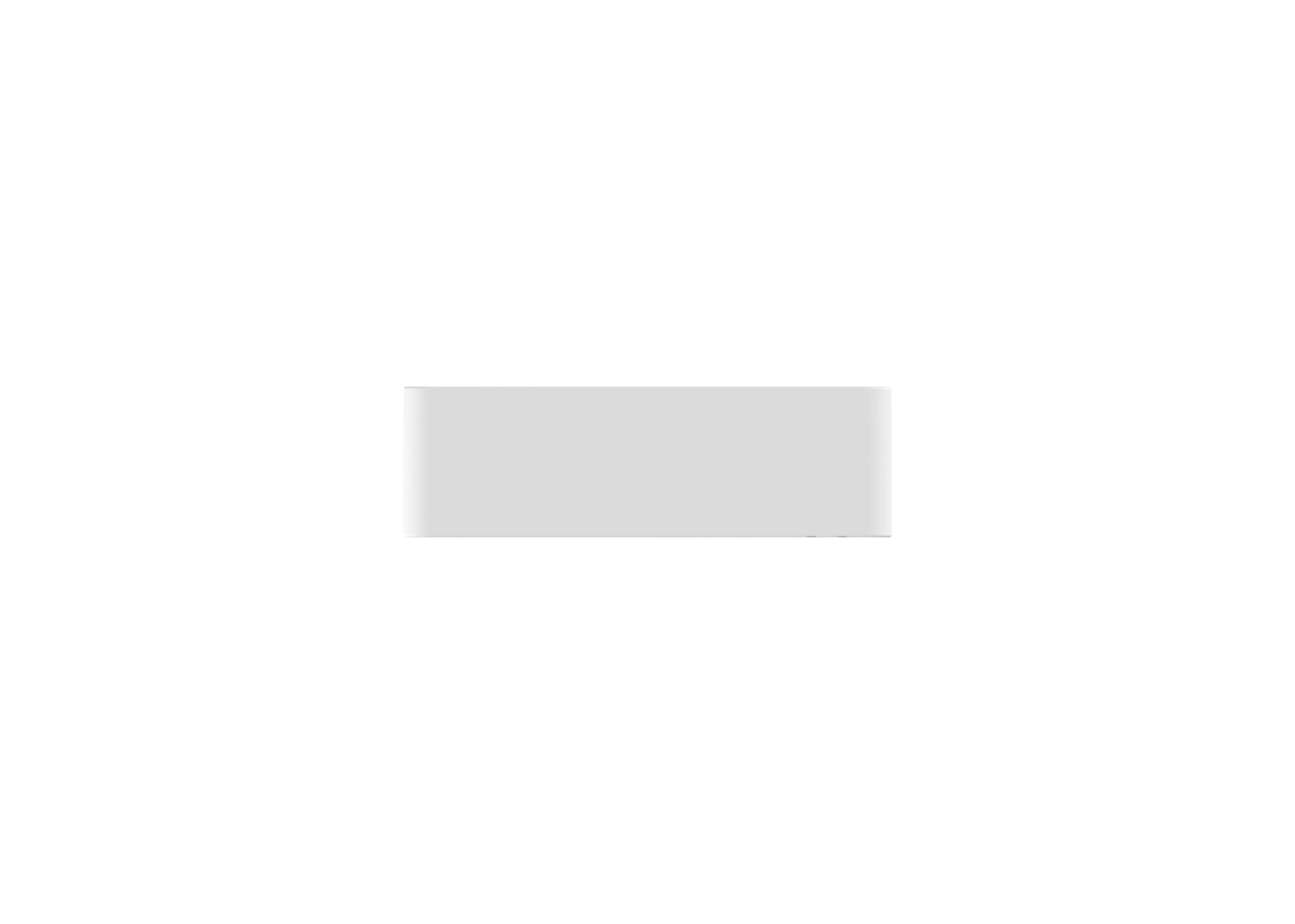

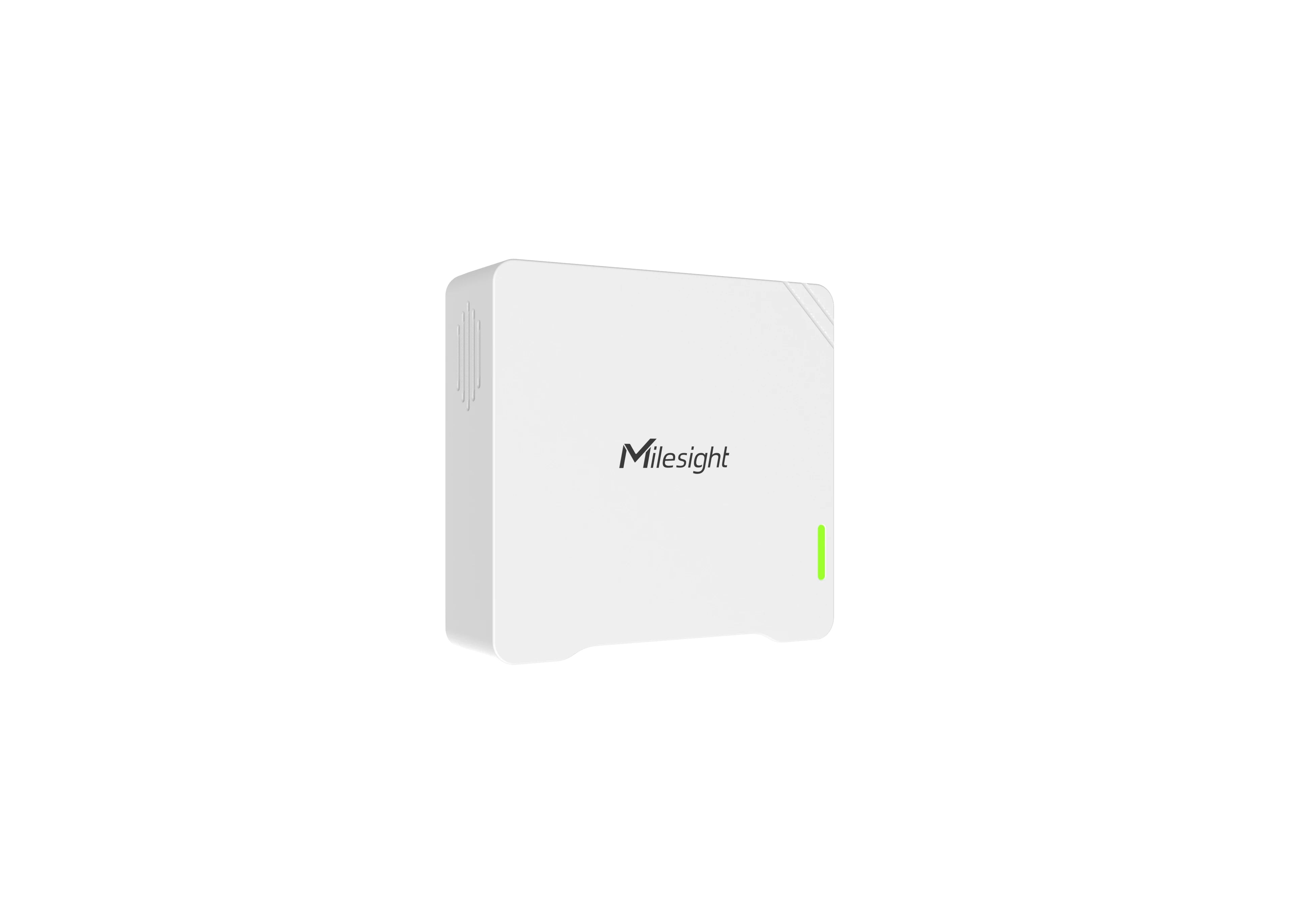

The Milesight AM102L is a compact LoRaWAN® indoor ambience monitoring sensor, designed to measure temperature and humidity in various indoor environments such as offices, stores, classrooms, hospitals, and industrial spaces.
This sensor provides real-time monitoring, enabling optimization of indoor conditions for comfort, safety, and energy efficiency.
With long-range, low-power LoRaWAN® connectivity, the AM102L ensures reliable data transmission, making it an ideal solution for enhancing air quality management and occupant well-being.
🔑 Key Features
✔ 2-in-1 Indoor Environmental Monitoring – Measures temperature and humidity for essential indoor climate tracking.
✔ LoRaWAN® Wireless Communication – Supports long-range, low-power data transmission for seamless IoT integration.
✔ Smart Alerts & Thresholds – Sends instant notifications when environmental parameters exceed predefined limits.
✔ Energy Efficient – Low power consumption ensures long-term operation with minimal maintenance.
✔ Compact & Modern Design – Ideal for offices, schools, hospitals, and smart building applications.
✔ Flexible Installation Options – Can be wall-mounted or integrated into building management systems.
✔ Seamless IoT Compatibility – Works with Milesight IoT Cloud and third-party LoRaWAN® platforms.
📦 Technical Specifications
✅ LoRaWAN® Protocol: 1.0.3, Class A
✅ LoRa® Frequency Band: EU868
✅ LoRa® TX Power: 16 dBm
✅ Sensitivity: -137 dBm @ 300bps
✅ Sensors:
• Temperature: -20°C to 60°C, ±0.2°C accuracy
• Humidity: 0% - 100% RH, ±2% RH accuracy
✅ Power Supply: 2 × 2700 mAh ER14505 Li-SOCl₂ replaceable batteries
✅ Battery Life: Up to 9 years
✅ Operating Temperature: -20°C to 60°C
✅ Relative Humidity: 10% - 90% RH (non-condensing)
✅ Ingress Protection: IP30
✅ Dimensions: 88.5 × 82 × 24 mm

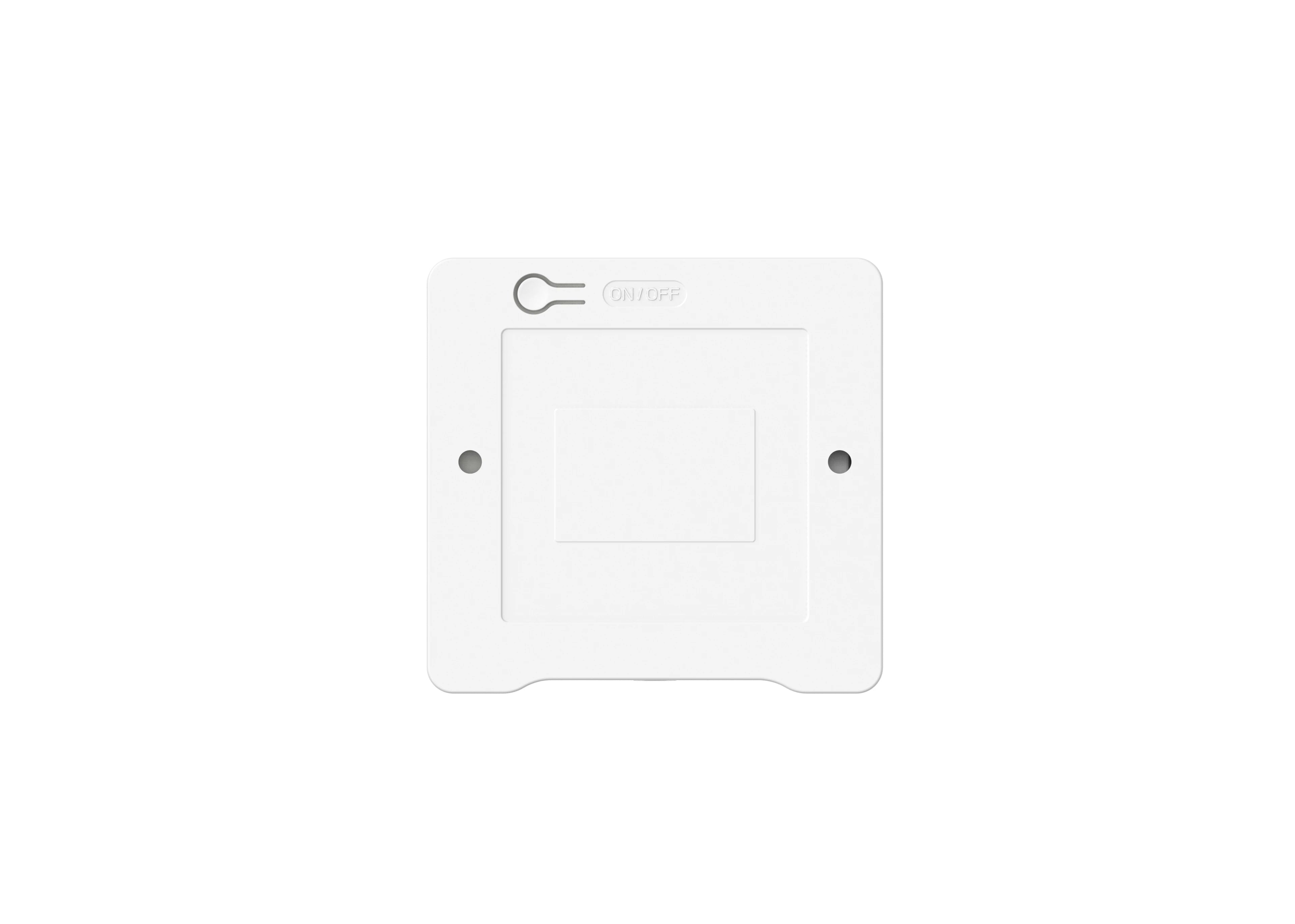

✅ Installation: Wall-mounted with 3M tape or screws
📥 Product Downloads
📺 Product Video
- Device Type: LoRaWAN® Indoor Ambience Monitoring Sensor (Without Display)
- Measurement Parameters: Temperature, Humidity, CO₂
- Temperature Measurement Range: -20°C to 60°C (Accuracy ±0.3°C)
- Humidity Measurement Range: 0% to 100% RH (Accuracy ±3%)
- CO₂ Detection Range: 400~5000 ppm (Accuracy ±30 ppm or ±3%)
- LoRaWAN® Protocol: 1.0.3, Class A
- Frequency Band: EU868 MHz
- LoRa® TX Power: Up to 16 dBm (Adjustable)
- LoRa® Sensitivity: -137 dBm (SF12)
- Power Supply: Replaceable AA batteries (up to 3 years lifespan)
- Ingress Protection: IP30 (Indoor use)
- Operating Temperature: -20°C to 60°C
- Installation: Wall or ceiling mounting
- Additional Features: Compact, display-free design, essential indoor air quality parameters, ultra-low power consumption, ideal for offices, classrooms, smart buildings, residential areas, healthcare facilities, and indoor environmental monitoring solutions
