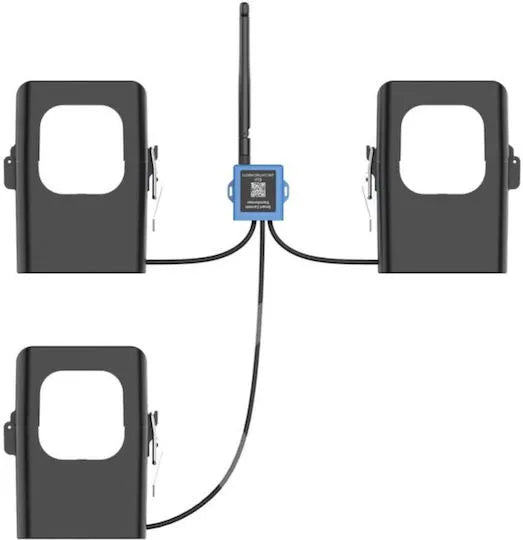

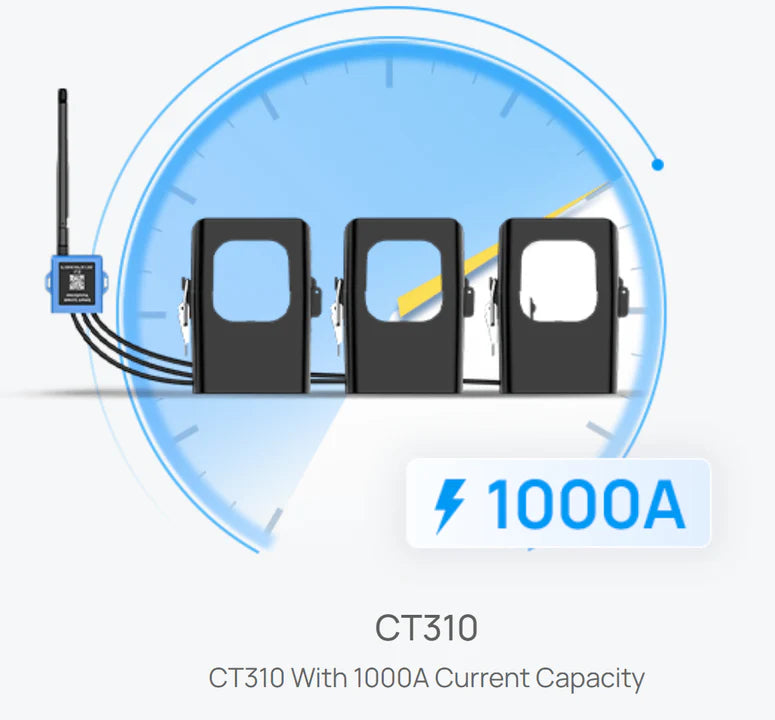

Milesight CT310 LoRaWAN® Smart Current Transformer – Up to 1000 A (EU868)
Milesight CT310 LoRaWAN® Smart Current Transformer – Up to 1000 A (EU868)

Milesight CT310 LoRaWAN Smart Current Transformer – Up to 1000 A (EU868)

Availability: In stock

€295,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Request a Volume Quote
Vendor:
Milesight

⚡ Non-invasive and self-powered current monitoring
📊 Measures real-time RMS and cumulative current
🚨 Threshold-based over/under current alerts
🔋 Energy harvesting from the monitored circuit
📡 LoRaWAN® wireless communication – Class A

📖 Description

The Milesight CT310 is a LoRaWAN smart current transformer designed for real-time, high-accuracy current monitoring in both single-phase and three-phase electrical installations. With a maximum supported current of 1000 A, it enables non-intrusive, clamp-on measurement without interrupting the power supply.

The CT310 is self-powered, harvesting energy directly from the current it measures, and features LoRaWAN Class A support for long-range, low-power wireless communication. It provides real-time RMS values, cumulative ampere-hour measurements, and configurable alarms for over-current and under-current detection.

🔧 Features

  • ⚡ Current Range: 0 – 1000 A RMS

  • 📈 Sampling Frequency: 3.3 kHz

  • 🧮 Accuracy: ±1% (typical)

  • 🔍 Resolution: 1 mA

  • ⏱️ Data Reporting: Real-time RMS (1s) & cumulative Ah (1min)

  • 🔋 Power Supply: Self-powered from measured circuit or USB Type-C

  • 🛠️ Mounting: Clamp-on design for easy installation

  • 🌐 LoRaWAN: Class A, EU868 (and other regions)

  • 📦 Enclosure: IP30 rated

  • 🌡️ Operating Temp: –20°C to +70°C (sensor head up to 55°C)

📂 Product Downloads

🎥 Product Video

The CT310 measures RMS current and Ah. Supported kWh values are estimates using configured voltage and power factor; it does not directly measure voltage, active power or certified energy. A 1-second sampling interval is not a 1-second LoRaWAN reporting interval. Low-current operation requires USB power according to hardware revision and reporting interval.

  • Model: Milesight CT310
  • Measurement: RMS AC current, up to 1000Arms per CT; up to three phases
  • Accuracy: ±1%; resolution 1mA
  • Sampling: 3.3kHz; mains frequency 50–60Hz
  • Power: Induced current or external 5V USB-C; no battery
  • Self-powered reporting threshold: Depends on reporting interval and hardware revision; use USB power below the applicable limit
  • Wireless: LoRaWAN EU868 Class A, OTAA/ABP; 16dBm at EU868
  • Antenna: SMA female connector, 50Ω
  • Optional temperature probe: NTC, -20°C to +100°C
  • Configuration: USB-C or downlink; FUOTA support
  • Transceiver operating temperature: -20°C to +70°C
  • CT clamp operating temperature: -40°C to +55°C
  • Protection: IP30, indoor non-condensing installation
  • Metering: Direct RMS current and accumulated current; any energy estimate requires configured voltage/PF and is not certified billing metering
