Product Description

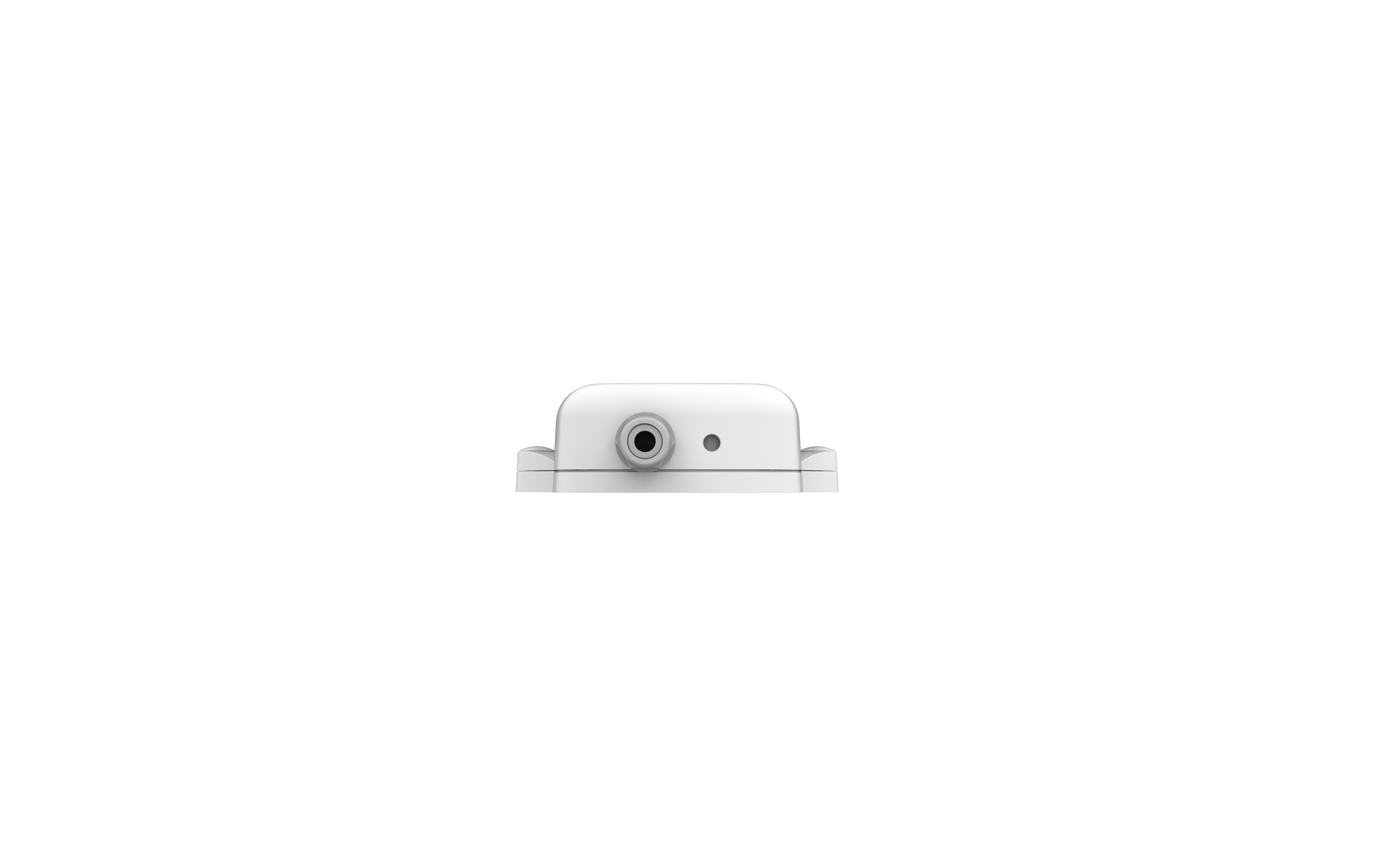

The Milesight EM300-MCS is a versatile and robust LoRaWAN® Magnetic Contact Switch designed for monitoring door/window status and environmental conditions. It features an IP67 rated enclosure, ensuring durability against dust and water ingress, making it suitable for use in various indoor and outdoor environments. This device not only detects the opening and closing of doors and windows with high sensitivity (20 to 30 mm sensing distance) but also measures temperature and humidity. It is ideal for security and environmental monitoring, providing real-time alarming for unauthorized entry while also keeping track of ambient conditions.
Product Features
- IP67 Rated and UV Resistance: Ensures durability and longevity in harsh environmental conditions.
- Temperature and Humidity Detection: Accurate measurement with a temperature accuracy of ±0.3°C (0°C to 70°C) and humidity accuracy of ±3% (10% to 90% RH).
- High Sensitivity: 20 to 30 mm open/close sensing distance for precise monitoring of door/window status.
- Long Battery Life: Powered by a 4000 mAh ER18505 Li-SOCL2 battery, offering a service life of over 5 years, extendable to 10 years.
- Data Retransmission Support: Guarantees data delivery to the web server, even in case of occasional network downtimes.
- Historical Data Record Capacity: Stores up to 2,800 sets of data records.
- LoRaWAN® Technology: Offers wide data transmission range (up to 2 km in urban areas and 15 km in rural areas) and is compatible with standard LoRaWAN® gateways and network servers.
- NFC Capability: Enables wireless on/off switching and configuration of the device.
- Physical Characteristics: The device measures 105.6 × 85.3 × 27 mm and has a customizable alarm reporting interval/times feature.
The EM300-MCS is a comprehensive solution for monitoring and securing premises, providing valuable data for smart building management, security systems, and environmental monitoring.
Product Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Door Magnet | |
| Detection Distance | 20-30 mm |
| Cable Length | 1.5 m |
| Temperature | |
| Range | -30°C to + 70°C |
| Accuracy | 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C) |
| Resolution | 0.1°C |
| Humidity | |
| Range | 0% to 100% RH |
| Accuracy | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) |
| Resolution | 0.5% RH |
| Operation | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 battery (extendable to 2 batteries) |
| Battery Life* | 10 years (10 min interval + 48 triggers per day) |
| Operating Temperature | -30°C to +70°C |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension |
Transceiver: 105.6 × 85.3 × 27 mm (4.16 × 3.36 × 1.06 in) Magnet: 32 × 15 × 8 mm (1.25 × 0.59 × 0.31 in) |
| Installation | Wall Mounting |
| Approvals | |
| Regulatory | CE, FCC, RoHS |
Product Downloads
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | EU868 |
| Tx Power | 16dBm (868 MHz) |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA/ABP Class A |
| Sensing | |
| Lead Cable | 1007UL #22AWG 260mm |
| Type | Normally closed |
| Distance of magnets | 20-30mm |
| Distance of holes | 22mm |
| Temperature Measurement | |
| Range | -30°C to + 70°C |
| Accuracy | 0°C to + 70°C (±0.3°C) -30°C to 0°C (±0.6°C) |
| Resolution | 0.1°C |
| Humidity Measurement | |
| Range | 0% to 100% RH |
| Accuracy | ±3%(10~90%RH) ±5%(Other ranges) |
| Resolution | 0.5% RH |
| Physical Characteristics | |
| Power Supply | ER18505 Li-SOCl2 4000 mAh battery (8000 mAh optional) |
| Battery Life | ≧ 5 years ( for 1 battery) |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 70°C |
| Dimensions | 88 × 87 × 27 mm |
| Installation | Wall (screws or 3M adhesives) |
