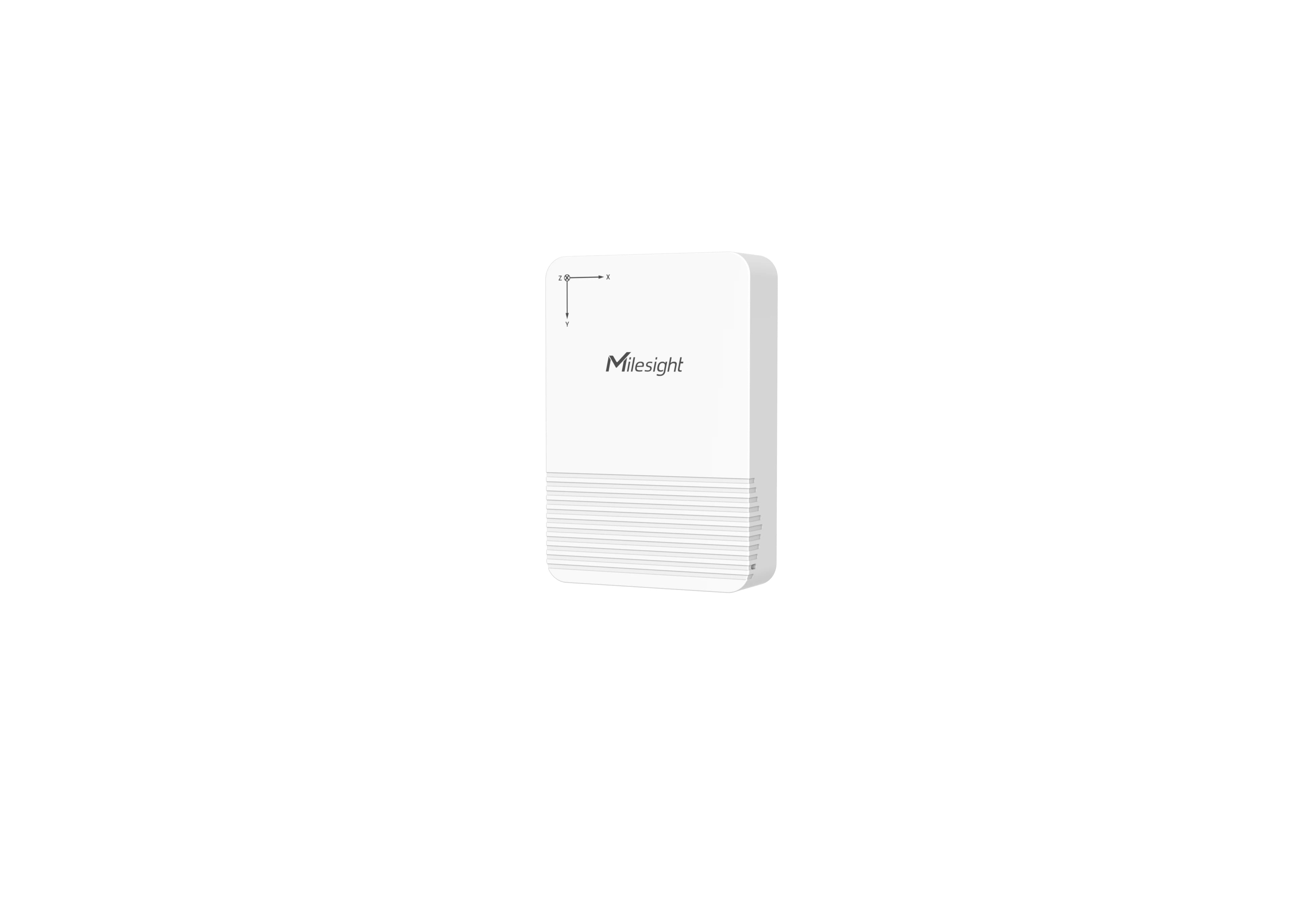

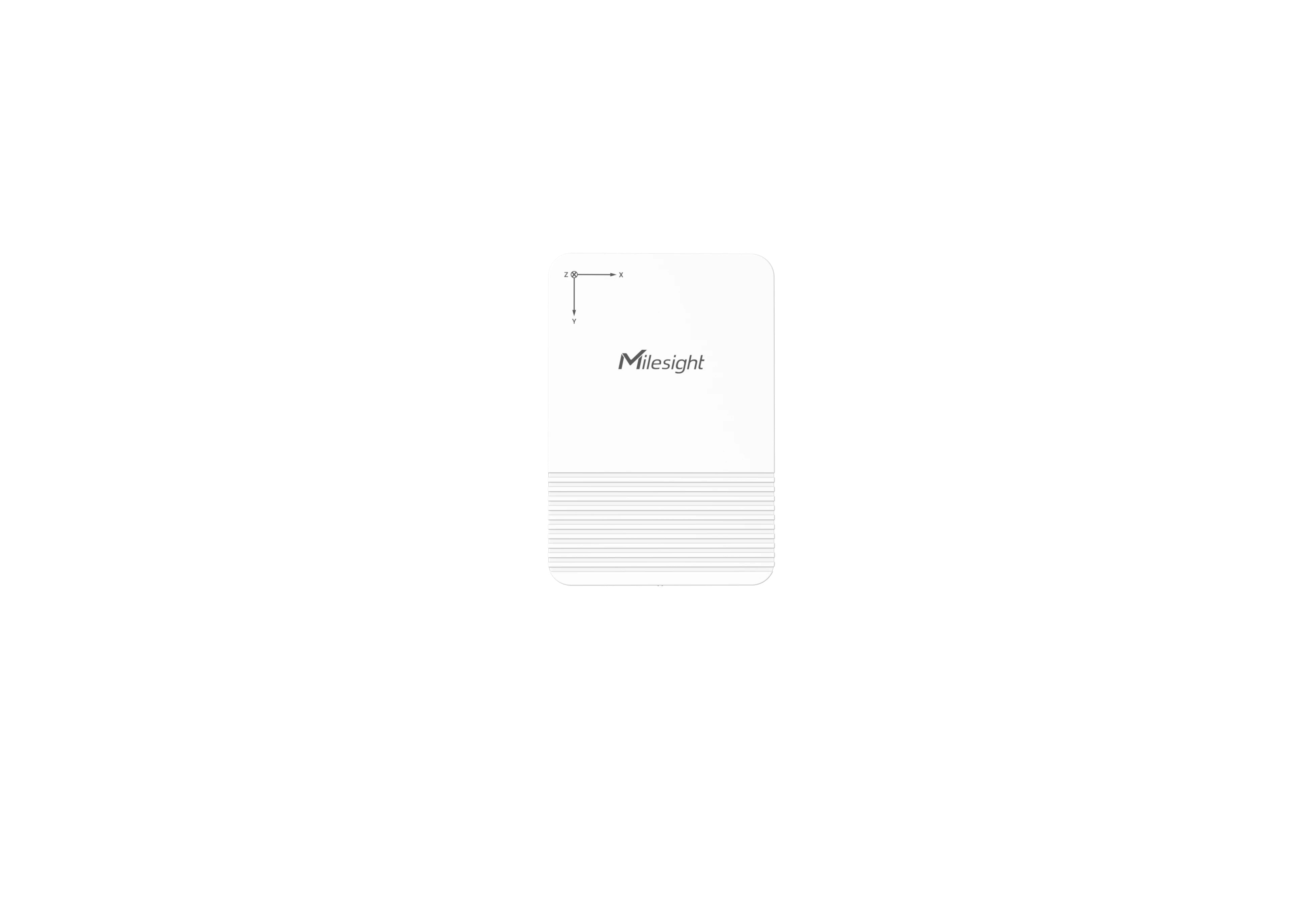

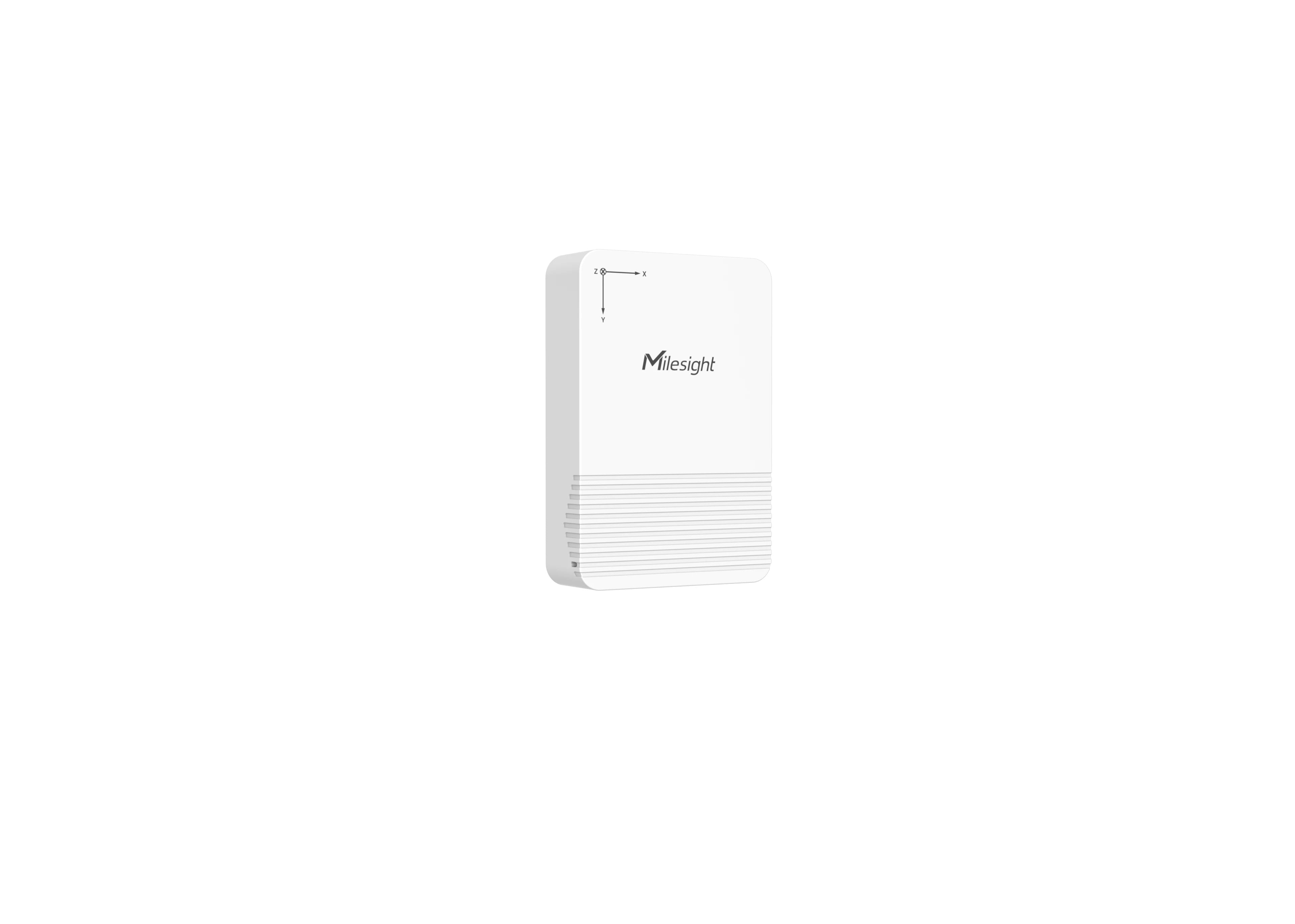

The Milesight EM320-TILT is an industrial-grade LoRaWAN® tilt sensor designed to monitor angular changes, inclination, and movement of structures, equipment, and assets. Using high-precision MEMS technology, the EM320-TILT detects real-time tilt changes and sends alerts when movements exceed predefined thresholds. With long-range LoRaWAN® connectivity, an IP67-rated waterproof design, and ultra-low power consumption, it is ideal for structural health monitoring, pole lean detection, industrial machinery, and smart infrastructure applications.
🔑 Key Features
✔ Real-Time Tilt & Angle Monitoring – Measures angular changes in X, Y, and Z axes for early detection of movement or misalignment.
✔ High-Precision MEMS Sensor – Ensures accurate and reliable tilt detection with customizable sensitivity.
✔ LoRaWAN® Wireless Transmission – Enables long-range, low-power data transmission for remote monitoring applications.
✔ Smart Alerts & Configurable Thresholds – Sends instant notifications when predefined tilt angles are exceeded.
✔ Rugged & Waterproof (IP67 Rated) – Designed for harsh environments, ensuring durability in industrial and outdoor applications.
✔ Ultra-Low Power Consumption – Powered by a 4000mAh replaceable battery, providing up to 10 years of maintenance-free operation.

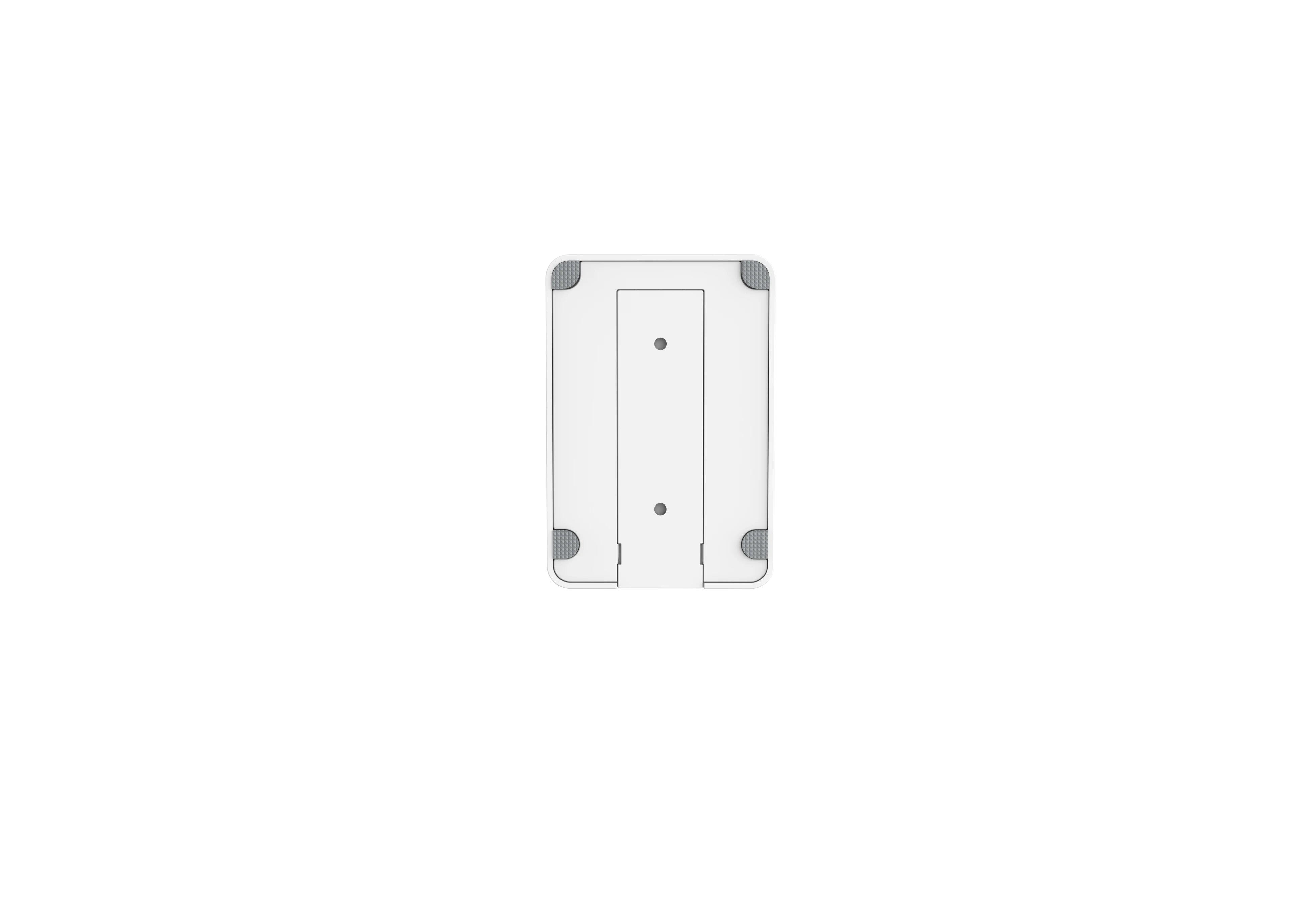

✔ Easy Installation & Multiple Mounting Options – Can be mounted on poles, walls, or equipment surfaces with included accessories.
📦 Technical Specifications
✅ Measurement Type: 3-Axis Tilt Detection (X, Y, Z)
✅ Tilt Measurement Range: ±90° (configurable thresholds)
✅ Resolution: 0.01°
✅ Accuracy: ±0.5°
✅ LoRaWAN® Protocol: 1.0.3, Class A
✅ LoRa® Frequency Band: EU868
✅ LoRa® TX Power: Up to 20 dBm
✅ LoRa® Sensitivity: -137 dBm
✅ Power Supply: Replaceable 4000mAh Li-SOCL2 battery (up to 10 years lifespan)
✅ Operating Temperature: -30°C to 70°C
✅ Ingress Protection: IP67 Waterproof
✅ Installation: Pole-mounted, wall-mounted, or equipment-mounted
🌍 Applications
🏗 Structural Health Monitoring & Tilt Detection
🚦 Pole Lean Detection for Smart Cities
🏭 Industrial Equipment & Machinery Movement Monitoring
🌉 Bridge & Infrastructure Safety Monitoring
🛰 Solar Panel & Antenna Angle Adjustment Tracking
📥 Product Downloads:
Product Video
- Measurement Type: LoRaWAN® Tilt Sensor
- Measurement Parameters: X, Y, Z axis tilt angles
- Measuring Range: ±90° (X, Y Axis)
- Resolution: 0.01°
- Accuracy: ±1°
- Response Time: ≤ 1 second
- Alarm Thresholds: Configurable via LoRaWAN® Downlink
- LoRaWAN® Protocol: 1.0.3, Class A
- LoRa® Frequency Band: EU868
- LoRa® TX Power: Up to 20 dBm
- LoRa® Sensitivity: -137 dBm
- Power Supply: Replaceable 4000mAh Li-SOCL2 battery (up to 10 years lifespan)
- Operating Temperature: -30°C to 70°C
- Ingress Protection: IP67 Waterproof
- Installation: Wall-mounted, pole-mounted, or industrial equipment
