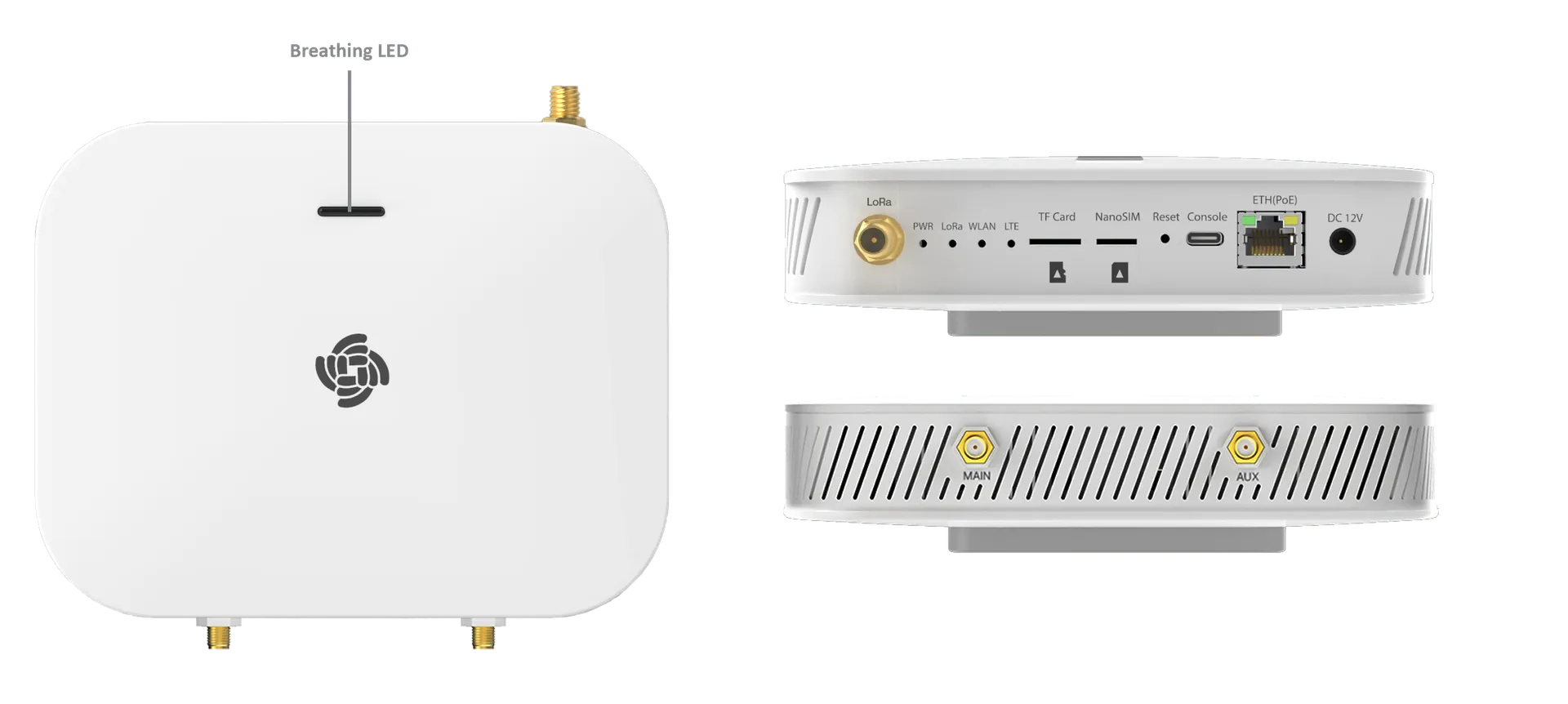

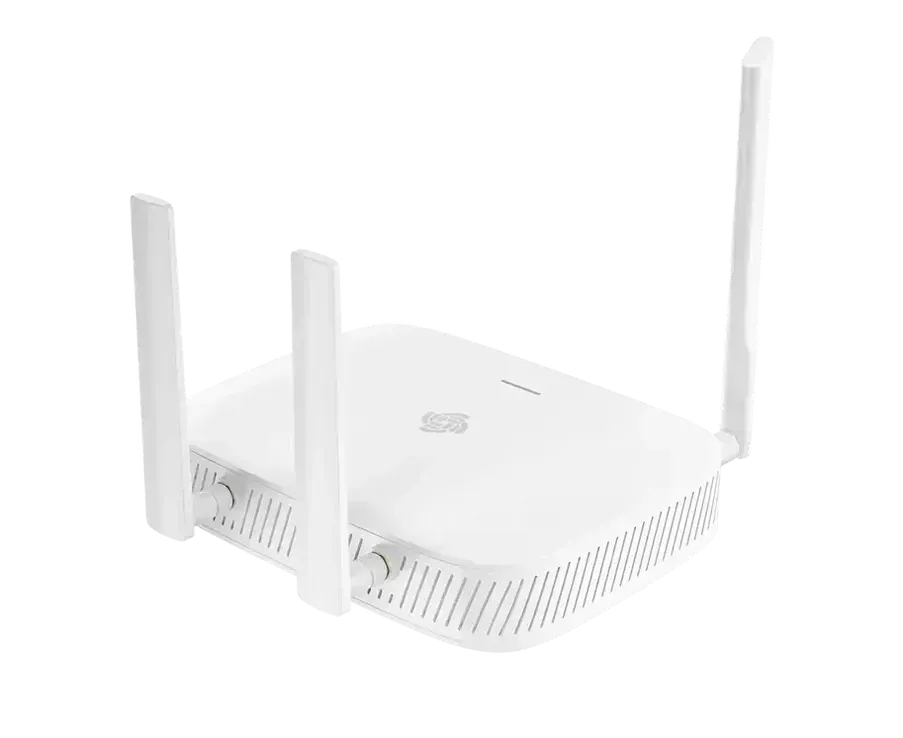

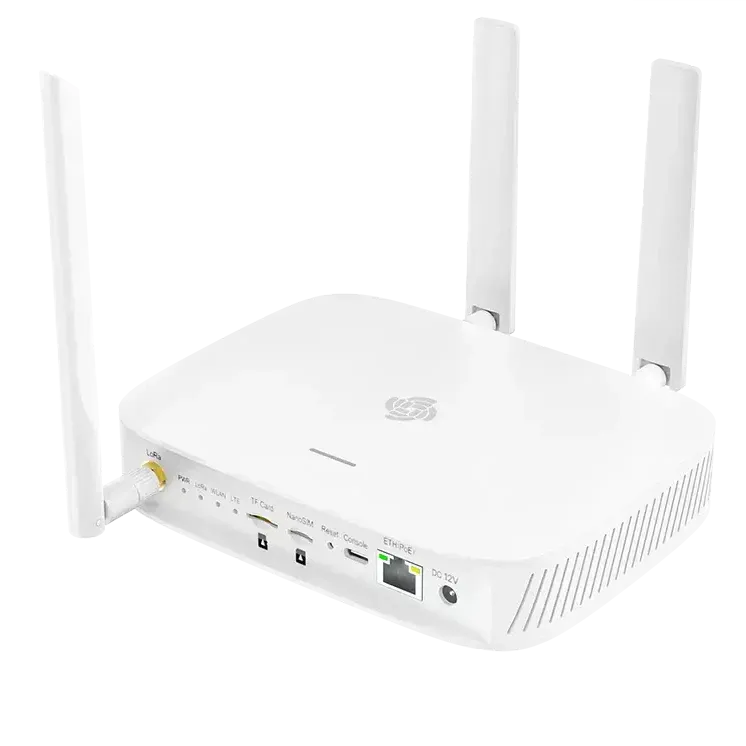

RAK7268CV2 – WisGate Edge Lite 2 LTE 8-Channel Indoor LoRaWAN Gateway (EU868)
RAK7268CV2 – WisGate Edge Lite 2 LTE 8-Channel Indoor LoRaWAN Gateway (EU868)
RAK7268CV2 – WisGate Edge Lite 2 LTE 8-Channel Indoor LoRaWAN Gateway (EU868)

RAK7268CV2 – WisGate Edge Lite 2 LTE 8-Channel Indoor LoRaWAN Gateway (EU868)

Availability: In stock

€187,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
RAKwireless

Industrial 8-Channel Indoor LoRaWAN Gateway with LTE Backhaul

The RAK7268CV2 WisGate Edge Lite 2 is a high-performance 8-channel indoor LoRaWAN gateway designed for medium-scale IoT deployments in smart buildings, industrial environments, smart agriculture and city-wide LPWAN networks.

Built around the Semtech SX1302 LoRa concentrator, the gateway supports 8 simultaneous LoRa channels, enabling reliable reception from thousands of end devices over long-range LoRaWAN networks. It supports EU868 frequency band.

The RAK7268CV2 provides multiple backhaul options including Ethernet, WiFi and LTE cellular connectivity, offering maximum deployment flexibility in locations where wired connectivity is unavailable. The LTE-enabled version is especially useful for remote or mobile deployments requiring reliable cellular uplink.

Powered by WisGateOS 2, based on OpenWRT, the gateway offers advanced features such as packet forwarding, MQTT bridge, built-in network server, remote management and cloud integration. It also supports WisDM fleet management, allowing centralized monitoring and management of multiple deployed gateways.

With PoE support, wall mounting, DIN rail compatibility, and IP30 enclosure, the RAK7268CV2 is ideal for indoor industrial and commercial deployments requiring robust, scalable and secure LoRaWAN infrastructure.

Key Features

✔ 8-Channel Indoor LoRaWAN Gateway
✔ LTE Cellular Backhaul
✔ Ethernet + WiFi + LTE Connectivity
✔ Semtech SX1302 LoRa Concentrator
✔ LoRaWAN 1.0.3 Support
✔ PoE Support
✔ WisGateOS 2 (OpenWRT Based)
✔ Built-in Network Server
✔ MQTT Bridge Support
✔ WisDM Fleet Management
✔ Wall Mount & DIN Rail Support
✔ Ideal for Industrial IoT Deployments

Typical Specifications

• LoRa Concentrator: Semtech SX1302
• Channels: 8
• Frequency Band: EU868
• Backhaul: Ethernet / WiFi / LTE
• Ethernet: RJ45 10/100 Mbps
• WiFi: 2.4 GHz 802.11 b/g/n
• LTE: Cat 4
• Power Input: 12V DC / PoE
• Power Consumption: 12W Typical
• OS: WisGateOS 2
• Protection: IP30
• Operating Temperature: -10°C ~ +55°C

Applications

LoRaWAN Network Deployments
Smart Buildings
Industrial IoT
Smart Agriculture
Smart Metering
Environmental Monitoring
Smart Cities
Campus Networks
Factory Automation

Specifications

General

  • Model: RAK7268CV2
  • Product Family: WisGate Edge Lite 2
  • Device Type: Indoor LoRaWAN Gateway
  • LoRaWAN Support: 1.0.3
  • OS: WisGateOS 2 / OpenWRT

LoRa

  • LoRa Concentrator: Semtech SX1302
  • Channels: 8
  • Max TX Power: 27 dBm
  • RX Sensitivity: -139 dBm
  • Antenna Connector: RP-SMA Female

Connectivity

  • Ethernet: RJ45 10/100 Mbps
  • WiFi: 2.4 GHz 802.11 b/g/n
  • Cellular: LTE Cat 4
  • MQTT Bridge Support
  • Built-in Network Server

Power

  • Power Input: 12V DC
  • PoE: IEEE 802.3af
  • Power Consumption: 12W Typical

Mechanical

  • Protection: IP30
  • Dimensions: 166 × 127 × 36 mm
  • Weight: 0.3 kg
  • Mounting: Wall / DIN Rail
  • Operating Temperature: -10°C ~ +55°C

Product Downloads

📑 Datasheet
📘 User Manual

  • Model: RAK7268CV2
  • Channels: 8
  • LoRa Chip: Semtech SX1302
  • Backhaul: Ethernet / WiFi / LTE
  • Ethernet: RJ45 10/100 Mbps
  • WiFi: 2.4 GHz
  • Power: 12V DC / PoE
  • Protection: IP30
