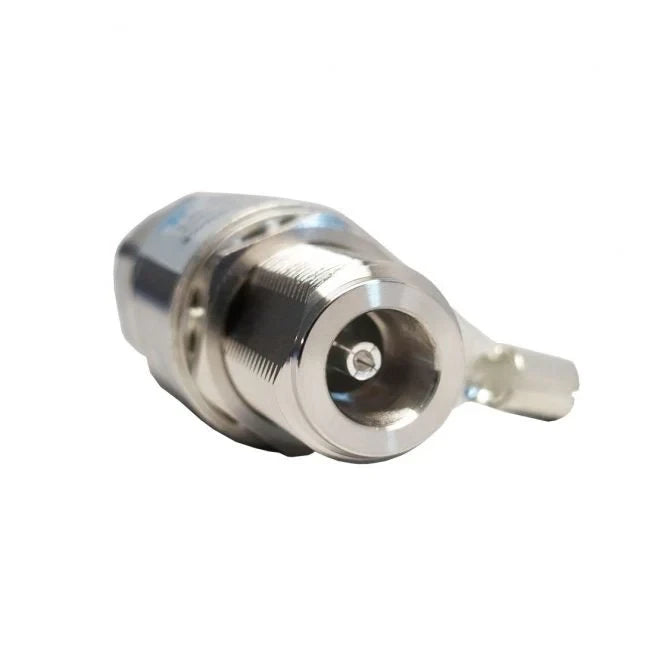

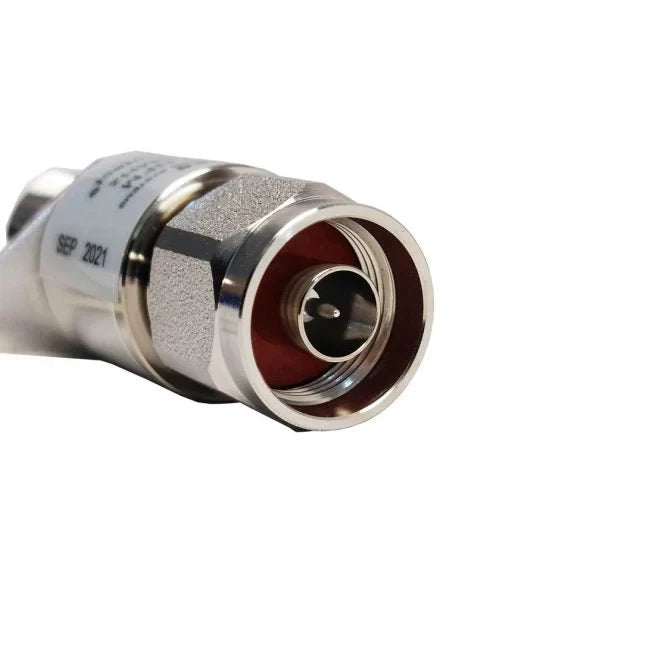

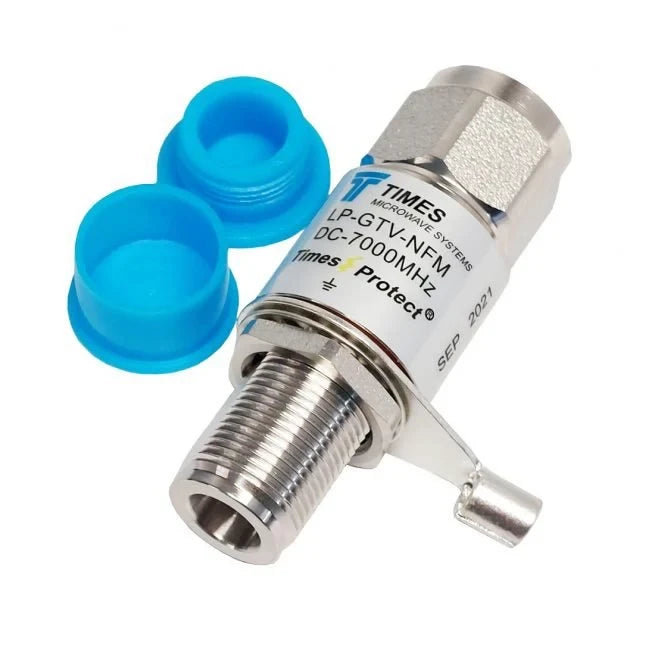

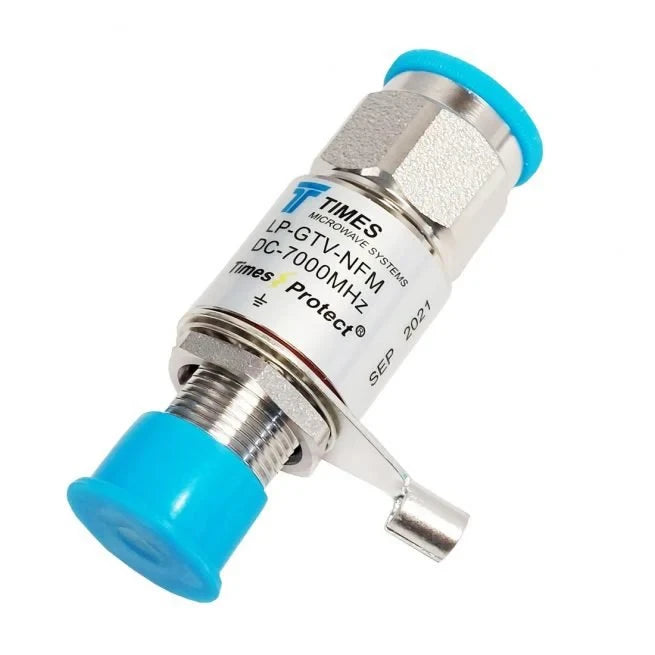

Times-Protect LP-GTV-NFM Lightning Protector – N-Female to N-Male Surge Protection for RF Systems
Times-Protect LP-GTV-NFM Lightning Protector – N-Female to N-Male Surge Protection for RF Systems
Times-Protect LP-GTV-NFM Lightning Protector – N-Female to N-Male Surge Protection for RF Systems
Times-Protect LP-GTV-NFM Lightning Protector – N-Female to N-Male Surge Protection for RF Systems

Times-Protect Lightning Protector – N-Female to N-Male Surge Protection

Availability: In stock

€35,44 €42,99

VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Times Microwave

The Times-Protect LP-GTV-NFM is a high-performance lightning and surge protector designed for RF communication systems that require robust protection without compromising signal integrity. With N-Female to N-Male connectors, wide frequency range, and bidirectional gas discharge tube (GDT) technology, it ensures maximum surge suppression while maintaining excellent RF performance.

Ideal for LoRaWAN gateways, cellular antennas, base stations, and microwave systems, this protector provides reliable protection against lightning-induced surges, safeguarding your sensitive RF equipment.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

💡 Key Features

🌀 Broadband Performance – Operates from DC to 6.0 GHz with minimal insertion loss
⚡ High Surge Handling – Withstands multiple 20kA surge hits (8x20 μs waveform)
🔌 N-Female to N-Male Connectors – Direct inline installation
🛡️ Gas Discharge Tube Technology – Fast response time with low capacitance
🔄 Bidirectional Protection – Protects in both directions
🌧️ Weatherproof Construction – IP67-rated housing for outdoor use
📏 Low VSWR & Insertion Loss – Ideal for high-frequency applications

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🛠 Applications

📡 LoRaWAN Gateways & Antennas – Protect remote radio installations
📶 Cellular Base Stations – Surge protection for critical RF lines
📡 Microwave Links – Preserve signal quality in harsh environments
🌐 IoT and Remote Monitoring Systems – Ensure system uptime
🏠 Roof-Mounted Antennas – Protect against nearby lightning strikes

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 Package Includes

  • 1 × Times-Protect LP-GTV-NFM Lightning Protector (N-Female to N-Male)

  • 1 × Grounding Screw & Nut

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📥 Product Downloads

📄 Datasheet

  • Device Type: RF Lightning Protection Surge Arrestor
  • Connector Type: N-Female to N-Male
  • Frequency Range: DC to 7000 MHz (7 GHz)
  • Impedance: 50 Ohms
  • VSWR: ≤ 1.15:1 (typical)
  • Insertion Loss: ≤ 0.1 dB (typical)
  • Surge Protection Technology: Gas Tube (replaceable)
  • Max Surge Current: 20 kA (8/20 µs waveform)
  • Operating Temperature: -40°C to 85°C
  • Ingress Protection: IP67 (Outdoor & harsh environments)
  • Installation: In-line RF cable installation
  • Additional Features: Robust weatherproof design, low insertion loss, high-performance lightning protection, ideal for antenna systems, cellular installations, and sensitive RF equipment protection
