Pigtail Cable – N-Type Female to SMA Male (Right Angle) – 15cm RF Adapter Cable

  1. Home
  2. All Products
  3. Pigtail Cable – N-Type Female to SMA Male (Right Angle) – 15cm RF Adapter Cable

Pigtail Cable – N-Type Female to SMA Male (Right Angle) – 15cm RF Adapter Cable

Availability: In stock

€10,08

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
OEM

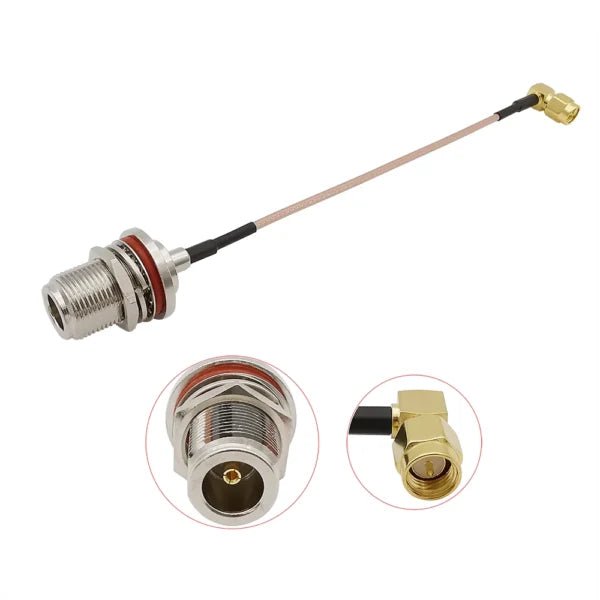

This Pigtail RF Cable features an N-Type Female connector on one end and an SMA Male (Right Angle) connector on the other, offering a reliable and low-loss RF signal connection. With a length of 15cm, it's perfect for use in tight enclosures, antenna extensions, or gateway installations, especially where space and alignment are critical.

The cable is constructed with high-quality coaxial material, ensuring excellent signal integrity, low VSWR, and minimal insertion loss, making it suitable for LoRaWAN®, Wi-Fi, 4G/LTE, GPS, and other RF applications.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

💡 Key Features

📡 Connector Type – N-Type Female to SMA Male (Right Angle)
📏 Length – 15cm (approx.)
🔧 Impedance – 50 Ohm
⚙️ Cable Type – High-quality coaxial (RG-316 or equivalent)
📶 Frequency Support – Up to 6 GHz (depending on equipment)
🔗 Low Insertion Loss & VSWR – Ensures strong and clean RF signal
🔩 Ideal for Antenna Connections – Compact form for tight spaces

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

🛠 Applications

📡 LoRaWAN® Gateways & Nodes – Connect antennas to enclosures
📶 Wi-Fi / 4G / LTE Routers – Adapter for external antennas
🌍 IoT Devices – RF connectivity in embedded or outdoor devices
📦 Test Equipment – RF labs and prototyping environments
🏠 Indoor & Outdoor Installations – Durable for diverse mounting needs

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 Package Includes

  • 1 × Pigtail Cable – N-Type Female to SMA Male (Right Angle), 15cm

  • Cable Type: RF Coaxial Pigtail Cable
  • Connectors: N-Type Female to SMA Male Right Angle
  • Cable Length: 15 cm
  • Impedance: 50 Ohms
  • Frequency Range: DC to 6 GHz
  • VSWR: ≤1.3:1 (typical)
  • Cable Type: Low-loss RG316 coaxial cable
  • Connector Body Material: Nickel-plated Brass
  • Operating Temperature: -40°C to 85°C
  • Installation: Suitable for internal or external antenna connections
  • Additional Features: Compact and flexible, right-angle SMA connector for tight spaces, ideal for IoT applications, antennas, gateways, and RF devices
