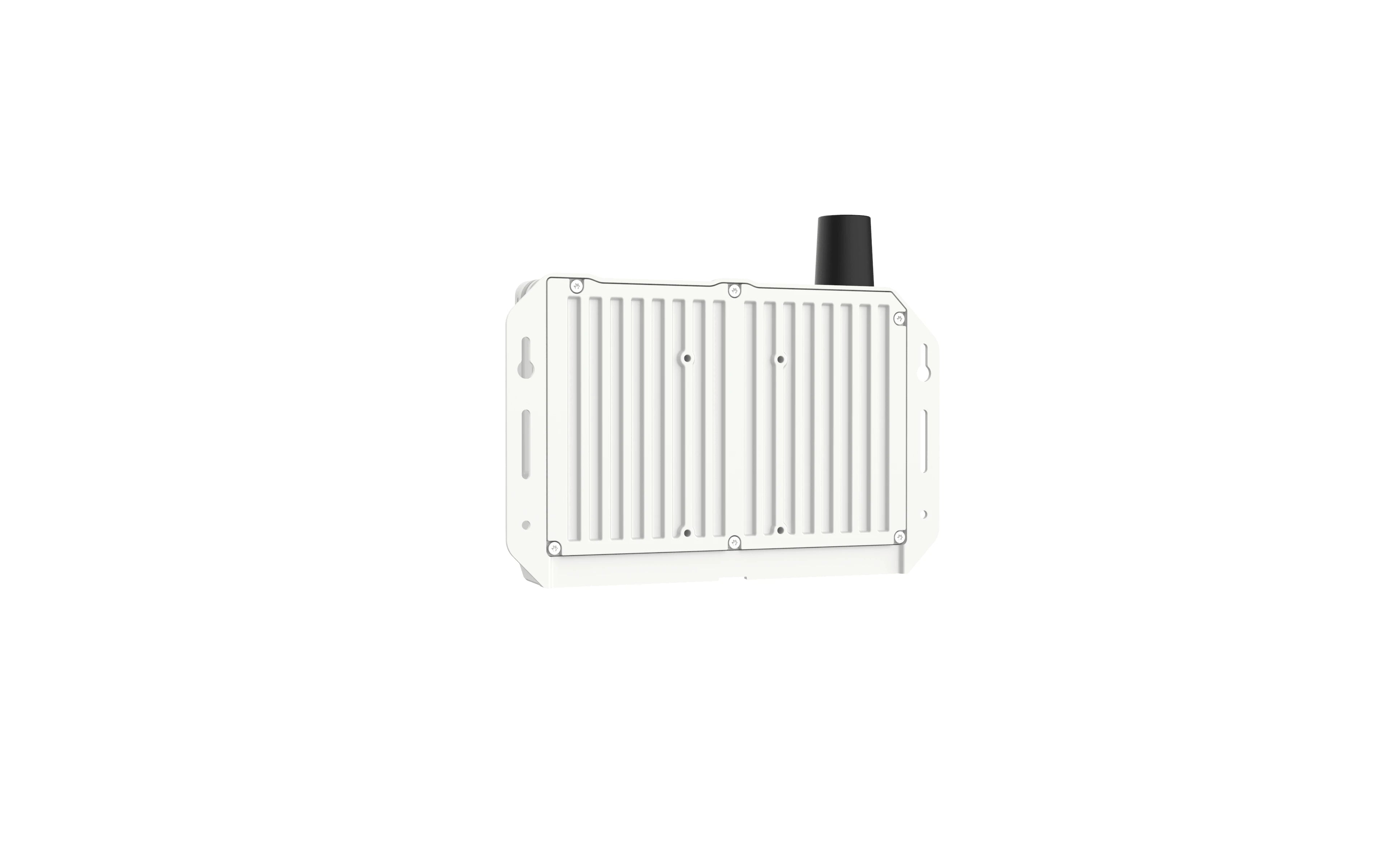

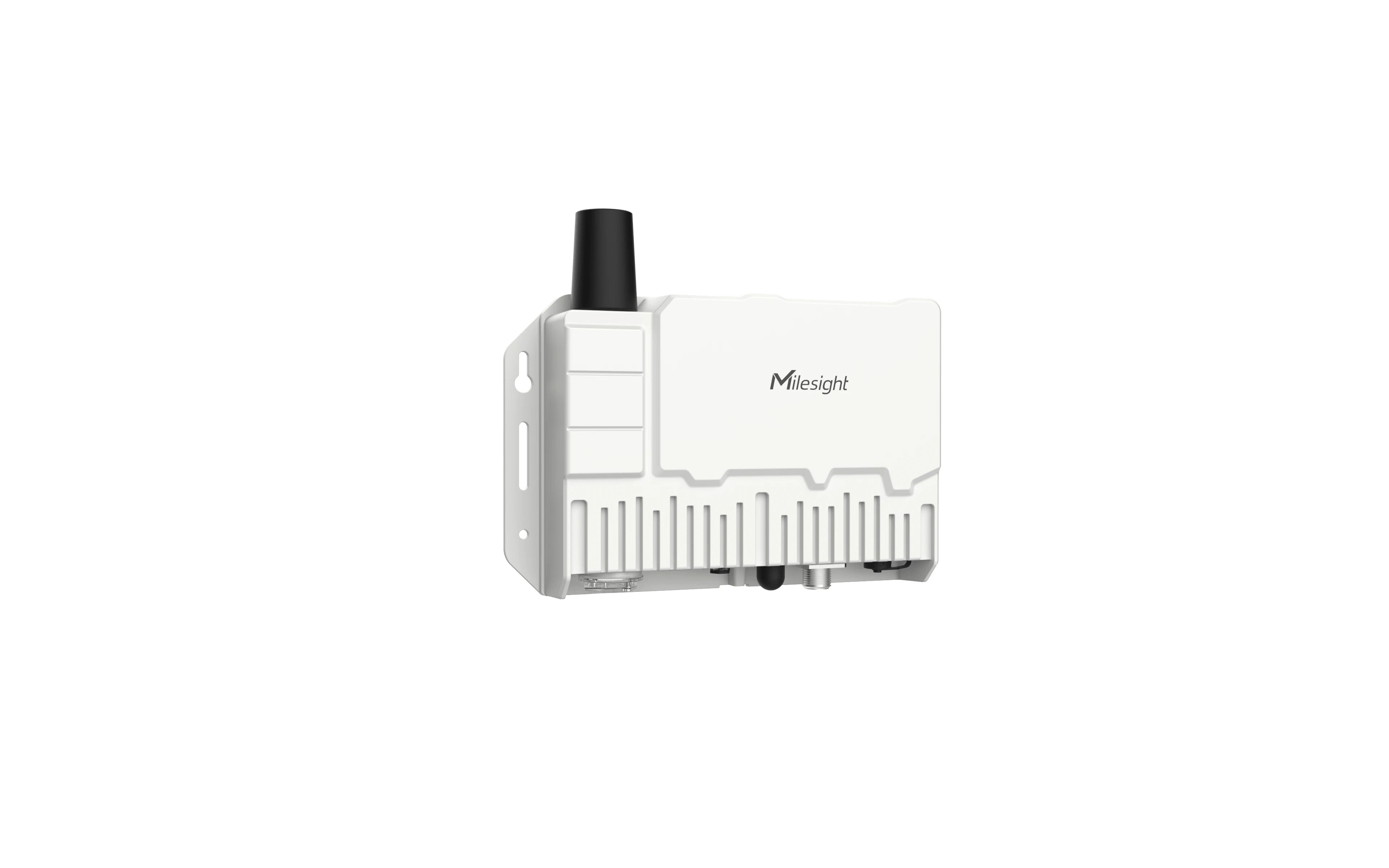

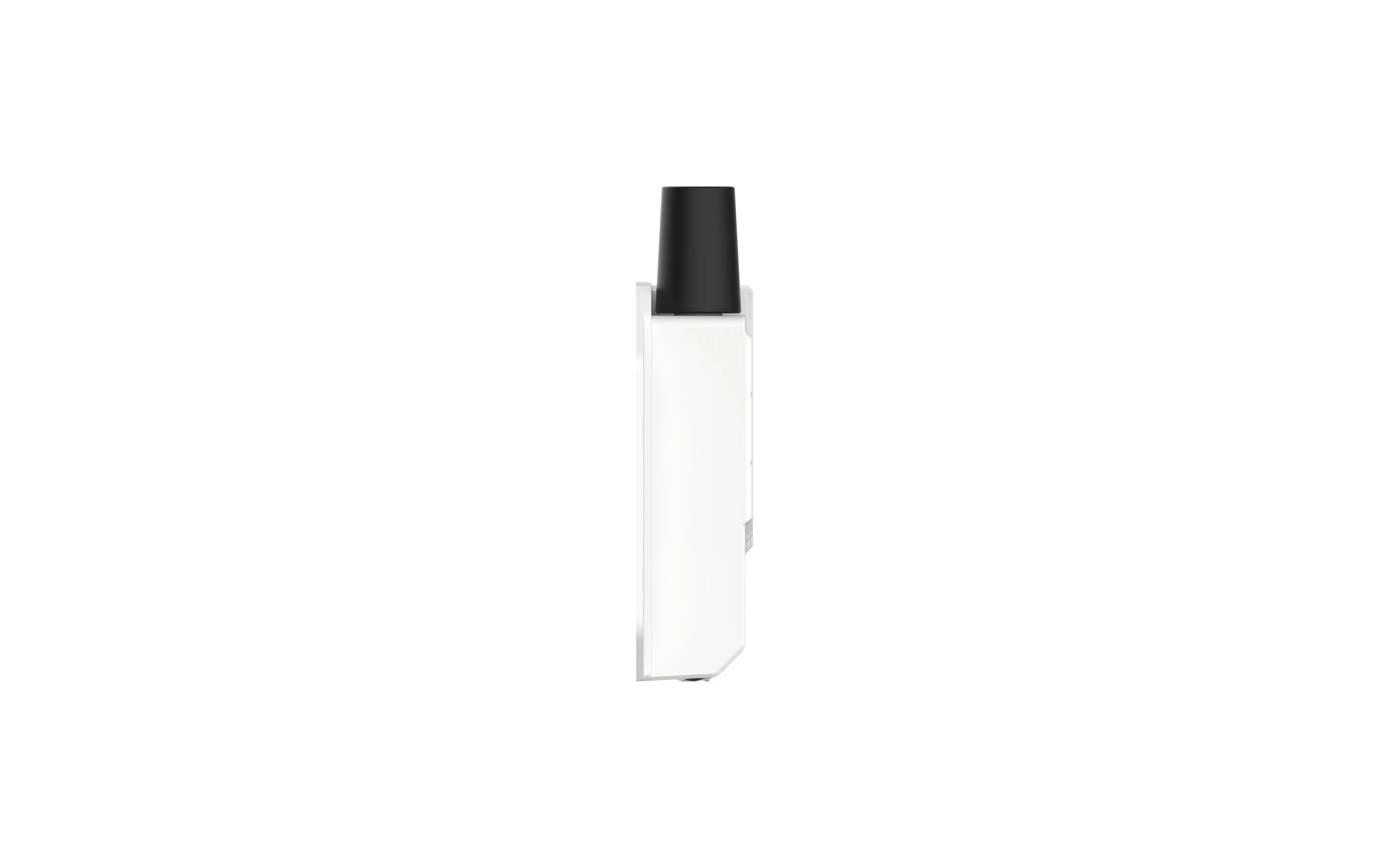

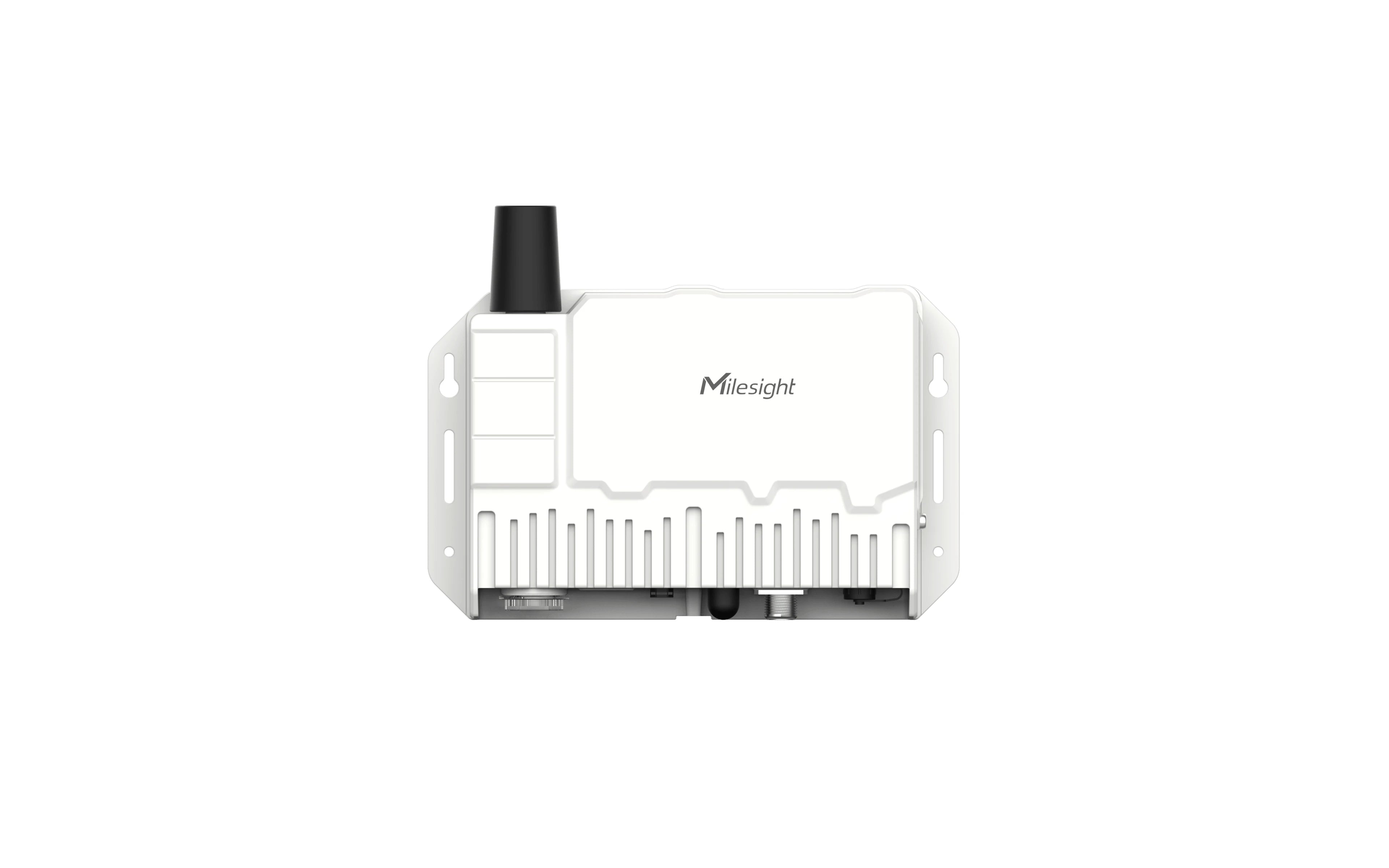

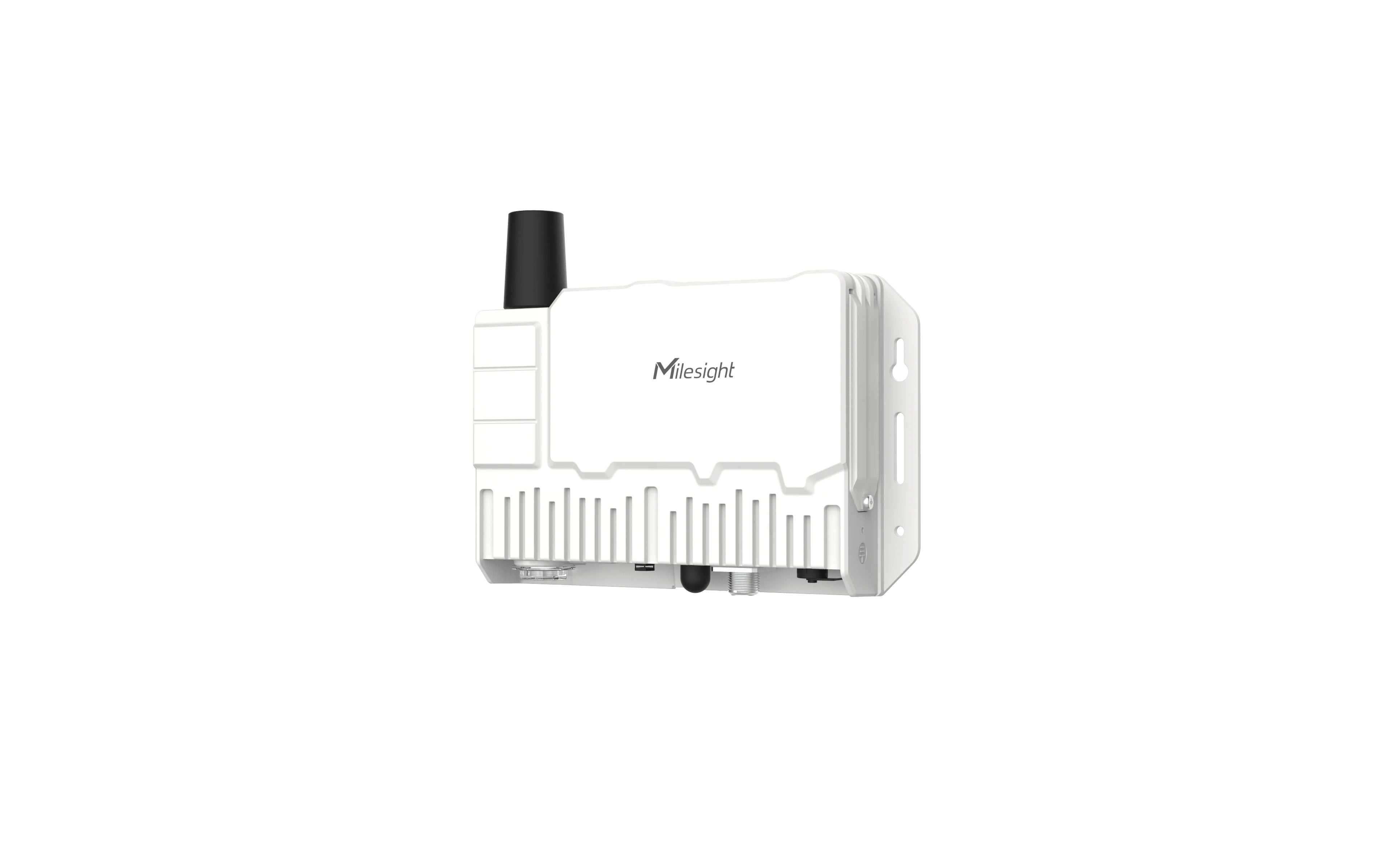

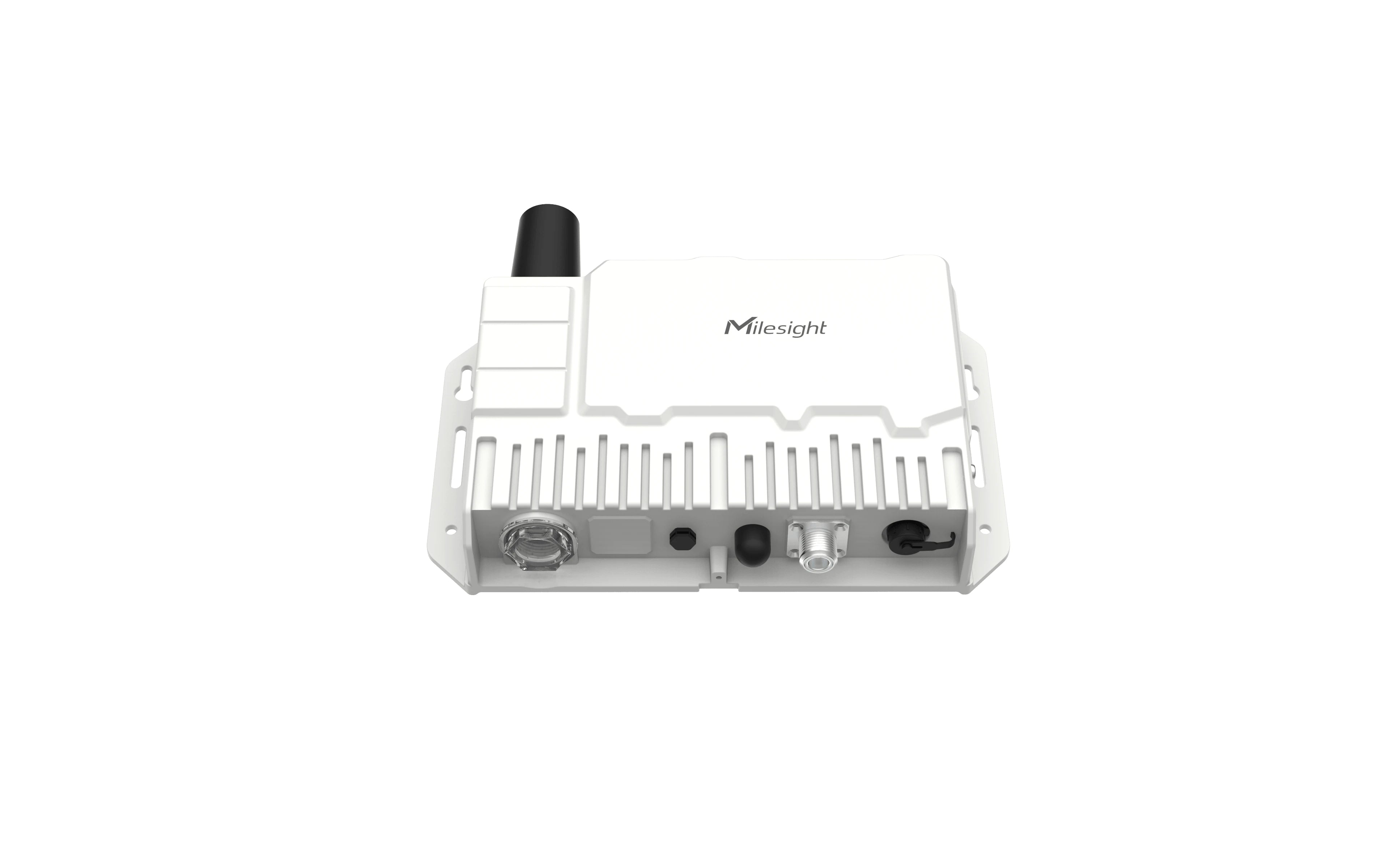

The Milesight SG50 30W is an ultra-low-power, solar-powered outdoor LoRaWAN® gateway (EU868) designed for IoT installations where mains electricity and fixed internet connectivity are unavailable.
Equipped with a Semtech SX1302 LoRaWAN concentrator, the SG50 supports 8 LoRaWAN channels and receives data from distributed sensors and IoT devices over long distances.
The integrated 4G LTE Cat 1 modem enables cellular internet connectivity, while the 30W monocrystalline solar panel (SP1530) and built-in 25,000 mAh rechargeable battery system provide an energy-efficient solution for off-grid installations.
Under the manufacturer's specified laboratory conditions, the battery can power the gateway for up to 4 days without sunlight. Actual autonomy depends on solar conditions, connected devices, communication traffic and installation environment.
The rugged IP67-rated aluminum enclosure, integrated GPS, remote management features and built-in LoRaWAN Network Server make the SG50 suitable for demanding outdoor deployments.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 Key Features
☀️ 30W Solar Panel – SP1530 monocrystalline panel for solar-powered installations.
🔋 25,000 mAh Rechargeable Battery – Integrated backup power system with up to 4 days of operation without sunlight under specified test conditions.
📡 8-Channel LoRaWAN EU868 Gateway – Semtech SX1302 concentrator for long-range IoT connectivity.
📶 4G LTE Cat 1 Backhaul – Cellular internet connectivity without fixed broadband infrastructure.
🌧️ IP67 Aluminum Enclosure – Dustproof and water-resistant construction for outdoor use.
⚡ Ultra-Low Power Consumption – Typical power consumption of approximately 0.8 W.
🛰️ Built-in GPS – Supports location-related functions and remote deployment.
🖥️ Embedded LoRaWAN Network Server – Supports up to 100 devices in embedded network server mode.
🔗 Network Server Integration – Compatible with supported external LoRaWAN network servers and IoT platforms.
📱 Wi-Fi Configuration & Management – Wi-Fi connectivity for configuration and supported client operation.
🛠️ Remote Management – Web interface, MQTT API and compatible Milesight management platforms.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛠 Applications
🌾 Smart Agriculture – LoRaWAN coverage for agricultural sensors and irrigation monitoring.
🌍 Environmental Monitoring – Remote weather, soil and environmental sensor networks.
🚰 Water Management – Reservoirs, pumping stations and remote water infrastructure.
🏞️ Remote IoT Deployments – Locations without mains electricity or fixed broadband.
🏭 Industrial Monitoring – Distributed monitoring of outdoor industrial infrastructure.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 Package Configuration
-
Milesight SG50 LoRaWAN Gateway (EU868)
-

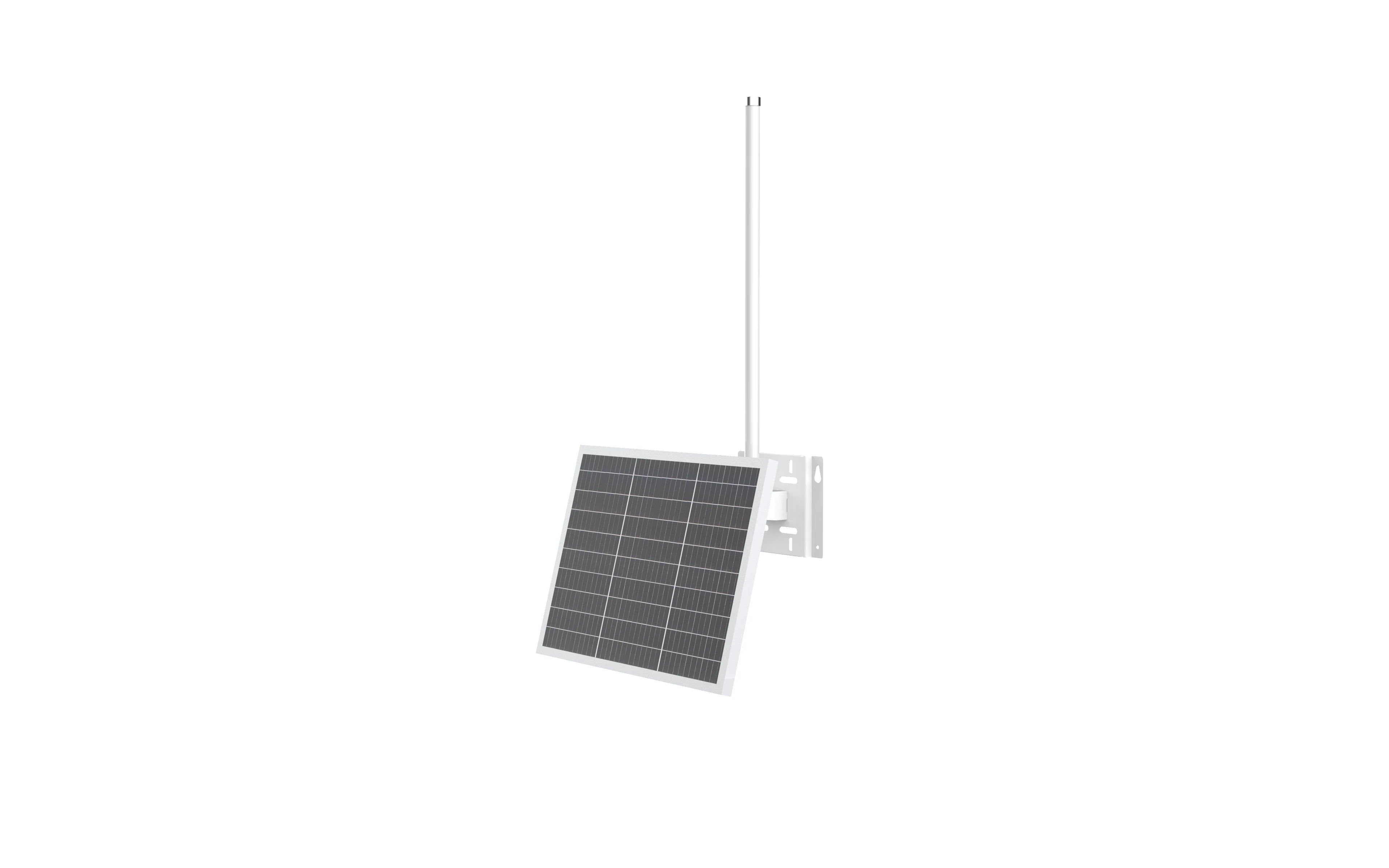

30W Monocrystalline Solar Panel (SP1530)
-
25,000 mAh Rechargeable Battery System
-
LoRaWAN Antenna and Installation Accessories
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📥 Product Downloads
📄 Datasheet
📖 User Manual
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🎥 Product Video
- Manufacturer: Milesight
- Gateway Model: SG50-L08GL-868M
- Device Type: Ultra Low Power Solar LoRaWAN Gateway
- LoRaWAN Frequency: EU868
- LoRaWAN Concentrator: Semtech SX1302
- Channels: 8, Half-Duplex
- LoRaWAN Sensitivity: -140 dBm @ 292 bps
- Maximum LoRaWAN TX Power: 27 dBm
- LoRaWAN Antenna Connector: N-Female, 50 Ohm
- Cellular Network: 4G LTE Cat 1 / GSM
- Cellular Modem Version: L08GL
- SIM Slot: Nano SIM (4FF)
- Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz
- Wi-Fi Modes: AP (Configuration), Client
- GNSS: GPS
- CPU: Dual-Core 240 MHz Xtensa LX7
- RAM: 8 MB PSRAM
- Flash: 16 MB
- Embedded Network Server: Up to 100 Devices
- Packet Forwarding Capacity: Approximately 2,000 Devices, Depending on Traffic
- Integration: MQTT, HTTP, HTTPS
- VPN: OpenVPN Client
- Management: Web, MQTT API, Milesight Platforms
- Rechargeable Battery: 3.6 V / 25,000 mAh
- Battery Autonomy: Up to 4 Days Without Sunlight (Specified Test Conditions)
- Typical Power Consumption: 0.8 W
- Solar Power / DC Input: M12 Connector, 12–24 V DC
- USB: USB Type-C, 5 V / 2 A Power and Console
- Ingress Protection: IP67
- Enclosure: Cast Aluminum
- Operating Temperature: -30°C to +70°C
- Battery Charging Temperature: -20°C to +50°C
- Gateway Dimensions: 250 × 157.5 × 46 mm
- Gateway Weight: 1.755 kg (Including Batteries)

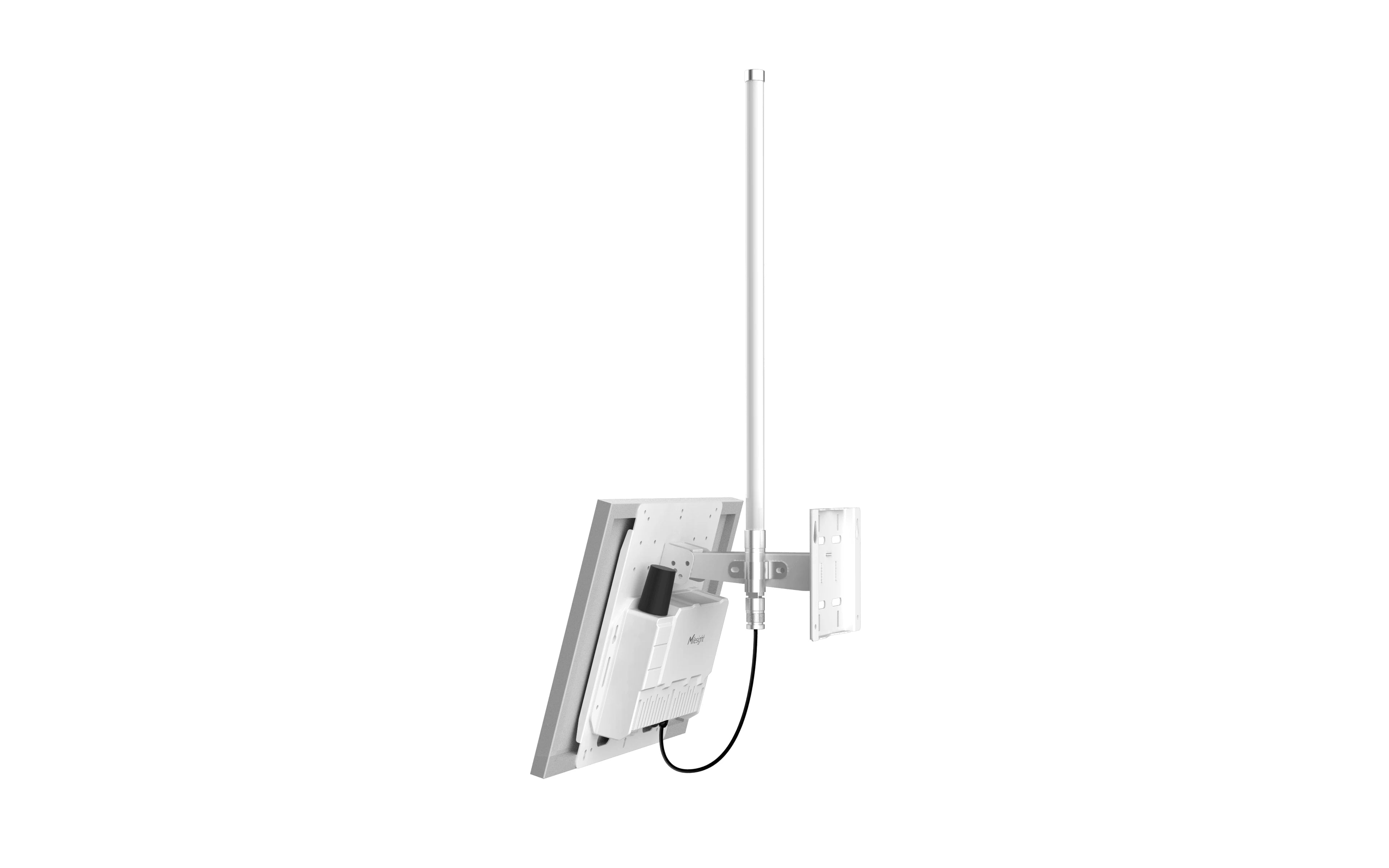

- Installation: Wall or Pole Mounting
- Solar Panel Model: SP1530
- Solar Panel Type: Monocrystalline Silicon
- Solar Panel Power: 30 W
- Solar Panel Rated Voltage: 15 V
- Solar Panel Rated Current: 2 A
- Solar Panel Dimensions: 533 × 303 × 17 mm
- Solar Panel Weight: 1.645 kg
