Dragino WSS‑27 LoRaWAN (RS485) PAR Sensor – Photosynthetically Active Radiation

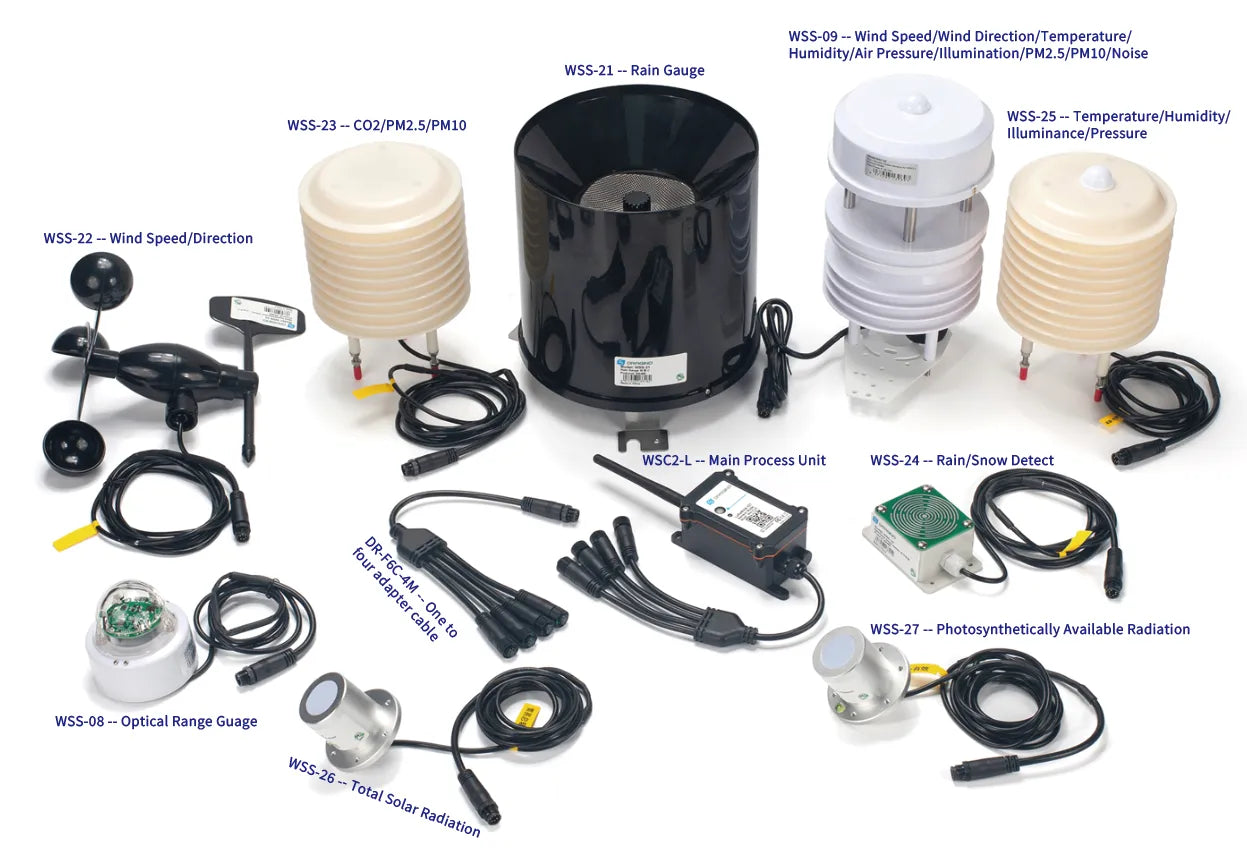

WSS Weather Sensors

Dragino WSS‑27 LoRaWAN (RS485) PAR Sensor – Photosynthetically Active Radiation

Availability: In stock

€237,00

VAT Exemption for EU Businesses: Validate Your VAT Number at Cart Page

Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)

Vendor:
Dragino

💡 Overview

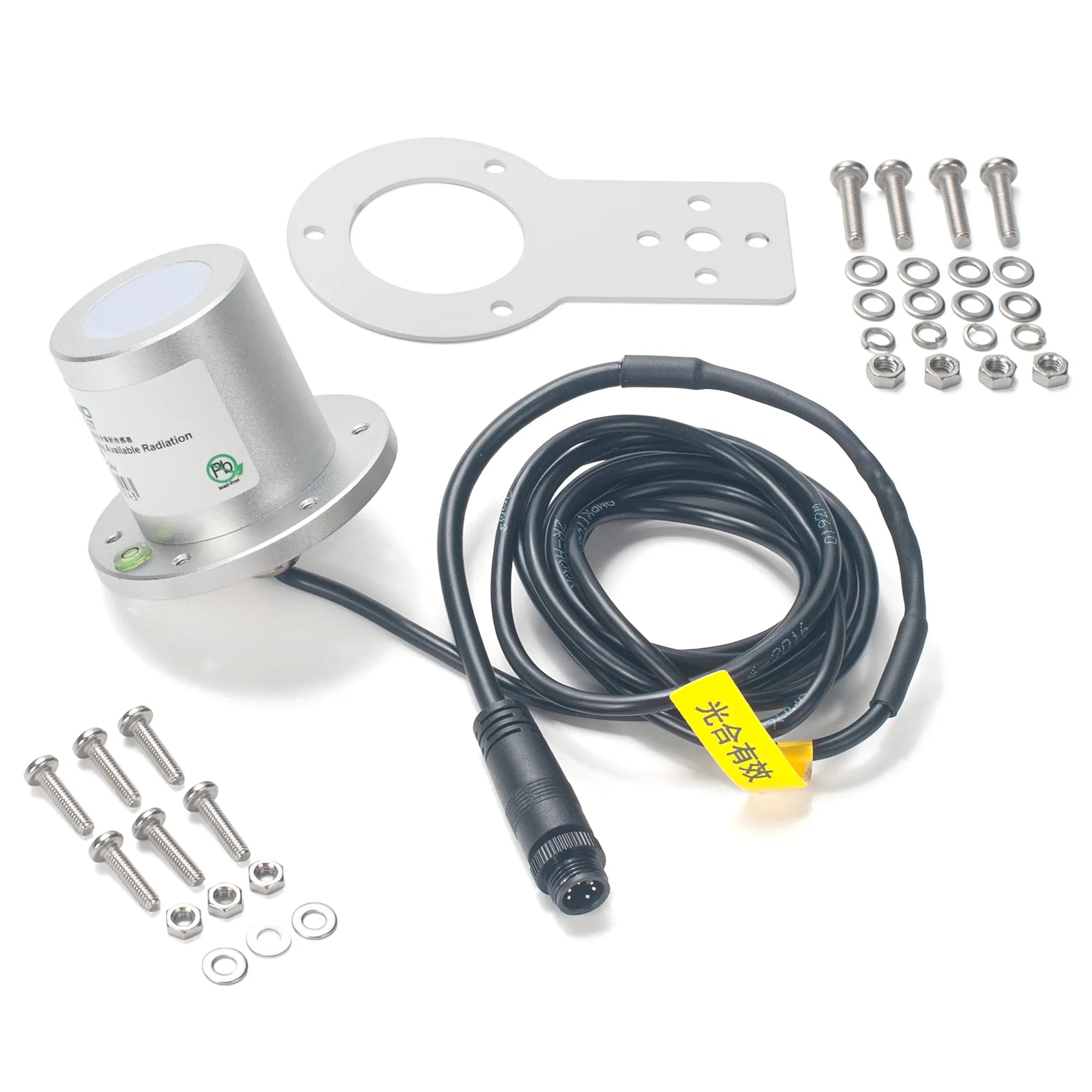

The Dragino WSS-27 is an RS485 PAR (Photosynthetically Active Radiation) sensor designed to measure the intensity of natural light in the 400–700 nm spectrum, which is critical for plant photosynthesis. It integrates seamlessly with Dragino weather station solutions and LoRaWAN RS485 transmitters for real-time agricultural and environmental monitoring.

Ideal for smart agriculture, greenhouse control, crop research, and solar radiation studies, the WSS-27 provides high-accuracy PAR measurements to optimize plant growth and environmental conditions.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 Key Features

🌞 Measures PAR (Photosynthetically Active Radiation)
📡 RS485 interface for reliable long-distance communication
🌱 Optimized for agriculture and plant growth monitoring
📊 Wide measurement range up to 2500 μmol/m²·s
🎯 High accuracy ±2% with stable long-term performance
⚡ Low power consumption for continuous outdoor use
🌦 Designed for integration with Dragino weather station systems

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛠 Applications

🌾 Smart Agriculture & Precision Farming
🏡 Greenhouse Environmental Monitoring
🔬 Plant Growth & Photosynthesis Research
☀️ Solar Radiation & Climate Studies
📡 LoRaWAN Weather Station Deployments

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📊 Technical Specifications

Sensor Type: PAR (Photosynthetically Active Radiation)
Spectral Range: 400 – 700 nm
Measurement Range: 0 – 2500 μmol/m²·s
Resolution: 1 μmol/m²·s
Accuracy: ±2%
Interface: RS485 (Modbus compatible)
Power Supply: DC 5 – 24 V
Operating Temperature: −30 °C to +75 °C
Operating Humidity: 10 – 90 %RH (non-condensing)
Annual Stability: ≤ ±2%
Power Consumption: ~3 mA @ 12 V
Integration: Compatible with Dragino WSC series weather stations

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📥 Product Downloads

📄 Datasheet
📖 User Guide

  • Device Type: PAR Sensor (Photosynthetically Active Radiation)
  • Spectral Range: 400–700 nm
  • Measurement Range: 0–2500 μmol/m²·s
  • Resolution: 1 μmol/m²·s
  • Accuracy: ±2%
  • Interface: RS485, Modbus-RTU
  • Power Supply: DC 5–24 V
  • Power Consumption: ~3 mA @ 12 V
  • Operating Temperature: -30°C to +75°C
  • Operating Humidity: 10–90% RH (non-condensing)
  • Annual Stability: ≤ ±2%
