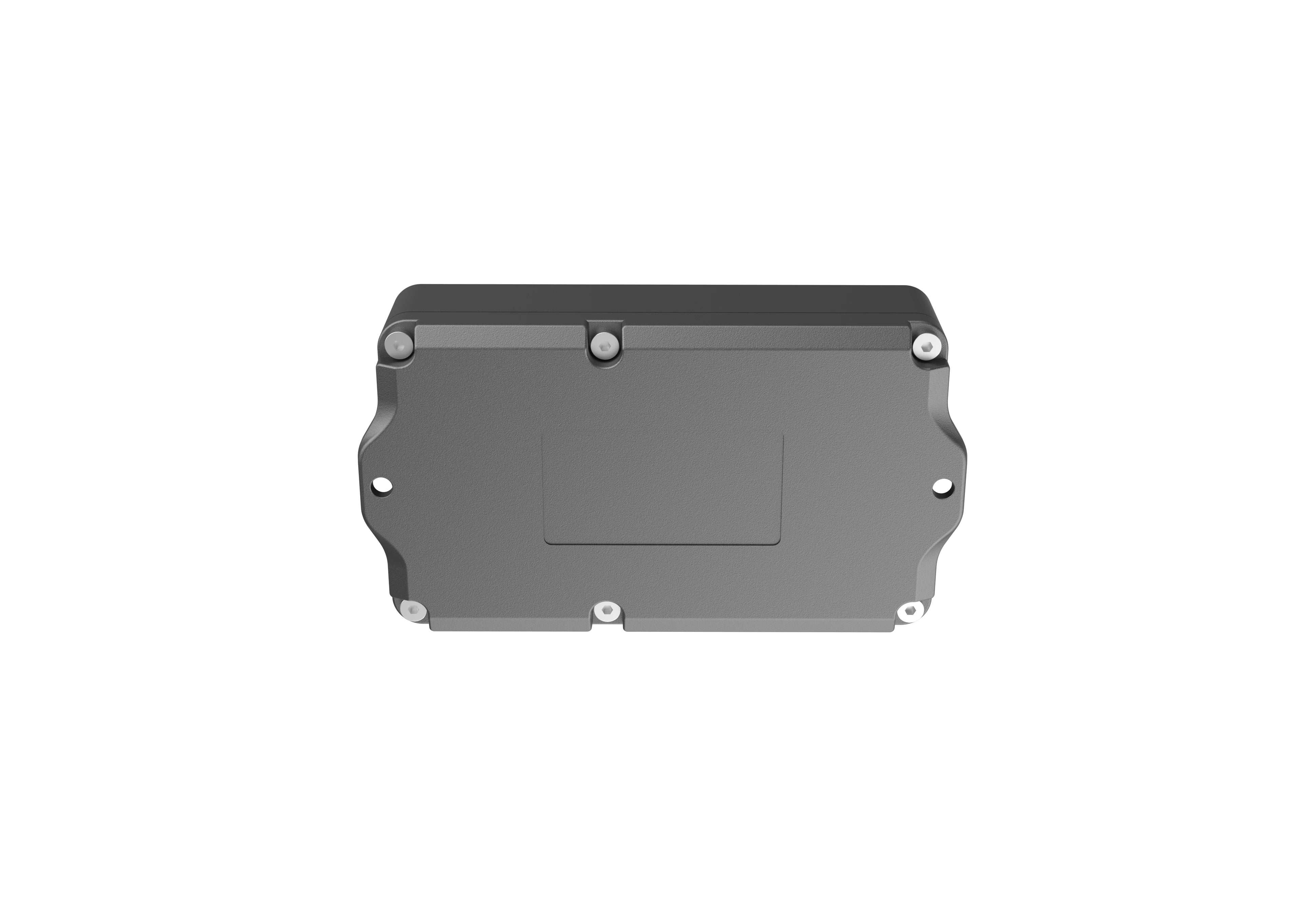

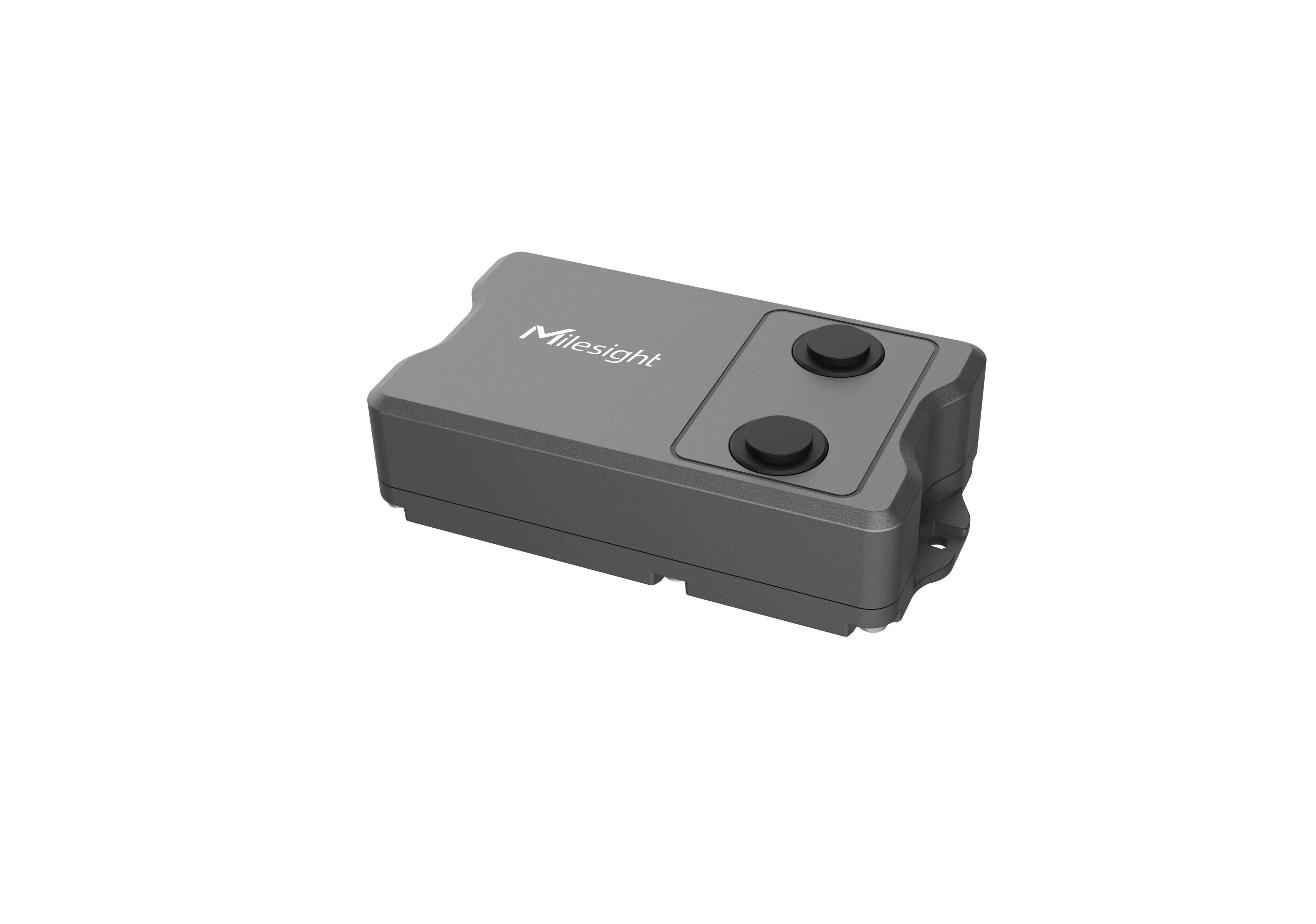

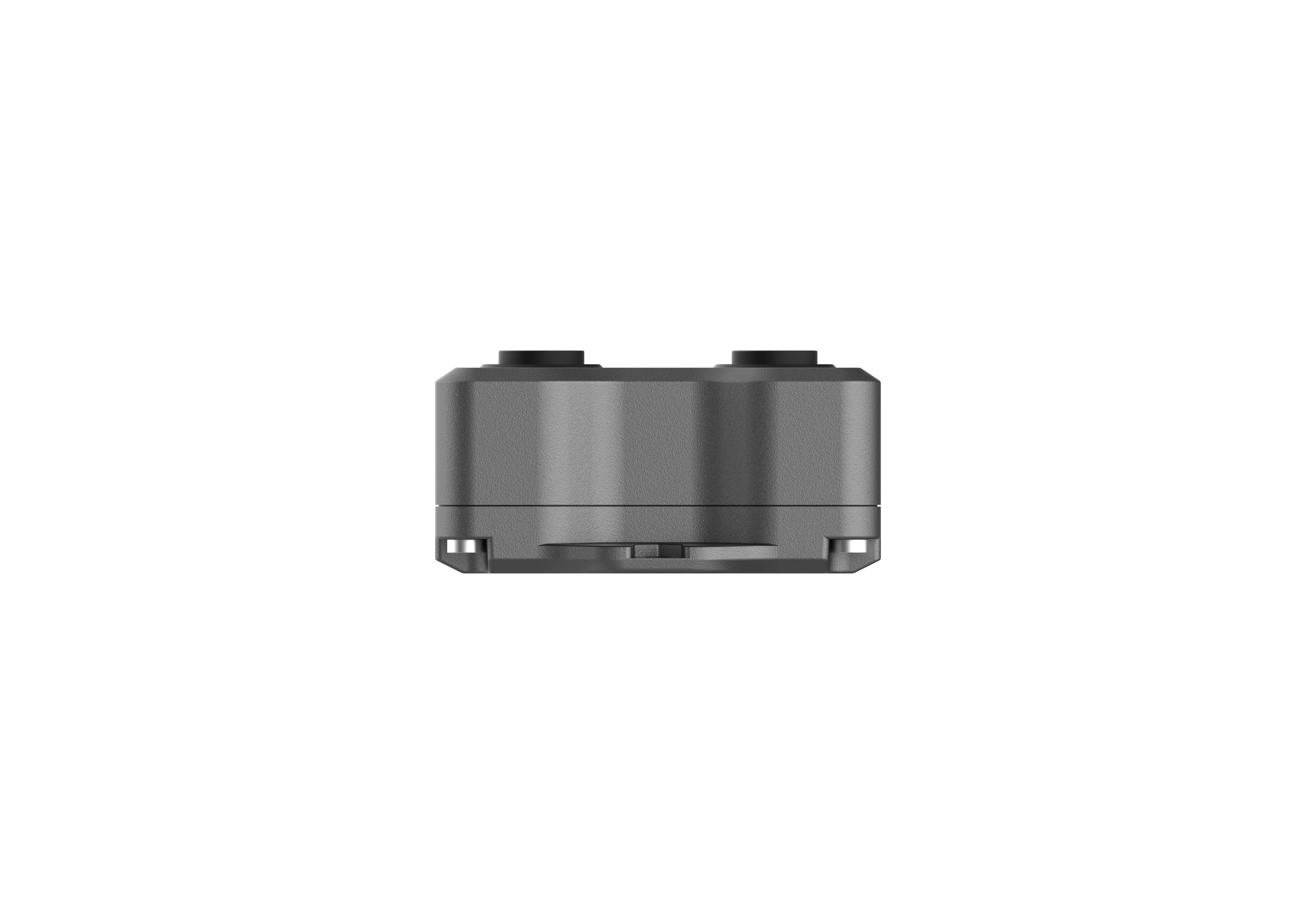

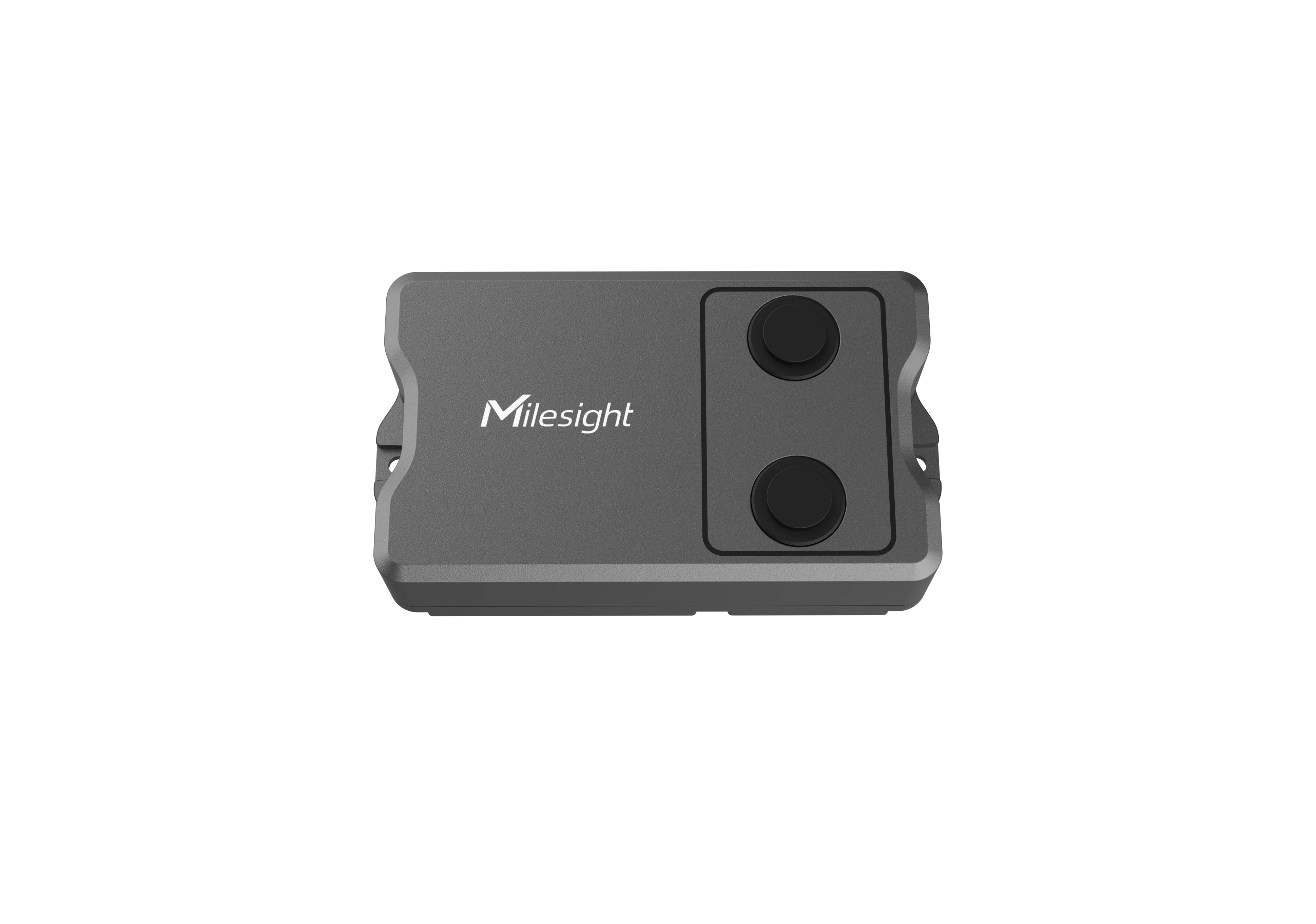

Milesight EM400-MUD LoRaWAN Multifunctional Ultrasonic Distance Sensor (EU868)
Availability: In stock
VAT Exemption for EU Businesses: Validate Your VAT Number at Checkout
Prices do not include VAT (Your local VAT & Shipping Cost will be calculated at Checkout)
The Milesight EM400-MUD is a multifunctional ultrasonic distance sensor designed for precise 📏 level and distance measurements in various environments. With a detection range of 3 to 450 cm and a small blind zone, it delivers reliable readings even in tight spaces. It features a 3-axis accelerometer 🧭 and NTC temperature sensor 🌡️ to monitor device orientation and environmental conditions like fire or overheating.
Built with an IP67 waterproof enclosure 💧 and damp-proof coating, the EM400-MUD withstands harsh outdoor use. Powered by two replaceable 9000 mAh batteries 🔋, it offers up to 10 years of maintenance-free operation.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Key Features
-
📏 Wide Detection Range – Measures from 3 to 450 cm with high precision.
-
🗑️ Multiple Application Modes – Suitable for bin monitoring, parking management, and standard distance measurement.
-
🌡️ Environmental Monitoring – NTC sensor detects sudden temperature changes; accelerometer senses tilt or movement.
-
💧 Durable Design – IP67 housing resists water, dust, and impact.
-
🔋 Long Battery Life – Up to 10 years of continuous operation with dual 9000 mAh cells.
-
📲 NFC Configuration – Easy one-touch setup using the Milesight ToolBox app.
-
📡 LoRaWAN Connectivity – Ultra-long-range communication (up to 15 km LOS), compatible with all major gateways.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 Technical Specifications
- Model: EM400-MUD, LoRaWAN EU868 Class A
- Ultrasonic range: 3–450cm
- Accuracy: ±(1 + 0.3% × S)cm; S in cm; specified at −15°C to +60°C
- Resolution: 1mm; beam angle: 60°
- Power: 2 × 9000mAh ER26500 Li-SOCl₂
- Operating temperature: −30°C to +70°C
- NTC temperature sensor range: −40°C to +125°C; not the device operating limit
- IP67; NFC and supported downlinks
- Modes: Standard, Bin, Parking
- Battery life depends on mode; parking estimate 5 years at 12 triggers/day, 25°C
Package Includes
-
1 × EM400-MUD Sensor
-
2 × 9000 mAh Batteries
-
1 × Quick Start Guide
-
1 × Warranty Card
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Product Downloads
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Product Video
