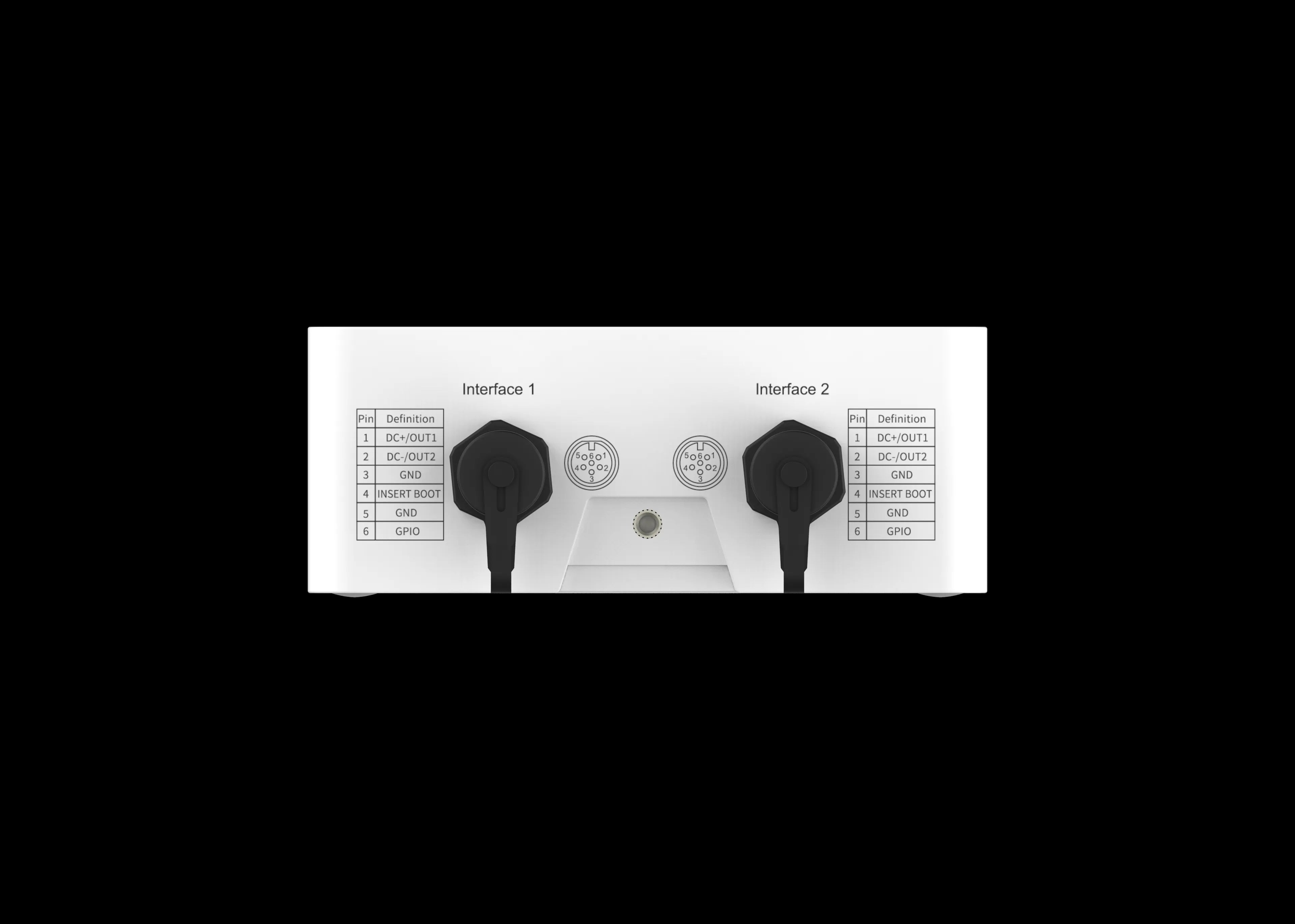

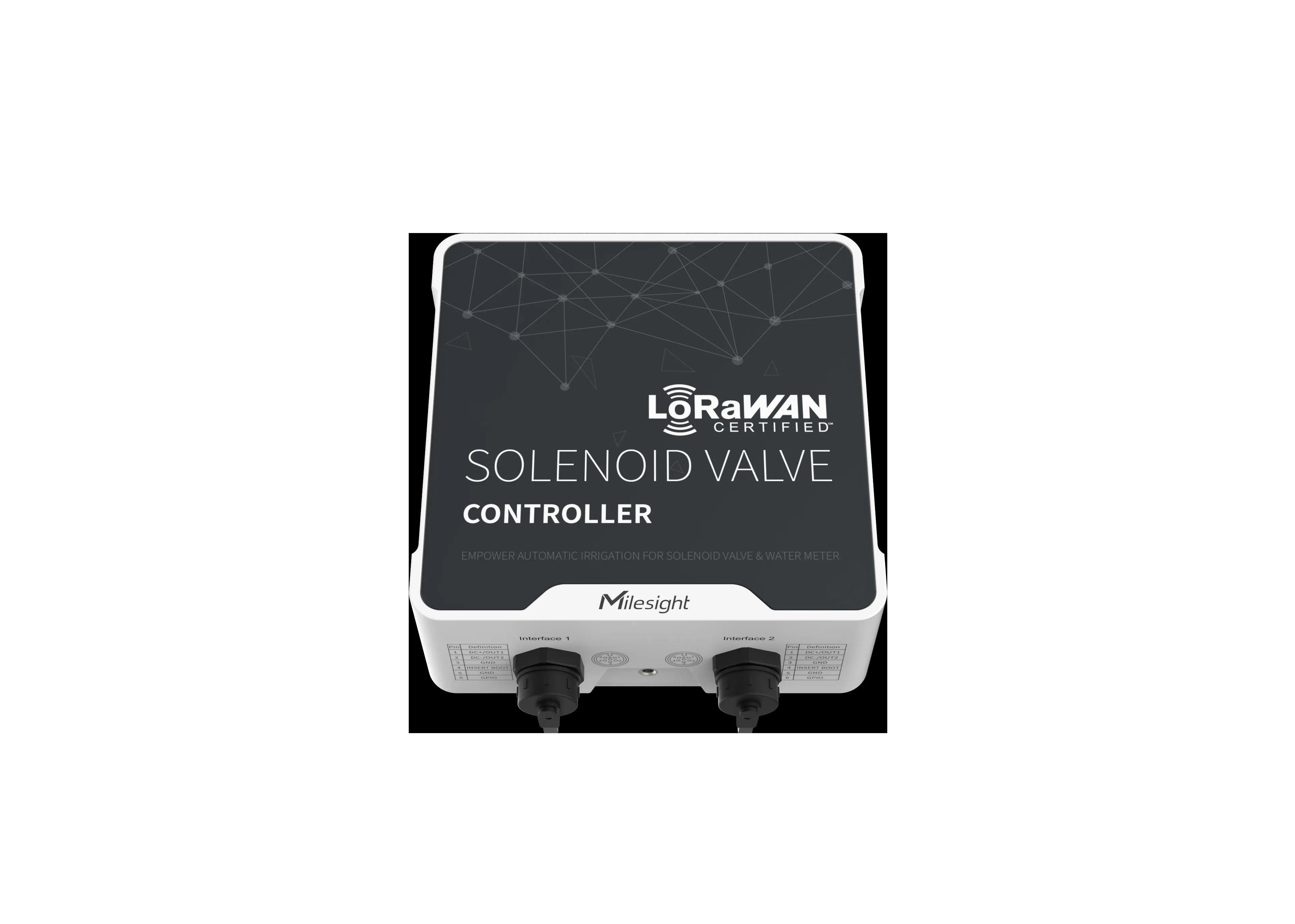

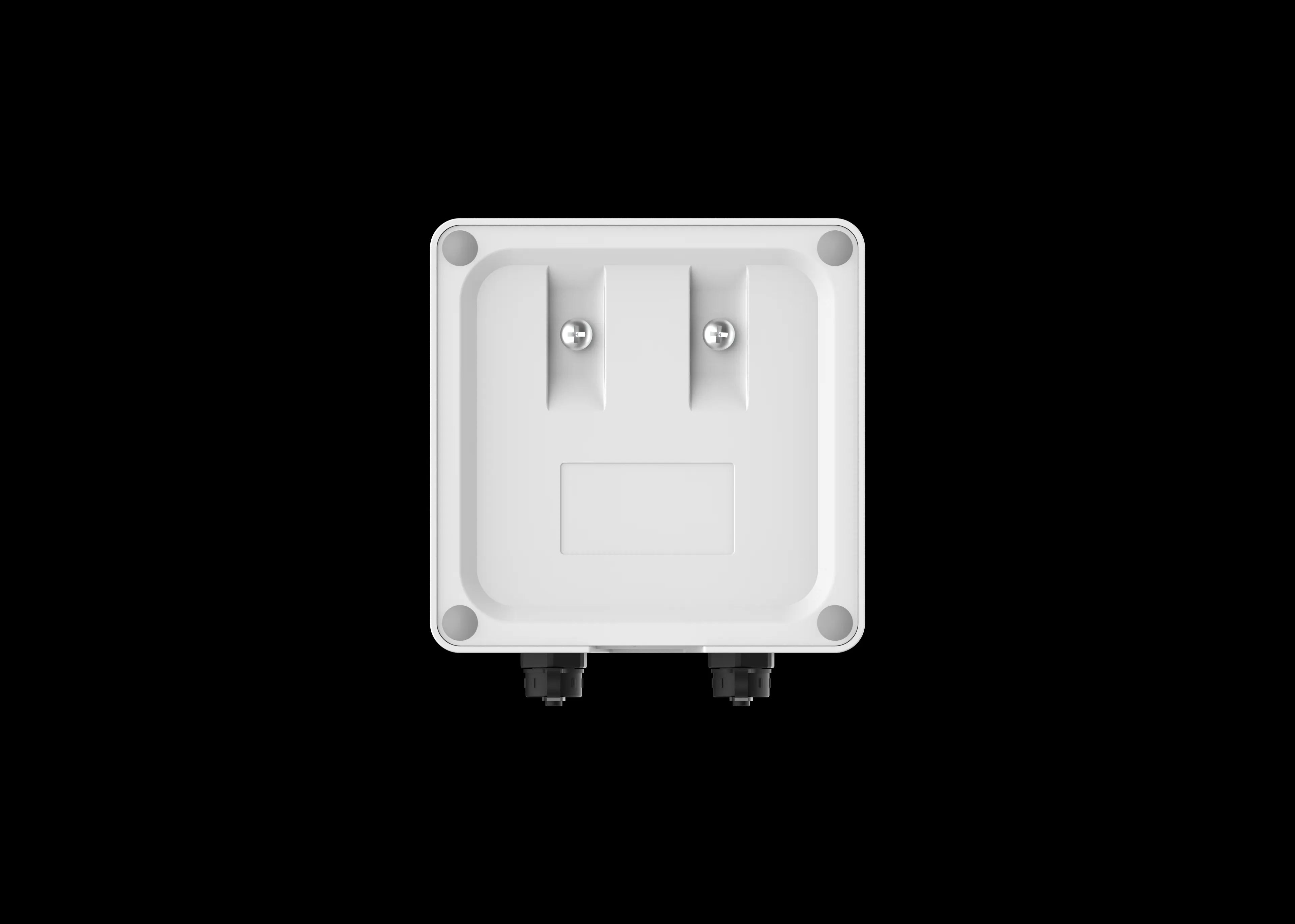

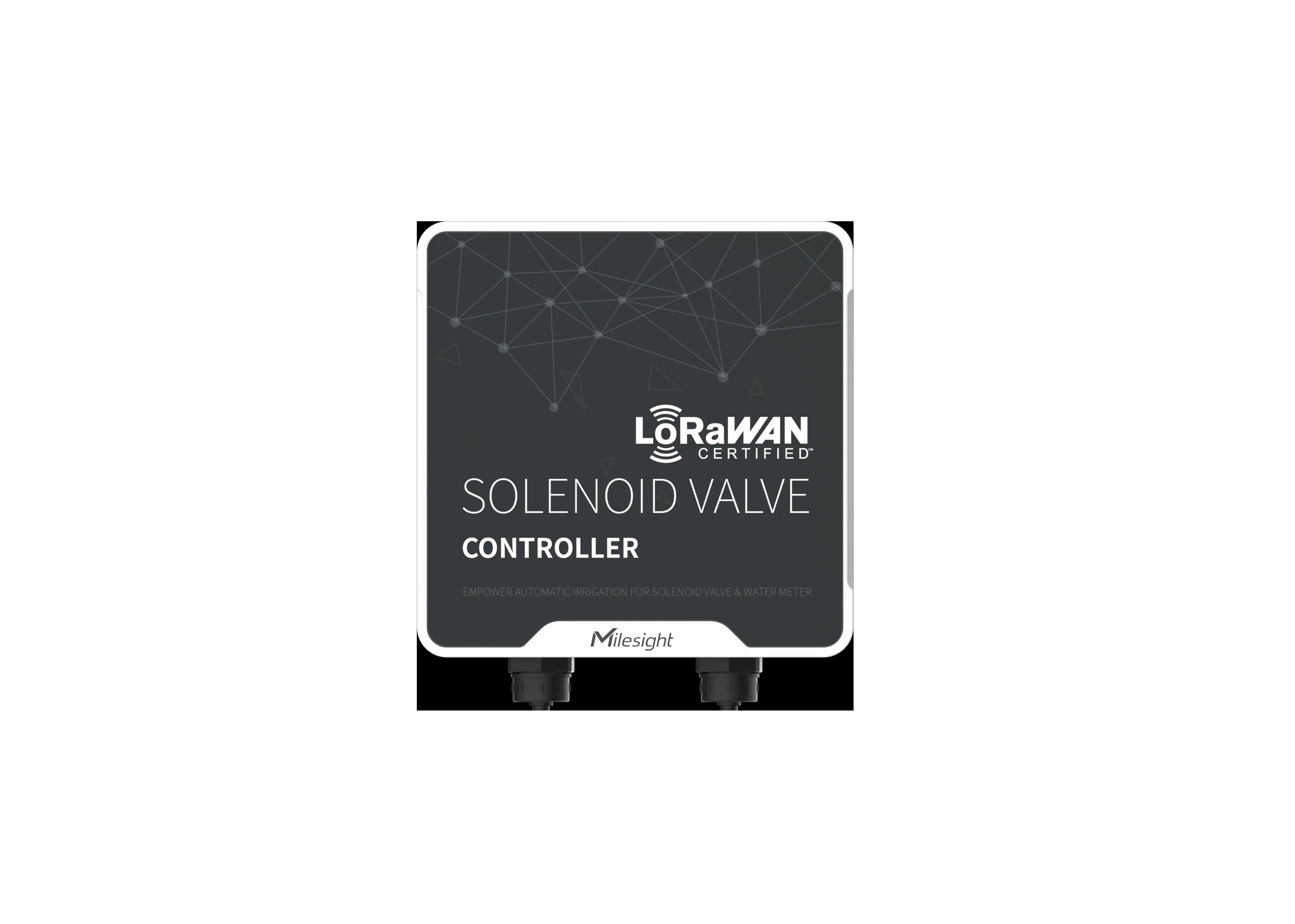

The Milesight UC512-DI-868M is an industrial-grade LoRaWAN® solenoid valve controller with dual digital inputs, designed for remote automation of irrigation, water supply, and fluid control systems. Combining efficient LoRaWAN® connectivity with an IP67 industrial enclosure, the UC512 enables reliable, long-range operation in challenging outdoor environments.
With support for latching solenoid valves and flexible power options, the UC512 is ideal for smart agriculture, industrial automation, and municipal water management applications where remote control and monitoring are essential.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💡 Key Features
📡 LoRaWAN® Connectivity – Long-range, low-power wireless communication
🚰 Dual Solenoid Outputs – Controls DC latching solenoid valves (5/9/12 V)
🔌 2× Digital Inputs (DI) – Monitor switches, pulse meters, or dry-contact signals
🌧️ Rugged IP68 Enclosure – Waterproof, dustproof, outdoor-ready design
🔋 Ultra-Low Power Operation – Battery-powered for multi-year deployments
📊 Remote Monitoring & Control – Manage valves and read input states via cloud
⚙️ Flexible Configuration – NFC or USB setup through Milesight Toolbox
📢 Event-Based Automation – Create triggers based on input status or thresholds
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛠 Applications
💦 Smart Irrigation Systems – Automate zone watering with remote scheduling
🚰 Water Distribution Networks – Remote control of pipeline and tank valves
🏭 Industrial Fluid Automation – Manage liquid handling in industrial processes
🏢 Facility & Building Systems – Integrate with pumps, tanks, and hydrant lines
🌱 Agriculture Automation – Combine with sensors for data-driven irrigation
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📦 Package Includes
1 × Milesight UC512-DI-868M LoRaWAN® Solenoid Valve Controller
1 × Mounting Kit
1 × User Manual
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📥 Product Downloads
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🎥 Product Video
Product Specifications
| Model | Milesight UC512-DI-868M LoRaWAN® Solenoid Valve Controller |
| Wireless Technology | LoRaWAN® (long-range, low-power) |
| Frequency Band | EU868 |
| LoRaWAN Classes | Class A / Class B, OTAA & ABP |
| Transmit Power | Up to 16 dBm |
| Receiver Sensitivity | -137 dBm (typ.) |
| Solenoid Outputs | 2 × DC latching solenoid valve outputs (5/9/12 V) |
| Digital Inputs | 2 × dry contact inputs (supports pulse counting) |
| Antenna Options | Internal antenna or optional external antenna |
| Configuration | NFC via Milesight ToolBox App, USB (internal) |
| Power Supply | Built-in Li-SOCl₂ battery (high capacity) |
| Ingress Protection | IP67 (outdoor & harsh environment ready) |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 116 × 116 × 45.5 mm |
| Weight | Approx. 425–467 g (depending on antenna version) |
| Mounting | Wall or pole mounting |
| Certifications | CE, FCC (depending on region) |
